Dell Alienware Aurora R9 Specs 9th Generation Intel Core i5k

Dell Alienware Aurora R9 – Review

The Dell Alienware Aurora R9 is “Alienware Aurora” Series Desktop Computer launched in 30 MAY 2021 and its powered by 9th Generation Intel Core i5k Processor, NVIDIA GeForce GTX 1650 Super 6 GB GDDR5 dedicated Graphics Card with the support of up to DDR4 64 GB RAM having speed of 2666 MHz and a Two 2.5-inch hard drives Up to 2 TB Storage. The maximum weight of this desktop computer is 17.80 kg (39.24 lb) in the base variant. The Dell Alienware Aurora R9 base price is USD $900 but can be customized adding more specs and features.

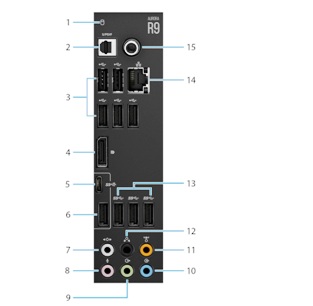

Dell Alienware Aurora R9 - Back Panel View

Dell Alienware Aurora R9 – Back Panel View

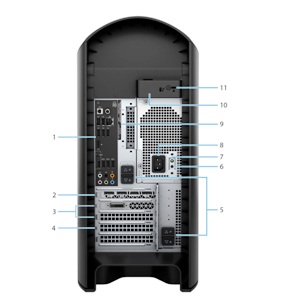

Dell Alienware Aurora R9 - Back View

Dell Alienware Aurora R9 – Back View

Dell Alienware Aurora R9 - Front View

Dell Alienware Aurora R9 – Front View

Dell Alienware Aurora R9 – Specs

QuickSpecs
Brand Dell
Series Dell Alienware Aurora
Model Dell Alienware Aurora R9
Price Starting from USD $900
Color Legendary
Processor Generation 9th Generation Intel Core i5k
Audio Integrated 7.1 channel audio with S/PDIF port
Weight 17.80 kg (39.24 lb)
Minimum RAM 8 GB
Maximum RAM 64 GB
Release Date 30 MAY 2021

Dell Alienware Aurora R9 – Full Specifications

Dell Alienware Aurora R9 Processor Specifications

Processors
9th Generation Intel Core i5k
  • Processors: 9th Generation Intel Core i5k
  • Wattage: 95 W
  • Core count: 6
  • Thread count: 6
  • Speed: 4.4 GHz
  • Cache: 9 MB
9th Generation Intel Core i7k
  • Processors: 9th Generation Intel Core i7k
  • Wattage: 95 W
  • Core count: 8
  • Thread count: 8
  • Speed: 4.6 GHz
  • Cache: 12 MB
9th Generation Intel Core i9k
  • Processors: 9th Generation Intel Core i9k
  • Wattage: 95 W
  • Core count: 8
  • Thread count: 16
  • Speed: 4.7 GHz
  • Cache: 16 MB

Operating System

Operating System
Operating System
  • Windows 10 Home (64-bit)
  • Windows 10 Professional (64-bit)

Chipset

Chipset
Chipset

9th Generation Intel Core i5k/i7k/i9k

Processor

Intel Z370

DRAM bus width

Single channel = 64-bit, dual channel = 128-bit

Flash EPROM

16 MB

PCIe bus

PCIe Gen3/Gen2

Dell Alienware Aurora R9 Memory (RAM)

Memory specifications
Slots

Four UDIMM

Type

DDR4

Speed

2666 MHz up to 3200 MHz (XMP memory)

Maximum memory

64 GB

Minimum memory

8 GB

Memory per slot

8 GB and 16 GB

Configurations supported:
  • 8 GB DDR4 at 2666 MHz
  • 16 GB DDR4 at 2666 MHz
  • 32 GB DDR4 at 2666 MHz
  • 64 GB DDR4 at 2666 MHz
  • 16 GB XMP at 2933 MHz
  • 32 GB XMP at 2933 MHz
  • 64 GB XMP at 2933 MHz
  • 16 GB XMP at 3200 MHz
  • 32 GB XMP at 3200 MHz
  • 64 GB XMP at 3200 MHz

Storage

Storage specifications
Two 2.5-inch hard drives SATA AHCI 6 Gbps, Up to 2 TB
One 3.5-inch hard drive SATA AHCI 6 Gbps, Up to 1 TB
One M.2 2242/2260/2280 solid-state drive
  • SATA AHCI 6 Gbps
  • PCIe NVMe up to 32 Gbps

, Up to 1 TB

Storage Configiguration

Storage
Storage
  • One M.2 2242/2260/2280 solid-state drive, one 3.5-inch hard drive, and two 2.5-inch hard drives
  • One U.2 drive and two 2.5-inch hard drives
  • One 3.5-inch hard drive and two 2.5-inch hard drives

Dell Alienware Aurora R9 Dimensions and Weight

Dimensions and weight
Height:
Front

441.80 mm (17.39 in.)

Rear

481.60 mm (18.96 in.)

Width

222.80 mm (8.77 in.)

Depth

431.90 mm (17 in.)

Weight (maximum)

17.80 kg (39.24 lb)

Video | Graphics (Discrete graphics)

Discrete graphics specifications
NVIDIA GeForce GTX 1650 Super One HDMI port and one DVI port, 6 GB, GDDR5
NVIDIA GeForce RTX 2080 One HDMI port and one DisplayPort, 8 GB, GDDR6
NVIDIA GeForce RTX 2080 Ti One HDMI port and one DisplayPort, 11 GB, GDDR6

Audio Specifications

Audio specifications
Type

Integrated 7.1 channel audio with S/PDIF port

Controller

Realtek ALC3861

Internal interface

High-definition audio

External interface

7.1 channel output, Microphone-in, stereo headphones, and headset combo connector

Ports and connectors

Ports and connectors
External:
Network

One RJ-45 port

USB
  • Five USB 2.0 ports
  • Five USB 3.1 Gen 1 ports
  • One USB 3.1 Gen 1 Type-C port
  • One USB 3.1 Gen 2 port
  • One USB 3.1 Gen 2 Type-C port
  • One USB 3.1 Gen 1 port with PowerShare
Audio
  • One audio output/headphone port (supports 2 channel audio)
  • One audio input/microphone port
  • One optical S/PDIF port
  • One coaxial S/PDIF port
  • One front L/R surround line-out port
  • One side L/R surround port
  • One rear L/R surround port
  • One center/subwoofer LFE surround port
  • One line-in port
Video

One DisplayPort port – optional

Memory card reader

Not supported

Power port

Not applicable

Security

Kensington lock slot

Internal:
PCIe expansion card slots
  • Two PCIe x16 slots
  • Two PCIe x4 slots
mSATA

Not supported

SATA

Four

M.2
  • One M.2 card slot for WLAN and Bluetooth
  • One PCIe/SATA M.2 card slot for 2242/2260/2280 solid-state drive

Communication wireless module

Ethernet specifications
Model number

Killer E2500 Ethernet controller integrated on system board

Transfer rate

10/100/1000 Mbps

Communication wireless module

Wireless module specifications
Qualcomm DW1810
  • Model number: Qualcomm DW1810
  • Transfer rate: Up to 433 Mbps
  • Frequency bands supported: Dual band 2.4 GHz/5 GHz
  • Wireless standards: Wi-Fi 5 (WiFi 802.11ac)
  • Encryption
    • 64-bit/128-bit WEP
    • AES-CCMP
    • CKIP
    • TKIP
  • Bluetooth: Bluetooth 4.2
Qualcomm DW1820
  • Model number: Qualcomm DW1820
  • Transfer rate: Up to 867 Mbps
  • Frequency bands supported: Dual band 2.4 GHz/5 GHz
  • Wireless standards: Wi-Fi 5 (WiFi 802.11ac)
  • Encryption
    • 64-bit/128-bit WEP
    • AES-CCMP
    • CKIP
    • TKIP
  • Bluetooth: Bluetooth 4.2
Killer AX1650
  • Model number: Killer AX1650
  • Transfer rate: Up to 867 Mbps
  • Frequency bands supported: Dual band 2.4 GHz/5 GHz
  • Wireless standards: Wi-Fi 5 (WiFi 802.11ax)
  • Encryption
    • 64-bit/128-bit WEP
    • AES-CCMP
    • CKIP
    • TKIP
  • Bluetooth: Bluetooth 5.0
