Dell Latitude 5431 Specs and Review Core i5-1240P Intel vPro

Dell Latitude 5431 – Review

The Latitude 5431 is 14 inch 5000 Series laptop powered by 12th Generation Intel Core i5-1240P Processor, shared Intel Iris Xe Graphics and dedicated NVIDIA GeForce MX550 2 GB GDDR6 discrete graphics card, with the support of up to 64 GB DDR5 RAM having speed of 4800 MHz and a M.2 2280, Class 40 SSD / PCIe NVMe, 512 GB storage. It has a 14 inch High Definition (HD) 1366 x 768 resolution display screen. The maximum weight for the laptop is 1.49 kg (3.30 lb) and its equipped with 4 cell, 64 WHr, “smart” lithium-ion battery and its ExpressCharge capable, integrated in the base variant. The Latitude 5431 base price is $1859 but can be customized adding more specs and features.

Latitude 5431 - Front View

Latitude 5431 – Front View

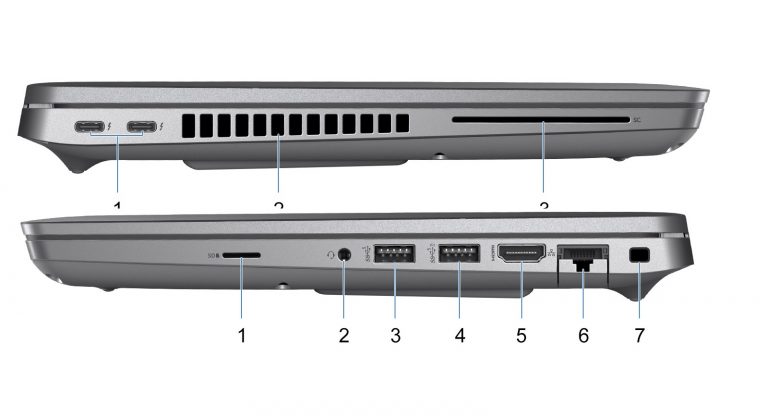

Latitude 5431 - Sides View

Latitude 5431 – Sides View

Latitude 5431 - Top View

Latitude 5431 – Top View

Latitude 5431 - Bottom View

Latitude 5431 – Bottom View

Dell Latitude 5431 – Specs

QuickSpecs
Brand Dell
Series Dell Latitude 5000
Model Dell Latitude 5431
Price Starting from $1859
Color Gray
Processor Generation 12th Generation Intel Core i5-1240P
Display Size 355.6 mm (14 in.)
Weight 1.49 kg (3.30 lb)
Battery 4 cell, 64 WHr, “smart” lithium-ion, ExpressCharge capable, integrated
Minimum RAM 8 GB
Maximum RAM 64 GB
Release Date 19 APR 2022

Dell Latitude 5431 – Full Specifications

Dell Latitude 5431 Processor Specifications

Processor
12th Generation Intel Core i5-1240P
  • Processor type: 12th Generation Intel Core i5-1240P
  • Processor wattage: 28 W
  • Processor core count: 12
  • Processor thread count: 16
  • Processor speed: Up to 4.40 GHz
  • Processor cache: 12 MB
  • Integrated graphics: Intel Iris Xe Graphics
12th Generation Intel vPro Enterprise with Intel Core i5-1250P
  • Processor type: 12th Generation Intel vPro Enterprise with Intel Core i5-1250P
  • Processor wattage: 28 W
  • Processor core count: 12
  • Processor thread count: 16
  • Processor speed: Up to 4.40 GHz
  • Processor cache: 12 MB
  • Integrated graphics: Intel Iris Xe Graphics
12th Generation Intel vPro Enterprise with Intel Core i7-1270P
  • Processor type: 12th Generation Intel vPro Enterprise with Intel Core i7-1270P
  • Processor wattage: 28 W
  • Processor core count: 12
  • Processor thread count: 16
  • Processor speed: Up to 4.80 GHz
  • Processor cache: 18 MB
  • Integrated graphics: Intel Iris Xe Graphics

Operating System

Operating System
Operating System
  • Windows 11 Home
  • Windows 11 Pro
  • Windows 11 Pro National Academic
  • Windows 11 Pro Downgrade (Windows 10 Pro Image Factory Installed)
  • Windows 10 China G-SKU
  • Ubuntu 20.04 LTS

Chipset

Chipset
Chipset

Intel P28

Processor

12th Generation Intel Core i5/i7

DRAM bus width

64-bit (for dual-channel)

Flash EPROM
  • 32 MB for non-vPro
  • 32 MB+16 MB for vPro
PCIe bus

Up to Gen 4.0

Memory (RAM)

Memory specifications
Memory slots

Two-SoDIMM

Memory type

DDR5

Memory speed

4800 MHz

Maximum memory configuration

64 GB

Minimum memory configuration

8 GB

Memory size per slot

8 GB, 16 GB, 32 GB

Memory configurations supported
  • 8 GB, 1 x 8 GB, DDR5, 4800 MHz
  • 16 GB, 1 x 16 GB, DDR5, 4800 MHz
  • 16 GB, 2 x 8 GB, DDR5, 4800 MHz, dual-channel
  • 32 GB, 1 x 32GB, DDR5, 4800 MHz
  • 32 GB, 2 x 16 GB, DDR5, 4800 MHz, dual-channel
  • 64 GB, 2 x 32 GB, DDR5, 4800 MHz, dual-channel

Storage

Storage specifications
M.2 2230, Class 35 SSD PCIe NVMe, Up to 512 GB
M.2 2280, Class 40 SSD PCIe NVMe, Up to 2 TB
M.2 2230, Class 35 SSD, self-encrypting drive PCIe NVMe, 256 GB
M.2 2280, Class 40 SSD, self-encrypting drive PCIe NVMe, 512 GB

Dell Latitude 5431 Dimensions and Weight

Dimensions and weight
Height:
Front height

20.95 mm (0.82 in.)

Rear height

23.60 mm (0.92 in.)

Width

321.35 mm (12.65 in.)

Depth

212.00 mm (8.35 in.)

Weight

1.49 kg (3.30 lb)

Dell Latitude 5431 Display (Screen)

Display specifications
High Definition (HD)
  • Display type: High Definition (HD)
  • Display-panel technology: Twisted Nematic (TN)
  • Display-panel dimensions (active area)::
  • Height: 173.95 mm (6.84 in.)
  • Width: 309.6 mm (12.18 in.)
  • Diagonal: 355.6 mm (14.00 in.)
  • Display-panel native resolution: 1366 x 768
  • Luminance (typical): 220 nits
  • Megapixels: 1.049
  • Color gamut: 45% NTSC
  • Pixels Per Inch (PPI): 112
  • Contrast ratio (typ): 300:1
  • Response time (min): 25 ms
  • Refresh rate: 60 Hz
  • Horizontal view angle: 40/40 +/- degrees
  • Vertical view angle: 10(U)/30(D) +/- degrees
  • Pixel pitch: 0.2265 x 0.2265 mm
  • Power consumption (maximum): 2.4 W
  • Anti-glare vs glossy finish: Anti-glare
  • Touch options: No
Full High Definition (FHD)
  • Display type: Full High Definition (FHD)
  • Display-panel technology: Wide Viewing Angle (WVA)
  • Display-panel dimensions (active area)::
  • Height: 173.95 mm (6.84 in.)
  • Width: 309.6 mm (12.18 in.)
  • Diagonal: 355.6 mm (14.00 in.)
  • Display-panel native resolution: 1920 x 1080
  • Luminance (typical): 250 nits
  • Megapixels: 2.07
  • Color gamut: 45% NTSC
  • Pixels Per Inch (PPI): 157
  • Contrast ratio (typ): 600:1
  • Response time (min): 35 ms
  • Refresh rate: 60 Hz
  • Horizontal view angle: 85/85 +/- degrees
  • Vertical view angle: 85(U)/85(D) +/- degrees
  • Pixel pitch: 0.161 x 0.161 mm
  • Power consumption (maximum): 3.1 W
  • Anti-glare vs glossy finish: Anti-glare
  • Touch options: No
Full High Definition (FHD)
  • Display type: Full High Definition (FHD)
  • Display-panel technology: Wide Viewing Angle (WVA)
  • Display-panel dimensions (active area)::
  • Height: 173.95 mm (6.84 in.)
  • Width: 309.6 mm (12.18 in.)
  • Diagonal: 355.6 mm (14.00 in.)
  • Display-panel native resolution: 1920 x 1080
  • Luminance (typical): 300 nits
  • Megapixels: 2.07
  • Color gamut: 72% NTSC
  • Pixels Per Inch (PPI): 157
  • Contrast ratio (typ): 600:1
  • Response time (min): 35 ms
  • Refresh rate: 60 Hz
  • Horizontal view angle: 85/85 +/- degrees
  • Vertical view angle: 85(U)/85(D) +/- degrees
  • Pixel pitch: 0.161 x 0.161 mm
  • Power consumption (maximum): 4.1 W
  • Anti-glare vs glossy finish: Anti-glare
  • Touch options: Yes
Full High Definition (FHD), Super Low Power (SLP), Low Blue Light
  • Display type: Full High Definition (FHD), Super Low Power (SLP), Low Blue Light
  • Display-panel technology: Wide Viewing Angle (WVA)
  • Display-panel dimensions (active area)::
  • Height: 173.95 mm (6.84 in.)
  • Width: 309.6 mm (12.18 in.)
  • Diagonal: 355.6 mm (14.00 in.)
  • Display-panel native resolution: 1920 x 1080
  • Luminance (typical): 400 nits
  • Megapixels: 2.07
  • Color gamut: 100% sRGB
  • Pixels Per Inch (PPI): 157
  • Contrast ratio (typ): 1000:1
  • Response time (min): 35 ms
  • Refresh rate: 60 Hz
  • Horizontal view angle: 85/85 +/- degrees
  • Vertical view angle: 85(U)/85(D) +/- degrees
  • Pixel pitch: 0.161 x 0.161 mm
  • Power consumption (maximum): 2.5 W
  • Anti-glare vs glossy finish: Anti-glare
  • Touch options: No
Full High Definition (FHD), Privacy
  • Display type: Full High Definition (FHD), Privacy
  • Display-panel technology: Wide-Viewing Angle ( WVA)
  • Display-panel dimensions (active area)::
  • Height: 173.95 mm (6.84 in.)
  • Width: 309.4 (12.18 in.)
  • Diagonal: 355.6 mm (14 in.)
  • Display-panel native resolution: 1920×1080
  • Luminance (typical): 300 nits
  • Megapixels: 2.07
  • Color gamut: sRGB 100%
  • Pixels Per Inch (PPI): 157
  • Contrast ratio (typ): 600:1
  • Response time (min): 35 ms
  • Refresh rate: 60 Hz
  • Horizontal view angle: 85/85 +/- degrees
  • Vertical view angle: 85(U)/85(D) +/- degrees
  • Pixel pitch: 0.161 x 0.161
  • Power consumption (maximum): 3.5 W
  • Anti-glare vs glossy finish: Anti-glare
  • Touch options: Yes

GPU — Integrated

GPU—Integrated
Intel Iris Xe Graphics Shared system memory, 12th Generation Intel Core i5/i7 processors

GPU — Discrete

GPU—Discrete
NVIDIA GeForce MX550 2 GB, GDDR6

Dell Latitude 5431 Battery Specifications

Battery specifications
4 cell, 64 WHr, “smart” lithium-ion, ExpressCharge capable, integrated
  • Battery type: 4 cell, 64 WHr, “smart” lithium-ion, ExpressCharge capable, integrated
  • Battery voltage: 15.20 VDC
  • Battery weight (maximum): 0.283 kg (0.62 lbs.)
  • Battery dimensions:
  • Height: 7.60 mm (8.12 in.)
  • Width: 226.60 mm (3.22 in.)
  • Depth: 81.40 mm (0.22 in.)
  • Temperature range:
  • Operating
    • Charge: 0 °C to 45 °C (32 °F to 113 °F)
    • Discharge: 0 °C to 70 °C (32 °F to 158 °F)
  • Storage: -20°C to 65°C (-4 °F to 149 °F)
  • Battery operating time: Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.
  • Battery charging time (approximate): 2 hours (when the computer is off)
  • Coin-cell battery: CR2032
  • CAUTION Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components. CAUTION Dell recommends that you charge the battery regularly for optimal power consumption. If your battery charge is completely depleted, connect the power adapter, turn on your computer, and then restart your computer to reduce the power consumption.
4 cell, 64 WHr, “smart” lithium-ion, Long Lifecycle, ExpressCharge capable, integrated
  • Battery type: 4 cell, 64 WHr, “smart” lithium-ion, Long Lifecycle, ExpressCharge capable, integrated
  • Battery voltage: 15.20 VDC
  • Battery weight (maximum): 0.283 kg (0.62 lbs.)
  • Battery dimensions:
  • Height: 7.60 mm (8.12 in.)
  • Width: 226.60 mm (3.22 in.)
  • Depth: 81.40 mm (0.22 in.)
  • Temperature range:
  • Operating
    • Charge: 0 °C to 45 °C (32 °F to 113 °F)
    • Discharge: 0 °C to 70 °C (32 °F to 158 °F)
  • Storage: -20°C to 65°C (-4 °F to 149 °F)
  • Battery operating time: Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.
  • Battery charging time (approximate): 2 hours (when the computer is off)
  • Coin-cell battery: CR2032
  • CAUTION Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components. CAUTION Dell recommends that you charge the battery regularly for optimal power consumption. If your battery charge is completely depleted, connect the power adapter, turn on your computer, and then restart your computer to reduce the power consumption.

Camera (Web Cam) Specifications

Camera specifications
One
  • Number of cameras: One
  • Camera type: HD RGB camera
  • Camera location: Front Camera
  • Camera sensor type: CMOS sensor technology
  • Camera resolution:
  • Still image: 0.92 megapixel
  • Video: 1280 x 720 (HD) at 30 fps
  • Infrared camera resolution:
  • Still image: NA
  • Video: NA
  • Diagonal viewing angle:
  • Camera: 78.60 degrees
  • Infrared camera: NA
One
  • Number of cameras: One
  • Camera type: FHD RGB/IR camera
  • Camera location: Front camera
  • Camera sensor type: CMOS sensor technology
  • Camera resolution:
  • Still image: 2.07 megapixel
  • Video: 1920 x 1080 (FHD) at 30 fps
  • Infrared camera resolution:
  • Still image: Yes
  • Video: Yes
  • Diagonal viewing angle:
  • Camera: 87 degrees
  • Infrared camera: NA
One
  • Number of cameras: One
  • Camera type: FHD RGB/IR camera, proximity sensor/express sign-in
  • Camera location: Front camera
  • Camera sensor type: CMOS sensor technology
  • Camera resolution:
  • Still image: 2.07 megapixels
  • Video: 1920 x 1080 (FHD) at 30 fps
  • Infrared camera resolution:
  • Still image: Yes
  • Video: Yes
  • Diagonal viewing angle:
  • Camera: 87.60 degrees
  • Infrared camera: NA

Audio Specifications

Audio specifications
Audio controller

Realtek ALC3204 with Waves MaxxAudio Pro

Stereo conversion

24-bit Digital-to-Analog (DAC) and Analog-to-Digital (ADC)

Internal audio interface

High definition audio interface

External audio interface

Universal audio jack

Number of speakers

Two

Internal-speaker amplifier

Supported (audio codec integrated)

External volume controls

Keyboard shortcut controls

Speaker output:
Average speaker output

2 W

Peak speaker output

2.5 W

Subwoofer output

Not supported

Microphone

Dual-array microphones

Media-card Reader

Media-card reader specifications
Media-card type

One microSD 4.0 card

Media-cards supported
  • Micro Secure Digital (mSD)
  • Micro Secure Digital High Capacity (mSDHC)
  • Micro Secure Digital Extended Capacity (mSDXC)

Internal slots

Internal slots
M.2
  • One M.2 2230 slot for WiFi and Bluetooth card
  • One M.2 2230/2280 slot for solid-state drive
  • One M.2 3042 Key-B slot for WWAN (optional)

External Ports

External ports
Network port

One RJ45 Ethernet port

USB ports
  • One USB 3.2 Gen 1 port
  • One USB 3.2 Gen 1 port with PowerShare
  • Two Thunderbolt 4 ports with DisplayPort Alt Mode/USB4/Power Delivery
Audio port

One headset (headphone and microphone combo) port

Video port

HDMI 2.0 port

Media-card reader

One microSD-card slot

SIM-card slot One microSIM-card slot
Power-adapter port

USB Type-C power input

Security-cable slot

One wedge-shaped lock slot

Communication wireless module

Wireless module specifications
Realtek RTL8822CE
  • Model number: Realtek RTL8822CE
  • Transfer rate: Up to 867 Mbps
  • Frequency bands supported: 2.4 GHz/5 GHz
  • Wireless standards
    • WiFi 802.11a/b/g
    • Wi-Fi 4 (WiFi 802.11n)
    • Wi-Fi 5 (WiFi 802.11ac)
  • Encryption
    • 64-bit/128-bit WEP
    • AES-CCMP
    • TKIP
  • Bluetooth: Bluetooth 5.0
Intel AX211
  • Model number: Intel AX211
  • Transfer rate: Up to 2400 Mbps
  • Frequency bands supported: 2.4 GHz/5 GHz/6 GHz
  • Wireless standards
    • WiFi 802.11a/b/g
    • Wi-Fi 4 (WiFi 802.11n)
    • Wi-Fi 5 (WiFi 802.11ac)
    • Wi-Fi 6E (WiFi 802.11ax)
  • Encryption
    • 64-bit/128-bit WEP
    • AES-CCMP
    • TKIP
  • Bluetooth: Bluetooth 5.2
Intel AX211
  • Model number: Intel AX211
  • Transfer rate: Up to 2400 Mbps
  • Frequency bands supported: 2.4 GHz/5 GHz/6 GHz
  • Wireless standards
    • WiFi 802.11a/b/g
    • Wi-Fi 4 (WiFi 802.11n)
    • Wi-Fi 5 (WiFi 802.11ac)
    • Wi-Fi 6E (WiFi 802.11ax)
  • Encryption
    • 64-bit/128-bit WEP
    • AES-CCMP
    • TKIP
  • Bluetooth: No Bluetooth

keyboard

Keyboard specifications
Keyboard type
  • Standard backlit keyboard
  • Standard non-backlit keyboard
Keyboard layout

QWERTY

Number of keys
  • United States and Canada: 79 keys
  • United Kingdom: 80 keys
  • Japan: 83 keys
Keyboard size

X=19.05 mm key pitch

Y=18.05 mm key pitch

Keyboard shortcuts

Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. To type the alternate character, press Shift and the desired key. To perform secondary functions, press Fn and the desired key. For more information, see

Fingerprint Reader

Fingerprint reader specifications
Fingerprint-reader sensor technology

Capacitive

Fingerprint-reader sensor resolution

508 dpi

Fingerprint-reader sensor pixel size

108 x 88

Charger | Power Adapter

Power adapter specifications
90 W AC adapter, USB-C
  • Type: 90 W AC adapter, USB-C
  • Power-adapter dimensions:
  • Height: 22 mm (0.87 in.)
  • Width: 66 mm (2.60 in.)
  • Depth: 130 mm (5.12 in.)
  • Input voltage: 100 VAC–240 VAC
  • Input frequency: 50 Hz–60 Hz
  • Input current (maximum): 1.50 A
  • Output current (continuous)
    • 20 V/4.50 A
    • 15 V/3 A
    • 9 V/3 A
    • 5 V/3 A
  • Rated output voltage: 20 VDC/15 VDC/9 VDC/5 VDC
  • Temperature range:
  • Operating: 0°C to 40°C (32°F to 104°F)
  • Storage: 40°C to -40°C (104°F to -40°F)
  • CAUTION Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.
130 W AC adapter, USB-C
  • Type: 130 W AC adapter, USB-C
  • Power-adapter dimensions:
  • Height: 22 mm (0.87 in.)
  • Width: 66 mm (2.60 in.)
  • Depth: 143 mm (5.63 in.)
  • Input voltage: 100 VAC–240 VAC
  • Input frequency: 50 Hz–60 Hz
  • Input current (maximum): 1.80 A
  • Output current (continuous): 6.50 A/1.00 A
  • Rated output voltage: 20 VDC/5 VDC
  • Temperature range:
  • Operating: 0°C to 40°C (32°F to 104°F)
  • Storage: 40°C to -40°C (104°F to -40°F)
  • CAUTION Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.
VN:F [1.9.22_1171]
Rating: 10.0/10 (1 vote cast)
Dell Latitude 5431 Specs and Review Core i5-1240P Intel vPro, 10.0 out of 10 based on 1 rating

Related posts

Top
