Dell OptiPlex 7470 All In One Desktop Computer

Dell OptiPlex 7470 All In One Review

The Dell OptiPlex 7470 All In One is AIO Series Desktop Computer launched on 03 JAN 2020 and its powered by lntel Core i3 – 9100 (4 Cores/6MB/4T/up to 4.2GHz/65W) Processor, Intel UHD Graphics 630 Integrated Graphics, with the support of up to DDR4 32 GB RAM having speed of 2666 MHz and a One Solid-State Drive (SSD) Up to 2 TB Storage. The maximum weight of this desktop computer is 13.32 / 6.04 in the base variant. The Dell OptiPlex 7470 All In One base price is $1335 but can be customized adding more specs and features

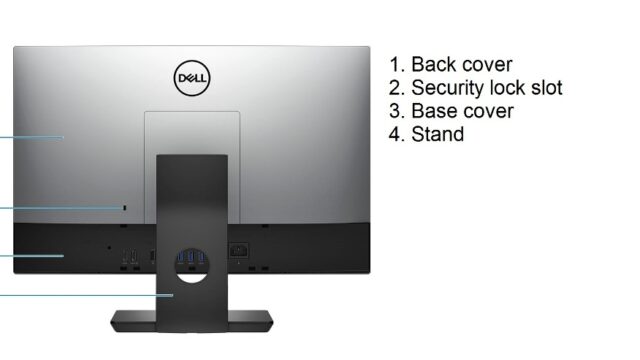

Dell OptiPlex 7470 All In One – Back View

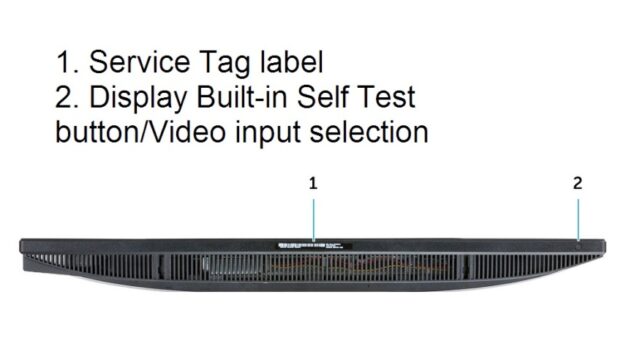

Dell OptiPlex 7470 All In One – Bottom View

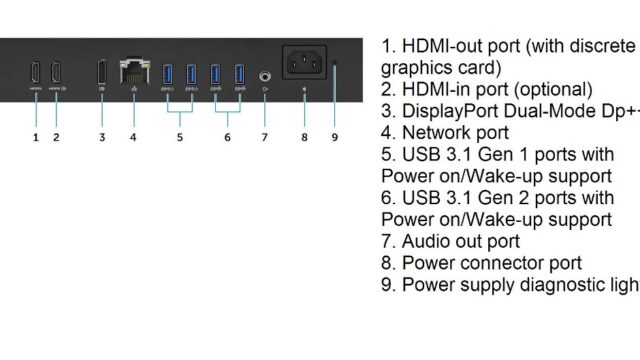

Dell OptiPlex 7470 All In One – D GPU Version View

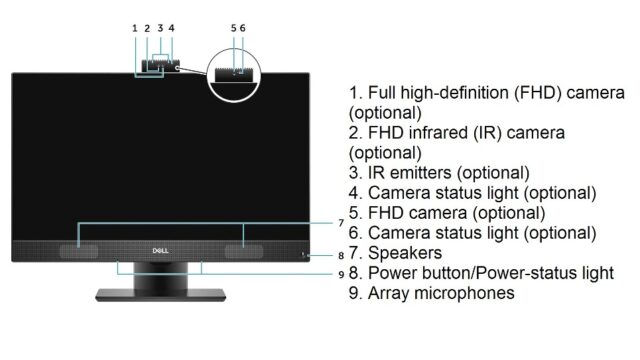

Dell OptiPlex 7470 All In One – Front View

Dell OptiPlex 7470 All In One – UMA Version View

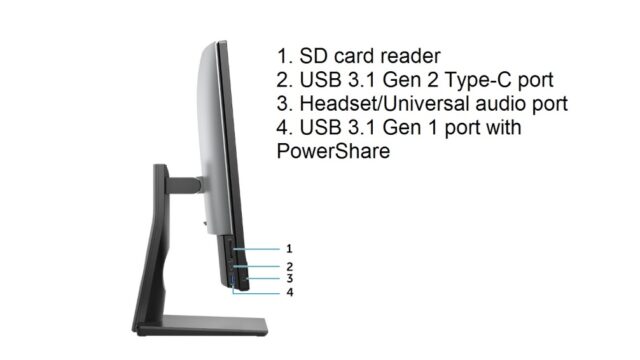

Dell OptiPlex 7470 All In One – Left View

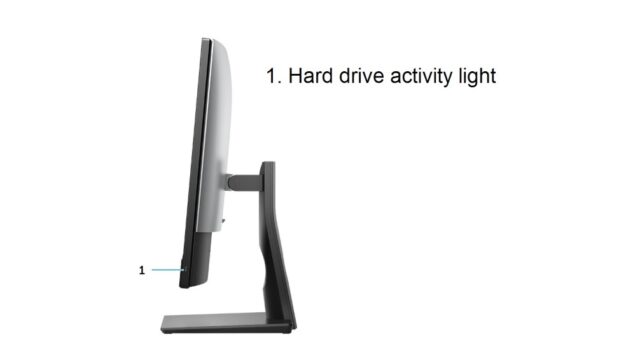

Dell OptiPlex 7470 All In One – Right View

Dell OptiPlex 7470 All-In-One – Specs

QuickSpecs
Brand	Dell
Series	Dell OptiPlex All In One
Model	Dell OptiPlex 7470 All-In-One
Price	Starting from $1335
Color	Black
Processor Generation	lntel Core i3 – 9100 (4 Cores/6MB/4T/up to 4.2GHz/65W)
Audio	Integrated Realtek ALC3289 High Definition Audio
Weight	13.32 / 6.04
Minimum RAM	4 GB
Maximum RAM	32 GB
Release Date	03 JAN 2020

Processor
RAM
Storage
Design
Display
Graphics
Audio
Ports and Connectors
Charger

Dell OptiPlex 7470- Full Specifications

Dell OptiPlex 7470 9th Generation Processor List

9th Generation Intel Core Processor specifications
lntel Core i3 – 9100 (4 Cores/6MB/4T/up to 4.2GHz/65W)
lntel Core i3 – 9300 (4 Cores/8MB/4T/up to 4.3GHz/65W)
lntel Core i5 – 9400 (6 Cores/9MB/6T/up to 4.1GHz/65W)
lntel Core i5 – 9500 (6 Cores/9MB/6T/up to 4.4GHz/65W)
Intel Core i5 – 9600 (6 Cores/9MB/6T/up to 4.6GHz/95W)
Intel Core i7 – 9700 (8 Cores/12MB/8T/up to 4.9GHz/95W)
Intel Core i9 – 9900 (8 Cores/16MB/16T/up to 5.0GHz/95W)

Dell OptiPlex 7470 8th Generation Processor List

8th Generation Intel Core Processor specifications
Intel Core i3 – 8100 (4 Cores/6MB/4T/3.6GHz/65W)
Intel Core i3 – 8300 (4 Cores/8MB/4T/3.7GHz/65W)
Intel Core i5 – 8400 (6 Cores/9MB/6T/up to 4.0GHz/65W)
Intel Core i5 – 8500 (6 Cores/9MB/6T/up to 4.1GHz/65W)
Intel Core i5 – 8600 (6 Cores/9MB/6T/up to 4.3GHz/65W)
Intel Core i7 – 8700 (6 Cores/12MB/12T/up to 4.6GHz/65W)

Dell OptiPlex 7470 All-In-One Memory (RAM)

Memory specifications
Minimum memory configuration	4 GB (1 x 4GB module)
Maximum memory configuration	32 GB
Number of slots	2 SODIMM
Maximum memory supported per slot	16 GB
Memory options	4 GB – 1 x 4 GB 8 GB – 1 x 8 GB 8 GB – 2 x 4 GB 16 GB – 1 x 16 GB 16 GB – 2 x 8 GB 32 GB – 2 x 16 GB
Type	DDR4 SDRAM Non-ECC memory
Speed	2666 MHz 2400 MHz on i3 processor

Storage

Storage specifications
One Solid-State Drive (SSD)	M.2 2280, Up to 2 TB
One 2.5 inch Hard-Disk Drive (HDD)	Approximately (2.760 x 3.959 x 0.374 inches), Up to 2 TB
One 2.5 inch Solid-State Hybrid Drive (SSHD)	Approximately (2.760 x 3.959 x 0.276 inches), Up to 1 TB
Intel Optane memory	M.2 2280, 16 GB and 32 GB

Dell OptiPlex 7470 All-In-One Dimensions and Weight

System dimensions
Non-touch chassis weight without stand (pounds / kilograms)	13.32 / 6.04
Touch chassis weight without stand (pounds / kilograms)	13.34 / 6.05

Dell OptiPlex 7470 All-In-One Display (Screen)

Display specifications
Type	Full HD (FHD) touch Full HD (FHD) Non-Touch
Screen size (Diagonal)	24 inch
Screen technology	IPS
Display	WLED
Native resolution	1920 x 1080
High definition	Full HD
Luminance	FHD Touch – 200 cd/m FHD Non-touch – 250 cd/m
Active area dimensions	527.04 mm x 296.46 mm
Height	296.46 mm
Width	527.04 mm
Megapixels	2M
Pixels Per Inch (PPI)	82
Pixel pitch	0.2745 mm x 0.2745 mm
Color depth	16.7 M
Contrast ratio (min)	600
Contrast ratio (typical)	1000
Response time (max)	25 mil sec
Typical Response time	14 mil sec
Refresh rate	60 Hhz
Horizontal viewing angle	178°
Vertical viewing angle	178°

Video | Graphics

Video
Intel UHD Graphics 630	UMA, Integrated
NVIDIA GeForce GTX 1050, 4GB	Discrete, GDDR5

Video port resolution matrix

Video port resolution matrix
4096×2160	Max resolution – Single display: 4096×2160 Max resolution – Dual MST: 2560x16003440x14402560x1080 All resolutions shown at 24bpp and unless specifically stated are @ 60 Hz refresh
2560×1600 @ 24Hz4096x2160 @ 24Hz	Max resolution – Single display: 2560×1600 @ 24Hz4096x2160 @ 24Hz Max resolution – Dual MST: N/A All resolutions shown at 24bpp and unless specifically stated are @ 60 Hz refresh
2560×1600 @ 24Hz4096x2160 @ 24Hz	Max resolution – Single display: 2560×1600 @ 24Hz4096x2160 @ 24Hz Max resolution – Dual MST: N/A All resolutions shown at 24bpp and unless specifically stated are @ 60 Hz refresh

Audio Specifications

Audio
Integrated Realtek ALC3289 High Definition Audio
High Definition Stereo support	Yes
Number of channels	2
Number of Bits / Audio resolution	16, 20, and 24-bit resolution
Sampling rate (recording/playback)	Support 44.1K/48K/96K/192 kHz sample rates
Signal to Noise Ratio	98 dB DAC outputs, 92 dB for ADC inputs
Analog Audio	Yes
Waves MaxxAudio Pro	Yes
Audio Jack Impedance
Microphone	40K ohm~60K ohm
Line-In	N/A
Line-Out	100~150 ohm
Headphone	1~4 ohm
Internal Speaker Power Rating	3 Watt (average) / 4 Watt (peak)

Ports and connectors

External ports and connectors
USB 3.1 Type A Gen1(Side/Rear/Internal)	1xUSB 3.1 Type A Gen 1 with PowerShare (side) 2xUSB 3.1 Type A Gen 1 (rear) 2xUSB 3.1 Type A Gen 2 (rear)
USB 3.1 Type C Gen 2 (Side/Rear/Internal)	1/0/0 One USB 3.1 Gen 2 Type-C port (side)
Network Connector (RJ-45)	1 Rear
HDMI 1.4 Out	1 Rear (Integrated graphics configurations)
HDMI-In (Optional)	1 Rear
HDMI 2.0 Out	1 Rear (Discrete graphics configurations)
DisplayPort 1.2	1 Rear
Universal Audio Jack	1 Side
Line-Out for headphones or speakers	1 Rear

Charger | Power Adapter

Thermal Dissipation
155 W	Integrated gfx, 155 * 3.4125 = 529 BTU/hr, 100 to 240 VAC , 50 to 60 Hz , 3 A/1.5 A
240W	Discrete gfx, 240 * 3.4125 = 819 BTU/hr, 100 to 240 VAC , 50 to 60 Hz , 3.6A/1.8 A
