Dell XPS 13 9315 – Overview
The Dell XPS 13 9315 is 13.3 inch XPS 13 Series laptop powered by 12th Generation Intel Core i5-1230U Processor, shared Intel Iris Xe Graphics with the support of up to LPDDR5 32 GB RAM having speed of 5200 MHz and a BGA solid-state drive Up to 1 TB storage. It has a Ultra High Definition (UHD+) Eyesafe low blue light display technology Wide Viewing Angle (WVA) display screen. The display screen has 2k resolution: 3840 x 2400. The maximum weight of the laptop is 1.17 kg (2.59 lb) and its equipped with 3-cell, 51 Wh “smart” lithium-ion, ExpressCharge in the base variant. The Dell XPS 13 9315 base price is $1000 but can be customized adding more specs and features.

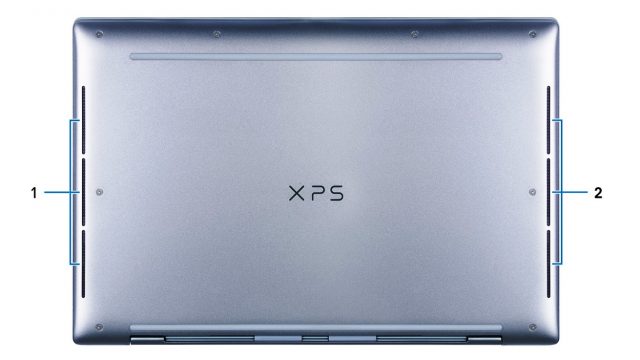

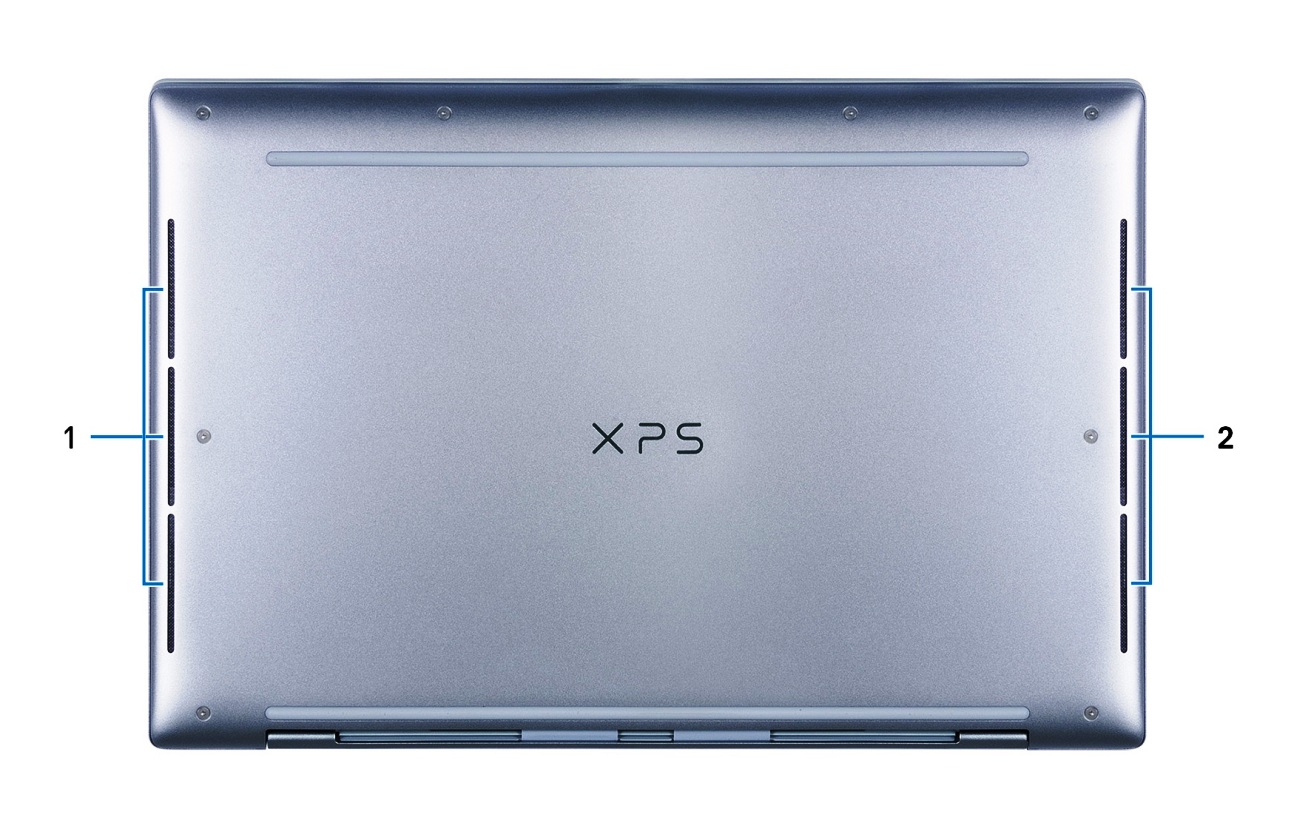

Dell XPS 13 9315 – Bottom View
Dell XPS 13 9315 – Front View

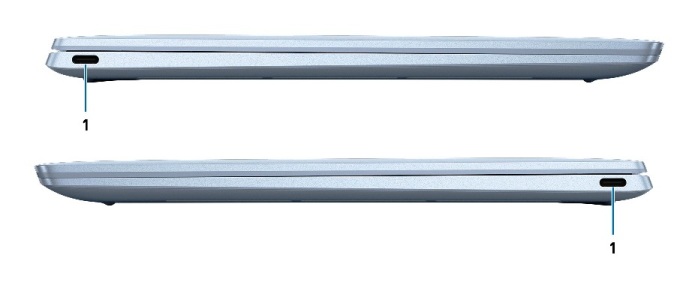

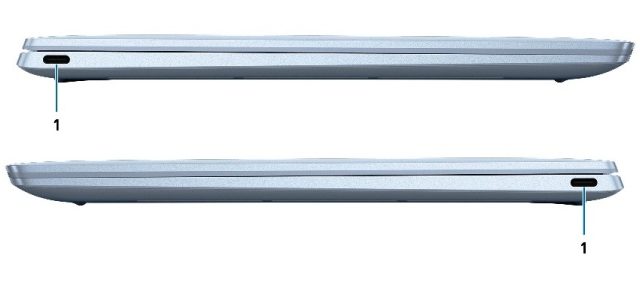

Dell XPS 13 9315 – Side Views

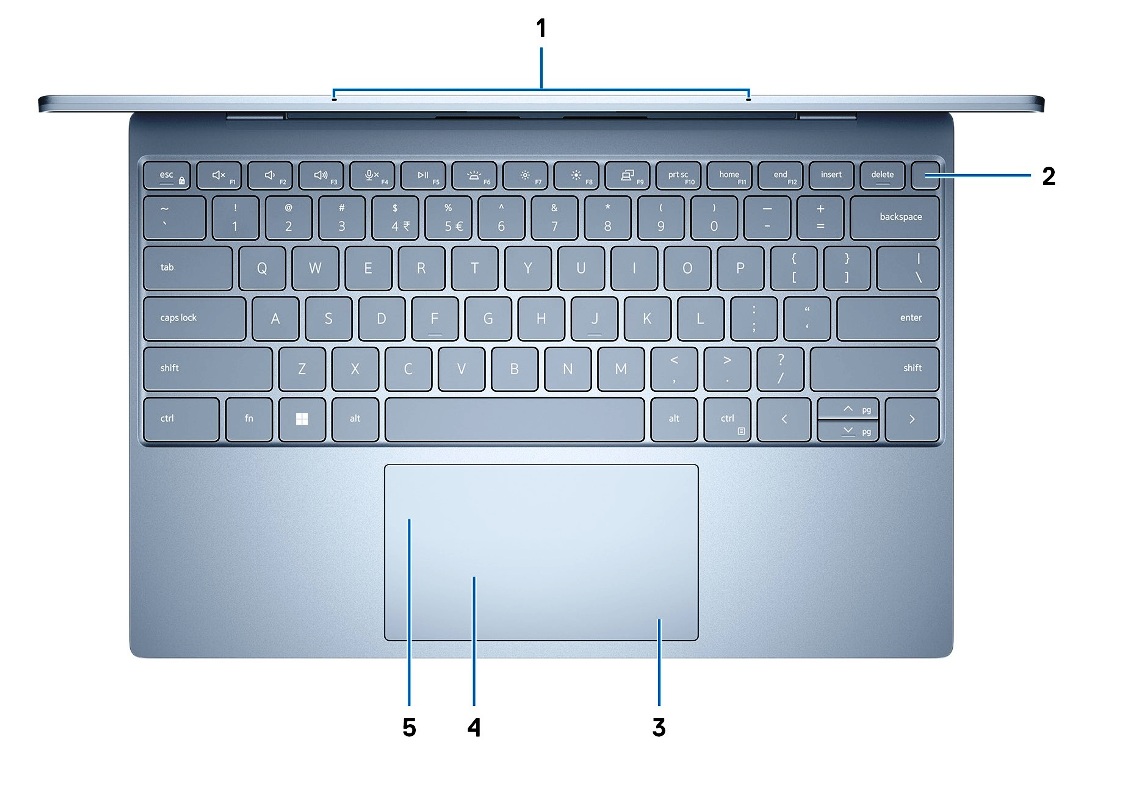

Dell XPS 13 9315 – Top View
Dell XPS 13 9315 – Specs
| Brand | Dell |
|---|---|
| Series | Dell XPS 13 |
| Model | Dell XPS 13 9315 |
| Price | Starting from $1000 |
| Color | Blue |
| Processor Generation | 12th Generation Intel Core i5-1230U |
| Display Size | 339.60 mm (13.37 in.) |
| Weight | 1.17 kg (2.59 lb) |
| Battery | 3-cell, 51 Wh “smart” lithium-ion, ExpressCharge |
| Minimum RAM | 8 GB |
| Maximum RAM | 32 GB |
| Release Date | 14 JUN 2022 |
Dell XPS 13 9315 – Technical Specifications
Processor Specifications
| 12th Generation Intel Core i5-1230U |
|
|---|---|
| 12th Generation Intel Core i7-1250U |
|
Operating System
| Operating System |
|
|---|
Chipset
| Chipset |
Integrated in the processor |
|---|---|
| Processor |
12th Generation Intel Core i5/i7 |
| DRAM bus width |
64-bit |
| Flash EPROM |
64 MB |
| PCIe bus |
Up to Gen4 |
Memory (RAM)
| Memory slots |
No memory slots |
|---|---|
| Memory type |
LPDDR5 |
| Memory speed |
5200 MHz |
| Maximum memory configuration |
32 GB |
| Minimum memory configuration |
8 GB |
| Memory configurations supported |
|
Storage
| BGA solid-state drive | PCIe Gen4 x2 NVMe, up to 32 Gbps, Up to 1 TB |
|---|
Dimensions and Weight
| Height |
13.99 mm (0.55 in.) |
|---|---|
| Width |
295.40 mm (11.63 in.) |
| Depth |
199.40 mm (7.85 in.) |
| Weight |
1.17 kg (2.59 lb) |
Display (Screen)
| Ultra High Definition (UHD+), Eyesafe low blue light display technology |
|
|---|---|
| Full High Definition (FHD+), Eyesafe low blue light display technology |
|
| Full High Definition (FHD+), Eyesafe low blue light display technology |
|
GPU — Integrated
| Intel Iris Xe Graphics | Shared system memory, 12th Generation Intel Core i5/i7 |
|---|
Battery Specifications
| Battery type |
3-cell, 51 Wh “smart” lithium-ion, ExpressCharge |
|---|---|
| Battery voltage |
11.55 VDC |
| Battery weight (maximum) |
0.220 kg (0.490 lb) |
| Battery dimensions: | |
| Height |
244.40 mm (9.62 in.) |
| Width |
4.05 mm (0.16 in.) |
| Depth |
96.62 mm (3.80 in.) |
| Temperature range: | |
| Operating |
|
| Storage |
-20°C to 65°C (-4°F to 149°F) |
| Battery operating time | Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions. |
| Battery charging time (approximate) |
3 hours (when the computer is off) |
| Coin-cell battery |
Not applicable |
Camera (Web Cam) Specifications
| Number of cameras |
Two |
|---|---|
| Camera type |
|
| Camera location |
Front |
| Camera sensor type |
CMOS sensor technology |
| Camera resolution: | |
| Still image |
0.92 megapixel |
| Video |
1280 x 720 at 30 fps |
| Infrared camera resolution: | |
| Still image |
0.25 megapixel |
| Video |
640 x 400 at 30 fps |
| Diagonal viewing angle: | |
| Camera |
75.8 degrees |
| Infrared camera |
75.8 degrees |
Audio Specifications
| Audio controller |
USB-C digital audio |
|---|---|
| Stereo conversion |
Supported |
| Internal audio interface |
SoundWire interface |
| External audio interface |
Two Thunderbolt 4 USB Type-C ports with Power Delivery |
| Number of speakers |
Two |
| Internal-speaker amplifier |
Realtek ALC1319D |
| External volume controls |
Keyboard shortcut controls |
| Speaker output: | |
| Average speaker output |
2 W + 2 W |
| Peak speaker output |
2.5 W + 2.5 W |
| Subwoofer output |
Not supported |
| Microphone |
Dual digital-array microphones |
External Ports
| USB ports |
Two Thunderbolt 4 USB Type-C ports with Power Delivery |
|---|---|
| Audio port |
Two Thunderbolt 4 USB Type-C ports with Power Delivery |
| Video port/ports |
Two Thunderbolt 4 USB Type-C ports with Power Delivery |
| Media-card reader |
Not supported |
| Power-adapter port |
DC-IN through one of the two Thunderbolt 4 USB Type-C ports |
| Security-cable slot |
Not supported |
Communication wireless module
| Model number |
Intel AX211 |
|---|---|
| Transfer rate |
Up to 2400 Mbps |
| Frequency bands supported |
2.4 GHz/5 GHz/6 GHz |
| Wireless standards |
|
| Encryption |
|
| Bluetooth |
Bluetooth 5.2 |
keyboard
| Keyboard type |
Standard backlit keyboard |
|---|---|
| Keyboard layout |
QWERTY |
| Number of keys |
|
| Keyboard size |
X=19.05 mm key pitch Y=18.05 mm key pitch |
| Keyboard shortcuts |
Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. To type the alternate character, press Shift and the desired key. To perform secondary functions, press Fn and the desired key. |
TouchPad
| Touchpad resolution: | |
|---|---|
| Horizontal |
>= 300 pixels |
| Vertical |
>= 300 pixels |
| Touchpad dimensions: | |
| Horizontal |
112.00 mm (4.41 in.) |
| Vertical |
62.85 mm (2.47 in.) |
| Touchpad gestures | For more information about touchpad gestures available on Windows, see the Microsoft knowledge base article at . |
Fingerprint Reader
| Fingerprint-reader sensor technology |
Capacitive |
|---|---|
| Fingerprint-reader sensor resolution |
500 dpi |
| Fingerprint-reader sensor pixel size |
88 x 108 |
Charger | Power Adapter
| Type |
45 W (USB Type-C) |
|---|---|
| Power-adapter dimensions: | |
| Height |
65.99 mm |
| Width |
21.99 mm |
| Depth |
54.99 mm |
| Input voltage |
100 VAC–240 VAC |
| Input frequency |
50 Hz–60 Hz |
| Input current (maximum) |
1.3 A |
| Output current (continuous) |
3 A |
| Rated output voltage |
|
