Dell Latitude 15 5000 5531 Specs and Review 12th Gen Core i7

Dell Latitude 15 5531 – Review

The Dell Latitude 5531 is 15 inch 5000 Series laptop powered by 12th Generation Intel Core i5-12500H / Core i7-12800H Processor, NVIDIA GeForce MX550 / Intel Iris Xe Graphics, with the support of up to 64 GB RAM and a M.2 2280, Class 40 SSD / PCIe NVMe, Up to 512 GB storage. It has a 15.55 inch HD display but in customization you can also select Full High Definition (FHD), Super Low Power (SLP), Low Blue Light display. The maximum weight for the laptop is 1.79 Kg (3.94 lbs.) and its equipped with 4 cell, 64 WHr, “smart” lithium-ion ExpressCharge capable battery integrated in the base variant. The Latitude 5531 base price is US$1599 but can be customized adding more specs and features.

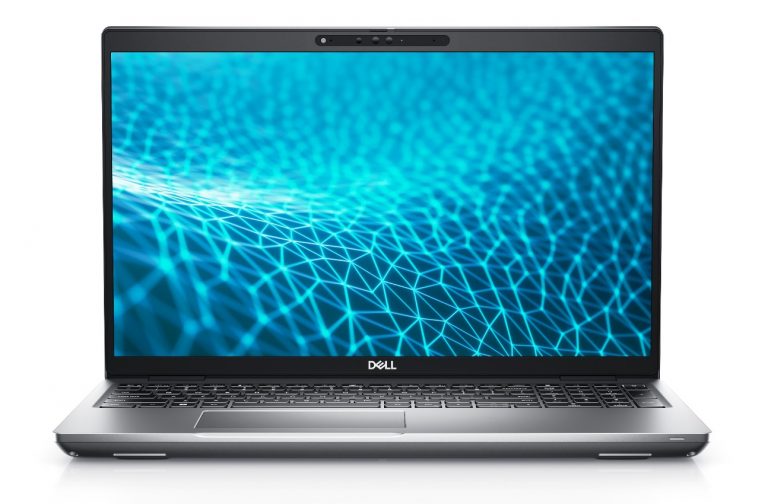

Dell Latitude 5531 Laptop - Display View

Dell Latitude 5531 Laptop – Display View


Latitude 5531 - Top View

Latitude 5531 – Top View

Latitude 5531 - Back View

Latitude 5531 – Back View

Latitude 5531 - Bottom View

Latitude 5531 – Bottom View

Latitude 5531 - Front View

Latitude 5531 – Front View

Latitude 5531 - Service Tag View

Latitude 5531 – Service Tag View

Latitude 5531 - Sides View

Latitude 5531 – Sides View

Dell Latitude 5531 – Specs

QuickSpecs
Brand Dell
Series Dell Inspiron 5000
Model Dell Latitude 5531
Price Starting from US$1599
Color GRAY
Processor Generation 12th Generation Intel Core i5-12500H / Core i7-12800H
Display Size (15.56 inch)
Weight 1.79 Kg (3.94 lbs.)
Battery 4 cell, 64 WHr, “smart” lithium-ion, ExpressCharge capable, integrated
Minimum RAM 8 GB
Maximum RAM 64 GB
Release Date 18 APR 2022

Dell Latitude 5531 – Full Specifications

Dell Latitude 15 5531 Processor Specifications

Processor
12th Generation Intel Core i5-12500H
  • Processor type: 12th Generation Intel Core i5-12500H
  • Processor wattage: 45 W
  • Processor core count: 12
  • Processor thread count: 16
  • Processor speed: Up to 4.50 GHz
  • Processor cache: 18 MB
  • Integrated graphics: Intel Iris Xe Graphics
12th Generation Intel vPro Enterprise with Intel Core i5-12600H
  • Processor type: 12th Generation Intel vPro Enterprise with Intel Core i5-12600H
  • Processor wattage: 45 W
  • Processor core count: 12
  • Processor thread count: 16
  • Processor speed: Up to 4.50 GHz
  • Processor cache: 18 MB
  • Integrated graphics: Intel Iris Xe Graphics
12th Generation Intel vPro Enterprise Intel Core i7-12800H
  • Processor type: 12th Generation Intel vPro Enterprise Intel Core i7-12800H
  • Processor wattage: 45 W
  • Processor core count: 14
  • Processor thread count: 20
  • Processor speed: Up to 4.80 GHz
  • Processor cache: 24 MB
  • Integrated graphics: Intel Iris Xe Graphics

Operating System

Operating System
Operating System
  • Windows 11 Home
  • Windows 11 Pro
  • Windows 11 Pro National Academic
  • Windows 11 Pro Downgrade (Windows 10 Pro Image-factory installed)
  • Windows 10 China G-SKU
  • Ubuntu 20.04 LTS

Chipset

Chipset
Chipset

Intel H45

Processor

12th Generation Intel Core i5/i7

DRAM bus width

64-bit (for dual-channel)

Flash EPROM
  • 32 MB for non-vPro
  • 32 MB + 16 MB for vPro
PCIe bus
  • Up to Gen 4.0 (PCH)
  • Up to Gen 5.0 (Processor)

Memory (RAM)

Memory specifications
Memory slots

Two-SoDIMM

Memory type

DDR5

Memory speed

4800 MHz

Maximum memory configuration

64 GB

Minimum memory configuration

8 GB

Memory size per slot

8 GB, 16 GB, 32 GB

Memory configurations supported
  • 8 GB, 1 x 8 GB, DDR5, 4800 MHz
  • 16 GB, 1 x 16 GB, DDR5, 4800 MHz
  • 16 GB, 2 x 8 GB, DDR5, 4800 MHz, dual-channel
  • 32 GB, 1 x 32GB, DDR5, 4800 MHz
  • 32 GB, 2 x 16 GB, DDR5, 4800 MHz, dual-channel
  • 64 GB, 2 x 32 GB, DDR5, 4800 MHz, dual-channel

Dell Latitude 5531 Storage

Storage specifications
2.5-inch, 5400 RPM, HDD SATA AHCI, up to 6 Gbps, Up to 2 TB
2.5-inch, 7200 RPM, HDD SATA AHCI, up to 6 Gbps, Up to 1 TB
M.2 2230, Class 35 SSD PCIe NVMe, Up to 512 GB
M.2 2230, Class 35 SSD, self-encrypting drive PCIe NVMe, 256 GB
M.2 2280, Class 40 SSD PCIe NVMe, Up to 2 TB
M.2 2280, Class 40 SSD, self-encrypting drive PCIe NVMe, 512 GB

Dell Latitude 5531 Dimensions and Weight

Dimensions and weight
Height:
Front height

22.67 mm (0.89 in.)

Rear height

24.05 mm (0.95 in.)

Width

357.80 mm (14.09 in.)

Depth

233.30 mm (9.19 in.)

Weight

1.79 Kg (3.94 lbs.)

Dell Latitude 5531 Display (Screen) Specs

Display specifications
High Definition (HD)
  • Display type: High Definition (HD)
  • Display-panel technology: Twisted Nematic (TN)
  • Display-panel dimensions (active area)::
  • Height: 193.60 mm (7.62 in.)
  • Width: 344.20 mm (13.55 in.)
  • Diagonal: 394.91 mm (15.55 in.)
  • Display-panel native resolution: 1366 x 768
  • Luminance (typical): 220 nits
  • Megapixels: 1.05
  • Color gamut: 45% NTSC
  • Pixels Per Inch (PPI): 100
  • Contrast ratio (typ): 500:1
  • Response time (min): 25 ms
  • Refresh rate: 60 Hz
  • Horizontal view angle: 40/40 +/- degrees
  • Vertical view angle: 10(U)/30(D) +/- degrees
  • Pixel pitch: 0.252 x 0.252 mm
  • Power consumption (maximum): 4.20 W
  • Anti-glare vs glossy finish: Anti-glare
  • Touch options: No
Full High Definition (FHD)
  • Display type: Full High Definition (FHD)
  • Display-panel technology: Wide Viewing Angle (WVA)
  • Display-panel dimensions (active area)::
  • Height: 193.60 mm (7.62 in.)
  • Width: 344.20 mm (13.55 in.)
  • Diagonal: 394.91 mm (15.55 in.)
  • Display-panel native resolution: 1920 x 1080
  • Luminance (typical): 250 nits
  • Megapixels: 2.07
  • Color gamut: 45% NTSC
  • Pixels Per Inch (PPI): 141
  • Contrast ratio (typ): 700:1
  • Response time (min): 25 ms
  • Refresh rate: 60 Hz
  • Horizontal view angle: 85/85 +/- degrees
  • Vertical view angle: 85(U)/85(D) +/- degrees
  • Pixel pitch: 0.179 x 0.179 mm
  • Power consumption (maximum): 4.20 W
  • Anti-glare vs glossy finish: Anti-glare
  • Touch options: No
Full High Definition (FHD)
  • Display type: Full High Definition (FHD)
  • Display-panel technology: Wide Viewing Angle (WVA)
  • Display-panel dimensions (active area)::
  • Height: 193.60 mm (7.62 in.)
  • Width: 344.20 mm (13.55 in.)
  • Diagonal: 394.91 mm (15.55 in.)
  • Display-panel native resolution: 1920 x 1080
  • Luminance (typical): 250 nits
  • Megapixels: 2.07
  • Color gamut: 45% NTSC
  • Pixels Per Inch (PPI): 141
  • Contrast ratio (typ): 700:1
  • Response time (min): 35 ms
  • Refresh rate: 60 Hz
  • Horizontal view angle: 85/85 +/- degrees
  • Vertical view angle: 85(U)/85(D) +/- degrees
  • Pixel pitch: 0.179 x 0.179 mm
  • Power consumption (maximum): 4.20 W
  • Anti-glare vs glossy finish: Anti-glare
  • Touch options: Yes
Full High Definition (FHD), Super Low Power (SLP), Low Blue Light
  • Display type: Full High Definition (FHD), Super Low Power (SLP), Low Blue Light
  • Display-panel technology: Wide Viewing Angle (WVA)
  • Display-panel dimensions (active area)::
  • Height: 193.60 mm (7.62 in.)
  • Width: 344.20 mm (13.55 in.)
  • Diagonal: 394.91 mm (15.55 in.)
  • Display-panel native resolution: 1920 x 1080
  • Luminance (typical): 400 nits
  • Megapixels: 2.07
  • Color gamut: 100% sRGB
  • Pixels Per Inch (PPI): 141
  • Contrast ratio (typ): 700:1
  • Response time (min): 35 ms
  • Refresh rate: 60 Hz
  • Horizontal view angle: 85/85 +/- degrees
  • Vertical view angle: 85(U)/85(D) +/- degrees
  • Pixel pitch: 0.179 x 0.179 mm
  • Power consumption (maximum): 4.60 W
  • Anti-glare vs glossy finish: Anti-glare
  • Touch options: No
Ultra High Definition (UHD), Super Low Power (SLP), Low Blue Light
  • Display type: Ultra High Definition (UHD), Super Low Power (SLP), Low Blue Light
  • Display-panel technology: Wide Viewing Angle (WVA)
  • Display-panel dimensions (active area)::
  • Height: 193.60 mm (7.62 in.)
  • Width: 344.20 mm (13.55 in.)
  • Diagonal: 394.91 mm (15.55 in.)
  • Display-panel native resolution: 3840 x 2160
  • Luminance (typical): 400 nits
  • Megapixels: 8.30
  • Color gamut: 100% sRGB
  • Pixels Per Inch (PPI): 283
  • Contrast ratio (typ): 1000:1
  • Response time (min): 35 ms
  • Refresh rate: 60 Hz
  • Horizontal view angle: 85/85 +/- degree
  • Vertical view angle: 85(U)/85(D) +/- degree
  • Pixel pitch: 0.0896 x 0.0896 mm
  • Power consumption (maximum): 4.5 W
  • Anti-glare vs glossy finish: Anti-glare
  • Touch options: No

Shared Graphics

GPU—Integrated
Intel Iris Xe Graphics Shared system memory, 12th Generation Intel Core i5/i7 processors

DedicatedGraphics Card

GPU—Discrete
NVIDIA GeForce MX550 2 GB, GDDR6

Dell Latitude 5531 Battery Specifications

Battery specifications
4 cell, 64 WHr, “smart” lithium-ion, ExpressCharge capable, integrated
  • Battery type: 4 cell, 64 WHr, “smart” lithium-ion, ExpressCharge capable, integrated
  • Battery voltage: 15.20 VDC
  • Battery weight (maximum): 0.283 kg (0.62 lbs.)
  • Battery dimensions:
  • Height: 7.60 mm (0.30 in.)
  • Width: 226.60 mm (8.92 in.)
  • Depth: 81.40 mm (3.20 in.)
  • Temperature range:
  • Operating
    • Charge: 0 °C to 45 °C (32 °F to 113 °F)
    • Discharge: 0 °C to 70 °C (32 °F to 158 °F)
  • Storage: -20 °C to 65 °C (-4 °F to 149 °F)
  • Battery operating time: Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.
  • Battery charging time (approximate): 4 hours (when the computer is off)
  • Coin-cell battery: CR2032
4 cell, 64 WHr, “smart” lithium-ion, Long Lifecycle, ExpressCharge capable, integrated
  • Battery type: 4 cell, 64 WHr, “smart” lithium-ion, Long Lifecycle, ExpressCharge capable, integrated
  • Battery voltage: 15.20 VDC
  • Battery weight (maximum): 0.283 kg (0.62 lbs.)
  • Battery dimensions:
  • Height: 7.60 mm (0.30 in.)
  • Width: 226.60 mm (8.92 in.)
  • Depth: 81.40 mm (3.20 in.)
  • Temperature range:
  • Operating
    • Charge: 0 °C to 45 °C (32 °F to 113 °F)
    • Discharge: 0 °C to 70 °C (32 °F to 158 °F)
  • Storage: -20 °C to 65 °C (-4 °F to 149 °F)
  • Battery operating time: Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.
  • Battery charging time (approximate): 4 hours (when the computer is off)
  • Coin-cell battery: CR2032
6-cell, 97 WHr, “smart” lithium-ion, ExpressCharge capable, integrated
  • Battery type: 6-cell, 97 WHr, “smart” lithium-ion, ExpressCharge capable, integrated
  • Battery voltage: 11.40 VDC
  • Battery weight (maximum): 0.429 Kg (0.95 lbs.)
  • Battery dimensions:
  • Height: 7.70 mm (0.30 in.)
  • Width: 332.00 mm (13.07 in.)
  • Depth: 82.00 mm (3.23 in.)
  • Temperature range:
  • Operating
    • Charge: 0 °C to 50 °C (32 °F to 122 °F)
    • Discharge: 0 °C to 70 °C, 32 °F to 158 °F
  • Storage: -20 °C to 60 °C (-4 °F to 140 °F)
  • Battery operating time: Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.
  • Battery charging time (approximate): 4 hours (when the computer is off)
  • Coin-cell battery: CR2032

HD RGB camera specifications

HD RGB camera specifications
Number of cameras One
Camera type

HD RGB camera

Camera location

Front camera

Camera sensor type

CMOS sensor technology

Camera resolution:
Still image

1 megapixel

Video

1280 x 720 (VGA/HD) at 30 fps

Diagonal viewing angle:
Camera

78.6 degrees

FHD RGB + IR camera specifications

FHD RGB + IR camera specifications
Number of cameras One
Camera type

FHD RGB camera/FHD Infrared camera

Camera location

Front camera

Camera sensor type

CMOS sensor technology

Camera resolution:
Still image

2.07 megapixel

Video

1920 x 1080 (VGA/FHD) at 30 fps

Infrared camera resolution:
Still image

0.23 megapixel

Video

640 x 360 (VGA/FHD) at 15 fps

Diagonal viewing angle:
Camera

87.6 degrees

Infrared camera

87.6 degrees

FHD RGB + IR camera, Express Sign-In (EMZA) camera specifications

FHD RGB + IR camera, Express Sign-In (EMZA) camera specifications
Number of cameras One
Camera type

FHD RGB camera/FHD Infrared camera with EMZA

Camera location

Front camera

Camera sensor type

CMOS sensor technology

Camera resolution:
Still image

2.07 megapixel

Video

1920 x 1080 (VGA/FHD) at 30 fps

Infrared camera resolution:
Still image

0.23 megapixel

Video

640 x 360 (VGA/FHD) at 15 fps

Diagonal viewing angle:
Camera

87.6 degrees

Infrared camera

87.6 degrees

Audio Specifications

Audio specifications
Audio controller

Realtek ALC3204 with Waves MaxxAudio Pro

Stereo conversion

24-bit Digital-to-Analog (DAC) and Analog-to-Digital (ADC)

Internal audio interface

High definition audio interface

External audio interface

Universal audio jack

Number of speakers

Two

Internal-speaker amplifier

Supported (audio codec integrated)

External volume controls

Keyboard shortcut controls

Speaker output:
Average speaker output

2 W

Peak speaker output

2.5 W

Subwoofer output

Not supported

Microphone

Dual-array microphones

Media-card Reader

Media-card reader specifications
Media-card type

One microSD-card 4.0

Media-cards supported
  • Micro Secure Digital (mSD)
  • Micro Secure Digital High Capacity (mSDHC)
  • Micro Secure Digital Extended Capacity (mSDXC)

Internal slots

Internal slots
SATA One SATA 3.0 slot for 2.5-inch hard drive
M.2
  • One M.2 2230 slot for WiFi and Bluetooth card
  • Two M.2 2230/2280 slots for solid-state drive
  • One M.2 3042/3052 Key-B slot for WWAN (optional)

External Ports

External ports
Network port

One RJ45 Ethernet port

USB ports
  • One USB 3.2 Gen 1 port
  • One USB 3.2 Gen 1 port with PowerShare
  • Two Thunderbolt 4 ports with DisplayPort Alt Mode/USB4/Power Delivery
Audio port

One headset (headphone and microphone combo) port

Video port

HDMI 2.0 port

Media-card reader

One microSD-card slot

SIM-card slot One microSIM-card slot
Power-adapter port

USB Type-C power input

Security-cable slot

One wedge-shaped lock slot

Communication wireless module

Wireless module specifications
Realtek RTL8822CE
  • Model number: Realtek RTL8822CE
  • Transfer rate: Up to 867 Mbps
  • Frequency bands supported: 2.4 GHz/5 GHz
  • Wireless standards
    • WiFi 802.11a/b/g
    • Wi-Fi 4 (WiFi 802.11n)
    • Wi-Fi 5 (WiFi 802.11ac)
  • Encryption
    • 64-bit/128-bit WEP
    • AES-CCMP
    • TKIP
  • Bluetooth: Bluetooth 5.0
Intel AX211
  • Model number: Intel AX211
  • Transfer rate: Up to 2400 Mbps
  • Frequency bands supported: 2.4 GHz/5 GHz/6 GHz
  • Wireless standards
    • WiFi 802.11a/b/g
    • Wi-Fi 4 (WiFi 802.11n)
    • Wi-Fi 5 (WiFi 802.11ac)
    • Wi-Fi 6E (WiFi 802.11ax)
  • Encryption
    • 64-bit/128-bit WEP
    • AES-CCMP
    • TKIP
  • Bluetooth: Bluetooth 5.2
Intel AX211
  • Model number: Intel AX211
  • Transfer rate: Up to 2400 Mbps
  • Frequency bands supported: 2.4 GHz/5 GHz/6 GHz
  • Wireless standards
    • WiFi 802.11a/b/g
    • Wi-Fi 4 (WiFi 802.11n)
    • Wi-Fi 5 (WiFi 802.11ac)
    • Wi-Fi 6E (WiFi 802.11ax)
  • Encryption
    • 64-bit/128-bit WEP
    • AES-CCMP
    • TKIP
  • Bluetooth: No Bluetooth

keyboard

Keyboard specifications
Keyboard type
  • Standard backlit keyboard
  • Standard non-backlit keyboard
Keyboard layout

QWERTY

Number of keys
  • United States and Canada: 99 keys
  • United Kingdom: 100 keys
  • Japan: 103 keys
Keyboard size

X=18.05 mm key pitch

Y=18.05 mm key pitch

Keyboard shortcuts

Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. To type the alternate character, press Shift and the desired key. To perform secondary functions, press Fn and the desired key.

For more information, see .

Fingerprint Reader

Fingerprint reader specifications
Fingerprint-reader sensor technology

Capacitive

Fingerprint-reader sensor resolution

508 dpi

Fingerprint-reader sensor pixel size

256 x 360

Charger | Power Adapter

Power adapter specifications
90 W AC adapter, USB-C (supported only in UMA configuration)
  • Type: 90 W AC adapter, USB-C (supported only in UMA configuration)
  • Power-adapter dimensions:
  • Height: 22 mm (0.87 in.)
  • Width: 66 mm (2.60 in.)
  • Depth: 130 mm (5.12 in.)
  • Input voltage: 100 VAC–240 VAC
  • Input frequency: 50 Hz–60 Hz
  • Input current (maximum): 1.50 A
  • Output current (continuous)
    • 20 V/4.50 A
    • 15 V/3 A
    • 9 V/3 A
    • 5 V/3 A
  • Rated output voltage: 20 VDC/15 VDC/9 VDC/5 VDC
  • Temperature range:
  • Operating: 0°C to 40°C (32°F to 104°F)
  • Storage: 40°C to -40°C (104°F to -40°F)
130 W AC adapter, USB-C
  • Type: 130 W AC adapter, USB-C
  • Power-adapter dimensions:
  • Height: 22 mm (0.87 in.)
  • Width: 66 mm (2.60 in.)
  • Depth: 143 mm (5.63 in.)
  • Input voltage: 100 VAC–240 VAC
  • Input frequency: 50 Hz–60 Hz
  • Input current (maximum): 1.80 A
  • Output current (continuous): 6.50 A/1.00 A
  • Rated output voltage: 20 VDC/5 VDC
  • Temperature range:
  • Operating: 0°C to 40°C (32°F to 104°F)
  • Storage: 40°C to -40°C (104°F to -40°F)
VN:F [1.9.22_1171]
Rating: 0.0/10 (0 votes cast)
Summary
product image
Author Rating
1star1star1star1star1star
Aggregate Rating
5 based on 6 votes
Brand Name
Dell
Product Name
Dell Latitude 15 5000 5531 Laptop
Price
USD 1599
Product Availability
Available in Stock

Related posts

Top
