Dell Vostro 3401 – Review
The Vostro 3401 is 14 inch 3000 Series laptop powered by 10th Generation Intel Core i3-1005G1 Processor, Intel UHD Graphics, with the support of up to DDR4 16 GB RAM having speed of 2666 MHz and a M.2 2230/2280 for solid-state drive PCIe NVMe 3×4, upto 512 GB storage. It has High Definition (HD) display screen with a Native resolution 1366 x 768. The maximum weight of the laptop is 1.64 kg (3.61 lb) and its equipped with 42 WHr Polymer battery in the base variant. The Vostro 14 3000 3401 base price is US$420 but can be customized adding more specs and features

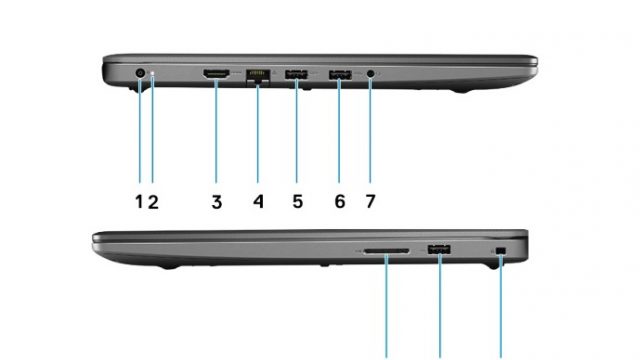

Vostro 3401 – Sides View

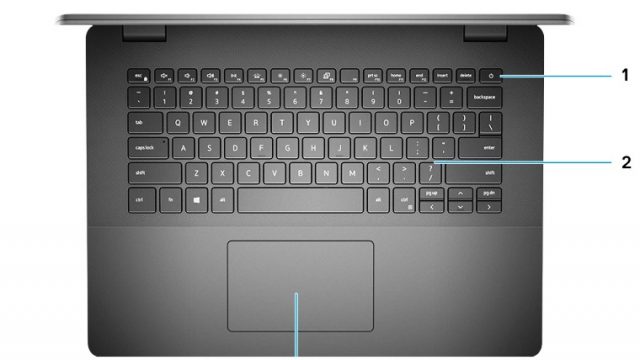

Vostro 3401 – Palmrest View

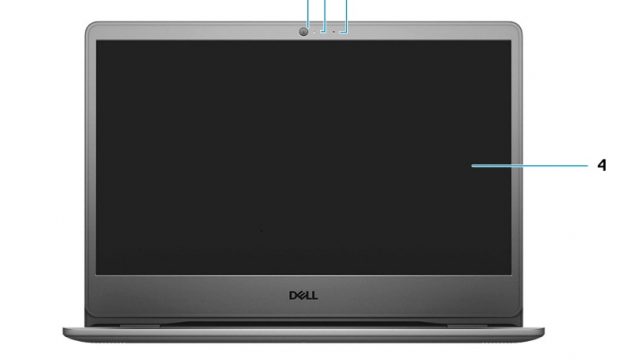

Vostro 3401 – Display View

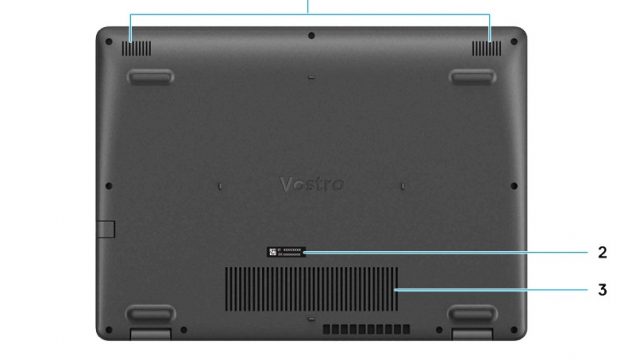

Vostro 3401 – Bottom View
Dell Vostro 3401 – Specs
| Brand | Dell |
|---|---|
| Series | Dell Vostro 3000 |
| Model | Dell Vostro 3401 |
| Price | Starting from US$420 |
| Color | NATURAL SILVER |
| Processor Generation | 10th Generation Intel Core i3-1005G1 |
| Display Size | 355.60 mm (14.00 in.) |
| Weight | 1.64 kg (3.61 lb) |
| Battery | 42 WHr Polymer |
| Minimum RAM | 4 GB |
| Maximum RAM | 16 GB |
| Release Date | 08 SEP 2020 |
Dell Vostro 3401 – Full Specifications
Dell Vostro 13 3000 3401 Processor Specifications
| Processors |
10th Generation Intel Core i3-1005G1 |
|---|---|
| Wattage |
15 W |
| Core count |
2 |
| Thread count |
4 |
| Speed |
Up to 3.4 GHz |
| Cache |
4 MB |
| Integrated graphics |
Intel UHD Graphics |
Operating System
| Operating System |
|
|---|
Chipset
| Processor |
Ice lake U (ICL U) PCH-LP |
|---|---|
| Chipset |
Intel Core i3 |
| DRAM bus width |
64-bit |
| PCIe bus |
Gen 3 |
Memory (RAM)
| Slots |
Two SODIMM slots |
|---|---|
| Type |
DDR4 |
| Speed |
2666 MHz |
| Maximum memory |
16 GB |
| Minimum memory |
4 GB |
| Configurations supported |
|
Storage
| 2.5 in. 5400 rpm, hard drive | SATA, upto 2 TB |
|---|---|
| M.2 2230 solid-state drive | PCIe NVMe 3×4, upto 512 GB |
| M.2 2280 solid-state drive | PCIe NVMe 3×4, upto 1 TB |
Dell Vostro 13 3000 3401 Dimensions and Weight
| Height: | |
|---|---|
| Front |
18.10 mm (0.71 in.) |
| Rear |
19.90 mm (0.78 in.) |
| Width |
328.70 mm (12.94 in.) |
| Depth |
239.50 mm (9.42 in.) |
| Weight |
1.64 kg (3.61 lb) |
Dell Vostro 13 3000 3401 Display (Screen)
| High Definition (HD) |
|
|---|---|
| Full High Definition (FHD) |
|
Video | Graphics (Integrated graphics)
| Intel UHD Graphics |
, Shared system memory
|
|---|
Dell Vostro 13 3000 3401 Battery Specifications
| Type |
42 WHr Polymer battery |
|---|---|
| Voltage |
11.40 VDC |
| Weight (maximum) |
0.2 kg (0.44 lb) |
| Dimensions: | |
| Height |
184.15 mm (7.25 in.) |
| Width |
97.15 mm (3.82 in.) |
| Depth |
5.90 mm (0.23 in.) |
| Temperature range: | |
| Operating |
0°C to 35°C (32°F to 95°F) |
| Storage |
-40°C to 65°C (-40°F to 149°F) |
| Charging time (approximate) |
4 hours (when the computer is off) |
| Coin-cell battery |
CR2032 |
Camera (Web Cam) Specifications
| Number of cameras |
One |
|---|---|
| Type |
HD RGB camera |
| Location |
Front Camera |
| Sensor type |
CMOS sensor technology |
| Resolution: | |
| Still image |
0.92 megapixel |
| Video |
1280 x 720 (HD) at 30 fps |
| Diagonal viewing angle |
78.6 degrees |
Audio Specifications
| Realtek ALC3204 |
|
|---|---|
| Cirrus CS8409 (CS42L42 + TI SN005825) |
|
Media-card Reader
| Type |
One Micro SD 3.0 card |
|---|---|
| Cards supported |
|
External ports and connectors
| External: | |
|---|---|
| Network |
One Flip-down RJ 45 10/100/1000 Mbps |
| USB |
|
| Audio |
|
| Video |
One HDMI 1.4 port |
| Power adapter port |
4.5 mm barrel-type |
| Security |
One Wedge shaped lock slot |
| Card slot |
One SD 3.0 card slot |
Internal ports and connectors
| Internal: | |
|---|---|
| One M.2 Key-M (2280 or 2230) for solid-state drive One M.2 2230 Key-E for WLAN |
|
| SIM card |
Not Supported |
Ethernet/h3>
| Model number |
Integrated Realtek RTL8111H |
|---|---|
| Transfer rate |
e.g. 10/100/1000 Mbps |
Communication wireless module
| Intel 9462 |
|
|---|---|
| Qualcomm QCA9377 (DW1810) |
|
| Realtek RTL8723DE |
|
keyboard
| Keyboard type |
|
|---|---|
| Keyboard layout |
QWERTY |
| Number of keys |
|
| Keyboard size |
X=18.7 mm key pitch Y=18.05 mm key pitch |
| Keyboard shortcuts |
Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. To type the alternate character, press Shift and the desired key. To perform secondary functions, press Fn and the desired key. |
TouchPad
| Touchpad resolution: | |
|---|---|
| Horizontal |
|
| Vertical |
|
| Touchpad dimensions: | |
| Horizontal |
105 mm (4.13 in.) |
| Vertical |
65 mm (2.55 in.) |
| Touchpad gestures | For more information about touchpad gestures available on Windows, see the Microsoft knowledge base article at . |
Fingerprint Reader
| Sensor technology |
Capacitive |
|---|---|
| Sensor resolution |
500 dpi |
| Sensor pixel size |
80 x 64 |
Security
| Trusted Platform Module (TPM) 2.0 | Integrated on system board |
|---|---|
| Fingerprint reader | Optional |
| Wedge-shaped lock slot | Standard |
Security Software
| Dell Client Command Suite |
|---|
| Optional Dell Data Security and Management Software Dell Client Command Suite Dell BIOS Verification Optional Dell Endpoint Security and Management Software VMware Carbon Black Endpoint Standard VMware Carbon Black Endpoint Standard + Secureworks Threat Detection and Response Dell Encryption Enterprise Dell Encryption Personal Carbonite VMware Workspace ONE Absolute® Endpoint Visibility and Control Netskope Dell Supply Chain Defense |
Charger | Power Adapter
| 45 W |
|
|---|---|
| 65 W |
|
