Dell Inspiron 16 5630 Intel 13th Gen Laptop

Dell Inspiron 16 5630 – Review

The Dell Inspiron 16 5630 is 16″ 5000 Series laptop powered by 13th Generation Intel Core i3-1315U Processor, Intel UHD Graphics, with the support of up to 16 GB Dual-channel LPDDR5/LPDDR5x. The RAM have speed of 4800 MHz and a M.2 2230 solid-state drive for storage. Other than the shared integrated graphics the customization buy has an option to add 4 GB GDDR6 NVIDIA GeForce RTX 2050 Graphics card. It has a Wide Viewing Angle (WVA) Full High Definition (FHD+) ComfortView display screen. The maximum weight of the laptop is 4.28 lb (1.94 kg) and its equipped with 4-cell polymer (54 Wh), Li-ion battery in the base variant. Battery charging time is approximate 2 hr and with Express charge it takes 3 hr (Standard charge hours when the computer is off). The Inspiron 16 5630 base price is USD $580 but can be customized adding more specs and features.

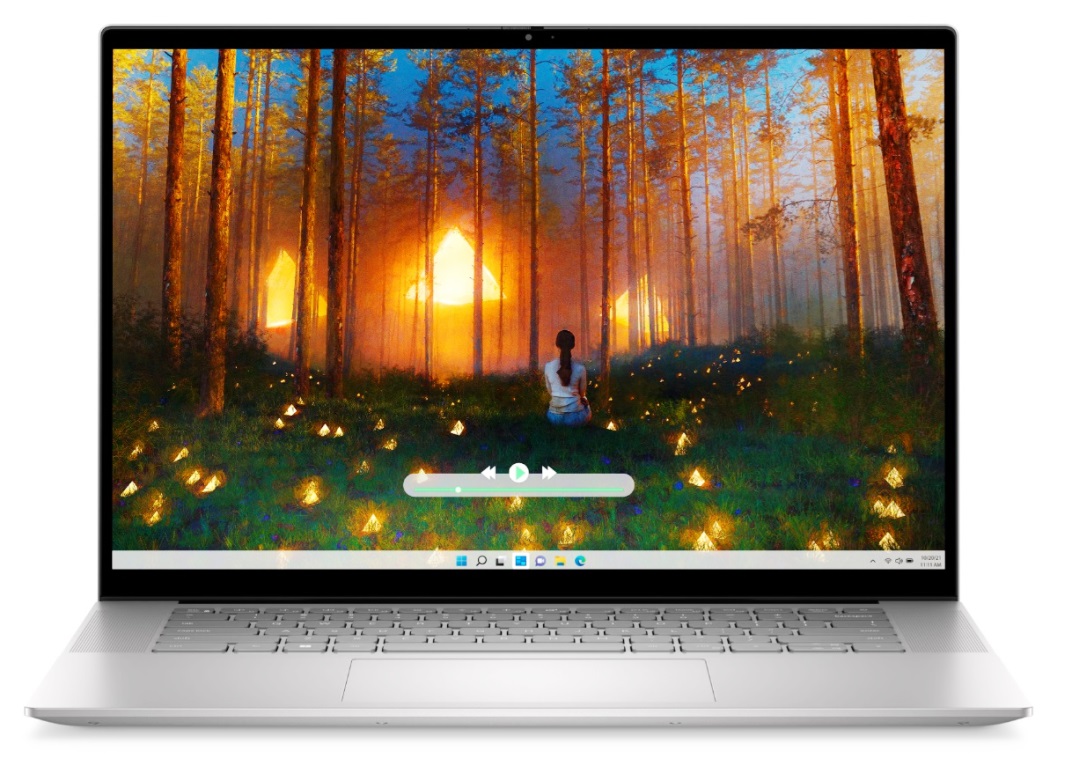

Dell Inspiron 16 5630

Dell Inspiron 16 5630 Top View

Dell Inspiron 16 5630 Right View and External Ports

Dell Inspiron 16 5630 Laptop

Dell Inspiron 16 5630 Front View

Dell Inspiron 16 5630 – Specs

QuickSpecs
Brand	Dell
Series	Dell Inspiron 5000 / Dell Inspiron 16
Model	Dell Inspiron 16 5630
Price	Starting from USD $580
Color	Platinum Siler
Processor Generation	13th Generation Intel Core i3-1315U
Display Size	16 inch, Full High Definition (FHD+), ComfortView
Weight	Weight (Minimum): 4.01 lb (1.82 kg), Weight (Maximum): 4.28 lb (1.94 kg)
Battery	4-cell polymer (54 Wh), Li-ion battery
Minimum RAM	8 GB
Maximum RAM	16 GB
Release Date	January 2023

Dell Inspiron 16 5630 Left View and External Ports

Dell Inspiron 16 5630 Table Of Contents

In detail Processor specification and configurations available
What are available operating systems (OS) for Dell Inspiron 16 5630?
Motherboard Chipset
What is minimum and maximum RAM capacity in Dell Inspiron 16 5630?
Storage options
Dimensions and Weight Specifications
What are the different types of display screen used in Dell Inspiron 16 5630?
Integrated shared graphics card memory and other details
What graphics card options are available in Dell Inspiron 16 5630?
What is the battery type, charge time of Dell Inspiron 16 5630?
Front camera / webcam details
Speakers and Audio information
Media Card Reader
The Internal Slots that can be used for RAM and Storage configuration
Available External Ports
Wi-Fi Type and detail
What type of Keyboard is used in Dell Inspiron 16 5630?
TouchPad Dimensions
Fingerprint Reader for easy Security
Laptop charger type and power consumption details

Dell Inspiron 16 5630 Back and Base View

Dell Inspiron 16 5630 – Full Specifications

In detail Processor specification and configurations available

Processor
13th Generation Intel Core i5-1340P	Processor type: 13th Generation Intel Core i5-1340P Processor wattage: 15 W Processor core count: 10 (2 + 8) Processor thread count: 12 Processor speed: Up to 4.60 GHz Processor cache: 12 MB Integrated graphics: Intel Iris Xe Graphics
13th Generation Intel Core i7-1360P	Processor type: 13th Generation Intel Core i7-1360P Processor wattage: 15 W Processor core count: 10 (2 + 8) Processor thread count: 12 Processor speed: Up to 5 GHz Processor cache: 18 MB Integrated graphics: Intel Iris Xe Graphics
13th Generation Intel Core i3-1315U	Processor type: 13th Generation Intel Core i3-1315U Processor wattage: 15 W Processor core count: 6 (2 + 4) Processor thread count: 12 Processor speed: Up to 4.50 GHz Processor cache: 10 MB Integrated graphics: Intel UHD Graphics
13th Generation Intel Core i5-1335U	Processor type: 13th Generation Intel Core i5-1335U Processor wattage: 15 W Processor core count: 10 (2 + 8) Processor thread count: 12 Processor speed: Up to 4.50 GHz Processor cache: 12 MB Integrated graphics: Intel Iris Xe Graphics
13th Generation Intel Core i7-1355U	Processor type: 13th Generation Intel Core i7-1355U Processor wattage: 15 W Processor core count: 10 (2 + 8) Processor thread count: 12 Processor speed: Up to 5 GHz Processor cache: 12 MB Integrated graphics: Intel Iris Xe Graphics

What are available operating systems (OS) for Dell Inspiron 16 5630?

What are available operating systems (OS) for Dell Inspiron 16 5630?
What are available operating systems (OS) for Dell Inspiron 16 5630?	Windows 11 Pro, 64-bit Windows 11 Pro National Education, 64-bit Windows 11 Home, 64-bit Windows 11 Home in S-mode, 64-bit Ubuntu 20.04 LTS, 64-bit

Motherboard Chipset

Chipset
Chipset	Integrated in the processor
Processor	13th Generation Intel Core i3/i5/i7
DRAM bus width	64-bit
Flash EPROM	32 MB
PCIe bus	Up to Gen 4

What is minimum and maximum RAM capacity in Dell Inspiron 16 5630?

Memory specifications
Memory slots	Two memory modules integrated with the system board.
Memory type	Dual-channel LPDDR5/LPDDR5x
Memory speed	4800 MHz
Maximum memory configuration	16 GB
Minimum memory configuration	8 GB
Memory size per slot	4GB, 8 GB
Memory configurations supported	8 GB, 2 x 4 GB, LPDDR5/ LPDDR5x, 4800 MHz, dual-channel 16 GB, 2 x 8 GB, LPDDR5/ LPDDR5x, 4800 MHz, dual-channel

Storage options

Storage specifications
M.2 2230 solid-state drive	PCIe Gen3.0x4 NVMe, up to 32 Gbps, Up to 1 TB
M.2 2230 solid-state drive	PCIe Gen4.0x4 NVMe, up to 64 Gbps, Up to 1 TB
M.2 2280 solid-state drive	PCIe Gen4.0x4 NVMe, up to 64 Gbps, Up to 2 TB
M.2 2280 solid-state drive	PCIe Gen3.0x4 NVMe QLC, up to 32 Gbps, Up to 1 TB
M.2 2280 solid-state drive	PCIe Gen4.0x4 NVMe, up to 64 Gbps, Up to 2 TB
M.2 2280 solid-state drive	PCIe Gen3.0x4 NVMe QLC, up to 32 Gbps, Up to 1 TB

Dimensions and Weight Specifications

Dimensions and weight
Height:
Front height	15.42 mm (0.61 in.)
Rear height	18.20 mm (0.72 in.)
Width	356.78 mm (14.05 in.)
Depth	251.70 mm (9.91 in.)
Weight	1.94 kg (4.28 lb, maximum)

What are the different types of display screen used in Dell Inspiron 16 5630?

Display specifications
Full High Definition (FHD+), ComfortView	Display type: Full High Definition (FHD+), ComfortView Display-panel technology: Wide Viewing Angle (WVA) Display-panel dimensions (active area):: Height: 344.68 mm (13.57 in.) Width: 215.42 mm (8.48 in.) Diagonal: 406.46 mm (16.00 in.) Display-panel native resolution: 1920 x 1200 Luminance (typical): 250 nits Megapixels: 2.30 Color gamut: NTSC 45% Pixels Per Inch (PPI): 141 Contrast ratio (typ) 800:1 (minimum) 1000:1 (typical) Response time (min): 35 ms Refresh rate: 60 Hz Horizontal view angle +/- 85 degrees, typical +/- 80 degrees, minimum Vertical view angle +/- 85 degrees, typical +/- 80 degrees, minimum Pixel pitch: 0.18 mm Power consumption (maximum): 4.15 W Anti-glare vs glossy finish: Anti-glare Touch options: No
Full High Definition (FHD+), ComfortView Plus	Display type: Full High Definition (FHD+), ComfortView Plus Display-panel technology: Wide Viewing Angle (WVA) Display-panel dimensions (active area):: Height: 344.68 mm (13.57 in.) Width: 215.42 mm (8.48 in.) Diagonal: 406.46 mm (16.00 in.) Display-panel native resolution: 1920 x 1200 Luminance (typical): 300 nits Megapixels: 2.30 Color gamut: sRGB 100%, typical Pixels Per Inch (PPI): 141 Contrast ratio (typ) 1000:1 (minimum) 1200:1 (typical) Response time (min): 35 ms Refresh rate: 60 Hz Horizontal view angle +/- 85 degrees, typical +/- 80 degrees, minimum Vertical view angle +/- 85 degrees, typical +/- 80 degrees, minimum Pixel pitch: 0.18 mm Power consumption (maximum): 4.73 W Anti-glare vs glossy finish: Glossy Touch options: Touch
Full High Definition (FHD+), ComfortView Plus	Display type: Full High Definition (FHD+), ComfortView Plus Display-panel technology: Wide Viewing Angle (WVA) Display-panel dimensions (active area):: Height: 344.68 mm (13.57 in.) Width: 215.42 mm (8.48 in.) Diagonal: 406.46 mm (16.00 in.) Display-panel native resolution: 1920 x 1200 Luminance (typical): 300 nits Megapixels: 2.30 Color gamut: sRGB 100%, typical Pixels Per Inch (PPI): 141 Contrast ratio (typ) 1000:1 (minimum) 1200:1 (typical) Response time (min): 35 ms Refresh rate: 60 Hz Horizontal view angle +/- 85 degrees, typical +/- 80 degrees, minimum Vertical view angle +/- 85 degrees, typical +/- 80 degrees, minimum Pixel pitch: 0.18 mm Power consumption (maximum): 4.4 W Anti-glare vs glossy finish: Anti-glare Touch options: No
2.5K, ComfortView Plus	Display type: 2.5K, ComfortView Plus Display-panel technology: Wide Viewing Angle (WVA) Display-panel dimensions (active area):: Height: 344.68 mm (13.57 in.) Width: 215.42 mm (8.48 in.) Diagonal: 406.46 mm (16.00 in.) Display-panel native resolution: 2560 x 1600 Luminance (typical): 300 nits Megapixels: 4.09 Color gamut: sRGB 100%, typical Pixels Per Inch (PPI): 189 Contrast ratio (typ) 1000:1 (minimum) 1200:1 (typical) Response time (min): 35 ms Refresh rate: 120 Hz Horizontal view angle +/- 85 degrees, typical +/- 80 degrees, minimum Vertical view angle +/- 85 degrees, typical +/- 80 degrees, minimum Pixel pitch: 0.13 mm Power consumption (maximum): 4 W Anti-glare vs glossy finish: Anti-glare Touch options: No

Ingegrated Shared graphics card memory and other details

GPU—Integrated
Intel UHD Graphics	One HDMI 1.4 port One Thunderbolt 4 port with DisplayPort and Power Delivery , Shared system memory, 13th Generation Intel Core i3
Intel Iris Xe Graphics	One HDMI 1.4 port One Thunderbolt 4 port with DisplayPort and Power Delivery , Shared system memory, 13th Generation Intel Core i5/i7

What graphics card options are available in Dell Inspiron 16 5630?

GPU—Discrete
NVIDIA GeForce RTX 2050	4 GB, GDDR6

What is the battery type, charge time of Dell Inspiron 16 5630?

Battery specifications
4-cell polymer (54 Wh), Li-ion battery	Battery type: 4-cell polymer (54 Wh), Li-ion battery Battery voltage: 15 V Battery weight (maximum): 0.24 kg (0.53 lb) Battery operating time: Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions. Battery charging time (approximate): 2 hr (Express charge), 3 hr (Standard charge) hours (when the computer is off) Coin-cell battery: CR2032
4-cell polymer (64 Wh), Li-ion battery	Battery type: 4-cell polymer (64 Wh), Li-ion battery Battery voltage: 15 V Battery weight (maximum): 0.24 kg (0.53 lb) Battery operating time: Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions. Battery charging time (approximate): 2 hr (Express charge), 3 hr (Standard charge) hours (when the computer is off) Coin-cell battery: CR2032

Front camera / webcam details

Camera specifications
One	Number of cameras: One Camera type FHD RGB camera Camera location: Front camera Camera sensor type: CMOS-sensor technology Camera resolution: Still image: 2.07 megapixel Video: 1920 x 1080 (FHD) at 30 fps Infrared camera resolution: Still image: N/A Video: N/A Diagonal viewing angle: Camera: 82 degrees Infrared camera: N/A
Two	Number of cameras: Two Camera type FHD RGB camera IR camera Camera location: Front camera Camera sensor type: CMOS-sensor technology Camera resolution: Still image: 2.07 megapixel Video: 1920 x 1080 (HD) at 30 fps Infrared camera resolution: Still image: 0.92 megapixel Video: 640 x 360 (VGA) at 15fps Diagonal viewing angle: Camera: 80 degrees Infrared camera: 86 degrees

Speakers and Audio information

Audio specifications
Speaker output:
Audio controller	Realtek ALC3254
Stereo conversion	Supported
Internal audio interface	High definition audio interface
External audio interface	Universal Audio Jack
Number of speakers	2
Internal-speaker amplifier	Supported
External volume controls	Keyboard shortcut controls
Average speaker output	2 W x 2 = 4 W
Peak speaker output	2.5 W x 2 = 5 W
Subwoofer output	Not supported
Microphone	Digital-array microphones

Media Card Reader

Media-card reader specifications

Media-card type	One SD card slot
Media-cards supported	Secure Digital (SD) Secure Digital High Capacity (SDHC) Secure Digital Extended Capacity (SDXC)

The Internal Slots that can be used for RAM and Storage configuration

Internal slots
M.2	One M.2 2230/2280 slot for solid-state drive.

Available External Ports

External ports
Network port	Not supported
USB ports	One Thunderbolt 4 port with DisplayPort and Power Delivery Two USB 3.2 Gen 1 ports
Audio port	One Universal headset jack
Video port	One HDMI 1.4 port
Media-card reader	One SD-card slot
Power-adapter port	One 4.50 mm x 2.90 mm DC-in
Security-cable slot	One security cable slot (wedge-shaped)

Wi-Fi Type and detail

Wireless module specifications
Intel AX211	Model number: Intel AX211 Transfer rate: Up to 2400 Mbps Frequency bands supported: 2.4 GHz/5 GHz/6 GHz Wireless standards WiFi 802.11a/b/g Wi-Fi 4 (WiFi 802.11n) Wi-Fi 5 (WiFi 802.11ac) Wi-Fi 6E (802.11ax) Encryption 64-bit/128-bit WEP AES-CCMP TKIP Bluetooth wireless card: Bluetooth 5.3
Intel AX201	Model number: Intel AX201 Transfer rate: Up to 2400 Mbps Frequency bands supported: 2.4 GHz/5 GHz Wireless standards WiFi 802.11a/b/g Wi-Fi 4 (WiFi 802.11n) Wi-Fi 5 (WiFi 802.11ac) Wi-Fi 6 (802.11ax) Encryption 64-bit/128-bit WEP AES-CCMP TKIP Bluetooth wireless card: Bluetooth 5.2
Intel AX411	Model number: Intel AX411 Transfer rate: Up to 2974 Mbps Frequency bands supported: 2.4 GHz/5 GHz/6 GHz Wireless standards WiFi 802.11a/b/g Wi-Fi 4 (WiFi 802.11n) Wi-Fi 5 (WiFi 802.11ac) Wi-Fi 6E (802.11ax) Encryption 64-bit/128-bit WEP AES-CCMP TKIP Bluetooth wireless card: Bluetooth 5.3

What type of Keyboard is used in Dell Inspiron 16 5630?

Keyboard specifications
Keyboard type	Backlit keyboard Standard non-backlit keyboard
Keyboard layout	QWERTY
Number of keys	United States and Canada: 79 keys United Kingdom: 80 keys Japan: 83 keys
Keyboard size	X=19.05 mm mm key pitch Y=18.05 mm mm key pitch

TouchPad Dimensions

Touchpad specifications
Touchpad dimensions:
Touchpad resolution:	>300 DPI
Horizontal	133 mm (5.24 in.)
Vertical	90 mm (3.54 in.)

Fingerprint Reader for easy Security

Fingerprint reader specifications
Fingerprint-reader sensor technology	Trans-capacitive sensing
Fingerprint-reader sensor resolution	500 DPI
Fingerprint-reader sensor pixel size	108 x 88 pixels

Laptop charger type and power consumption details

Power adapter specifications
65 W AC adapter	Type: 65 W AC adapter Connector dimensions: External diameter: 4.50 mm Internal diameter: 2.90 mm Input voltage: 100 VAC–240 VAC Input frequency: 50 Hz–60 Hz Input current (maximum): 1.60 A/ 1.70 A Output current (continuous): 3.34 A (continuous) Rated output voltage: 19.50 VDC
65 W USB Type-C	Type: 65 W USB Type-C Input voltage: 100 VAC–240 VAC Input frequency: 50 Hz–60 Hz Input current (maximum): 1.70 A Output current (continuous) 20 V/ 3.25 A (continuous) 15 V/ 3 A (continuous) 9 V/ 3 A (continuous) 5 V/ 3 A (continuous) Rated output voltage: 20 VDC/15 VDC/9 VDC/5 VDC
