Dell Vostro 7620 Specs and Review 16 inch 12th Generation

Dell Vostro 16 7620 -Review

The Vostro 7620 is 16 inch 7000 Series laptop launched in start of June 2022 in United States, UK, India, Euro and other major countries. The Laptop is powered by 12th Generation Intel Core i5-12500H Processor, Intel UHD Graphics, NVIDIA GeForce RTX 3050 Ti with the support of up to DDR5 40 GB RAM having speed of 4800 MHz and a PCIe Gen3 x4 NVMe QLC, up to 32 Gbps, Up to 1 TB One M.2 2280 solid-state drive storage. It has a Display-panel native resolution: 1920 x 1200 display screen. The maximum weight of the laptop is 2.02 kg (4.45 lb) and its equipped with 3-cell polymer (56 Wh) in the base variant. The Vostro 7620 base price is $1879 but can be customized adding more specs and features.

Designed for productivity it has A 4-sided narrow border that ensures there’s less to distract you from the task at hand. The 16:10 laptop display aspect ratio set in a 16-inch display gives you more screen space to manage every aspect of your daily activity, while DC Dimming reduces flicker and reduce harmful blue light emissions and optimize eye comfort.

Performance: Vostro 7620 is a designed to handle heavier workloads and tasks, you can edit videos with ease and run heavy apps faster with the dynamic trifecta of 12th Gen H-Series core i5/i7 processor with 12/14 cores along the discrete NVIDIA GeForce RTX 3050 Ti graphics and up to 40 GB of 4800 MHz DDR5 memory. Plus, power through your day with confidence, thanks to ExpressCharge Boost capabilities of 3-cell polymer battery that enable up to an 80% charge in one hour or up to a 35% charge in 20 minutes.
A robust thermal management system unleashes the power of your device while also preserving its thin design. Your laptop employs two fans and three heat pipes, as well as four vents for optimal heat dispersion. Plus, adaptive thermals optimize power according to your device’s location, whether it’s on a stable surface like a desk or an unstable surface like your lap. Using advanced algorithms and accelerometers, your device intelligently adapts its power and thermal profiles to the situation to keep your device running smoothly.

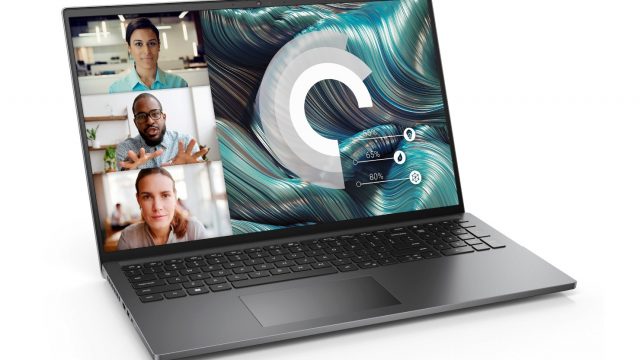

Dell Vostro 7620 16 inch laptop

Dell Vostro 7620 16 inch laptop

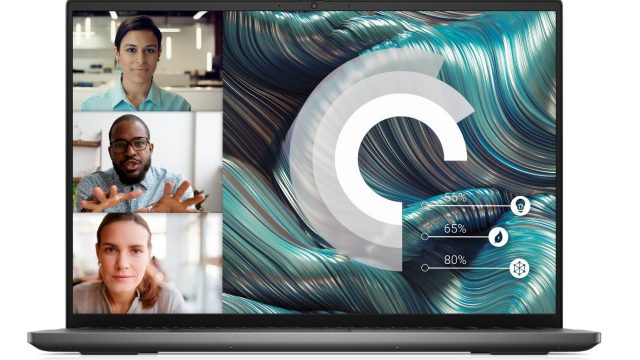

Dell Vostro 7620 Front Display View

Dell Vostro 7620 Front Display View

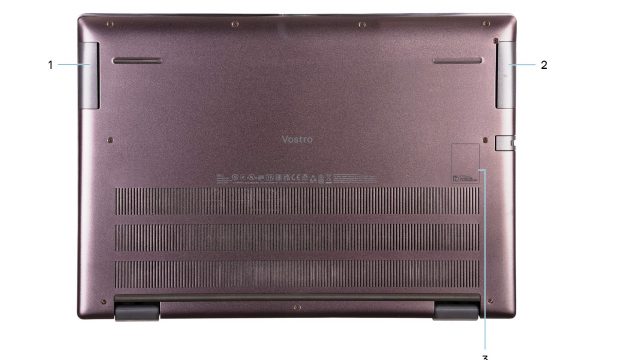

Vostro 7620 - Bottom View

Vostro 7620 – Bottom View

Vostro 7620 - Bottom View

Vostro 7620 – Bottom View

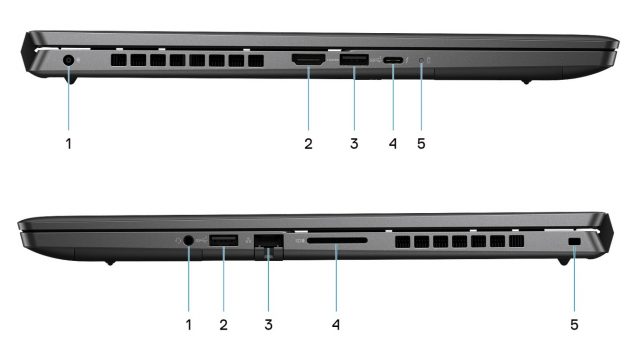

Vostro 7620 - Side Views

Vostro 7620 – Side Views

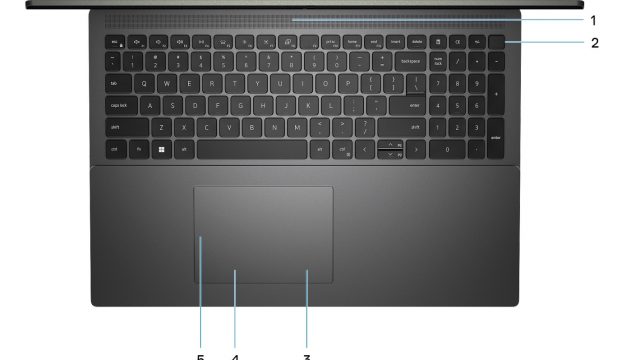

Vostro 7620 - Top View

Vostro 7620 – Top View

Dell Vostro 7620 – Specs

QuickSpecs
Brand Dell
Series Dell Vostro 7000
Model Dell Vostro 7620
Price Starting from $1879
Color Black
Processor Generation 12th Generation Intel Core i5-12500H
Display Size 16 inch
Weight Maximum 2.02 kg (4.45 lb)
Battery 3-cell polymer (56 Wh)
Minimum RAM 8 GB
Maximum RAM 40 GB
Release Date 03 JUN 2022

Dell Vostro 7620 – Full Specifications

Dell Vostro 16 7620 Processor Specifications

Processor
12th Generation Intel Core i5-12500H
  • Processor type: 12th Generation Intel Core i5-12500H
  • Processor wattage: 45 W
  • Processor core count: 12
  • Processor thread count: 16
  • Processor speed: Up to 4.50 GHz
  • Processor cache: 18 MB
  • Integrated graphics
    • Intel Iris Xe Graphics
    • Intel UHD Graphics
12th Generation Intel Core i7-12700H
  • Processor type: 12th Generation Intel Core i7-12700H
  • Processor wattage: 45 W
  • Processor core count: 14
  • Processor thread count: 20
  • Processor speed: Up to 4.70 GHz
  • Processor cache: 24 MB
  • Integrated graphics
    • Intel Iris Xe Graphics
    • Intel UHD Graphics

Operating System

Operating System
Operating System
  • Windows 11 Pro, 64-bit
  • Windows 11 Pro National Education, 64-bit
  • Windows 11 Home, 64-bit

Chipset

Chipset
Chipset

Integrated in the processor

Processor

12th Generation Intel Core i5/i7

DRAM bus width

128-bit

Flash EPROM

32 MB

PCIe bus

Up to Gen4

Dell Vostro 16 7620 Memory (RAM)

Memory specifications
Memory slots
  • One-SODIMM slot
  • One 8 GB memory module integrated with the system board
Memory type

DDR5

Memory speed

4800 MHz

Maximum memory configuration

40 GB

Minimum memory configuration

8 GB

Memory size per slot

8 GB, 16 GB, and 32 GB

Memory configurations supported
  • 8 GB, 1 x 8 GB integrated, DDR5, 4800 MHz
  • 16 GB, 1 x 8 GB integrated + 1 x 8 GB , DDR5, 4800 MHz, dual-channel
  • 24 GB, 1 x 8 GB integrated + 1 x 16 GB , DDR5, 4800 MHz, dual-channel
  • 40 GB, 1 x 8 GB integrated + 1 x 32 GB , DDR5, 4800 MHz, dual-channel

Storage

Storage specifications
M.2 2230 solid-state drive PCIe Gen3 x4 NVMe, up to 32 Gbps, Up to 1 TB
M.2 2230 solid-state drive PCIe Gen4 x4 NVMe, up to 64 Gbps, Up to 1 TB
M.2 2280 solid-state drive PCIe Gen4 x4 NVMe, up to 64 Gbps, Up to 2 TB
M.2 2280 solid-state drive PCIe Gen3 x4 NVMe QLC, up to 32 Gbps, Up to 1 TB

Dell Vostro 16 7620 Dimensions and Weight

Dimensions and weight
Height:
Front height

16.95 mm (0.67 in.)

Rear height

18.99 mm (0.75 in.)

Width

356.78 mm (14.05 in.)

Depth

251.90 mm (9.92 in.)

Weight (minimum)

2.02 kg (4.45 lb)

Dell Vostro 16 7620 Display (Screen)

Display specifications
Full High Definition Plus (FHD+), ComfortView
  • Display type: Full High Definition Plus (FHD+), ComfortView
  • Display-panel technology: Wide Viewing Angle (WVA)
  • Display-panel dimensions (active area):
  • Height: 344.68 mm (13.57 in.)
  • Width: 215.42 mm (8.48 in.)
  • Diagonal: 406.50 mm (16.00 in.)
  • Display-panel native resolution: 1920 x 1200
  • Luminance (typical): 250 nits
  • Megapixels: 2.30
  • Color gamut: 45% NTSC, typical
  • Pixels Per Inch (PPI): 141
  • Contrast ratio (typical)
    • 800:1 (minimum)
    • 1000:1 (typical)
  • Response time (max): 35 ms
  • Refresh rate: 60 Hz
  • Horizontal view angle
    • +/- 85 degrees, typical
    • +/- 80 degrees, minimum
  • Vertical view angle
    • +/- 85 degrees, typical
    • +/- 80 degrees, minimum
  • Pixel pitch: 0.18 mm
  • Power consumption (maximum): 4.15 W
  • Anti-glare vs glossy finish: Anti-glare
  • Touch options: No
Full High Definition Plus (FHD+), ComfortView Plus
  • Display type: Full High Definition Plus (FHD+), ComfortView Plus
  • Display-panel technology: Wide Viewing Angle (WVA)
  • Display-panel dimensions (active area):
  • Height: 344.68 mm (13.57 in.)
  • Width: 215.42 mm (8.48 in.)
  • Diagonal: 406.46 mm (16.00 in.)
  • Display-panel native resolution: 1920 x 1200
  • Luminance (typical): 300 nits
  • Megapixels: 2.30
  • Color gamut: 100% sRGB, typical
  • Pixels Per Inch (PPI): 141
  • Contrast ratio (typical)
    • 1000:1 (minimum)
    • 1200:1 (typical)
  • Response time (max)
    • 30 ms, typical
    • 35 ms, maximum
  • Refresh rate: 60 Hz
  • Horizontal view angle
    • +/- 85 degrees, typical
    • +/- 80 degrees, minimum
  • Vertical view angle
    • +/- 85 degrees, typical
    • +/- 80 degrees, minimum
  • Pixel pitch: 0.18 mm
  • Power consumption (maximum): 4.40 W
  • Anti-glare vs glossy finish: Anti-glare
  • Touch options: No
3k, ComfortView Plus
  • Display type: 3k, ComfortView Plus
  • Display-panel technology: Wide Viewing Angle (WVA)
  • Display-panel dimensions (active area):
  • Height: 344.68 mm (13.57 in.)
  • Width: 215.42 mm (8.48 in.)
  • Diagonal: 406.46 mm (16.00 in.)
  • Display-panel native resolution: 3072 x 1920
  • Luminance (typical): 300 nits
  • Megapixels: 5.90
  • Color gamut: 100% sRGB, typical
  • Pixels Per Inch (PPI): 226
  • Contrast ratio (typical)
    • 1000:1 (minimum)
    • 1200:1 (typical)
  • Response time (max)
    • 30 ms, typical
    • 35 ms, maximum
  • Refresh rate: 60 Hz
  • Horizontal view angle
    • +/- 85 degrees, typical
    • +/- 80 degrees, minimum
  • Vertical view angle
    • +/- 85 degrees, typical
    • +/- 80 degrees, minimum
  • Pixel pitch: 0.11 mm
  • Power consumption (maximum): 3.80 W
  • Anti-glare vs glossy finish: Anti-glare
  • Touch options: No

Dell Vostro 16 7620 Shared Intebgrated Graphics

GPU—Integrated
Intel UHD Graphics USB Type-C port with DisplayPort Alt mode and Thunderbolt 4, Shared system memory, 12th Generation Intel Core i5/i7
Intel Iris Xe Graphics USB Type-C port with DisplayPort Alt mode and Thunderbolt 4, Shared system memory, 12th Generation Intel Core i5/i7

Dell Vostro 16 7620 Discrete Dedicated Graphics

GPU—Discrete
NVIDIA GeForce RTX 3050 Ti 4 GB, GDDR6
NVIDIA GeForce RTX 3050 4 GB, GDDR6

Dell Vostro 16 7620 Battery Specifications

Battery specifications
3-cell polymer (56 Wh)
  • Battery type: 3-cell polymer (56 Wh)
  • Battery voltage: 13.20 V
  • Battery weight (maximum): 0.26 kg (0.57 lb)
  • Battery dimensions:
  • Height: 7.56 mm (0.30 in.)
  • Width: 77.70 mm (3.06 in.)
  • Depth: 295.20 mm (11.62 in.)
  • Temperature range:
  • Operating: 0°C to 45°C (32°F to 113°F)
  • Storage: -20°C to 65°C (-4°F to 149°F)
  • Battery operating time: Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.
  • Battery charging time (approximate)
    • 2 hour (express), when the computer is off
    • 3 hour (standard), when the computer is off
  • Coin-cell battery: Not supported
6-cell polymer (86 Wh)
  • Battery type: 6-cell polymer (86 Wh)
  • Battery voltage: 13.35 VDC
  • Battery weight (maximum): 0.34 kg (0.75 lb)
  • Battery dimensions:
  • Height: 7.56 mm (0.30 in.)
  • Width: 77.70 mm (3.06 in.)
  • Depth: 295.20 mm (11.62 in.)
  • Temperature range:
  • Operating: 0°C to 45°C (32°F to 113°F)
  • Storage: -20°C to 65°C (-4°F to 149°F)
  • Battery operating time: Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.
  • Battery charging time (approximate)
    • 2 hour (express), when the computer is off
    • 3 hour (standard), when the computer is off
  • Coin-cell battery: Not supported

Camera (Web Cam) Specifications

Camera specifications
Number of cameras

One

Camera type

One RGB FHD camera

Camera location

Front

Camera sensor type

CMOS sensor technology

Camera resolution:
Still image

2.03 megapixel

Video

1920 x 1080 (FHD) at 30 fps

Diagonal viewing angle:

82 degrees

Audio Specifications

Audio specifications
Audio controller

Waves MaxxAudio Pro

Stereo conversion

Supported

Internal audio interface

High definition audio

External audio interface

Universal audio jack

Number of speakers

Four

Internal-speaker amplifier

Supported

External volume controls

Keyboard shortcut controls

Speaker output:
Average speaker output
  • Tweeters (2 W x 2 = 4 W)
  • Woofers (2 W x 2 = 4 W)
Peak speaker output
  • Tweeters (2.5 W x 2 = 5 W)
  • Woofers (2.5 W x 2 = 5 W)
Subwoofer output

Supported

Microphone

Digital-array microphones in camera assembly

Media-card Reader

Media-card reader specifications
Media-card type

One SD card slot

Media-cards supported
  • Secure Digital (SD)
  • Secure Digital High Capacity (SDHC)
  • Secure Digital Extended Capacity (SDXC)

Internal slots

Internal slots
M.2
  • One M.2 2230/2280 slot for solid-state drive
  • One M.2 2230 slot for WiFi and Bluetooth combo card

External Ports

External ports
Network port

One RJ45 ethernet port

USB ports
  • Two USB 3.2 Gen 1 ports
  • One Thunderbolt 4 port with DisplayPort and Power Delivery
Audio port

One universal headset jack

Video port
  • One HDMI 2.0 port
  • One Thunderbolt 4 port with DisplayPort and Power Delivery
Media-card reader

One SD-card slot

Power-adapter port

One 4.50 mm x 2.90 mm DC-in

Security-cable slot

One security cable slot (wedge-shaped)

Communication wireless module

Ethernet specifications
Model number

Realtek RTL8111H

Transfer rate

10/100/1000 Mbps

Communication wireless module

Wireless module specifications
Intel AX201
  • Model number: Intel AX201
  • Transfer rate: Up to 2400 Mbps
  • Frequency bands supported: 2.4 GHz/5 GHz
  • Wireless standards
    • WiFi 802.11a/b/g
    • Wi-Fi 4 (WiFi 802.11n)
    • Wi-Fi 5 (WiFi 802.11ac)
    • Wi-Fi 6 (WiFi 802.11ax)
  • Encryption
    • 64-bit/128-bit WEP
    • AES-CCMP
    • TKIP
  • Bluetooth: Bluetooth 5.2
Intel AX211
  • Model number: Intel AX211
  • Transfer rate: Up to 2400 Mbps
  • Frequency bands supported: 2.4 GHz/5 GHz/6 GHz
  • Wireless standards
    • WiFi 802.11a/b/g
    • Wi-Fi 4 (WiFi 802.11n)
    • Wi-Fi 5 (WiFi 802.11ac)
    • Wi-Fi 6E (WiFi 802.11ax)
  • Encryption
    • 64-bit/128-bit WEP
    • AES-CCMP
    • TKIP
  • Bluetooth: Bluetooth 5.2

keyboard

Keyboard specifications
Keyboard type
  • Standard keyboard
  • Backlit keyboard
Keyboard layout

QWERTY

Number of keys
  • United States and Canada: 79 keys
  • United Kingdom: 80 keys
  • Japan: 83 keys
Keyboard size

X=19.05 mm key pitch

Y=18.05 mm key pitch

Keyboard shortcuts

Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. To type the alternate character, press Shift and the desired key. To perform secondary functions, press Fn and the desired key. For more information, see .

TouchPad

Touchpad specifications
Touchpad resolution:
Horizontal

1594

Vertical

1107

Touchpad dimensions:
Horizontal

115 mm (4.53 in.)

Vertical

80 mm (3.15 in.)

Touchpad gestures For more information about touchpad gestures available on Windows, see the Microsoft knowledge base article at .

Fingerprint Reader

Fingerprint reader specifications
Fingerprint-reader sensor technology

Trans-capacitive sensing

Fingerprint-reader sensor resolution

500 dpi

Fingerprint-reader sensor pixel size

100 x 88

Charger | Power Adapter

Power adapter specifications
130 W AC adapter
  • Type: 130 W AC adapter
  • Connector dimensions:
  • External diameter: 4.50 mm
  • Internal diameter: 2.90 mm
  • Input voltage: 100 VAC–240 VAC
  • Input frequency: 50 Hz–60 Hz
  • Input current (maximum): 1.80 A
  • Output current (continuous): 6.70 A
  • Rated output voltage: 19.50 VDC
  • Temperature range:
  • Operating: 0°C to 40°C (32°F to 104°F)
  • Storage: -40°C to 70°C (-40°F to 158°F)
130 W USB Type-C
  • Type: 130 W USB Type-C
  • Connector dimensions:
  • External diameter: Not applicable
  • Internal diameter: Not applicable
  • Input voltage: 100 VAC–240 VAC
  • Input frequency: 50 Hz–60 Hz
  • Input current (maximum): 1.80 A
  • Output current (continuous)
    • 20 V/ 6.50 A (Continuous)
    • 20 V/ 4.50 A (Continuous)
    • 15 V/ 3 A (Continuous)
    • 9 V/ 3 A (Continuous)
    • 5 V/ 3 A (Continuous)
  • Rated output voltage
    • 20 VDC
    • 15 VDC
    • 9 VDC
    • 5 VDC
  • Temperature range:
  • Operating: 0°C to 40°C (32°F to 104°F)
  • Storage: -40°C to 70°C (-40°F to 158°F)
VN:F [1.9.22_1171]
Rating: 5.8/10 (36 votes cast)
Dell Vostro 7620 Specs and Review 16 inch 12th Generation, 5.8 out of 10 based on 36 ratings
Summary
product image
Author Rating
1star1star1stargraygray
Aggregate Rating
3 based on 42 votes
Brand Name
Dell
Product Name
Dell Vostro 16 7620
Price
USD 1879
Product Availability
Available in Store Only

Related posts

One Comment;

  1. Kim said:

    Dell Vostro 16 7620 7000 Series Laptop:
    This 16-inch Vostro 7620 is the best mix of performance, features, and price for user mostly living in India, Australia, United Kingdom and United States. It’s powered by Intel’s 12th Gen Core i7-12700H Processor along with up to an NVIDIA RTX 3050 Ti dedicated graphics card, upto 24GB of DDR5 RAM, and a 1TB M.2 PCIe NVMe SSD for primary storage. Vostro 7620 display has a 16:10 aspect ratio with FHD+ screen resolution, there are plenty of ports with Thunderbolt 4, the camera is FHD, and you can add a fingerprint reader for extra security.

Top
