Dell Vostro 15 3583 Specs Price and Reviews

Dell Vostro 3000 Series

December 2, 2020

Dell Vostro 3583 Specifications 15″ laptop with security and connectivity small business demands. Featuring the latest Intel processors, PC/smartphone integration with Dell Mobile Connect and a numeric keypad.

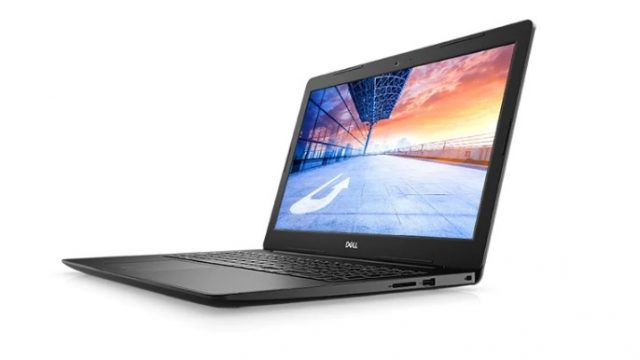

Dell Vostro 3583

Dell Vostro 3583

Dell Vostro 15 3583 Price starts from USD $620 Approximately

System Information

System information
Chipset	Intel Chipset
DRAM bus width	64-bit
FLASH EPROM	SPI 16 MB
PCIe bus	100 Mhz

Processor Specifications

Processor specifications
8th Gen Intel Core i3 processor (2 cores/4 MB/4T/3.9 GHz/15 W)	Intel UHD Graphics 620
8th Gen Intel Core i5 processor (4 cores/6 MB/8T/3.9 GHz/15 W)	Intel UHD Graphics 620
8th Gen Intel Core i7 processor (4 cores/8 MB/8T/4.6 GHz/15 W)	Intel UHD Graphics 620

Processor Specifications

Processor Specifications
Processor Specifications	NOTE: Processor numbers are not a measure of performance. Processor availability is subject to change and may vary by region/country.

Operating System

Operating system
Operating systems supported	Windows 10 Home (64 bit) Windows 10 Pro (64 bit) Ubuntu

Memory (RAM)

Memory specifications
Minimum memory configuration	4 GB
Maximum memory configuration	16 GB
Number of slots	2x SoDiMM
Memory options	4 GB – 1 x 4 GB 8 GB – 2 x 4 GB (optional) 8 GB – 1 x 8 GB (optional) 12 GB – 1 x 4 GB + 1 x 8 GB (optional) 16 GB – 2 x 8 GB (optional) 16 GB – 1 x 16 GB (optional)
Type	DDR4
Speed	2400 MHz

Storage

Storage specifications
Solid-State Drive	M.2, M.2 SSD, Class 20: 128 GB Class 35: 128 GB and 256 GB Class 40: 256 GB
HDD	2.5 inches, SATA, Upto 2 TB 5400 RPM Upto 1 TB 7200 RPM
Intel Optane (PCIe M.2 module with HDD)	M.2, PCIe, 16 GB
Dual drives	2.5 inches HDD + M.2, SATA + M.2 SSD, Yes, it is available

Dimensions and Weight

Dimensions and weight
Height	19.89 mm to 20 mm (0.783 inch to 0.787 inch)
Width	380 mm (14.96 inch)
Depth	258 mm (10.15 inch)
Weight	2 kg (4.4 lb)

Display (Screen)

Display specifications
Type	15.6 inch HD (1366 x 768) TN, Anti-glare, Ultra slim 15.6 inch FHD (1920 x 1080) TN, Anti-glare (Optional)
Height (Active area)	360 mm (14.17 inch)
Width (Active area)	224.3 mm (8.83 inch)
Diagonal	396.24 mm (15.6 inch)
Luminance/Brightness (typical)	300 nits max
Refresh rate	60 Hz
Horizontal viewing angle (min)	+/- 40 degrees
Vertical viewing angle (min)	+10/- 30 degrees

Video

Video card specifications
Intel UHD Graphics 620	UMA 8th Gen Intel Core i5 processor 8th Gen Intel Core i7 processor , Integrated, Shared system memory, HDMI 1.4b, 4096 x 2304
AMD Radeon 520	Discrete, NA, GDDR5, 2 GB, No, 1920 x 1080

Battery Specifications

Battery specifications
Type	3-cell Primatic/Polymer battery 42 WHr
Dimension	Width:175.37 mm (6.9 in) Depth:90.73 mm (3.57 in) Height:5.9 mm (0.24 in)
Weight (maximum)	0.2 kg (0.44 lb )
Voltage	11.4 VDC
Life span	300 discharge / charge cycles
Charging time when the computer is off (approximate)	Standard charge, 0°C to 60°C: 4 hours
Express Charge	0°C to 35°C: 4 hours 16°C to 45°C: 2 hours 46°C to 60°C: 3 hours
Operating time	Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions
Temperature range: Operating	0°C to 35°C (32°F to 95°F)
Temperature range: Storage	-20°C to 65°C (-40°F to 149°F)
Coin-cell battery	CR 2032

Camera (Web Cam) Specifications

Camera specifications
Resolution	Still image: 0.92 megapixels (HD) Video: 1280 x 720 (HD) at 30 fps
Diagonal viewing angle	Camera – 78.6°
Number of cameras	One
Type	HD fixed focus
Sensor type	CMOS sensor technology
Video Max resolution	1280 x 720 (HD) at 30 fps
Still image max resolution	0.92 megapixels (HD)

Audio Specifications

Audio specifications
Controller	Realtek ALC3204 with Waves MaxxAudio Pro
Type	Two-channel high-definition audio
Speakers	Two (Directional speakers)
Interface	Universal audio jack High-quality speakers Noise reducing single microphone Stereo headset/mic combo
Internal speaker amplifier	2 W (RMS) per channel

Ports and connectors

Ports and connectors
Memory card reader	SD 3.0 memory card reader
USB	One USB 2.0 port Two USB 3.1 Gen 1 port
Security	Noble wedge lock slot
Docking port	Dell USB 3.0 Dock (UNO)
Audio	Universal audio jack Noise reduction single microphone
Video	HDMI 1.4b (UMA and discrete) VGA port
Network adapter	One RJ-45 connector

Communication wireless module

Wireless specifications
Type	DW1707 (QCA9565) DW1810 (QCA9377) DW1820 (QCA61x4A) Intel 9560 Intel 9462
Maximum transfer rate	867 Mbps
Frequency bands	2.4 GHz/5 GHz
Encryption	64-bit/128-bit WEP AES-CCMP TKIP

keyboard

Keyboard specifications
Number of keys	101 (US) 102 (UK) 104 (Brazil) 105 (Japan)
Size	X= 19.05 mm key pitch Y= 18.05 mm key pitch
Layout	QWERTY/AZERTY/Kanji

TouchPad

Touchpad specifications
Resolution	3215×2429
Dimensions	Width: 4.13 inch (105 mm) Height: 3.14 inch (80 mm)
Multi-touch	Supports four fingers

Security

Security specifications
Trusted Platform Module (TPM) 2.0	Integrated on the system board
Discrete TPM	Integrated on the system board
Windows Hello Support	Optional
Cable cover	Optional
Chassis intrusion switch	Optional
Chassis lock slot and loop support	Optional

Security Software

Security Software specifications
Dell Endpoint Security Suite Enterprise	Optional
Dell Data Guardian	Optional
Dell Encryption (Enterprise or Personal)	Optional
Dell Threat Defense	Optional
RSA SecurID Access	Optional
RSA NetWitness Endpoint	Optional
MozyPro or MozyEnterprise	Optional
VMware Airwatch/WorkspaceONE	Optional
Absolute Data & Device Security	Optional

Power Adapter

Power adapter specifications
Type	45 W (UMA) 45 W Ruggedized 65 W (Discrete)
Input Voltage	100 VAC – 240 VAC
Input current (maximum)	1.3 A for 45 W 1.7 A for 65 W
Input frequency	50 Hz to 60 Hz
Output current	2.31 A for 45 W 3.34 A for 65 W
Rated output voltage	19.5 VDC
Temperature range (Operating)	0°C to 40° C (32°F to 104°F)
Temperature range (Non-Operating)	40°C to 70°C (-40°F to 158°F)
