Dell Latitude 7320 Specs and Review 11th Gen Core i5/i7


Dell Latitude 7320 Overview

The Latitude 7320 is 13 inch 7000 Series laptop powered by 11th Generation Intel Core i5-1135G7 Non-vPro Processor, Intel Iris Xe Graphics, with the support of up to 32 GB Memory having speed of 4267 MHz and a M.2 2280 Class 40 Self encrypting solid-state drive for storage. It has a 13.3-inch Full High Definition (FHD) display with Native Resolution 1920 x 1080. The maximum weight for the laptop is 1.39 kg (3.06 lb). Its equipped with 3-cell 42 WHr battery optional with ExpressCharge or Long Life Cycle in the base variant. The Latitude 7320 base price is $1080 but can be customized adding more specs and features

Latitude 7320 - Bottom View

Latitude 7320 – Bottom View

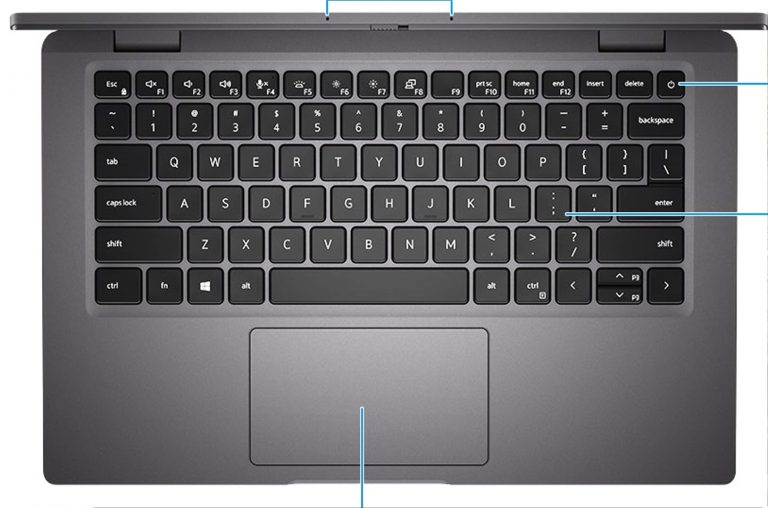

Latitude 7320 - Top View

Latitude 7320 – Top View

Latitude 7320 - Tent Mode View

Latitude 7320 – Tent Mode View

Latitude 7320 - Stand View

Latitude 7320 – Stand View

Latitude 7320 - Side Views

Latitude 7320 – Side Views

Latitude 7320 - Display View

Latitude 7320 – Display View

Dell Latitude 7320 – Specs

QuickSpecs
Brand Dell
Series Dell Latitude 7000
Model Dell Inspiron 7320
Price Starting from $1080
Color Black
Processor Generation 11th Generation Intel Core i5-1135G7 Non-vPro
Display Size 13.3-inch. Full High Definition (FHD)
Weight 1.39 kg (3.06 lb) – 2-in-1
Battery 3-cell, 42 WHr, optional with
Minimum RAM 8 GB
Maximum RAM 32 GB
Release Date 24 JAN 2022

Dell Latitude 7320 – Technical Specifications

Processor Specifications

Processor
11th Generation Intel Core i5-1135G7 Non-vPro
  • Processor type: 11th Generation Intel Core i5-1135G7 Non-vPro
  • Processor wattage
    • Maximum TDP: 28 W
    • cTDP: 13 W – 15 W
  • Processor core count: 4
  • Processor thread count: 8
  • Processor speed: 2.40 GHz to 4.20 GHz
  • Processor cache: 8 MB
  • Integrated graphics: Intel Iris Xe Graphics
11th Generation Intel Core i5-1145G7 vPro
  • Processor type: 11th Generation Intel Core i5-1145G7 vPro
  • Processor wattage
    • Maximum TDP: 28 W
    • cTDP: 13 W – 15 W
  • Processor core count: 4
  • Processor thread count: 8
  • Processor speed: 2.60 GHz to 4.40 GHz
  • Processor cache: 8 MB
  • Integrated graphics: Intel Iris Xe Graphics
11th Generation Intel Core i7-1165G7 Non-vPro
  • Processor type: 11th Generation Intel Core i7-1165G7 Non-vPro
  • Processor wattage
    • Maximum TDP: 28 W
    • cTDP: 13 W – 15 W
  • Processor core count: 4
  • Processor thread count: 8
  • Processor speed: 2.80 GHz to 4.70 GHz
  • Processor cache: 12 MB
  • Integrated graphics: Intel Iris Xe Graphics
11th Generation Intel Core i7-1185G7 vPro
  • Processor type: 11th Generation Intel Core i7-1185G7 vPro
  • Processor wattage
    • Maximum TDP: 28 W
    • cTDP: 13 W – 15 W
  • Processor core count: 4
  • Processor thread count: 8
  • Processor speed: 3.00 GHz to 4.80 GHz
  • Processor cache: 12 MB
  • Integrated graphics: Intel Iris Xe Graphics

Operating System

Operating System
Operating System
  • Windows 11 Home, 64-bit
  • Windows 11 Pro, 64-bit
  • Windows 11 Pro National Academic, 64-bit
  • Windows 10 Home, 64-bit
  • Windows 10 Pro, 64-bit
  • Ubuntu 20.04 LTS, 64-bit

Chipset

Chipset
Chipset

Tiger Lake U PCH

Processor

11th Generation Intel Core i5/i7

DRAM bus width

64-bit

Flash EPROM

32 MB

PCIe bus

Up to Gen4

Memory (RAM)

Memory specifications
Memory slots

Integrated on the system board.

Memory type

Dual-channel LPDDR4x

Memory speed
  • 32 GB: 4267 MHz
  • 8 GB/16 GB: 3733 MHz
Maximum memory configuration

32 GB

Minimum memory configuration

8 GB

Memory size per slot

8 GB, 16 GB, 32 GB

Memory configurations supported
  • 8 GB
  • 16 GB
  • 32 GB

Storage

Storage specifications
M.2 2230, Class 35 solid-state drive Gen 3 PCIe x4 NVMe, Up to 512 GB
M.2 2280, Class 40 solid-state drive Gen 3 PCIe x4 NVMe, Up to 1 TB
M.2 2280, Class 40 Self encrypting solid-state drive Gen 3 PCIe x4 NVMe, Up to 512 GB

Dell Latitude 7320 Dimensions and Weight

Dimensions and weight
Height:
Front height
  • 16.96 mm (0.67 in.) – Carbon Fiber
  • 16.71 mm (0.65 in.) – Aluminium
  • 16.40 mm (0.65 in.) – 2-in-1
Rear height
  • 18.36 mm (0.722 in.) – Carbon Fiber
  • 18.00 mm (0.708 in.) – Aluminium
  • 18.60 mm (0.732 in.) – 2-in-1
Width
  • 306.50 mm (12.07 in.) – Carbon Fiber
  • 306.50 mm (12.07 in.) – Aluminium
  • 306.50 mm (12.07 in.) – 2-in-1
Depth
  • 199.5 mm (7.85 in.) – Carbon Fiber
  • 199.5 mm (7.85 in.) – Aluminium
  • 199.5 mm (7.85 in.) – 2-in-1
Weight (maximum)
  • 1.12 kg (2.48 lb) – Carbon Fiber
  • 1.29 kg (2.84 lb) – Aluminium
  • 1.39 kg (3.06 lb) – 2-in-1

Display (Screen)

Display specifications
13.3-inch. Full High Definition (FHD)
  • Type: 13.3-inch. Full High Definition (FHD)
  • Panel technology: Wide Viewing Angle (WVA)
  • Luminance (typical): 250 nits
  • Dimensions (Active Area):
  • Height: 165.24 mm (6.51 in.)
  • Width: 293.76 mm (11.57 in.)
  • Diagonal: 337.08 mm (13.27 in.)
  • Native Resolution: 1920 x 1080
  • Megapixels: 2.07
  • Pixels per Inch (PPI): 166
  • Contrast Ratio (typ): 800:1
  • Response Time (max): 35 ms
  • Refresh Rate: 60 Hz
  • Horizontal View Angle: 80°
  • Vertical View Angle: 80°
  • Pixel Pitch: 0.153 x 0.153
  • Power Consumption (maximum): 3.5 W
  • Anti-glare vs glossy finish: Anti-glare
  • Touch options: No
  • Stylus support: No
13.3-inch. Full High Definition (FHD)
  • Type: 13.3-inch. Full High Definition (FHD)
  • Panel technology
    • WVA
    • Super Low Power
    • Low Blue Light
  • Luminance (typical): 400 nits
  • Dimensions (Active Area):
  • Height: 165.24 mm (6.51 in.)
  • Width: 293.76 mm (11.57 in.)
  • Diagonal: 337.08 mm (13.27 in.)
  • Native Resolution: 1920 x 1080
  • Megapixels: 2.07
  • Pixels per Inch (PPI): 166
  • Contrast Ratio (typ): 1000:1
  • Response Time (max): 35 ms
  • Refresh Rate: 60 Hz
  • Horizontal View Angle: 80°
  • Vertical View Angle: 80°
  • Pixel Pitch: 0.153 x 0.153
  • Power Consumption (maximum): 2.52 W
  • Anti-glare vs glossy finish: Anti-glare
  • Touch options: No
  • Stylus support: No
13.3-inch. Full High Definition (FHD)
  • Type: 13.3-inch. Full High Definition (FHD)
  • Panel technology: WVA
  • Luminance (typical): 300 nits
  • Dimensions (Active Area):
  • Height: 165.24 mm (6.51 in.)
  • Width: 293.76 mm (11.57 in.)
  • Diagonal: 337.08 mm (13.27 in.)
  • Native Resolution: 1920 x 1080
  • Megapixels: 2.07
  • Pixels per Inch (PPI): 166
  • Contrast Ratio (typ): 500:1
  • Response Time (max): 35 ms
  • Refresh Rate: 60 Hz
  • Horizontal View Angle: 80°
  • Vertical View Angle: 80°
  • Pixel Pitch: 0.153 x 0.153
  • Power Consumption (maximum): 4.1 W
  • Anti-glare vs glossy finish: Anti-glare
  • Touch options: Yes
  • Stylus support: No
13.3-inch. Full High Definition (FHD)
  • Type: 13.3-inch. Full High Definition (FHD)
  • Panel technology
    • WVA
    • Privacy
  • Luminance (typical): 300 nits
  • Dimensions (Active Area):
  • Height: 165.24 mm (6.51 in.)
  • Width: 293.76 mm (11.57 in.)
  • Diagonal: 337.08 mm (13.27 in.)
  • Native Resolution: 1920 x 1080
  • Megapixels: 2.07
  • Pixels per Inch (PPI): 166
  • Contrast Ratio (typ): 600:1
  • Response Time (max): 35 ms
  • Refresh Rate: 60 Hz
  • Horizontal View Angle: 80°
  • Vertical View Angle: 80°
  • Pixel Pitch: 0.153 x 0.153
  • Power Consumption (maximum): 3.45 W
  • Anti-glare vs glossy finish: Anti-Glare
  • Touch options: Yes
  • Stylus support: No
13.3-inch. Full High Definition (FHD) for 2-in-1
  • Type: 13.3-inch. Full High Definition (FHD) for 2-in-1
  • Panel technology: WVA
  • Luminance (typical): 300 nits
  • Dimensions (Active Area):
  • Height: 165.24 mm (6.51 in.)
  • Width: 293.76 mm (11.57 in.)
  • Diagonal: 337.08 mm (13.27 in.)
  • Native Resolution: 1920 x 1080
  • Megapixels: 2.07
  • Pixels per Inch (PPI): 166
  • Contrast Ratio (typ): 1000:1
  • Response Time (max): 35 ms
  • Refresh Rate: 60 Hz
  • Horizontal View Angle: 80°
  • Vertical View Angle: 80°
  • Pixel Pitch: 0.153 x 0.153
  • Power Consumption (maximum): 1.99 W
  • Anti-glare vs glossy finish: Anti-Reflection/Anti-Smudge coating
  • Touch options: Yes
  • Stylus support: Yes (optional Wacom pen)

GPU — Integrated

GPU—Integrated
Intel Iris Xe Graphics
  • One HDMI 2.0 port
  • Two Thunderbolt 4 ports with Display Port Alt Mode

, Shared system memory, 11th Generation Intel Core i5/i7

Dell Latitude 7320 Battery Specifications

Battery specifications
3-cell, 42 WHr, optional with ExpressCharge or Long Life Cycle
  • Battery type: 3-cell, 42 WHr, optional with ExpressCharge or Long Life Cycle
  • Battery voltage: 11.40 VDC
  • Battery weight (maximum): 0.21 kg (0.47 lb)
  • Battery dimensions:
  • Height: 5.7 mm (0.224 in.)
  • Width: 92.8 mm (3.654 in.)
  • Depth: 238 mm (9.37 in.)
  • Temperature range:
  • Operating
    • Charging: 0°C to 45°C (32°F to 113°F)
    • Discharging: 0°C to 65°C (32°F to 149°F)
  • Storage: –20°C to 60°C (4°F to 140°F)
  • Battery operating time: Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.
  • Battery charging time (approximate)
    • ExpressCharge Boost (0% up to 35%): 20 minutes
    • ExpressCharge: 2 hours
    • Standard charge: 3 hours
  • Coin-cell battery: No
4-cell, 63 WHr, optional with ExpressCharge or Long Life Cycle
  • Battery type: 4-cell, 63 WHr, optional with ExpressCharge or Long Life Cycle
  • Battery voltage: 15.2 VDC
  • Battery weight (maximum): 0.26 kg (0.58 lb)
  • Battery dimensions:
  • Height: 5.7 mm (0.224 in.)
  • Width: 92.8 mm (3.654 in.)
  • Depth: 238 mm (9.37 in.)
  • Temperature range:
  • Operating
    • Charging: 0°C to 45°C (32°F to 113°F)
    • Discharging: 0°C to 65°C (32°F to 149°F)
  • Storage: –20°C to 60°C (4°F to 140°F)
  • Battery operating time: Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.
  • Battery charging time (approximate)
    • ExpressCharge Boost (0% up to 35%): 20 minutes
    • ExpressCharge: 2 hours
    • Standard charge: 3 hours
  • Coin-cell battery: No

Camera (Web Cam) Specifications

Camera specifications
One
  • Number of cameras: One
  • Type: Integrated 2.7 mm HD RGB Webcam
  • Location: Front
  • Sensor type: CMOS sensor technology
  • Resolution (RGB):
  • Still Image: 0.92
  • Video: 1280 x 720 at 30 fps
  • Diagonal viewing angle: 74.9°
  • Resolution (IR):
  • Still Image: NA
  • Video: NA
  • Diagonal viewing angle: NA
One
  • Number of cameras: One
  • Type: Integrated 2.7 mm HD RGB/IR Webcam with Proximity Sensor and optional ALS
  • Location: Front
  • Sensor type: CMOS sensor technology
  • Resolution (RGB):
  • Still Image: 0.92
  • Video: 1280 x 720 at 30 fps
  • Diagonal viewing angle: 75.8°
  • Resolution (IR):
  • Still Image: 0.23
  • Video: 640 x 360 at 15 fps
  • Diagonal viewing angle: 75.8°
One
  • Number of cameras: One
  • Type: Integrated 6 mm HD RGB Webcam
  • Location: Front
  • Sensor type: CMOS sensor technology
  • Resolution (RGB):
  • Still Image: 0.92
  • Video: 1280 x 720 at 30 fps
  • Diagonal viewing angle: 78.6°
  • Resolution (IR):
  • Still Image: NA
  • Video: NA
  • Diagonal viewing angle: NA
One
  • Number of cameras: One
  • Type: Integrated 6 mm HD RGB/IR Webcam with Proximity Sensor and optional ALS
  • Location: Front
  • Sensor type: CMOS sensor technology
  • Resolution (RGB):
  • Still Image: 0.92
  • Video: 1280 x 720 at 30 fps
  • Diagonal viewing angle: 87°
  • Resolution (IR):
  • Still Image: 0.23
  • Video: 640 x 360 at 15 fps
  • Diagonal viewing angle: 87°
One
  • Number of cameras: One
  • Type: Integrated 6 mm FHD RGB/IR Webcam with Proximity Sensor and optional ALS
  • Location: Front
  • Sensor type: CMOS sensor technology
  • Resolution (RGB):
  • Still Image: 2
  • Video: 1920 x 1080 at 30 fps
  • Diagonal viewing angle: 87.6°
  • Resolution (IR):
  • Still Image: 0.23
  • Video: 640 x 360 at 15 fps
  • Diagonal viewing angle: 87.6°

Audio Specifications

Audio specifications
Audio controller

Realtek ALC3281-CG

Stereo conversion

Supported

Internal audio interface

High-definition audio

External audio interface

Universal audio jack

Number of speakers

Two

Internal-speaker amplifier

Supported (audio codec integrated)

External volume controls

Keyboard shortcut controls

Speaker output:
Average speaker output

2 W

Peak speaker output

2.5 W

Subwoofer output

Not supported

Microphone

Dual-array microphones

Media-card Reader

Media-card reader specifications
Media-card type

One micro-SD card slot

Media-cards supported
  • Micro Secure Digital (mSD)
  • Micro Secure Digital High Capacity (mSDHC)
  • Micro Secure Digital Extended Capacity (mSDXC)

Internal slots

Internal slots
M.2

One M.2 2230/2280 Keyed M slot for solid-state drive

External Ports

External ports
USB ports
  • One USB 3.2 Gen 1 port with PowerShare
  • Two Thunderbolt 4 ports with DisplayPort Alt Mode/USB4/Power Delivery
Audio port

Universal audio jack

Video port/ports
  • One HDMI 2.0 port
  • Two Thunderbolt 4 ports with DisplayPort Alt Mode/USB4/Power Delivery
Media-card reader

One microSD-card slot

Power-adapter port

USB Type-C port with Power Delivery

Security-cable slot

One wedge-shaped lock slot

Communication wireless module

Wireless module specifications
Model number

Intel AX201

Transfer rate
  • 2.4 GHz 40M: Up to 574 Mbps
  • 5 GHz 80M: Up to 1.2 Gbps
  • 5 GHz 160M: Up to 2.4 Gbps
Frequency bands supported

2.4 GHz/5 GHz

Wireless standards
  • WiFi 802.11a/b/g
  • Wi-Fi 4 (WiFi 802.11n)
  • Wi-Fi 5 (WiFi 802.11ac)
  • Wi-Fi 6 (802.11ax)
Encryption
  • 64-bit and 128-bit WEP
  • TKIP
  • 128-bit AES-CCMP
  • 256-bit AES-GCMP
Bluetooth

Bluetooth 5.1

keyboard

Keyboard specifications
Keyboard type
  • Standard non-backlit keyboard
  • Standard backlit keyboard
Keyboard layout

QWERTY/KANJI

Number of keys
  • United States and Canada: 79 keys
  • United Kingdom: 80 keys
  • Japan: 83 keys
Keyboard size

X=18.05 mm key pitch

Y=18.05 mm key pitch

Fingerprint Reader

Fingerprint reader specifications
Sensor technology

Capacitive

Sensor resolution

500 dpi

Sensor pixel size

108 x 88

Charger | Power Adapter

Power adapter specifications
65 W AC adapter, USB-C
  • Type: 65 W AC adapter, USB-C
  • Input voltage: 100 VAC–240 VAC
  • Input frequency: 50 Hz–60 Hz
  • Input current (maximum): 1.70 A
  • Output current (continuous)
    • 5 V/3 A (Continuous)
    • 9 V/3 A (Continuous)
    • 15 V/3 A (Continuous)
    • 20 V/3.25 A (Continuous)
  • Rated output voltage
    • 5 VDC
    • 9 VDC
    • 15 VDC
    • 20 VDC
  • Temperature range:
  • Operating: 0°C to 40°C (32°F to 104°F)
  • Storage: -40°C to 70°C (-40°F to 158°F)
  • Dimensions
  • Width (mm/inch): 112 mm (4.41 in.)
  • Depth (mm/inch): 51 mm (2.01 in.)
  • Height (mm/inch): 28 mm (1.1 in.)
  • Weight (kg/lb): 201 g (0.44 lb)
90 W AC adapter, USB-C
  • Type: 90 W AC adapter, USB-C
  • Input voltage: 100 VAC–240 VAC
  • Input frequency: 50 Hz–60 Hz
  • Input current (maximum): 1.50 A
  • Output current (continuous)
    • 5 V/3 A (Continuous)
    • 9 V/3 A (Continuous)
    • 15 V/3 A (Continuous)
    • 20 V/4.5 A (Continuous)
  • Rated output voltage
    • 5 VDC
    • 9 VDC
    • 15 VDC
    • 20 VDC
  • Temperature range:
  • Operating: 0°C to 40°C (32°F to 104°F)
  • Storage: -40°C to 70°C (-40°F to 158°F)
  • Dimensions
  • Width (mm/inch): 130 mm (5.1 in.)
  • Depth (mm/inch): 66 mm (2.6 in.)
  • Height (mm/inch): 22 mm (0.8 in.)
  • Weight (kg/lb): 291 g (0.64 lb)
VN:F [1.9.22_1171]
Rating: 0.0/10 (0 votes cast)

Related posts

Top
