Latitude 3120 2-in-1 Specs and Review 10 hour Battery Timing


Dell Latitude 3120 – Review

The Latitude 3120 is 3000 Series laptop powered by Intel Celeron N5100 Processor, Intel UHD Graphics, with the support of up to 16 GB RAM and a memory speed 2933 MHz storage. It has a 11.6-inch, HD, non-touch Panel technology TN display screen. The maximum weight for the laptop is 1.35 kg (2.97 lb) and for 2-in-1 detachable its 1.42 kg (3.12 lb).Its equipped with 3-cell, 40 WHr, “smart” Lithium-ion, ExpressCharge Capable Battery in the base variant.As per the Dell official its battery timing is 10 hours and is best for college and university students. The Latitude 3120 base price is $450 but can be customized adding more specs and features.

Latitude 3120 - Bottom View

Latitude 3120 – Bottom View

Latitude 3120 - Front View

Latitude 3120 – Front View

Latitude 3120 - Side Views

Latitude 3120 – Side Views

Latitude 3120 - Tablet View

Latitude 3120 – Tablet View

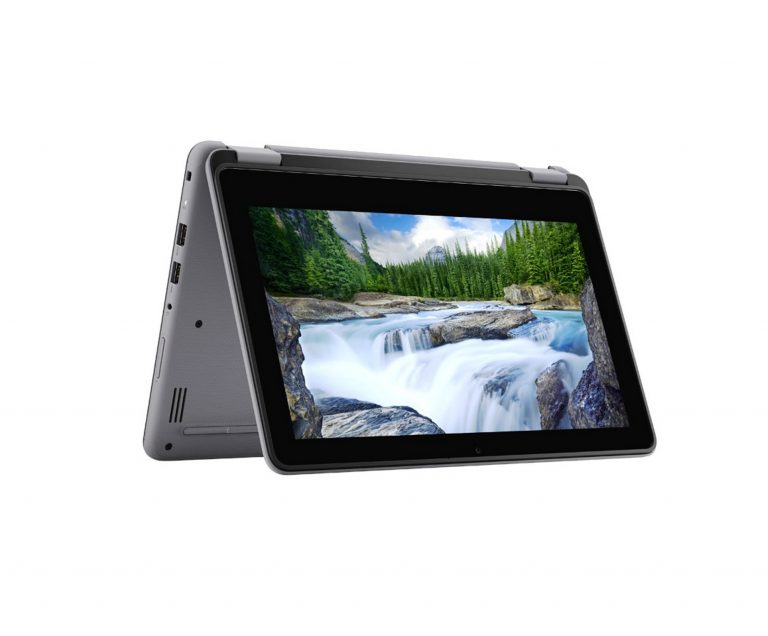

Latitude 3120 - Tent View

Latitude 3120 – Tent View

Latitude 3120 - Top View

Latitude 3120 – Top View

Dell Latitude 3120 – Specs

QuickSpecs
Brand Dell
Series Dell Latitude 3000
Model Dell Latitude 3120
Price Starting from $450
Color Black
Processor Generation Intel Celeron N5100
Display Size 11.6-inch, HD, non-touch
Weight For laptop 1.35 kg (2.97 lb) / For 2-in-1 1.42 kg (3.12 lb)
Battery 3-cell, 40 WHr, “smart” Lithium-ion, ExpressCharge Capable Batter
Minimum RAM 4 GB
Maximum RAM 16 GB
Release Date 19 AUG 2021

Dell Latitude 3120 – Technical Specifications

Processor Specifications

Processor
Intel Celeron N5100
  • Processor type: Intel Celeron N5100
  • Processor wattage: 6 W
  • Processor core count: 4 Core
  • Processor thread count: 4 Thread
  • Processor speed: 1.10 GHz to 2.80 GHz
  • Processor cache: 4 MB
  • Integrated graphics: Intel UHD Graphics
Intel Pentium Silver N6000
  • Processor type: Intel Pentium Silver N6000
  • Processor wattage: 6 W
  • Processor core count: 4 Core
  • Processor thread count: 4 Thread
  • Processor speed: 1.10 GHz to 3.30 GHz
  • Processor cache: 4 MB
  • Integrated graphics: Intel UHD Graphics

Operating System

Operating System
Operating System
  • Windows 11 Pro, 64-bit
  • Windows 11 Pro National Academic, 64-bit
  • Windows 11 Home, 64-bit
  • Windows 11 Home National Academic, 64-bit
  • Windows 10 Home, 64-bit
  • Windows 10 Home National Academic, 64-bit
  • Windows 10 Pro, 64-bit
  • Windows 10 Pro National Academic, 64-bit

Chipset

Chipset
Intel Celeron N5100
  • Processors: Intel Celeron N5100
  • Chipset: Intel Celeron N5100
  • DRAM bus width: 64-bit
  • Flash EPROM: 32 MB
  • PCIe bus: Up to PCIe Gen3
Intel Pentium Silver N6000
  • Processors: Intel Pentium Silver N6000
  • Chipset: Intel Pentium Silver N6000
  • DRAM bus width: 64-bit
  • Flash EPROM: 32 MB
  • PCIe bus: Up to PCIe Gen3

Memory (RAM)

Memory specifications
Memory slots

Integrated on the system board

Memory type
  • DDR4 for Celeron processors
  • LPDDR4x for Pentium processors
Memory speed

2933 MHz

Maximum memory configuration

16 GB

Minimum memory configuration

4 GB

Memory size per channel

4 GB, 8 GB

Memory configurations supported
  • 4 GB, DDR4 for Celeron processors, 2933 MHz, single-channel, integrated
  • 4 GB, LPDDR4x for Pentium processors, 2933 MHz, single-channel, integrated
  • 8 GB, LPDDR4x for Pentium processors, 2933 MHz, dual-channel, integrated
  • 16 GB, LPDDR4x for Pentium processors, 2933 MHz, dual-channel, integrated

Storage

Storage specifications
M.2 2230, Class 35 Solid-State Drive Gen 3 PCIe x2 NVMe, Up to 256 GB
eMMC for Celeron processors On-board, 64 GB

Storage

Storage
Storage
  • M.2 2230 solid-state drive
  • One 64 GB eMMC, on-board, Celeron only

Storage

Storage
Storage
  • For systems with an M.2 drive, the M.2 drive is the primary drive
  • For systems with an eMMC drive, the eMMC drive is the primary drive

Dimensions and Weight

Dimensions and weight
Height:
Front height
  • 20.90 mm (0.82 in.) – Laptop
  • 21.40 mm (0.84 in.) – 2-in-1
Rear height
  • 20.90 mm (0.82 in.) – Laptop
  • 21.40 mm (0.84 in.) – 2-in-1
Width

300.88 mm (11.84 in.)

Depth

204.88 mm (8.06 in.)

Weight
  • 1.35 kg (2.97 lb) – Laptop
  • 1.42 kg (3.12 lb) – 2-in-1

Display (Screen)

Display specifications
11.6-inch, HD, non-touch
  • Type: 11.6-inch, HD, non-touch
  • Panel technology: TN
  • Luminance (typical): 220 nits
  • Dimensions (Active area):
  • Height: 144 mm (5.67 in.)
  • Width: 256.12 mm (10.08 in.)
  • Diagonal: 294.64 mm (11.60 in.)
  • Native resolution: 1366 x 768
  • Megapixels: 1
  • Pixels per inch (PPI): 135
  • Contrast ratio (min): 600:1 typical
  • Response time (max): 20 ms
  • Refresh rate: 60 Hz
  • Horizontal view angle: +40/-40 degrees
  • Vertical view angle: +10/-30 degrees
  • Pixel pitch: 0.1875 mm x 0.1875 mm
  • Power consumption (maximum): 2.8 W
  • Anti-glare vs glossy finish: Anti-glare
  • Touch options: No
  • Stylus: No
11.6-inch, HD, touch, 2-in-1
  • Type: 11.6-inch, HD, touch, 2-in-1
  • Panel technology: IPS
  • Luminance (typical): 220 nits
  • Dimensions (Active area):
  • Height: 144 mm (5.67 in.)
  • Width: 256.12 mm (10.08 in.)
  • Diagonal: 294.64 mm (11.60 in.)
  • Native resolution: 1366 x 768
  • Megapixels: 1.05
  • Pixels per inch (PPI): 135
  • Contrast ratio (min): 700:1 typical
  • Response time (max): 45 ms
  • Refresh rate: 60 Hz
  • Horizontal view angle: -80/+80 degrees
  • Vertical view angle: -80/+80 degrees
  • Pixel pitch: 0.1875 mm x 0.1875 mm
  • Power consumption (maximum): 4 W
  • Anti-glare vs glossy finish: Glossy finish
  • Touch options: Yes, anti-fingerprint, 360 convertible
  • Stylus
    • MPP 1.51 active pen support
    • Pencil touch support
    • Waltop Pen w/ AAA battery (P/N: ACS-20M)

GPU — Integrated

GPU—Integrated
Intel UHD Graphics
  • One HDMI 1.4 port
  • One DisplayPort Alt Mode over USB Type-C port (optional)

, Shared system memory, Intel Celeron N5100/Pentium Silver N6000

Battery Specifications

Battery specifications
3-cell, 40 WHr, “smart” Lithium-ion, ExpressCharge Capable Battery
  • Battery type: 3-cell, 40 WHr, “smart” Lithium-ion, ExpressCharge Capable Battery
  • Battery voltage: 11.40 VDC
  • Battery weight (maximum): 0.18 kg (0.40 lb)
  • Battery dimensions:
  • Height: 184.10 mm (7.25 in.)
  • Width: 90.73 mm (3.57 in.)
  • Depth: 5.75 mm (0.23 in.)
  • Temperature range:
  • Operating: 0°C to 35°C (32°F to 95°F)
  • Storage: –40°C to 65°C (–40°F to 149°F)
  • Battery operating time: Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.
  • Battery charging time (approximate): 4 hours (when the computer is off)
  • Life span (approximate): 300 cycles at room temperature
  • ExpressCharge: Supported
  • User replaceable: No (FRU)
  • Coin-cell battery: CR2032
4-cell, 53 WHr, “smart” Lithium-ion, ExpressCharge Capable Battery
  • Battery type: 4-cell, 53 WHr, “smart” Lithium-ion, ExpressCharge Capable Battery
  • Battery voltage: 15.20 VDC
  • Battery weight (maximum): 0.24 kg (0.53 lb)
  • Battery dimensions:
  • Height: 239.10 mm (9.41 in.)
  • Width: 90.73 mm (3.57 in.)
  • Depth: 5.75 mm (0.23 in.))
  • Temperature range:
  • Operating: 0°C to 35°C (32°F to 95°F)
  • Storage: –40°C to to 65°C (–40°F to 149°F)
  • Battery operating time: Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.
  • Battery charging time (approximate): 4 hours (when the computer is off)
  • Life span (approximate): 300 cycles at room temperature
  • ExpressCharge: Supported
  • User replaceable: No (FRU)
  • Coin-cell battery: CR2032

Camera (Web Cam) Specifications

Camera specifications
One
  • Number of cameras: One
  • Type: RGB HD Camera
  • Location: Front Camera
  • Sensor type: CMOS sensor technology
  • Resolution (RGB):
  • Still Image: 1 megapixel (HD)
  • Video: 1280 x 720 (HD) at 30 fps
  • Diagonal viewing angle, RGB: 78.6°
One
  • Number of cameras: One
  • Type: RGB 5M Camera
  • Location: Rear Camera
  • Sensor type: CMOS sensor technology
  • Resolution (RGB):
  • Still Image: 4.92 megapixels (5 M)
  • Video: 2560 x 1920 (5M) at 30 fps
  • Diagonal viewing angle, RGB: 76.6°

Audio Specifications

Audio specifications
Audio controller

Realtek ALC3246-HDA Codec

Stereo conversion

Suppored

Internal audio interface

High definition audio

External audio interface

Universal audio jack

Number of speakers

Two

Internal-speaker amplifier

Supported (audio codec integrated)

External volume controls

Keyboard shortcut controls, volume buttons

Speaker output:
Average speaker output

2 W

Peak speaker output

2.5 W

Subwoofer output

Not supported

Microphone

Single integrated microphone

Internal slots

Internal slots
M.2

One M.2 2230 slot for solid-state drive

External Ports

External ports
USB ports
  • One USB 3.2 Gen 1 port
  • One USB 3.2 Gen 1 port with PowerShare
  • One USB 3.2 Gen 2 Type-C port with DisplayPort Alt Mode (Pentium only)
Audio port

One headset (headphone and microphone combo) port

Video port/ports
  • One HDMI 1.4 port
  • One DisplayPort Alt Mode (Pentium only)
Media-card reader

N/A

Power-adapter port
  • One 7.4 mm barrel-type
  • One USB Type-C port with Power Delivery (Pentium only)
Security-cable slot

One wedge-shaped lock slot

Communication wireless module

Wireless module specifications
Intel Wi-Fi 6 AX201
  • Model number: Intel Wi-Fi 6 AX201
  • Transfer rate: Up to 2400 Mbps
  • Frequency bands supported: 2.4 GHz/5 GHz
  • Wireless standards
    • WiFi 802.11a/b/g
    • Wi-Fi 4 (WiFi 802.11n)
    • Wi-Fi 5 (WiFi 802.11ac)
    • Wi-Fi 6 (802.11ax)
  • Encryption
    • 64-bit/128-bit WEP
    • AES-CCMP
    • TKIP
  • Bluetooth: Bluetooth 5.1
Intel Wi-Fi 5 9560 (160 MHz)
  • Model number: Intel Wi-Fi 5 9560 (160 MHz)
  • Transfer rate: Up to 1733 Mbps
  • Frequency bands supported: 2.4 GHz/5 GHz
  • Wireless standards
    • WiFi 802.11a/b/g
    • Wi-Fi 4 (WiFi 802.11n)
    • Wi-Fi 5 (WiFi 802.11ac)
  • Encryption
    • 64-bit/128-bit WEP
    • AES-CCMP
    • TKIP
  • Bluetooth: Bluetooth 5.0

keyboard

Keyboard specifications
Keyboard type

Standard non-backlit keyboard with captive keycaps

Keyboard layout

QWERTY

Number of keys
  • United States and Canada: 81 keys
  • United Kingdom: 82 keys
  • Japan: 85 keys
Keyboard size

X=18.70 mm key pitch

Y=18.05 mm key pitch

TouchPad

Touchpad specifications
Touchpad resolution:

>=300dpi

Touchpad dimensions:
Horizontal

100 mm (3.94 in.)

Vertical

55 mm (2.17 in.)

Touchpad gestures For more information about touchpad gestures available on Windows, see the Microsoft knowledge base article at .

Charger | Power Adapter

Power adapter specifications
65 W AC adapter, 7.4 mm
  • Type: 65 W AC adapter, 7.4 mm
  • Diameter (connector): 7.40 mm x 5.10 mm
  • Input voltage: 100 VAC x 240 VAC
  • Input frequency: 50 Hz x 60 Hz
  • Input current (maximum): 1.60 A/1.70 A
  • Output current (continuous): 3.34 A (Continuous)
  • Rated output voltage: 19.50 VDC
  • Temperature range:
  • Operating: 0°C to 40°C (32°F to 104°F)
  • Storage: -40°C to 70°C (-40°F to 158°F)
65 W AC adapter, USB-C, Pentium only
  • Type: 65 W AC adapter, USB-C, Pentium only
  • Diameter (connector): N/A
  • Input voltage: 100 VAC x 240 VAC
  • Input frequency: 50 Hz x 60 Hz
  • Input current (maximum): 1.70 A
  • Output current (continuous)
    • 20 V / 3.25 A (Continuous)
    • 15 V / 3 A (Continuous)
    • 9 V / 3 A (Continuous)
    • 5 V / 3 A (Continuous)
  • Rated output voltage
    • 20 VDC
    • 15 VDC
    • 9 VDC
    • 5 VDC
  • Temperature range:
  • Operating: 0°C to 40°C (32°F to 104°F)
  • Storage: -40°C to 70°C (-40°F to 158°F)
