Dell XPS 13 9310 2-in-1 – Review

The Dell XPS 13 9310 2-in-1 is 13.3 inch XPS 13 Series laptop powered by 11th Generation Intel Core i3-1115G4 Processor, Intel UHD Graphics, with support of up to LPDDR4X 32 GB RAM having speed of 4267 MHz and a M.2 1620 solid-state drive Up to 1 TB storage. It has a Full High Definition Wide Viewing Angle (WVA) display screen with resolution: 1920 x 1200. The maximum weight of the laptop is 1.32 kg (2.90 lb) and its equipped with 51 Wh, 4-cell “smart” lithium-ion battery in the base variant. The Dell XPS 13 9310 2-in-1 base price is US$1200 but can be customized adding more specs and features.

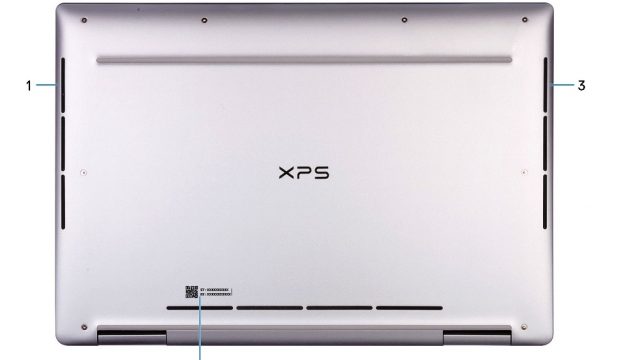

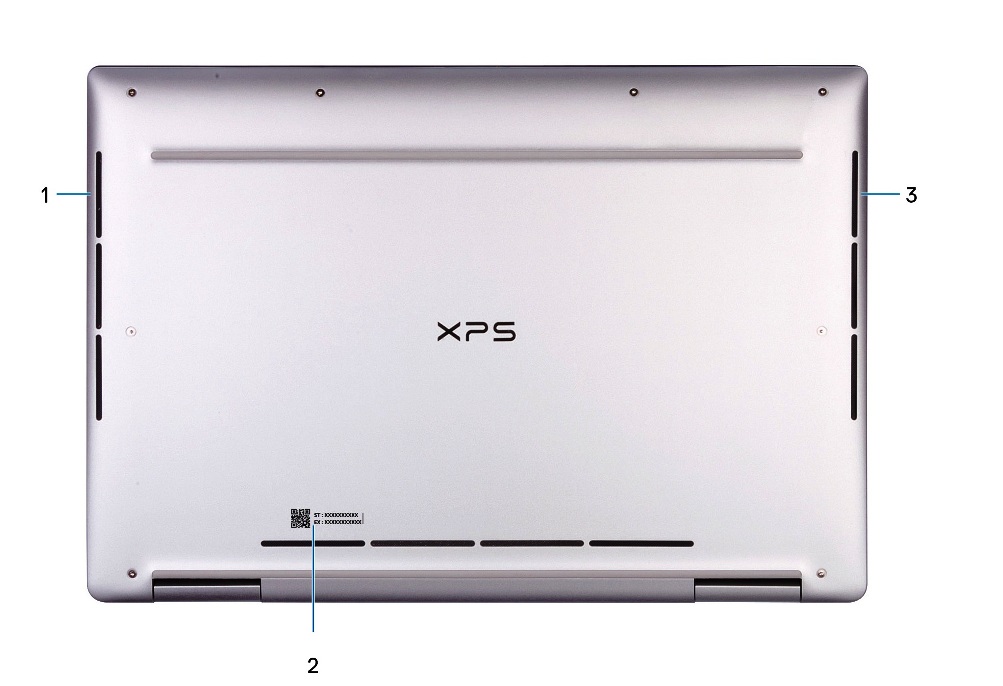

Dell XPS 13 9310 2 in 1 – Bottom View

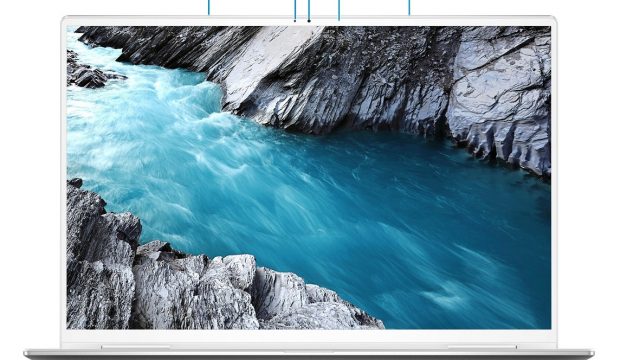

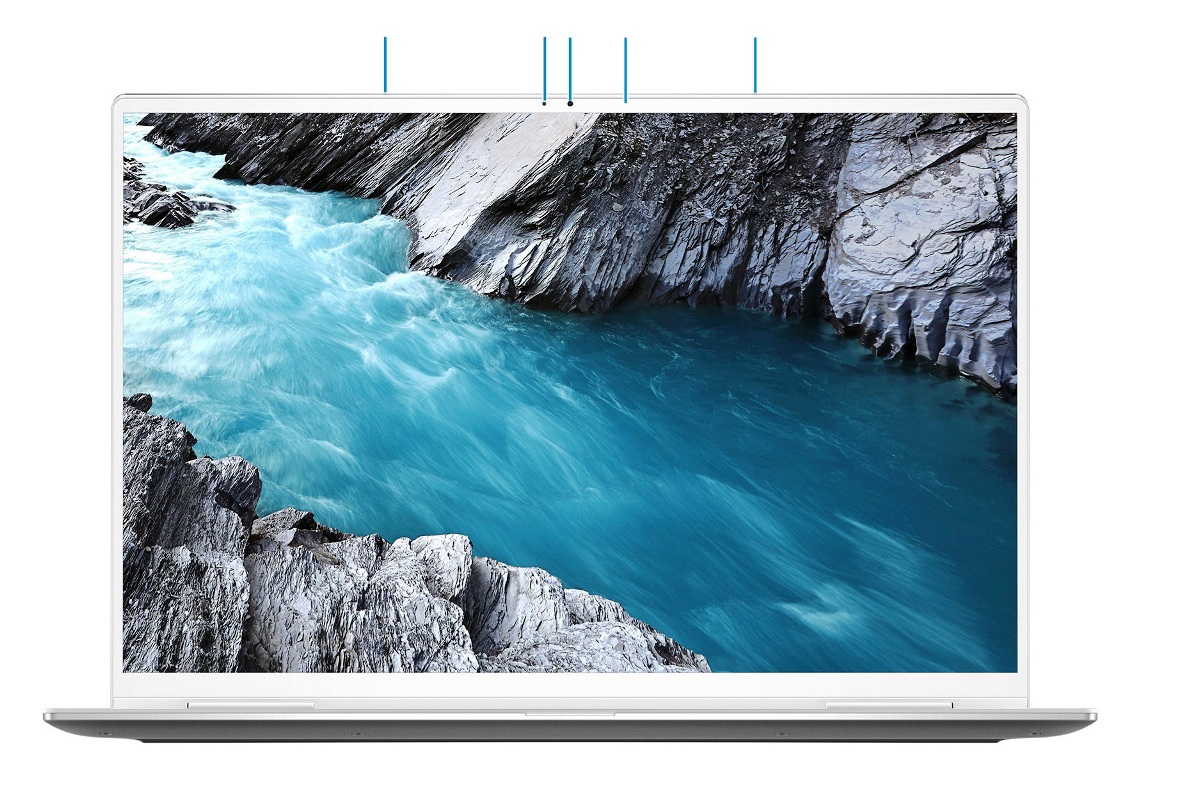

Dell XPS 13 9310 2 in 1 – Front View

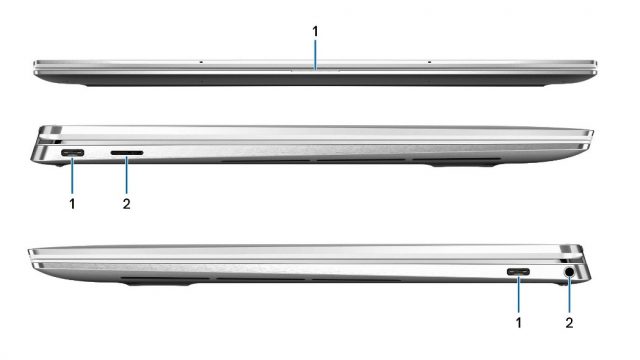

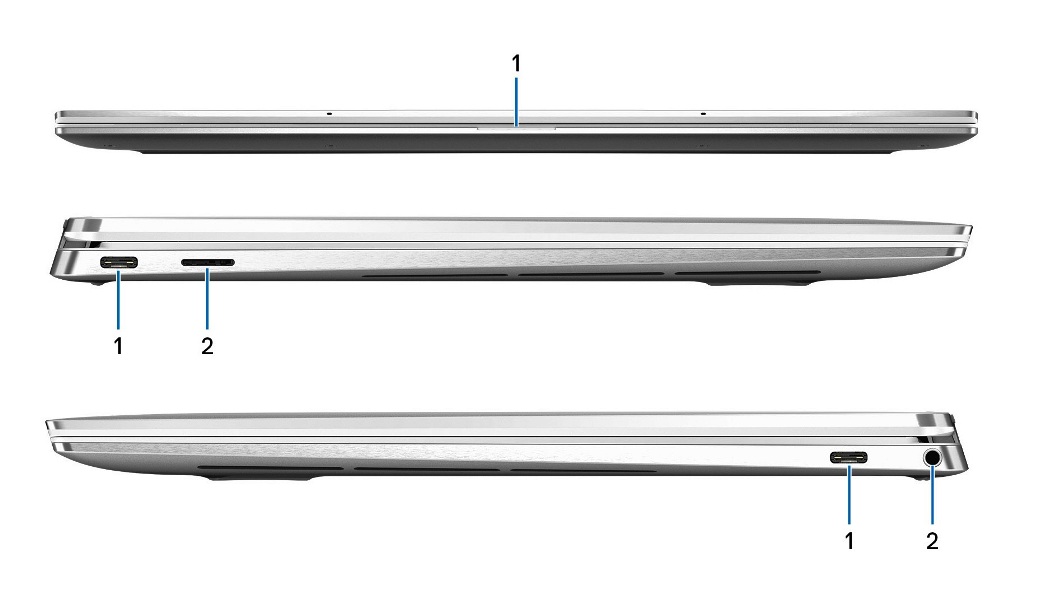

Dell XPS 13 9310 2 in 1 – Side Views

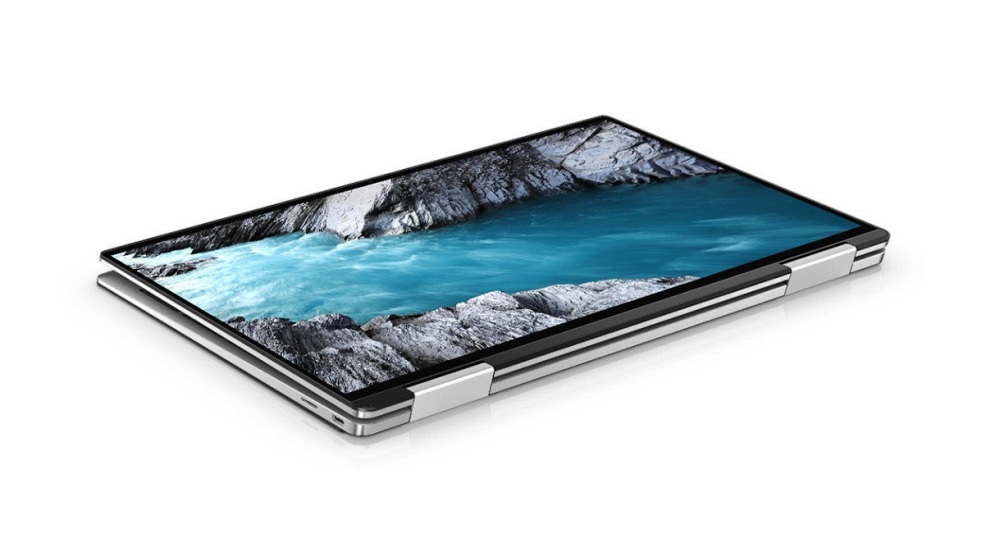

Dell XPS 13 9310 2 in 1 – Tablet View

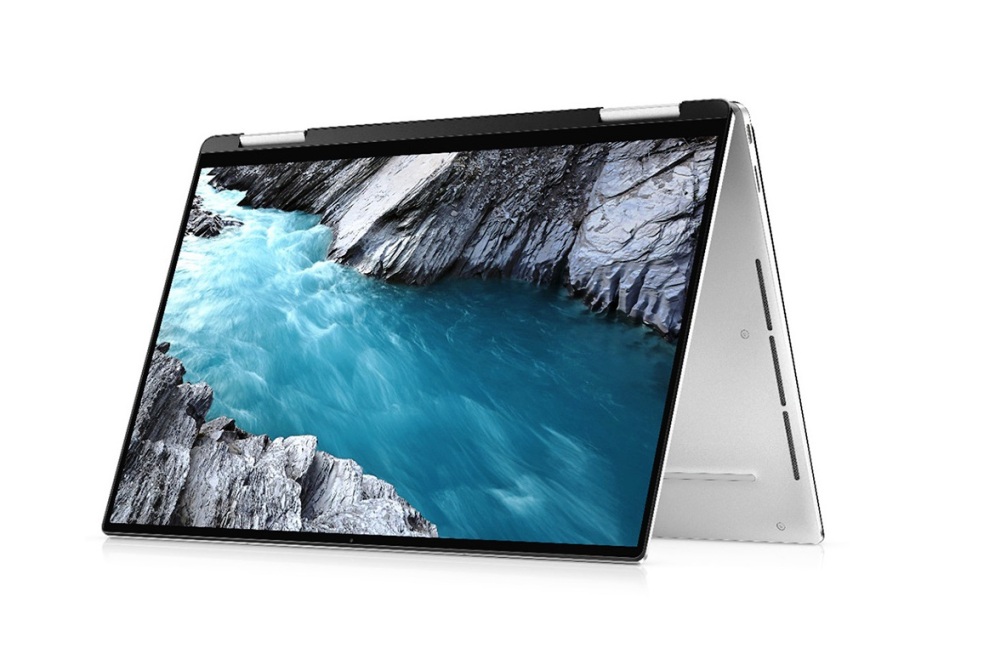

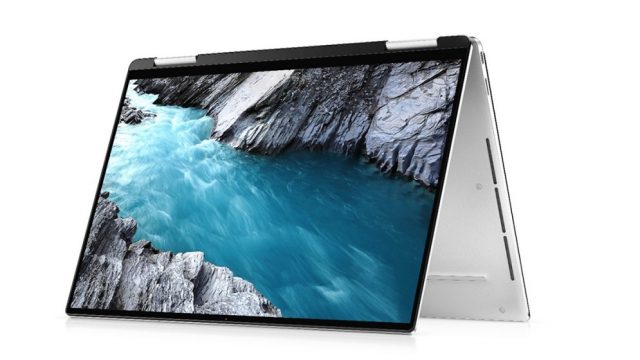

Dell XPS 13 9310 2 in 1 – Tent View

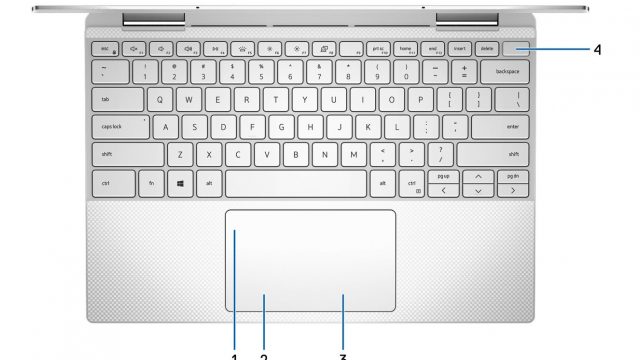

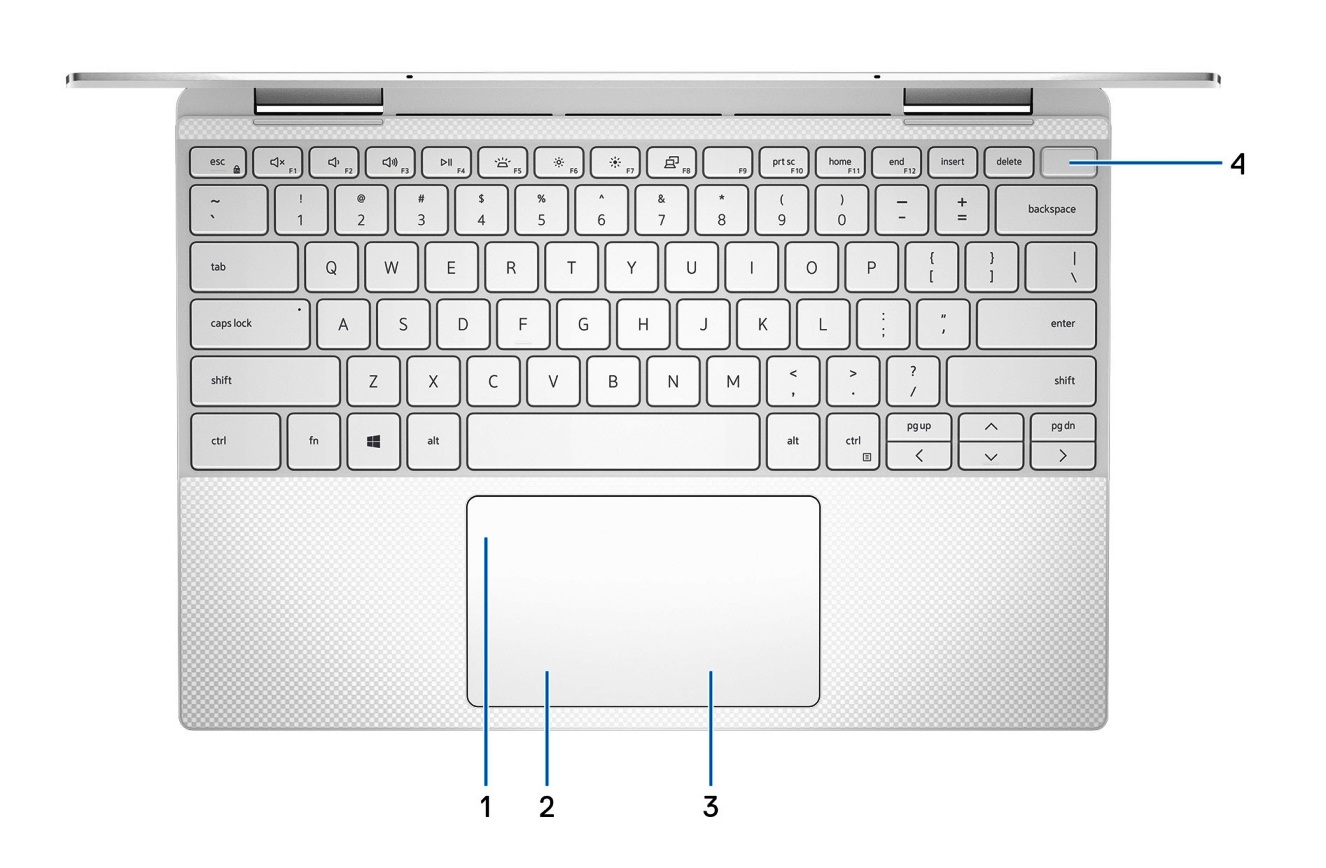

Dell XPS 13 9310 2 in 1 – Top View

Dell XPS 13 9310 2-in-1 – Specs

QuickSpecs
Brand	Dell
Series	Dell XPS 13
Model	Dell XPS 13 9310 2-in-1
Price	Starting from US$1200
Color	Silver
Processor Generation	11th Generation Intel Core i3-1115G4
Display Size	339.60 mm (13.37 in.)
Weight	1.32 kg (2.90 lb)
Battery	51 Wh, 4-cell “smart” lithium-ion
Minimum RAM	8 GB
Maximum RAM	32 GB
Release Date	28 SEP 2020

Processor
OS
Chipset
RAM
Storage
Design
Display
GPU
Battery
WebCam
Audio
Card Reader
Internal Slots
External Ports
Wi-Fi
Keyboard
TouchPad
Print Reader
Charger

Dell XPS 13 9310 2-in-1 – Full Specifications

Dell XPS 13 9310 2-in-1 Processor Specifications

Processor
11th Generation Intel Core i3-1115G4	Processor type: 11th Generation Intel Core i3-1115G4 Processor wattage: 13 W Processor core count: 2 Processor thread count: 4 Processor speed: Up to 4.1 GHz Processor cache: 6 MB Integrated graphics: Intel UHD Graphics
11th Generation Intel Core i5-1135G7	Processor type: 11th Generation Intel Core i5-1135G7 Processor wattage: 13 W Processor core count: 4 Processor thread count: 8 Processor speed: Up to 4.2 GHz Processor cache: 8 MB Integrated graphics: Intel Iris Xe Graphics
11th Generation Intel Core i5-1145G7	Processor type: 11th Generation Intel Core i5-1145G7 Processor wattage: 15 W Processor core count: 4 Processor thread count: 8 Processor speed: Up to 4.4 GHz Processor cache: 8 MB Integrated graphics: Intel Iris Xe Graphics
11th Generation Intel Core i7-1165G7	Processor type: 11th Generation Intel Core i7-1165G7 Processor wattage: 13 W Processor core count: 4 Processor thread count: 8 Processor speed: Up to 4.7 GHz Processor cache: 12 MB Integrated graphics: Intel Iris Xe Graphics
11th Generation Intel Core i7-1185G7	Processor type: 11th Generation Intel Core i7-1185G7 Processor wattage: 15 W Processor core count: 4 Processor thread count: 8 Processor speed: Up to 4.8 GHz Processor cache: 12 MB Integrated graphics: Intel Iris Xe Graphics

Operating System

Operating System
Operating System	Windows 11 Home, 64-bit Windows 11 Pro, 64-bit Windows 11 Pro National Academic, 64-bit Windows 10 Home, 64-bit Windows 10 Pro, 64-bit

Chipset

Chipset
Chipset	Tiger Lake PCH-LP
Processor	11th Generation Intel Core i3/i5/i7
DRAM bus width	64-bit
Flash EPROM	32 MB
PCIe bus	Up to Gen 3

Dell XPS 13 9310 2-in-1 Memory (RAM)

Memory specifications
Memory slots	N/A
Memory type	Dual-channel LPDDR4X
Memory speed	4267 MHz
Maximum memory configuration	32 GB
Minimum memory configuration	8 GB
Memory configurations supported	8 GB at 4267 MHz 16 GB at 4267 MHz 32 GB at 4267 MHz

Storage

Storage specifications
M.2 1620 solid-state drive	PCIe Gen3 x4 NVMe, up to 32 Gbps, Up to 1 TB

Dell XPS 13 9310 2-in-1 Dimensions and Weight

Dimensions and weight
Height:	14.35 mm (0.56 in.)
Width	297 mm (11.69 in.)
Depth	207 mm (8.15 in.)
Starting weight	1.32 kg (2.90 lb)

Dell XPS 13 9310 2-in-1 Display (Screen)

Display specifications
Full High Definition	Display type: Full High Definition Display-panel technology: Wide Viewing Angle (WVA) Display-panel dimensions (active area): Height: 180 mm (7.09 in.) Width: 288 mm (11.34 in.) Diagonal: 339.60 mm (13.37 in.) Display-panel native resolution: 1920 x 1200 Luminance (typical): 450 nits Megapixels: 2.304 Color gamut: 100% (sRGB) Pixels Per Inch (PPI): 169.3 Contrast ratio (min.): 1200:1 Response time (max.): 35 ms Refresh rate: 60 Hz Horizontal view angle: +/- 85 degrees Vertical view angle: +/- 85 degrees Pixel pitch: 0.15 mm Power consumption (maximum): 2.89 W Anti-glare vs glossy finish: Anti-reflective and Anti-smudge Touch options: Yes
Ultra High Definition	Display type: Ultra High Definition Display-panel technology: Wide Viewing Angle (WVA) Display-panel dimensions (active area): Height: 180 mm (7.09 in.) Width: 288 mm (11.34 in.) Diagonal: 339.60 mm (13.37 in.) Display-panel native resolution: 3840 x 2400 Luminance (typical): 450 nits Megapixels: 9.216 Color gamut: 100% (sRGB), 90% (DCI-P3) Pixels Per Inch (PPI): 338.6 Contrast ratio (min.): 1200:1 Response time (max.): 35 ms Refresh rate: 60 Hz Horizontal view angle: +/- 85 degrees Vertical view angle: +/- 85 degrees Pixel pitch: 0.08 mm Power consumption (maximum): 6.18 W Anti-glare vs glossy finish: Anti-reflective and Anti-smudge Touch options: Yes

Dell XPS 13 9310 2-in-1 Graphics (Shared/Dedicated)

GPU—Integrated
Intel UHD Graphics	Shared system memory, 11th Generation Intel Core i3
Intel Iris Xe Graphics	Shared system memory, 11th Generation Intel Core i5/7

Dell XPS 13 9310 2-in-1 Battery Specifications

Battery specifications
Battery dimensions:
Battery type	51 Wh, 4-cell “smart” lithium-ion
Battery voltage	7.60 VDC
Battery weight (maximum)	0.23 kg (0.51 lb)
Height	5.81 mm (0.23 in.)
Width	253.40 mm (9.98 in.)
Depth	105.50 mm (4.15 in.)
Temperature range:
Operating	0°C to 45°C (32°F to 113°F)
Storage	-20°C to 65°C (-4°F to 149°F)
Battery operating time	Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.
Battery charging time (approximate)	3 hours (with 45 W adapter) 2 hours (with 65 W adapter)
Coin-cell battery	Not supported

Camera (Web Cam) Specifications

Camera specifications
Resolution
Number of cameras	One
Type	RGB and infrared HD camera
Location	Front camera
Sensor type	CMOS sensor technology
Camera
Still image	0.92 megapixel
Video	1280 x 720 (HD) at 30 fps
Infrared camera
Still image	0.23 megapixel
Video	640 x 360 at 15 fps
Diagonal viewing angle
Camera	78 degrees
Infrared camera	78 degrees

Audio Specifications

Audio specifications
Speaker output:
Audio controller	Realtek ALC3281-CG
Stereo conversion	Supported
Internal audio interface	High definition audio interface
External audio interface	Universal Audio Jack
Number of speakers	2
Internal-speaker amplifier	Supported (Audio codec integrated)
External volume controls	Keyboard shortcut controls
Average speaker output	2 W
Peak speaker output	2.5 W
Subwoofer output	Not supported
Microphone	Digital-array microphones

Media-card Reader

Media-card reader specifications

Media-card type	One micro-SD card slot
Media-cards supported	Micro Secure Digital (mSD) Micro Secure Digital High Capacity (mSDHC) Micro Secure Digital Extended Capacity (mSDXC)

Internal slots

Internal slots
M.2	One M.2 slot for WiFi and Bluetooth module

External Ports

External ports
USB ports	Two Thunderbolt 4 (USB4) USB Type-C port with Power Delivery
Audio port	One headset (headphone and microphone combo) port
Video port	N/A
Media-card reader	One micro-SD card slot
Docking port	N/A
Power-adapter port	USB Type-C port
Security	N/A

Communication wireless module

Wireless module specifications
Killer 1650s	Model number: Killer 1650s Transfer rate: Up to 2400 Mbps Frequency bands supported: 2.4 GHz/5 GHz Wireless standards WiFi 802.11a/b/g Wi-Fi 4 (WiFi 802.11n) Wi-Fi 5 (WiFi 802.11ac) Wi-Fi 6 (WiFi 802.11ax) Encryption 64-bit/128-bit WEP AES-CCMP TKIP Bluetooth: Bluetooth 5.1
Intel AX201	Model number: Intel AX201 Transfer rate: Up to 2400 Mbps Frequency bands supported: 2.4 GHz/5 GHz Wireless standards WiFi 802.11a/b/g Wi-Fi 4 (WiFi 802.11n) Wi-Fi 5 (WiFi 802.11ac) Wi-Fi 6 (WiFi 802.11ax) Encryption 64-bit/128-bit WEP AES-CCMP TKIP Bluetooth: Bluetooth 5.1

keyboard

Keyboard specifications
Keyboard type	Backlit keyboard
Keyboard layout	QWERTY
Number of keys	United States and Canada: 81 keys United Kingdom: 82 keys Japan: 85 keys
Keyboard size	X=19.05 mm key pitch Y=18.05 mm key pitch
Keyboard shortcuts	Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. To type the alternate character, press Shift and the desired key. To perform secondary functions, press Fn and the desired key.

TouchPad

Touchpad specifications
Touchpad resolution:
Horizontal	1296
Vertical	752
Touchpad dimensions:
Horizontal	112 mm (4.41 in.)
Vertical	66.70 mm (2.63 in.)
Touchpad gestures	For more information about touchpad gestures available on Windows, see the Microsoft knowledge base article at .

Fingerprint Reader

Fingerprint reader specifications
Fingerprint-reader sensor technology	Capacitive
Fingerprint-reader sensor resolution	500 dpi
Fingerprint-reader sensor pixel size	64 x 80

Charger | Power Adapter

Power adapter specifications
Temperature range:
Type	45 W (USB Type-C)
Input voltage	100 VAC–240 VAC
Input frequency	50 Hz–60 Hz
Input current (maximum)	1.30 A
Output current (continuous)	2.25 A
Rated output voltage	20 VDC
Operating	0°C to 40°C (32°F to 104°F)
Storage	-40°C to 70°C (-40°F to 158°F)
