Dell Latitude 3300 Specs and Review 13 inch 3000 Series


Dell Latitude 3300 – Overview

The Latitude 3300 is 3000 Series laptop powered by Intel Core i5-8250U Processor, Intel UHD Graphic 620, with the support of up to 16 GB Speed KBL-U: 2133 MHz KBL-R: 2400 MHz RAM and a 2230, PCIe, 128 GB/256 GB storage. It has a 13.3-inch FHD WVA (1920 x 1080) True-life (16:9) WLED touch screen. The maximum weight for the laptop is 3.52 lb (1.59 kg) and its equipped with 42 WHr “smart” Lithium-ion 3 cell battery in the base variant. The Latitude 3300 base price is $650 but can be customized adding more specs and features.

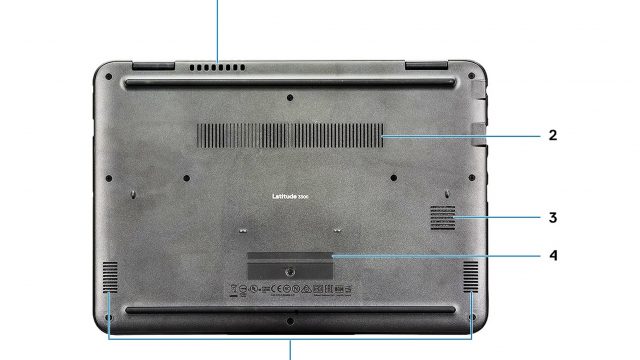

Latitude 3300 - Base View

Latitude 3300 – Base View

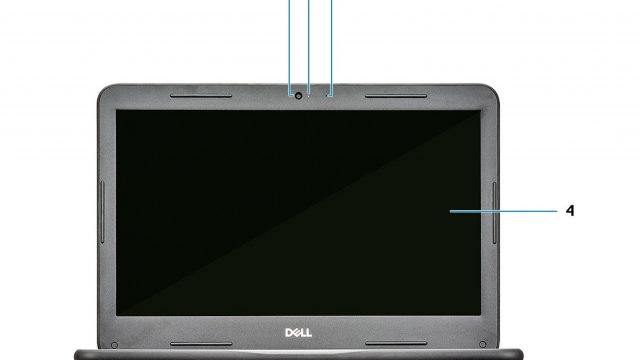

Latitude 3300 - Front View

Latitude 3300 – Front View

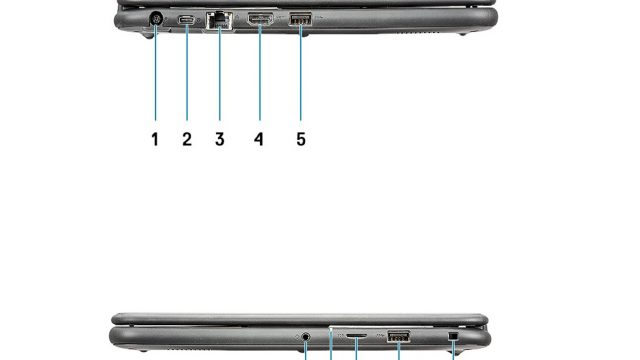

Latitude 3300 - Side Views

Latitude 3300 – Side Views

Dell Latitude 3300 – Specs

QuickSpecs
Brand Dell
Series Dell Latitude 3000
Model Dell Latitude 3300
Price Starting from $650
Color Black
Processor Generation Intel Core i5-8250U(Quad Core, # of Threads : 8, TDP:15 W, 6 M cache, 1.6 GHz)
Display Size 13.3-inch FHD WVA (1920 x 1080) True-life (16:9) WLED touch screen
Weight Starting 3.52 lb (1.59 kg)
Battery 42 WHr “smart” Lithium-ion 3 cell battery
Minimum RAM 4 GB
Maximum RAM 16 GB
Release Date 13 APR 2020

Dell Latitude 3300 – Technical Specifications

Processor Specifications

Processor specifications
Intel Core i3 – 7020U(Dual Core, # of Threads: 4, TDP:15 W, 3 M cache, 2.3 GHz) Kaby Lake U, Intel HD Graphic 620
Intel Celeron Processor 3865U (Dual Core, # of Threads: 2, TDP:15 W, 2 M cache, 1.80 GHz) Kaby Lake U, Intel HD Graphic 610
Intel Pentium Processor 4415U (Dual Core, # of Threads: 4, TDP:15 W, 2 M cache, 2.3 GHz) Kaby Lake U, Intel HD Graphic 610
Intel Core i5-8250U(Quad Core, # of Threads : 8, TDP:15 W, 6 M cache, 1.6 GHz) Kaby Lake R, Intel UHD Graphic 620

Memory (RAM)

Memory specifications
Minimum memory configuration

4 GB

Maximum memory configuration

16 GB

Number of slots

1 SODIMM

Maximum memory supported per slot

16 GB

Memory options
  • 4 GB – 1 x 4 GB
  • 8 GB- 1 x 8 GB
  • 16 GB – 1 x 16 GB
Type

DDR4

Speed
  • KBL-U: 2133 MHz
  • KBL-R: 2400 MHz

Storage

Storage specifications
M.2 SSD 2230, PCIe, 128 GB/256 GB
M.2 eMMC 2242, SATA, 64 GB

Dimensions and Weight

Dimensions and weight
Height

Front height – 0.88 inch (22.3 mm)

Back height – 0.88 inch (22.3 mm)

Width

12.98 inch (329.6 mm)

Depth

9.07 inch (230.45 mm)

Weight

Starting 3.52 lb (1.59 kg)

Display (Screen)

Following are the display specifications
Type
  • 13.3-inch FHD WVA (1920 x 1080) True-life (16:9) WLED touch screen
  • 13.3 inch-HD (1366 x 768) Anti-glare (16:9) WLED non-touch screen
Height (Active area)

FHD: 165.24 mm

HD: 164.97 mm

Width (Active area)

FHD: 293.76 mm

HD: 293.42 mm

Diagonal

FHD: 337.044 mm (13.3 inch)

HD: 336.616 mm (13.3 inch)

Luminance/Brightness (typical)

220 nits

Refresh rate

60 Hz

Horizontal viewing angle (min)

FHD: +/- 80

HD: +/- 40

Vertical viewing angle (min)

FHD: +/- 80

HD: +10/- 40

Battery Specifications

Battery specifications
Type
  • 42 WHr “smart” Lithium-ion 3 cell battery
  • 56 WHr “smart” Lithium-ion 4 cell battery
  • 42 WHr “smart” Lithium-polymer 3 cell battery
Dimension
  • Height: 5.9 mm (0.23 inch)
  • Width: 97.15 mm (3.82 inch)
  • Depth: 184.15 mm (7.25 inch)
  • Weight: 0.2 Kg (0.44 lb)
  • Height: 5.9 mm (0.23 inch)
  • Width: 98.20 mm (3.87 inch)
  • Depth: 233.37 mm (9.19 inch)
  • Weight: 0.25 Kg (0.55 lb)
  • Height: 5.9 mm (0.23 inch)
  • Width: 97.15 mm (3.82 inch)
  • Depth: 184.15 mm (7.25 inch)
  • Weight: 0.195 Kg (0.43 lb)
Voltage
  • 42 WHr – 11.40 V DC
  • 56 WHr – 15.20 V DC
Life span

42 WHr-One year warranty for 300 cycles discharge/charge cycles

56 WHr- Optional three year warranty for 1000 cycles discharge/charge cycles

Charging time when the computer is off (approximate)

Express Charge Mode

0~15 °C : 4 hours

16~45 °C : 2 hours

46~60 °C : 2 hours

Standard Mode

0~15 °C : 4 hours

16~60 °C : 3 hours

46~60 °C : 3 hours

Operating time

Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions

Temperature range: Operating

0 °C to 35 °C (32 °F to 95 °F)

Charge: 0 °C to 50 °C (32 °F to 122 °F)

Discharge: 0 °C to 70 °C (32 °F to 158 °F)

Temperature range: Storage

– 20 °C to 65 °C (- 4 °F to 149 °F)

Coin-cell battery

CR2032

Camera (Web Cam) Specifications

Camera specifications
Resolution
  • Still image: 0.92 megapixels
  • Video: 1280 x 720 at 30 fps
Diagonal viewing angle
  • Camera – 78.6 degree (optical FOV) / 83.5 degree (ME FOV)

Audio Specifications

Following are the audio specifications
Controller

Realtek ALC3246

Type

Four-channel high-definition audio

Speakers

Two (Directional speakers)

Interface
  • Universal audio jack
  • High quality speakers
  • Single microphone
  • Stereo headset/mic combo
Internal speaker amplifier

2 W (RMS) per channel

Ports and connectors

Following are ports and connectors specifications
Memory card reader

microSD 3.0 memory card reader

USB
  • Two USB 3.1 Gen 1 Type-A ports
  • One USB 3.1 Gen 1 Type-C port (except Celeron sku)
Security

Noble Wedge shaped lock slot

Audio
  • Universal audio jack
  • Single microphone
Video
  • HDMI 1.4 a
  • DisplayPort through Type-C port
Network adapter

One RJ-45 connector

Communication wireless module

Communication specifications
Network adapter

Integrated Realtek RTL8111HSD 10/100/1000 Mb/s Ethernet (RJ-45 )

keyboard

Keyboard specifications
Number of keys
  • 82 Keys (U.S.A.)
  • 83 Keys (U.K.)
  • 86 Keys (Japan)
  • 84 Keys (Brazil)
Size
  • X= 19.05 mm key pitch
  • Y= 18.05 mm key pitch
Backlit keyboard

None

Layout

U.S.A./U.K./Japan/Brazil

TouchPad

Touchpad specifications
Resolution
  • Horizontal: 3220
  • Vertical: 1952
Dimensions
  • Width: 4.13 inch (105 mm)
  • Height: 2.56 inch (65 mm)
Multi-touch Supports up to 5 fingers

Security

Security
Firmware TPM

Yes

Windows Hello Support

Optional

Cable cover

No

Chassis lock slot and loop support

Yes

Security Software

Security Software
Dell Endpoint Security Suite Enterprise

Optional

Dell Data Guardian

Optional

Dell Encryption (Enterprise or Personal)

Optional

Dell Threat Defense

Optional

RSA SecurID Access

Optional

RSA NetWitness Endpoint

Optional

MozyPro or MozyEnterprise

Optional

Absolute Data & Device Security

Optional

Charger | Power Adapter

Power adapter specifications
Type
  • 65 W Barrel Type
  • Upsell Type-C Adapter
Input Voltage

100 VAC to 240 VAC

Input current (maximum)

2.5 A

Input frequency

50 Hz to 60 Hz

Output current

3.34 A

Rated output voltage

19.5 VDC

Temperature range (Operating)

0 ºC to 40 ºC (32 ºF to 104 ºF)

Temperature range (Non-Operating)

40 ºC to 70 ºC (-40 ºF to 158 ºF)
