Dell Vostro 13 5000 5320 Specs Review 12th Gen Core i5-1240P

Dell Vostro 13 5000 5320 – Review

The Vostro 5320 is 13 Inch 5000 Series laptop powered by 12th Generation Intel Core i5-1240P Processor, Intel UHD Graphics, with the support of up to LPDDR5 32 GB RAM having speed of 4800 MHz and a PCIe NVMe Gen4 x4, up to 64 Gbps speed, and Up to 2 TB storage capacity solid-state drive. It has Full High Definition Plus (FHD+) Display-panel with resolution 1920 x 1200 px. The maximum weight of the laptop is 1.30 kg (2.86 lb) and its equipped with 4-cell “polymer” lithium-ion (54 Wh) battery in the base variant. The Vostro 5320 base price is US$930 but can be customized adding more specs and features.

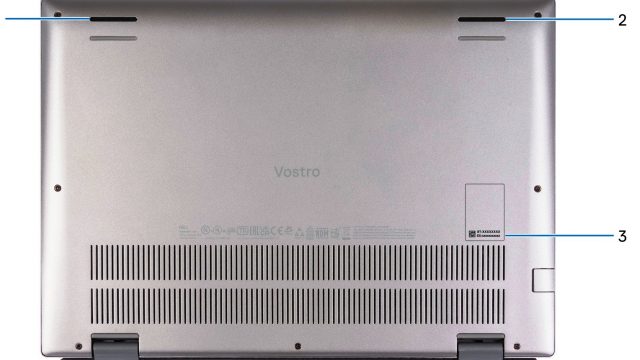

Vostro 5320 - Bottom View

Vostro 5320 – Bottom View

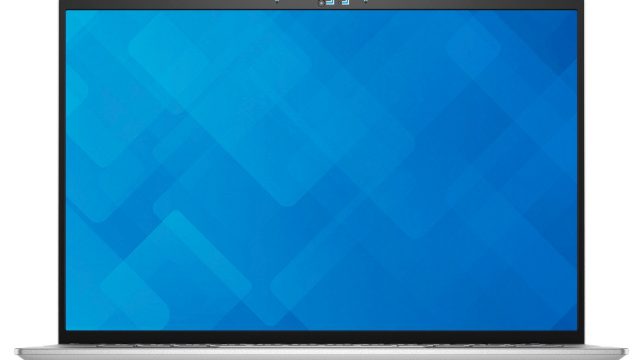

Vostro 5320 - Front View

Vostro 5320 – Front View

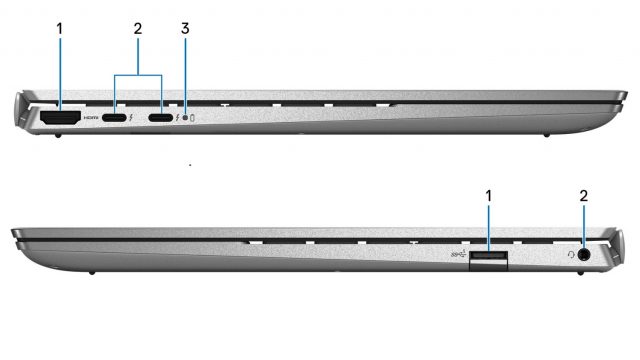

Vostro 5320 - Side Views

Vostro 5320 – Side Views

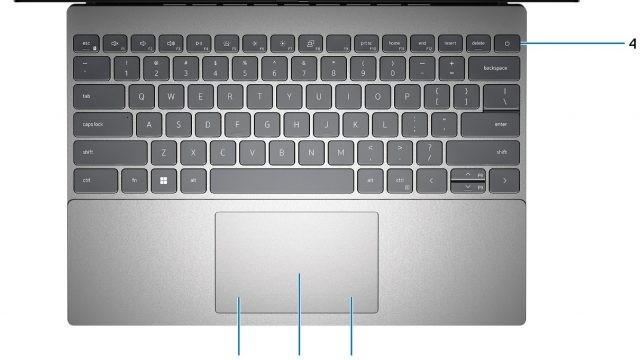

Vostro 5320 - Top View

Vostro 5320 – Top View

Dell Vostro 5320 – Specs

QuickSpecs
Brand Dell
Series Dell Vostro 5000
Model Dell Vostro 5320
Price Starting from $930
Color Silver
Processor Generation 12th Generation Intel Core i5-1240P
Display Size 337.36 mm (13.28 inch)
Weight 1.30 kg (2.86 lb)
Battery 4-cell “polymer” lithium-ion (54 Wh)
Minimum RAM 8 GB
Maximum RAM 32 GB
Release Date 19 MAY 2022

Dell Vostro 5320 – Full Specifications

Dell Vostro 5320 Processor Specifications

Processor
12th Generation Intel Core i5-1240P
  • Processor type: 12th Generation Intel Core i5-1240P
  • Processor wattage: 28 W
  • Processor core count: 12
  • Processor thread count: 8
  • Processor speed: Up to 4.40 GHz
  • Processor cache: 12 MB
  • Integrated graphics: Intel Iris Xe Graphics
12th Generation Intel Core i7-1260P
  • Processor type: 12th Generation Intel Core i7-1260P
  • Processor wattage: 28 W
  • Processor core count: 12
  • Processor thread count: 8
  • Processor speed: Up to 4.70 GHz
  • Processor cache: 18 MB
  • Integrated graphics: Intel Iris Xe Graphics
12th Generation Intel Core i5-1235U
  • Processor type: 12th Generation Intel Core i5-1235U
  • Processor wattage: 15 W
  • Processor core count: 10
  • Processor thread count: 12
  • Processor speed: Up to 4.40 GHz
  • Processor cache: 12 MB
  • Integrated graphics: Intel Iris Xe Graphics
12th Generation Intel Core i3-1215U
  • Processor type: 12th Generation Intel Core i3-1215U
  • Processor wattage: 15 W
  • Processor core count: 6
  • Processor thread count: 8
  • Processor speed: Up to 4.40 GHz
  • Processor cache: 10 MB
  • Integrated graphics: Intel UHD Graphics

Operating System

Operating System
Operating System
  • Windows 11 Pro, 64-bit
  • Windows 11 Pro National Academic, 64-bit
  • Windows 11 Home, 64-bit

Chipset

Chipset
Chipset

Intel 600 Series Chipset

Processor

12th Generation Intel Core i3/i5/i7

DRAM bus width

32-bit

Flash EPROM

32 MB

PCIe bus

Up to Gen3.0

Dell Vostro 5320 Memory (RAM)

Memory specifications
Memory slots

Onboard memory

Memory type

LPDDR5

Memory speed

4800 MHz

Maximum memory configuration

32 GB

Minimum memory configuration

8 GB

Memory configurations supported
  • 8 GB, 2 x 4 GB, LPDDR5, 4800 MHz, dual-channel, integrated
  • 16 GB, 2 x 8 GB, LPDDR5, 4800 MHz, dual-channel, integrated
  • 32 GB, 2 x 16 GB, LPDDR5, 4800 MHz, dual-channel, integrated

Storage

Storage specifications
M.2 2280, Class 40 solid-state drive PCIe NVMe Gen4 x4, up to 64 Gbps, Up to 2 TB
M.2 2230, Class 35 solid-state drive PCIe NVMe Gen4 x4, up to 64 Gbps, Up to 1 TB

Storage

Storage
Storage
  • One M.2 2230 solid-state drive
  • One M.2 2280 solid-state drive

Dell Vostro 5320 Dimensions and Weight

Dimensions and weight
Height:
Front height

14.35 mm (0.56 in.)

Rear height

15.65 mm (0.62 in.)

Width

296.68 mm (11.68 in.)

Depth

213.50 mm (8.40 in.)

Weight

1.30 kg (2.86 lb) – maximum

Dell Vostro 5320 Display (Screen) Specifications

Display specifications
Full High Definition Plus (FHD+)
  • Display type: Full High Definition Plus (FHD+)
  • Display-panel technology: Wide-Viewing Angle (WVA)
  • Display-panel dimensions (active area):
  • Height: 178.80 mm (7.04 in.)
  • Width: 286.08 mm (11.26 in.)
  • Diagonal: 337.36 mm (13.28 in.)
  • Display-panel native resolution: 1920 x 1200
  • Luminance (typical): 300 nits
  • Megapixels: 2.30
  • Color gamut: 100% (sRGB) – typical
  • Pixels Per Inch (PPI): 170
  • Contrast ratio (min.): 1000:1
  • Response time (max.): 35 ms
  • Refresh rate: 60 Hz
  • Horizontal view angle: +/- 80 degrees
  • Vertical view angle: +/- 80 degrees
  • Pixel pitch: 0.149 mm x 0.149 mm
  • Power consumption (maximum): 4.30 W
  • Anti-glare vs glossy finish: Anti-glare
  • Touch options: Not supported
Quad-High Definition Plus (QHD+)
  • Display type: Quad-High Definition Plus (QHD+)
  • Display-panel technology: Wide-Viewing Angle (WVA)
  • Display-panel dimensions (active area):
  • Height: 178.80 mm (7.04 in.)
  • Width: 286.08 mm (11.26 in.)
  • Diagonal: 337.36 mm (13.28 in.)
  • Display-panel native resolution: 2560 x 1600
  • Luminance (typical): 300 nits
  • Megapixels: 3.07
  • Color gamut: 100% (sRGB) – typical
  • Pixels Per Inch (PPI): 227
  • Contrast ratio (min.): 1200:1
  • Response time (max.): 35 ms
  • Refresh rate: 60 Hz
  • Horizontal view angle: +/- 80 degrees
  • Vertical view angle: +/- 80 degrees
  • Pixel pitch: 0.11175 mm x 0.11175 mm
  • Power consumption (maximum): 4.40 W
  • Anti-glare vs glossy finish: Anti-glare
  • Touch options: Not supported

GPU — Integrated

GPU—Integrated
Intel Iris Xe Graphics Shared system memory, 12th Generation Intel Core i5/i7
Intel UHD Graphics Shared system memory, 12th Generation Intel Core i3

Dell Vostro 5320 Battery Specifications

Battery specifications
4-cell “polymer” lithium-ion (54 Wh)
  • Battery type: 4-cell “polymer” lithium-ion (54 Wh)
  • Battery voltage: 15 VDC (Nominal)
  • Battery weight (maximum): 0.24 kg (0.53 lb)
  • Battery dimensions:
  • Height: 271.90 mm (10.70 in.)
  • Width: 82 mm (3.23 in.)
  • Depth: 5.75 mm (0.23 in.)
  • Temperature range:
  • Operating: 0°C to 50°C (32°F to 122°F)
  • Storage: -20°C to 60°C (-4°F to 140°F)
  • Battery operating time: Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.
  • Battery charging time (approximate): 2 hours (Express charge ), 3 hours (Standard charge)
  • Coin-cell battery: CR2032
4-cell “polymer” lithium-ion (64 Wh)
  • Battery type: 4-cell “polymer” lithium-ion (64 Wh)
  • Battery voltage: 15.20 VDC (Nominal)
  • Battery weight (maximum): 0.26 kg (0.57 lb)
  • Battery dimensions:
  • Height: 271.90 mm (10.70 in.)
  • Width: 82 mm (3.23 in.)
  • Depth: 5.75 mm (0.23 in.)
  • Temperature range:
  • Operating: 0°C to 50°C (32°F to 122°F)
  • Storage: -20°C to 60°C (-4°F to 140°F)
  • Battery operating time: Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.
  • Battery charging time (approximate): 2 hours (Express charge ), 3 hours (Standard charge)
  • Coin-cell battery: CR2032

Camera (Web Cam) Specifications

Camera specifications
Number of cameras

One

Camera type

FHD Camera

Camera location

Front camera

Camera sensor type

CMOS sensor technology

Camera resolution:
Still image

2.07 megapixel

Video

1920 x 1080 (HD) at 30 fps

Diagonal viewing angle:

82 degrees

Audio Specifications

Audio specifications
Audio controller

Realtek ALC3204

Stereo conversion

Supported

Internal audio interface

High definition audio interface

External audio interface
  • Universal audio jack
  • HDMI 1.4b port
Number of speakers

2

Internal-speaker amplifier

Supported

External volume controls

Keyboard shortcut controls

Speaker output:
Average speaker output

2 W

Peak speaker output

2.5 W

Subwoofer output

Not supported

Microphone

Digital-array microphones

Internal slots

Internal slots
M.2
  • One M.2 2230 slot for WiFi and Bluetooth combo card
  • One M.2 2230/2280 slot for solid-state drive

External Ports

External ports
USB ports
  • Two USB Type-C Thunderbolt 4 ports with DisplayPort and Power Delivery
  • One USB 3.2 Gen 1 port
Audio port

One Universal audio jack

Video port/ports

One HDMI 1.4 port

Media-card reader

Not supported

Power-adapter port

Two USB Type-C Thunderbolt 4 ports with DisplayPort and Power Delivery

Security-cable slot

Not supported

Communication wireless module

Wireless module specifications
Intel AX211
  • Model number: Intel AX211
  • Transfer rate: Up to 2400 Mbps
  • Frequency bands supported: 2.4 GHz/5 GHz/6 GHz
  • Wireless standards
    • WiFi 802.11a/b/g
    • Wi-Fi 4 (WiFi 802.11n)
    • Wi-Fi 5 (WiFi 802.11ac)
    • Wi-Fi 6E (WiFi 802.11ax)
  • Encryption
    • 64-bit WEP
    • 128-bit WEP
    • AES-CCMP
    • TKIP
  • Bluetooth: Bluetooth 5.2
Intel AX201
  • Model number: Intel AX201
  • Transfer rate: Up to 2400 Mbps
  • Frequency bands supported: 2.4 GHz/5 GHz
  • Wireless standards
    • WiFi 802.11a/b/g
    • Wi-Fi 4 (WiFi 802.11n)
    • Wi-Fi 5 (WiFi 802.11ac)
    • Wi-Fi 6 (WiFi 802.11ax)
  • Encryption
    • 64-bit WEP
    • 128-bit WEP
    • AES-CCMP
    • TKIP
  • Bluetooth: Bluetooth 5.2

keyboard

Keyboard specifications
Keyboard type
  • Standard keyboard
  • Standard backlit keyboard
Keyboard layout

QWERTY

Number of keys
  • United States and Canada: 79 keys
  • United Kingdom: 80 keys
  • Japan: 83 keys
Keyboard size

X=19.05 mm key pitch

Y=18.05 mm key pitch

Keyboard shortcuts

Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. To type the alternate character, press Shift and the desired key. To perform secondary functions, press Fn and the desired key. For more information, see .

TouchPad

Touchpad specifications
Touchpad resolution:

>300 DPI

Touchpad dimensions:
Horizontal

105 mm (4.13 in.)

Vertical

65 mm (2.56 in.)

Touchpad gestures For more information about touchpad gestures available on Windows, see the Microsoft knowledge base article at .

Fingerprint Reader

Fingerprint reader specifications
Fingerprint-reader sensor technology

Capacitive

Fingerprint-reader sensor resolution

500 dpi

Fingerprint-reader sensor pixel size

108 x 88

Charger | Power Adapter

Power adapter specifications
Type

65 W USB Type-C

Power-adapter dimensions:
Height

28 mm (1.10 in.)

Width

51 mm (2.01 in.)

Depth

112 mm (4.40 in.)

Input voltage

100 VAC–240 VAC

Input frequency

50 Hz–60 Hz

Input current (maximum)

1.70 A

Output current (continuous)
  • 20 V/3.25 A (continuous)
  • 15 V/3 A (continuous)
  • 9 V/3 A (continuous)
  • 5 V/3 A (continuous)
Rated output voltage
  • 20 VDC
  • 15 VDC
  • 9 VDC
  • 5 VDC
Temperature range:
Operating

0°C to 40°C (32°F to 104°F)

Storage

-40°C to 70°C (-40°F to 158°F)
