Dell XPS 17 9700 – Review

The Dell XPS 17 9700 is XPS 17 Series laptop powered by 10th Generation Intel Core i5-10300H Processor, NVIDIA GeForce GTX 1650 Ti 4 GB GDDR6 dedicated graphics card and with the support of up to DDR4 64 GB RAM having speed of 2933 MHz and a M.2 2230 solid-state drive Up to 256 GB storage. It has a Full High Definition (FHD+) Wide Viewing Angle (WVA) display screen with resolution 1920 x 1200. The maximum weight of the laptop is 2.53 kg (5.58 lb) and its equipped with 3-cell (56 WHr) “smart” lithium-ion in the base variant. The Dell XPS 17 9700 base price is USD$1400 but can be customized adding more specs and features.

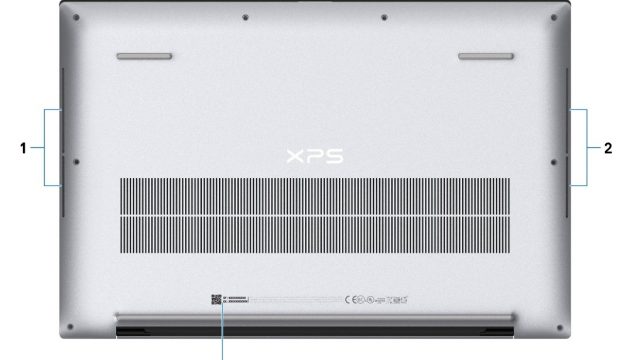

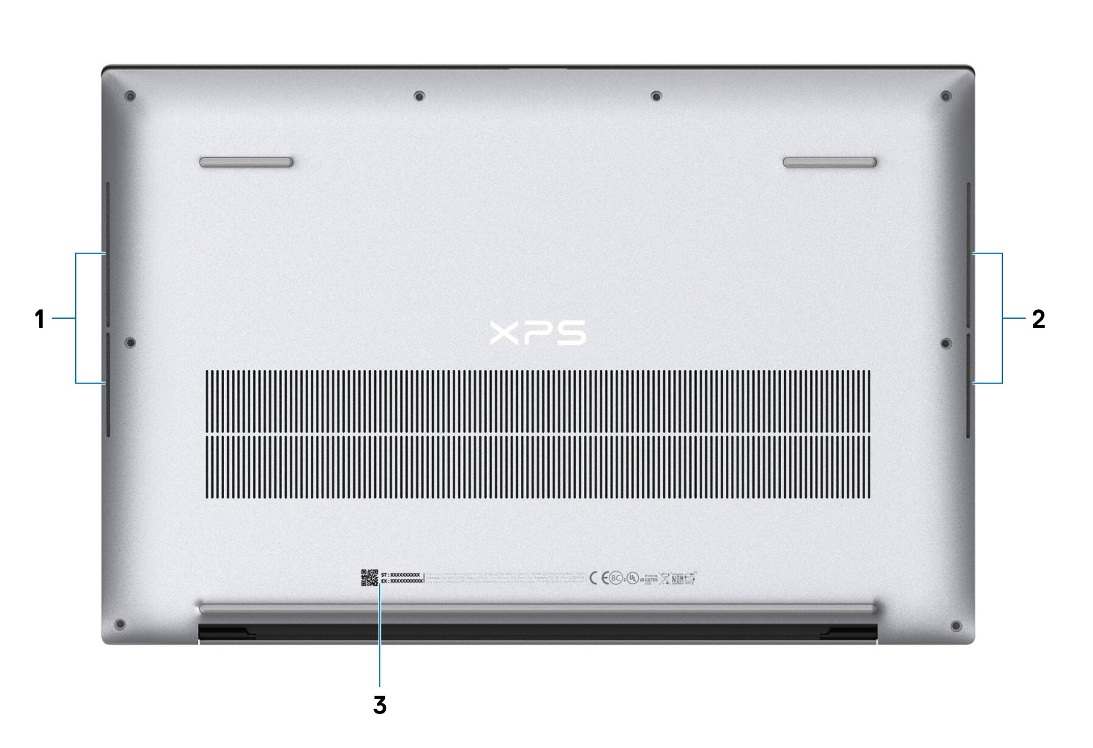

Dell XPS 17 9700 - Bottom View

Dell XPS 17 9700 – Bottom View

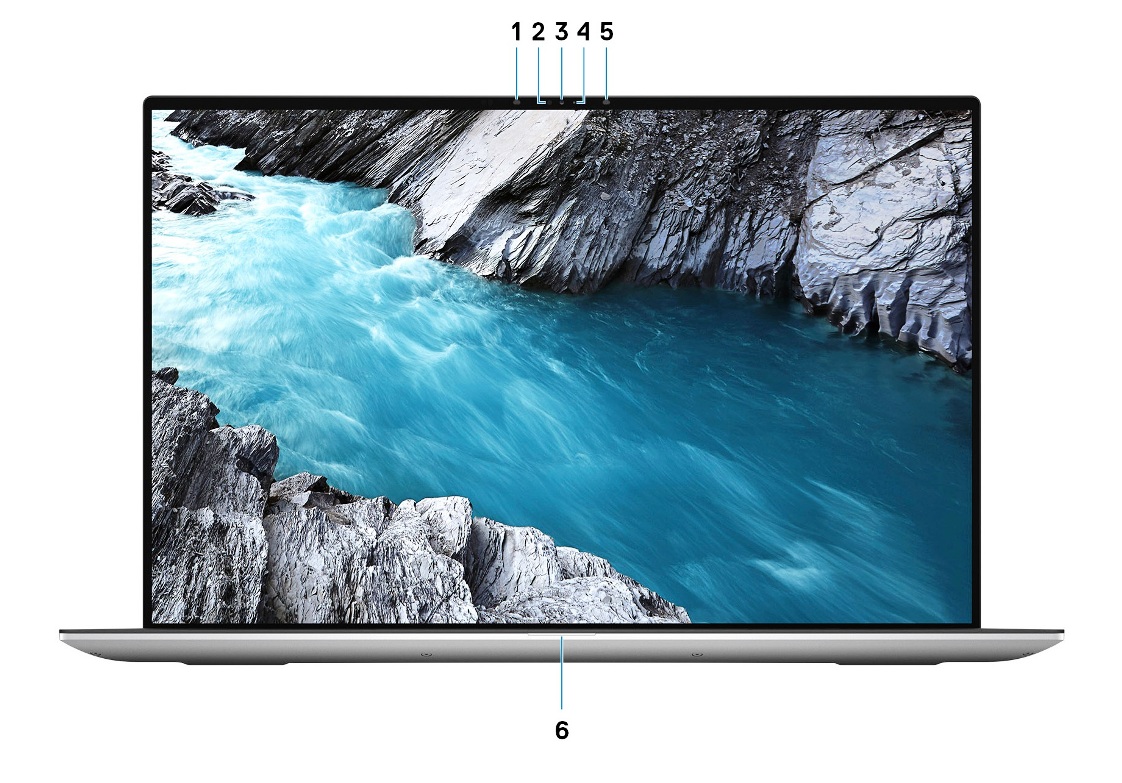

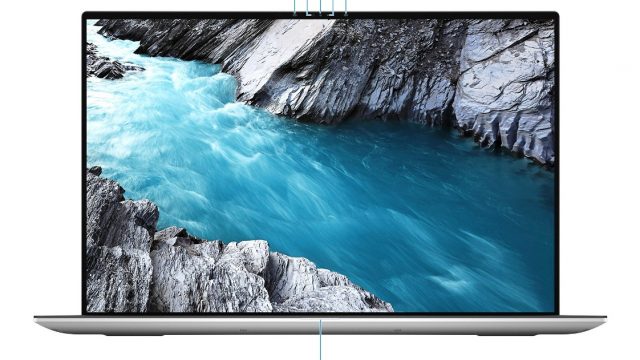

Dell XPS 17 9700 - Front View

Dell XPS 17 9700 – Front View

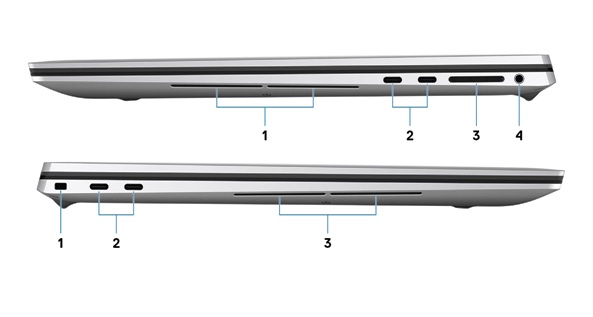

Dell XPS 17 9700 - Side Views

Dell XPS 17 9700 – Side Views

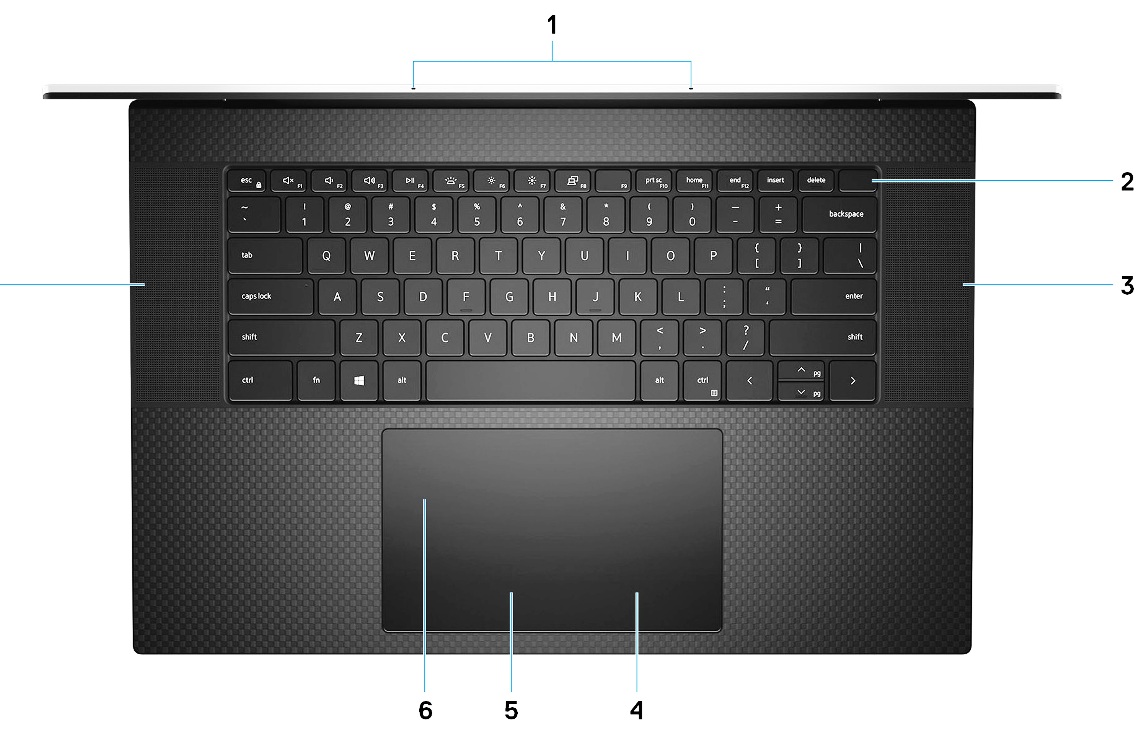

Dell XPS 17 9700 - Top View

Dell XPS 17 9700 – Top View

Dell XPS 17 9700 – Specs

QuickSpecs
Brand Dell
Series Dell XPS 17
Model Dell XPS 17 9700
Price Starting from USD$1400
Color Platinum Silver
Processor Generation 10th Generation Intel Core i5-10300H
Display Size 432 mm (17 in.)
Weight 2.53 kg (5.58 lb)
Battery 3-cell (56 WHr) “smart” lithium-ion
Minimum RAM 8 GB
Maximum RAM 64 GB
Release Date 30 SEP 2021

Dell XPS 17 9700 – Full Specifications

Dell XPS 17 9700 Processor Specifications

Processor
10th Generation Intel Core i5-10300H
  • Processor type: 10th Generation Intel Core i5-10300H
  • Processor wattage: 45 W
  • Processor core count: 4
  • Processor thread count: 8
  • Processor speed: Up to 4.50 GHz
  • Processor cache: 8 MB
  • Integrated graphics: Intel UHD Graphics 630
10th Generation Intel Core i7-10750H
  • Processor type: 10th Generation Intel Core i7-10750H
  • Processor wattage: 45 W
  • Processor core count: 6
  • Processor thread count: 12
  • Processor speed: Up to 5 GHz
  • Processor cache: 12 MB
  • Integrated graphics: Intel UHD Graphics 630
10th Generation Intel Core i7-10875H
  • Processor type: 10th Generation Intel Core i7-10875H
  • Processor wattage: 45 W
  • Processor core count: 8
  • Processor thread count: 16
  • Processor speed: Up to 5.10 GHz
  • Processor cache: 16 MB
  • Integrated graphics: Intel UHD Graphics 630
10th Generation Intel Core i9-10885H
  • Processor type: 10th Generation Intel Core i9-10885H
  • Processor wattage: 45 W
  • Processor core count: 8
  • Processor thread count: 16
  • Processor speed: Up to 5.30 GHz
  • Processor cache: 16 MB
  • Integrated graphics: Intel UHD Graphics 630

Operating System

Operating System
Operating System
  • Windows 11 Home, 64-bit
  • Windows 11 Pro, 64-bit
  • Windows 11 Pro National Academic, 64-bit
  • Windows 10 Home, 64-bit
  • Windows 10 Pro, 64-bit

Chipset

Chipset
Chipset

Intel WM 490

Processor

10th Generation Intel Core i5/i7/i9

DRAM bus width

128 bit

Flash EPROM

32 MB

PCIe bus

Up to PCIe Gen 3.0

Dell XPS 17 9700 Memory (RAM)

Memory specifications
Memory slots

Two-SODIMM slots

Memory type

Dual-channel DDR4

Memory speed

2933 MHz

Maximum memory configuration

64 GB

Minimum memory configuration

8 GB

Memory size per slot

4 GB, 8 GB, 16 GB, and 32 GB

Memory configurations supported
  • 8 GB DDR4 at 2933 MHz (2 x 4 GB), dual-channel
  • 16 GB DDR4 at 2933 MHz (2 x 8 GB), dual-channel
  • 32 GB DDR4 at 2933 MHz (2 x 16 GB), dual-channel
  • 64 GB DDR4 at 2933 MHz (2 x 32 GB), dual-channel

Dell XPS 17 9700 Storage

Storage specifications
M.2 2230 solid-state drive PCIe NVMe Gen3 x4, up to 32 Gbps, Up to 256 GB
M.2 2280 solid-state drive PCIe NVMe Gen3 x4, up to 32 Gbps, Up to 2 TB

Dell XPS 17 9700 Dimensions and Weight

Dimensions and weight
Height:
Front height

8.67 mm (0.34 in.)

Rear height

13.15 mm (0.52 in.)

Width

374.48 mm (14.74 in.)

Depth

248.08 mm (9.77 in.)

Weight (maximum)

2.53 kg (5.58 lb)

Dell XPS 17 9700 Display (Screen)

Display specifications
Full High Definition (FHD+)
  • Display type: Full High Definition (FHD+)
  • Display-panel technology: Wide Viewing Angle (WVA)
  • Display-panel dimensions (active area):
  • Height: 366.34 mm (14.42 in.)
  • Width: 228.96 mm (9.01 in.)
  • Diagonal: 432 mm (17 in.)
  • Display-panel native resolution: 1920 x 1200
  • Luminance (typical): 500 nits
  • Megapixels: 2.3
  • Color gamut: sRGB 100%
  • Pixels Per Inch (PPI): 133
  • Contrast ratio (typ.): 1650:1
  • Response time (max.): 35 ms
  • Refresh rate: 60 Hz
  • Horizontal view angle: +/- 85 degrees
  • Vertical view angle: +/- 85 degrees
  • Pixel pitch: 0.1908 mm
  • Power consumption (maximum): 5.50 W
  • Anti-glare vs glossy finish: Anti-glare
  • Touch options: No
Ultra High Definition (UHD+)
  • Display type: Ultra High Definition (UHD+)
  • Display-panel technology: Wide Viewing Angle (WVA)
  • Display-panel dimensions (active area):
  • Height: 366.34 mm (14.42 in.)
  • Width: 228.96 mm (9.01 in.)
  • Diagonal: 432 mm (17 in.)
  • Display-panel native resolution: 3840 x 2400
  • Luminance (typical): 500 nits
  • Megapixels: 9.2
  • Color gamut: AdobeRGB 100%
  • Pixels Per Inch (PPI): 266
  • Contrast ratio (typ.): 1600:1
  • Response time (max.): 35 ms
  • Refresh rate: 60 Hz
  • Horizontal view angle: +/- 85 degrees
  • Vertical view angle: +/- 85 degrees
  • Pixel pitch: 0.0954 mm
  • Power consumption (maximum): 13.98 W
  • Anti-glare vs glossy finish: Anti-reflective
  • Touch options: Yes

Dell XPS 17 9700 Integrated Shared System Graphics

GPU—Integrated
Intel UHD Graphics 630 USB 3.2 Gen 2 Type-C Thunderbolt 3 port with DisplayPort, Shared system memory, 10th Generation Intel Core i5/i7/i9

Dell XPS 17 9700 Graphics Card

GPU—Discrete
NVIDIA GeForce GTX 1650 Ti USB 3.2 Gen 2 Type-C Thunderbolt 3 port with DisplayPort, 4 GB, GDDR6
NVIDIA GeForce RTX 2060 USB 3.2 Gen 2 Type-C Thunderbolt 3 port with DisplayPort, 6 GB, GDDR6

Dell XPS 17 9700 Battery Specifications

Battery specifications
3-cell (56 WHr) “smart” lithium-ion
  • Battery type: 3-cell (56 WHr) “smart” lithium-ion
  • Battery voltage: 11.40 VDC
  • Battery weight (maximum): 0.27 kg (0.60 lb)
  • Battery dimensions:
  • Height: 8.45 mm (0.33 in.)
  • Width: 69.70 mm (2.74 in.)
  • Depth: 330.65 mm (13.02 in.)
  • Temperature range:
  • Operating
    • Charge: 0°C to 50°C (32°F to 122°F)
    • Discharge: 0°C to 60°C (32°F to 140°F)
  • Storage: –20°C to 60°C (-4°F to 140°F)
  • Battery operating time: Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.
  • Battery charging time (approximate)
    • Standard charge, 0°C to 50°C (32°F to 122°F): 4 hours
    • ExpressCharge, 0°C to 15°C (32°F to 59°F): 4 hours
    • ExpressCharge, 16°C to 45°C (60.80°F to 113°F): 2 hours
    • ExpressCharge, 46°C to 50°C (114.80°F to 122°F): 3 hours
  • Coin-cell battery: Not supported
6-cell (97 WHr) “smart” lithium-ion
  • Battery type: 6-cell (97 WHr) “smart” lithium-ion
  • Battery voltage: 11.40 VDC
  • Battery weight (maximum): 0.385 kg (0.85 lb)
  • Battery dimensions:
  • Height: 8.45 mm (0.33 in.)
  • Width: 69.70 mm (2.74 in.)
  • Depth: 330.65 mm (13.02 in.)
  • Temperature range:
  • Operating
    • Charge: 0°C to 50°C (32°F to 122°F)
    • Discharge: 0°C to 60°C (32°F to 140°F)
  • Storage: –20°C to 60°C (-4°F to 140°F)
  • Battery operating time: Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.
  • Battery charging time (approximate)
    • Standard charge, 0°C to 50°C (32°F to 122°F): 4 hours
    • ExpressCharge, 0°C to 15°C (32°F to 59°F): 4 hours
    • ExpressCharge, 16°C to 45°C (60.80°F to 113°F): 2 hours
    • ExpressCharge, 46°C to 50°C (114.80°F to 122°F): 3 hours
  • Coin-cell battery: Not supported

Dell XPS 17 9700 Camera (Web Cam) Specifications

Camera specifications
Number of cameras

One

Camera type

HD RGB IR camera

Camera location

Front

Camera sensor type

CMOS-sensor technology

Camera resolution:
Still image

0.92 megapixel

Video

1280 x 720 (HD) at 30 fps

Infrared camera resolution:
Still image

0.20 megapixel

Video

576 x 360 (VGA) at 15 fps

Diagonal viewing angle:
Camera

78.5 degrees

Infrared camera

78.5 degrees

Audio Specifications

Audio specifications
Audio controller

Realtek ALC711-CG

Stereo conversion

Supported

Internal audio interface

Supported

External audio interface

Universal audio jack

Number of speakers

Four

Internal-speaker amplifier

Realtek ALC1309D

External volume controls

Supported

Speaker output:
Average speaker output

4 W

Peak speaker output

5 W

Subwoofer output

Supported

Microphone

Digital-array microphones

Media-card Reader

Media-card reader specifications
Media-card type

One SD-card slot

Media-cards supported
  • Secure Digital (SD)
  • Secure Digital High Capacity (SDHC)
  • Secure Digital Extended Capacity (SDXC)

Internal slots

Internal slots
M.2

Two M.2 2230/2280 slots for solid-state drive

External Ports

External ports
USB ports

Four USB 3.2 Gen 2 Type-C Thunderbolt 3 ports with DisplayPort

Audio port

One headset (headphone and microphone combo) port

Video port/ports

Four USB 3.2 Gen 2 Type-C Thunderbolt 3 ports with DisplayPort

Media-card reader

One SD-card slot

Power-adapter port

DC-IN through one of the four USB Type-C Thunderbolt 3 ports

Security-cable slot

Security-cable slot (wedge-shaped)

Communication wireless module

Wireless module specifications
Intel Killer AX1650s
  • Model number: Intel Killer AX1650s
  • Transfer rate: Up to 2400 Mbps
  • Frequency bands supported: 2.4 GHz/5 GHz
  • Wireless standards: Wi-Fi 6 (WiFi 802.11ax)
  • Encryption
    • 64-bit/128-bit WEP
    • AES-CCMP
    • TKIP
  • Bluetooth: Bluetooth 5.0
Qualcomm Killer AX500s DBS
  • Model number: Qualcomm Killer AX500s DBS
  • Transfer rate: Up to 1774 Mbps
  • Frequency bands supported: 2.4 GHz/5 GHz
  • Wireless standards: Wi-Fi 6 (WiFi 802.11ax)
  • Encryption
    • 64-bit/128-bit WEP
    • AES-CCMP
    • TKIP
  • Bluetooth: Bluetooth 5.2

keyboard

Keyboard specifications
Keyboard type

Backlit keyboard

Keyboard layout

QWERTY

Number of keys
  • United States and Canada: 79 keys
  • United Kingdom: 80 keys
  • Japan: 83 keys
Keyboard size

X = 19.05 mm key pitch

Y = 18.05 mm key pitch

TouchPad

Touchpad specifications
Touchpad resolution:
Horizontal

4655

Vertical

2731

Touchpad dimensions:
Horizontal

150 mm (5.91 in.)

Vertical

89 mm (3.50 in.)

Touchpad gestures For more information about touchpad gestures available on Windows, see the Microsoft knowledge base article at .

Fingerprint Reader

Fingerprint reader specifications
Fingerprint-reader sensor technology

Capacitive

Fingerprint-reader sensor resolution

500 dpi

Fingerprint-reader sensor pixel size

108 x 88

Charger | Power Adapter

Power adapter specifications
90 W USB Type-C
  • Type: 90 W USB Type-C
  • Input voltage: 100 VAC–240 VAC
  • Input frequency: 50 Hz–60 Hz
  • Input current (maximum): 1.50 A
  • Output current (continuous)
    • 20 V/4.5 A
    • 15 V/3 A
    • 9 V/3 A
    • 5 V/3 A
  • Rated output voltage
    • 20 VDC
    • 15 VDC
    • 9 VDC
    • 5 VDC
  • Temperature range:
  • Operating: 0 °C to 40°C (32°F to 104°F)
  • Storage: -40°C to 70°C (-40°F to 158°F)
130 W USB Type-C
  • Type: 130 W USB Type-C
  • Input voltage: 100 VAC–240 VAC
  • Input frequency: 50 Hz–60 Hz
  • Input current (maximum): 1.8 A
  • Output current (continuous)
    • 20 V/6.5 A
    • 5 V/1 A
  • Rated output voltage
    • 20 VDC
    • 5 VDC
  • Temperature range:
  • Operating: 0°C to 40°C (32 °F to 104°F)
  • Storage: -40°C to 70°C (-40°F to 158°F)
