Dell Latitude 5491 – Review

The Latitude 5491 is 14-inch 5000 Series laptop powered by Intel Core i5-8300H Processor (4 Core, 8M Cache, 2.3GHz, 35W cTDP) Processor, Intel UHD Graphics 630, with the support of up to 32 GB DDR4 RAM having speed of 2666 MHz and SSD M.2 2280 SATA up to 512 GB, OPAL SED options storage. It has a (1920×1080) Anti-glare (16:9) WLED non-touchscreen display screen. The maximum weight of the laptop is 3.63 lbs (1.65 kg) and its equipped with 51 WHr 3 Cell, Li-ion/Polymer, ExpressCharge Capable Battery in the base variant. The Latitude 14 5000 5491 base price is US$1070 but can be customized adding more specs and features.

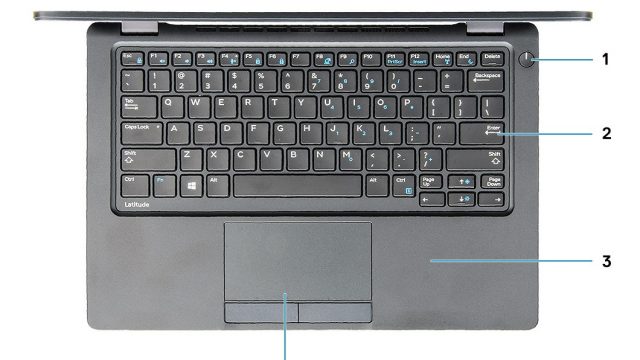

Latitude 5491 – Palmrest View

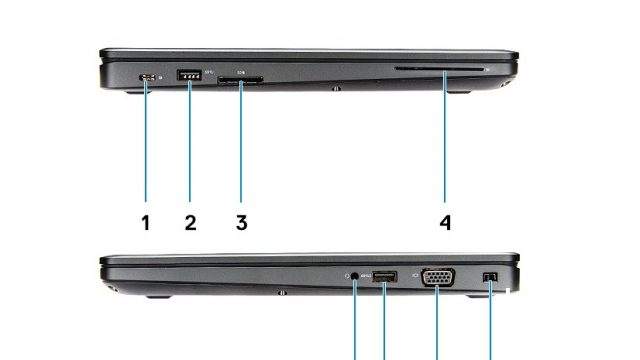

Latitude 5491 – Sides View

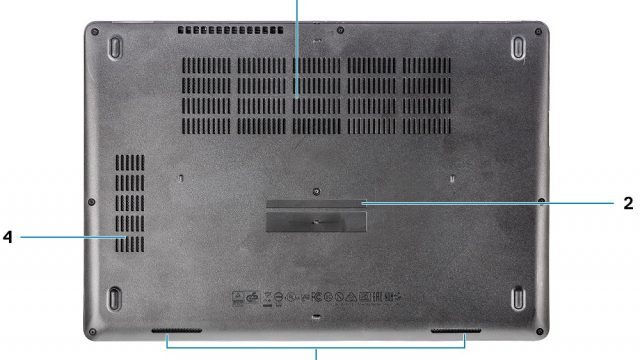

Latitude 5491 – Bottom View

Dell Latitude 5491 – Specs

QuickSpecs
Brand	Dell
Series	Dell Latitude 5000
Model	Dell Latitude 5491
Price	Starting from US$1070
Color	Black
Processor Generation	Intel Core i5-8300H Processor (4 Core, 8M Cache, 2.3GHz, 35W cTDP)
Display Size	14-inch
Weight	3.63 lbs (1.65 kg)
Battery	51 WHr,3 Cell, Li-ion/Polymer, ExpressCharge Capable
Minimum RAM	4 GB
Maximum RAM	32 GB
Release Date	22 MAY 2018

System
Processor
OS
RAM
Storage
Design
Display
Graphics
Battery
WebCam
Audio
Connectors
Wi-Fi
Keyboard
TouchPad
Charger

Dell Latitude 5491 – Full Specifications

Processor Information

System information
Chipset	Intel CM246 chipset
DRAM bus width	64-bit
FLASH EPROM	{SP1 256 Mbits}
PCIe bus	100 Mhz
External bus frequency	{DMI 3.0-8GT/s}

Dell Latitude 5491 Processor Specifications

Processor specifications

Intel Core i5-8300H Processor (4 Core, 8M Cache, 2.3GHz, 35W cTDP)	Intel UHD Graphics 630
Intel Core i5-8400H Processor (4 Core, 8M Cache, 2.5GHz, 35W cTDP, vPro)	Intel UHD Graphics 630
Intel Core i7-8850H Processor (6 Core, 9M Cache, 2.6GHz, 35W cTDP, vPro)	Intel UHD Graphics 630

Operating System

Operating system
Operating systems supported	Windows 10 Home (64 bit) Windows 10 Professional (64 bit) Ubuntu 16.04 LTS (64bit)

Dell Latitude 5491 Memory (RAM)

Memory specifications
Minimum memory configuration	4 GB
Maximum memory configuration	32 GB
Number of slots	2 SODIMM
Maximum memory supported per slot	16 GB
Memory options	4 GB – 1 x 4 GB 8 GB – 1 x 8 GB 8 GB – 2 x 4 GB 16 GB – 2 x 8 GB 16 GB – 1 x 16 GB 32 GB – 2 x 16 GB
Type	DDR4 SDRAM Non-ECC memory
Speed	2666 MHz

Storage

Storage specifications
SSD M.2 2280 SATA: up to 512GB, OPAL SED options	SATA AHCI, Up to 6 Gbps, M.2 2230 (WWAN slot), PCIe 3 x2 NVME, Up to 16 Gbps, YES
SSD M.2 2280 PCIe/NVMe: up to 1TB, OPAL SED options	PCIe 3 x4 NVME, Up to 32 Gbps, M.2 2230 (WWAN slot), PCIe 3 x2 NVME, Up to 16 Gbps, YES
One 2.5 ” HDD: up to 1TB, Hybrid OPAL SED options	SATA AHCI, Up to 6 Gbps, M.2 2230 (WWAN slot), PCIe 3 x2 NVME, Up to 16 Gbps, YES
SSD M.2 2230 PCIe/NVMe : up to 256GB (in WWAN slot only)	PCIe 3 x2 NVME, Up to 16 Gbps, M.2 2280 SATA, SATA AHCI, Up to 6 Gbps, NO
SSD M.2 2230 PCIe/NVMe : up to 256GB (in WWAN slot only)	PCIe 3 x2 NVME, Up to 16 Gbps, 2.5″ HDD, SATA AHCI, Up to 6 Gbps, NO

Dell Latitude 5491 Dimensions and Weight

Dimensions and weight
Height	Front height – 0.8 inch (20.3 mm) Back height – 0.9 inch (24.3 mm) Front height – 0.8 inch (20.3 mm) Back height – 0.9 inch (24.3 mm)
Width	13.1 inch (333.40mm)
Depth	9.0 inch (228.9 mm)
Weight	Starting 3.63 lbs (1.65 kg)

Display (Screen)

Display specifications
Type	14-inch FHD WVA (1920×1080) Anti-glare (16:9) WLED non-touchscreen 14.0-inch HD (1366 x 768)Anti-glare (16:9) WLED non-touchscreen 14.0-inch FHD WVA (1920 x 1080)(16:9) Embedded Touch Display with Truelife
Height (Active area)	6.9 inch (175.28 mm)
Width (Active area)	12.18 inch(309.4 mm)
Diagonal	14.0 inch(355.6 mm)
Touch panel specification	10 finger touch support is supported on the embedded 14″ touch panel.
Luminance/Brightness (typical)	220/300 nits
Refresh rate	60 Hz
Horizontal viewing angle (min)	+/- 40 degrees(HD) +85/-85 degrees(FHD)
Vertical viewing angle (min)	+10/- 30 degrees(HD) +85/-85 degrees(FHD)

Video | Graphics

Video
Intel UHD Graphics 630	UMA Intel® Core i5-8300H Intel® Core i5-8400H Intel® Core i7-8850H , Integrated, Shared system memory(Upto 32 GB), VGA HDMI 1.4(UMA) HDMI 2.0(DSC) eDP(Internal) Via Optional Type-C Port: DisplayPort, HDMI 1.4 (UMA): 4096×2160 @ 30 Hz HDMI 2.0 (DSC): 4096×2160 @ 60 Hz Analog: (VGA) system 1920×1200 @ 60Hz Max Digital: (DP 1.2 over Type-C Port) 4096×2304 @ 60Hz
NVIDIA GeForce® MX130	Discrete, NA, GDDR5, 2 GB, DisplayPort HDMI 2.0, HDMI 1.4 (UMA): 4096×2160 @ 30 Hz HDMI 2.0 (DSC): 4096×2160 @ 60 Hz Analog: (VGA) system 1920×1200 @ 60Hz Max Digital: (DP 1.2 over Type-C Port) 4096×2304 @ 60Hz

Dell Latitude 5491 Battery Specifications

Battery Details
Type	51 WHr,3 Cell, Li-ion/Polymer, ExpressCharge Capable Battery 68 WHr,4 Cell, Li-ion/Polymer, ExpressCharge Capable Battery 68 WHr,4 Cell, Li-polymer, Long Cycle Life Battery
Dimension	Length: 181mm (7.126 inch) Width: 95.9mm ( 3.78 inch) Height: 7.05mm (0.28 inch) Weight: 250.00 g Length: 233mm (9.17 inch) Width: 95.9mm ( 3.78 inch) Height: 7.05mm (0.28 inch) Weight: 340.00 g Length: 233mm (9.17 inch) Width: 95.9mm ( 3.78 inch) Height: 7.05mm (0.28 inch) Weight: 340.00 g
Weight (maximum)	0.34 kg (0.75 lb )
Voltage	51 WHr – 11.4 VDC 68 WHr – 7.6 VDC 68 WHr – 7.6 VDC
Life span	300 discharge/recharge cycles(Standard) and 1000discharge/recharge cycles(Long cycle)
Charging time when the computer is off (approximate)	2-4 hours
Coin-cell battery	ML1220

Camera (Web Cam) Specifications

Camera specifications
Resolution	Still image: 0.92 megapixels Video: 1280×720 at 30 fps Still image: 0.92 megapixels Video: 1280×720 at 30 fps
Diagonal viewing angle	Camera : 74 degrees Infrared camera : 74 degrees

Audio Specifications

Audio specifications
Controller	Realtek ALC3246-CG Controller with Waves MaxxAudio Pro
Type	Multi-channel high-definition audio
Stereo conversion	Digital audio-out through HDMI — up to 7.1 compressed and uncompressed audio
Speakers	Two (Bi-Directional speakers)
Internal interface	High-definition audio codec
Interface	Universal audio jack High quality speakers Noise reducing array microphones Stereo headset/mic combo
Internal speaker amplifier	2 W(RMS) per channel
Volume controls	Hot keys

Dell Latitude 5491 Ports and connectors

Ports and connectors
Memory card reader	microSD 4.0 memory card reader
Smart card reader	Yes (Optional)
USB	Three USB 3.1 Gen 1 (one with PowerShare)
Security	Noble wedge lock slot
Docking port	DisplayPort over USB Type C (optional Thunderbolt 3)
Audio	Universal audio jack Noise reduction array microphones
Video	HDMI 1.4 (UMA) One VGA HDMI 2.0 (Discrete)
Network adapter	One RJ-45 connector
Serial port	NA
Parallel port	NA
SIM card reader	One uSIM card slot (optional)

Communication wireless module

Communications
Network adapter	Intel i219LM Gigabit (10/100/1000 Mbps) Ethernet Controller (RJ-45 ) with Intel Remote Wake UP, PXE and Manageability capabilities alerting (AMT 11 / DASH 1.1 )
Wireless	Wi-Fi 802.11 a,b.g,n/ac via M.2 MU-MIMO RX Bluetooth via WLAN Mobile Broadband LTE

keyboard

Keyboard specifications
Number of keys	82 (U.S. and Canada) 83 (Europe) 84(Brazil) 86 (Japan)
Size	X= 19.05 mm key pitch Y= 19.05 mm key pitch
Backlit keyboard	Yes(Optional)
Layout	QWERTY/AZERTY/Kanji

TouchPad

Touchpad specifications
Resolution	Horizontal: 1221 Vertical: 661
Dimensions	Width: 4.0 inch (101.7 mm ) Height: 2.17 inch (55.2mm)
Multi-touch	Supports up to 5 fingers. Gesture support is dependent on operating system.

Charger | Power Adapter

Power adapter specifications
Type	90 W adapter 130 W adapter
Input Voltage	100 to 240 VAC
Input current (maximum)	90 W – 1.6 A 130 W – 1.8 A
Adapter size	7.4 mm Barrel Type
Output current	90 W – 4.62 A (continuous) 130 W – 6.7 A (continuous)
Rated output voltage	19.5 VDC
