Dell Latitude 15 5000 5591 Specs and Review Core i7-8850H

Dell Latitude 5591 – Review

The Latitude 5591 is 15 inch 5000 Series laptop powered by Intel Core i7-8850H Processor (6 Core, 9M Cache, 2.6GHz, 35W cTDP, vPro) Processor, Intel UHD Graphics 630, with the support of up to 16 GB DDR4 SDRAM Non-ECC memory and a SSD M.2 2280 PCIe/NVMe up to 1TB, OPAL SED options storage. It has a 15.6 inch display screen. The maximum weight for the laptop is 4.26 lbs (1.934 kg) and its equipped with 51 WHr,3 Cell, Li-ion/Polymer, ExpressCharge Capable battery in the base variant. The Latitude 5591 base price is $490 but can be customized adding more specs and features.

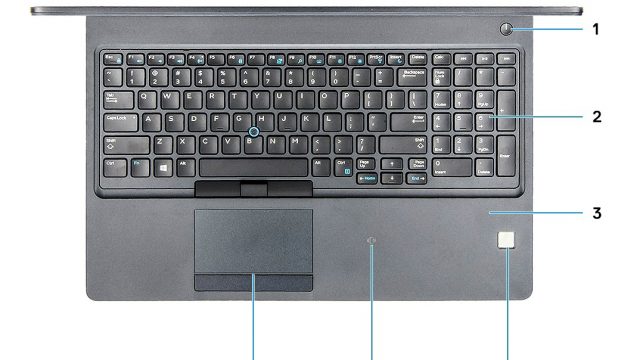

Latitude 5591 – Palmrest View

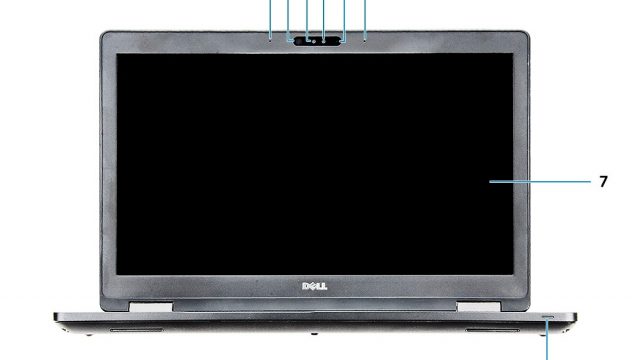

Latitude 5591 – Front View

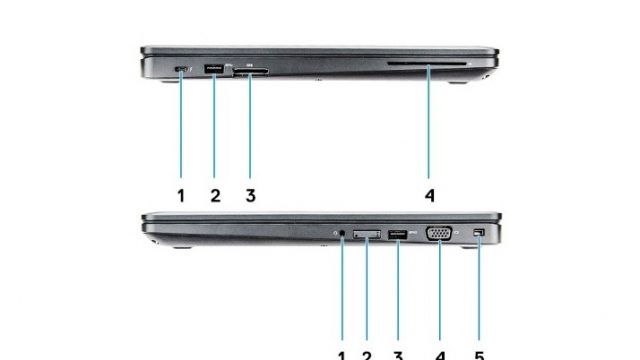

Latitude 5591 – Sides View

Dell Latitude 5591 – Specs

QuickSpecs
Brand	Dell
Series	Dell Latitude 5000
Model	Dell Latitude 5591
Price	Starting from $490
Color	Black
Processor Generation	Intel Core i7-8850H Processor (6 Core, 9M Cache, 2.6GHz, 35W cTDP, vPro)
Display Size	15.6 inch
Weight	4.26 lbs (1.934 kg)
Battery	51 WHr,3 Cell, Li-ion/Polymer, ExpressCharge Capable
Minimum RAM	4 GB
Maximum RAM	16 GB
Release Date	28 MAY 2018

System
Processor
OS
RAM
Storage
Design
Display
Graphics
Battery
WebCam
Audio
Connectors
Wi-Fi
Keyboard
TouchPad
Charger

Dell Latitude 5591 – Full Specifications

Processor Information

System information
Chipset	Intel CM246 chipset
DRAM bus width	64-bit
FLASH EPROM	{SP1 256 Mbits}
PCIe bus	100 Mhz
External bus frequency	{DMI 3.0-8GT/s}

Dell Latitude 5591 Processor Specifications

Processor specifications

Intel Core i5-8300H Processor (4 Core, 8M Cache, 2.3GHz, 35W cTDP)	Intel UHD Graphics 630
Intel Core i5-8400H Processor (4 Core, 8M Cache, 2.5GHz, 35W cTDP, vPro)	Intel UHD Graphics 630
Intel Core i7-8850H Processor (6 Core, 9M Cache, 2.6GHz, 35W cTDP, vPro)	Intel UHD Graphics 630

Operating System

Operating system
Operating systems supported	Windows 10 Home (64 bit) Windows 10 Professional (64 bit) Ubuntu 16.04 LTS (64bit)

Memory (RAM)

Memory specifications
Minimum memory configuration	4 GB
Maximum memory configuration	32 GB
Number of slots	2 SODIMM
Maximum memory supported per slot	16 GB
Memory options	4 GB – 1 x 4 GB 8 GB – 1 x 8 GB 8 GB – 2 x 4 GB 16 GB – 2 x 8 GB 16 GB – 1 x 16 GB 32 GB – 2 x 16 GB
Type	DDR4 SDRAM Non-ECC memory
Speed	2666 MHz

Storage

Storage specifications
SSD M.2 2280 SATA: up to 512 GB, OPAL SED options	SATA AHCI, Up to 6 Gbps, M.2 2230 (WWAN slot), PCIe 3 x2 NVME, Up to 16 Gbps, YES
SSD M.2 2280 PCIe/NVMe: up to 1TB, OPAL SED options	PCIe 3 x4 NVME, Up to 32 Gbps, PCIe 3 x2 NVME, Up to 16 Gbps, YES
One 2.5 ” hard drive: up to 1TB, Hybrid OPAL SED options	SATA AHCI, Up to 6 Gbps, PCIe 3 x2 NVME, Up to 16 Gbps, YES
SSD M.2 2230 PCIe/NVMe : up to 256 GB (in WWAN slot only)	PCIe 3 x2 NVME, Up to 16 Gbps, M.2 2280 SATA, SATA AHCI, Up to 6 Gbps, NO
SSD M.2 2230 PCIe/NVMe : up to 256 GB (in WWAN slot only)	PCIe 3 x2 NVME, Up to 16 Gbps, 2.5″ hard drive, SATA AHCI, Up to 6 Gbps, NO

Dell Latitude 5591 Dimensions and Weight

Dimensions and weight
Height	Front height – 0.8 inch (21.65 mm) Back height – 0.9 inch (24.3 mm) Front height – 0.8 inch (20.6 mm) Back height – 0.9 inch (24.3 mm)
Width	14.8 inch (376 mm)
Depth	9.9 inch (250.7 mm)
Weight	Starting 4.26 lbs (1.934 kg)

Dell Latitude 5591 Display (Screen)

Display specifications
Type	15.6 inch HD (1366 x 768) Anti-glare (16:9) WLED, 220 nits, non-touch 15.6 inch FHD WVA (1920 x 1080) Anti-glare (16:9) WLED, 220 nits, non-touch 15.6 inch FHD WVA (1920 x 1080) Embedded Touch Display with Truelife, 220 nits,
Height (Active area)	7.62 inch (193.5 mm)
Width (Active area)	13.55 inch (344.2 mm)
Diagonal	15.6 inch(396.25 mm)
Touch panel specification	10 finger touch support is supported on the embedded 15.6″ touch panel.
Luminance/Brightness (typical)	220/300 nits
Refresh rate	60 Hz
Horizontal viewing angle (min)	+/- 40 degrees(HD) +85/-85 degrees(FHD)
Vertical viewing angle (min)	+10/- 30 degrees(HD) +85/-85 degrees(FHD)

Dell Latitude 5591 Graphics

Video
Intel UHD Graphics 630	UMA Intel Core i5-8300H Intel Core i5-8400H Intel Core i7-8850H , Integrated, Shared system memory(Upto 32 GB), VGAHDMI 1.4(UMA)HDMI 2.0(DSC)eDP(Internal)Via Optional Type-C Port: DisplayPort, HDMI 1.4 (UMA): 4096×2160 @ 30 Hz HDMI 2.0 (DSC): 4096×2160 @ 60 Hz Analog: (VGA) system 1920×1200 @ 60Hz Max Digital: (DP 1.2 over Type-C Port) 4096×2304 @ 60Hz
NVIDIA GeForce® MX130	Discrete, NA, GDDR5, 2 GB, DisplayPortHDMI 2.0, HDMI 1.4 (UMA): 4096×2160 @ 30 Hz HDMI 2.0 (DSC): 4096×2160 @ 60 Hz Analog: (VGA) system 1920×1200 @ 60Hz Max Digital: (DP 1.2 over Type-C Port) 4096×2304 @ 60Hz

Dell Latitude 5591 Battery Specifications

Battery Specifications
Type	51 WHr,3 Cell, Li-ion/Polymer, ExpressCharge Capable Battery 68 WHr,4 Cell, Li-ion/Polymer, ExpressCharge Capable Battery 68 WHr,4 Cell, Li-polymer, Long Cycle Life Battery 92 WHr,6 Cell, Li-polymer, ExpressCharge Capable,Battery
Dimension	Length: 181mm (7.126 inch) Width: 95.9mm ( 3.78 inch) Height: 7.05mm (0.28 inch) Weight: 250.00 g Length: 233mm (9.17 inch) Width: 95.9mm ( 3.78 inch) Height: 7.05mm (0.28 inch) Weight: 340.00 g Length: 233mm (9.17 inch) Width: 95.9mm ( 3.78 inch) Height: 7.05mm (0.28 inch) Weight: 340.00 g Length: 332mm (13.07 inch) Width: 96mm (3.78 inch) Height: 7.7mm (0.303 inch) Weight: 450.00 g
Weight (maximum)	0.045 kg (0.99 lb )
Voltage	51 WHr – 11.4 VDC 68 WHr – 7.6 VDC 68 WHr – 7.6 VDC 92 WHr – 11.4 VDC
Life span	300 discharge/recharge cycles(Standard) and 1000discharge/recharge cycles(Long cycle)
Charging time when the computer is off (approximate)	2-4 hours
Operating time	Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions
Temperature range: Operating	Charge: 0 °C to 50 °C (32 °F to 122 °F) Discharge: 0 °C to 70 °C (32 °F to 158 °F)
Temperature range: Storage	-20 °C to 65 °C (-4 °F to 149 °F)
Coin-cell battery	CR2032

Camera (Web Cam) Specifications

Camera specifications
Resolution	Still image: 0.92 megapixels Video: 1280×720 at 30 fps Still image: 0.92 megapixels Video: 1280×720 at 30 fps
Diagonal viewing angle	Camera : 74 degrees Infrared camera : 74 degrees

Audio Specifications

Audio specifications
Controller	Realtek ALC3246-CG Controller with Waves MaxxAudio Pro
Type	Multi-channel high-definition audio
Stereo conversion	Digital audio-out through HDMI — up to 7.1 compressed and uncompressed audio
Speakers	Two (Bi-Directional speakers)
Internal interface	High-definition audio codec
Interface	Universal audio jack High quality speakers Noise reducing array microphones Stereo headset/mic combo
Internal speaker amplifier	2 W(RMS) per channel
Volume controls	Hot keys

Ports and connectors

Ports and connectors
Memory card reader	SD 4.0 memory card reader
Smart card reader	Yes (Optional)
USB	Three USB 3.1 Gen 1 (one with PowerShare)
Security	Noble wedge lock slot
Docking port	DisplayPort over USB Type C (optional Thunderbolt 3)
Audio	Universal audio jack Noise reduction array microphones
Video	HDMI 1.4 (UMA) One VGA HDMI 2.0 (Discrete)
Network adapter	One RJ-45 connector
Serial port	NA
Parallel port	NA
SIM card reader	One uSIM card slot (optional)

Communication wireless module

Communications
Network adapter	Intel i219LM Gigabit (10/100/1000 Mbps) Ethernet Controller (RJ-45 ) with Intel Remote Wake UP, PXE and Manageability capabilities alerting (AMT 11 / DASH 1.1 )
Wireless	Qualcomm QCA61x4A 802.11ac Dual Band (2×2) Wireless Adapter+ Bluetooth 4.1 Qualcomm QCA61x4A Extended Range 802.11ac MU-MINO Dual Band (2×2) Wi-Fi + Bluetooth 4.1 LE Intel Dual-Band Wireless-AC 8265 Wi-Fi + BT 4.2 Wireless Card (2×2) ( Bluetooth Optional)

keyboard

Keyboard specifications
Number of keys	103 (U.S. and Canada) 104 (Europe) 106 (Brazil) 107 (Japan)
Size	X= 19.05 mm key pitch Y= 19.05 mm key pitch
Backlit keyboard	Yes(Optional)
Layout	QWERTY/AZERTY/Kanji

TouchPad

Touchpad specifications
Resolution	Horizontal: 1221 Vertical: 661
Dimensions	Width: 4.0 inch (101.7 mm ) Height: 2.17 inch (55.2mm)
Multi-touch	Supports up to 5 fingers. Gesture support is dependent on operating system.

Charger | Power Adapter

Power adapter specifications
Type	90 W adapter 130 W adapter
Input Voltage	100 VAC–240 VAC
Input current (maximum)	90 W – 1.5 A 130 W – 1.8 A
Adapter size	7.4 mm Barrel Type
Input frequency	50 Hz–60 Hz
Output current	90 W – 4.62 A (continuous) 130 W – 6.67 A (continuous)
Rated output voltage	19.5 VDC
Temperature range (Operating)	-40º to 70º C (-40º to 158º F)
Temperature range (Non-operating)	-40º to 70º C (-40º to 158º F)
