Dell Inspiron 7790 AIO Spec and Review 10th Gen NVIDIA MX110

Dell Inspiron 7790 AIO – Review

The Dell Inspiron 7790 AIO is Inspiron 7000 series All In One Desktop Computer launched in 26 JUL 2019 and its powered by 10th Generation Intel Core i3 (10110U) Processor, NVIDIA MX110 GDDR5 with the support of up to DDR4 32 GB RAM having speed of 2666 MHz and a One 2.5-inch hard-disk drive Up to 2 TB Storage. The maximum weight of this desktop computer is 6.71 kg (14.79 lb) in the base variant. The Dell Inspiron 7790 AIO base price is $1229 but can be customized adding more specs and features.

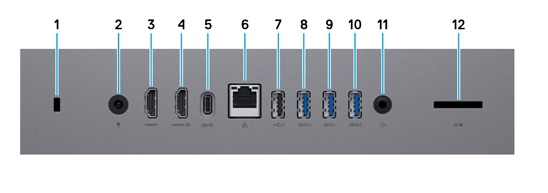

Dell Inspiron 7790 AIO – Back Panel View

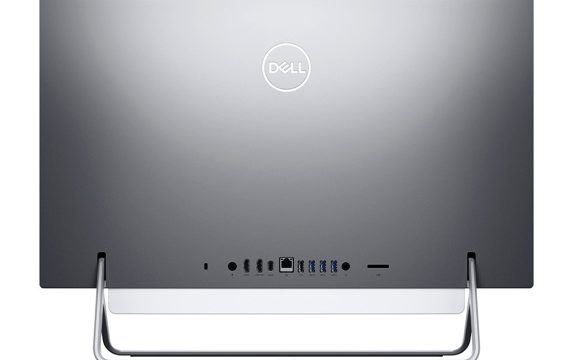

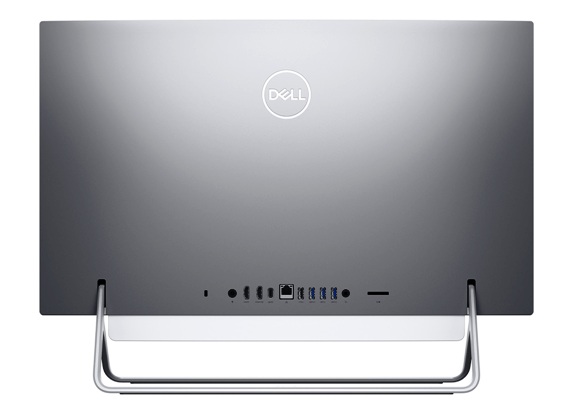

Dell Inspiron 7790 AIO – Back View

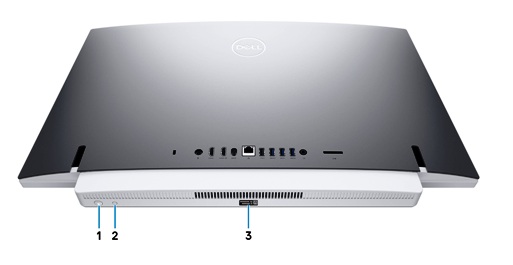

Dell Inspiron 7790 AIO – Bottom View

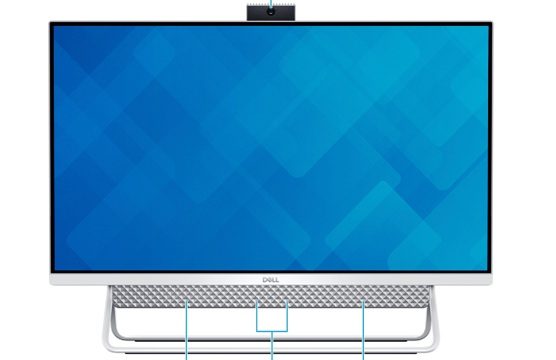

Dell Inspiron 7790 AIO – Front View

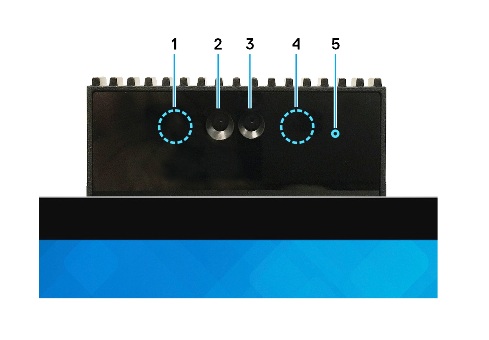

Dell Inspiron 7790 AIO – Retractable Camera View

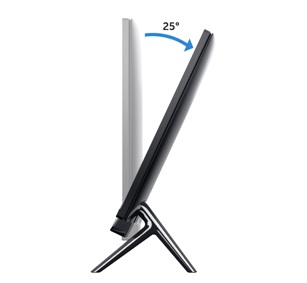

Dell Inspiron 7790 AIO – Tilt Darth Stand View

Dell Inspiron 7790 AIO – Specs

QuickSpecs
Brand	Dell
Series	Dell Inspiron All In One Desktop Computer
Model	Dell Inspiron 7790 AIO
Price	Starting from $1229
Color	Silver
Processor Generation	10th Generation Intel Core i3 (10110U)
Audio	Realtek ALC3289-CG
Weight	6.71 kg (14.79 lb)
Minimum RAM	4 GB
Maximum RAM	32 GB
Release Date	26 JUL 2019

Processor
OS
Chipset
RAM
Storage
Design
Display
Graphics
WebCam
Audio
Card Reader
Connectors
Wi-Fi
Charger

Dell Inspiron 7790 AIO – Full Specifications

Dell Inspiron 7790 AIO Processor Specifications

Processors
10th Generation Intel Core i3 (10110U)	Processors: 10th Generation Intel Core i3 (10110U) Wattage: 15 W Core count: 4 Thread count: 8 Speed: Up to 4.1 GHz Cache: 4 MB Integrated graphics: Intel UHD Graphics 620
10th Generation Intel Core i5 (10210U)	Processors: 10th Generation Intel Core i5 (10210U) Wattage: 15 W Core count: 4 Thread count: 8 Speed: Up to 4.2 GHz Cache: 6 MB Integrated graphics: Intel UHD Graphics 620
10th Generation Intel Core i7 (10510U)	Processors: 10th Generation Intel Core i7 (10510U) Wattage: 15 W Core count: 4 Thread count: 8 Speed: Up to 4.9 GHz Cache: 8 MB Integrated graphics: Intel UHD Graphics 620

Operating System

Operating System
Operating System	Windows 10 Home (64-bit) Windows 10 Professional (64-bit)

Chipset

Chipset
Chipset	Integrated in the processor
Processor	10th Generation Intel Core i3/i5/i7
DRAM bus width	64 bit
Flash EPROM	16 MB
PCIe bus	PCIe Gen2

Dell Inspiron 7790 AIO Memory (RAM)

Memory specifications
Slots	Two SODIMM slots
Type	Dual-channel DDR4
Speed	2666 MHz
Maximum memory	32 GB
Minimum memory	4 GB
Memory size per slot	4 GB, 8 GB, 12 GB, and 16 GB
Configurations supported	4 GB DDR4 at 2666 MHz (1 x 4 GB) 8 GB DDR4 at 2666 MHz (2 x 4 GB) 12 GB DDR4 at 2666 MHz (1 x 4 GB + 1 x 8 GB) 16 GB DDR4 at 2666 MHz (2 x 8 GB or 1 x 16 GB) 32 GB DDR4 at 2666 MHz (2 x 16 GB)

Storage

Storage specifications
One 2.5-inch hard-disk drive	SATA AHCI 6 Gbps, Up to 2 TB
One M.2 2230/2242 solid-state drive	PCIe Gen3.0x4 NVMe, up to 32 Gbps, Up to 1 TB

Storage

Storage
Storage	One 2.5-inch hard-disk drive One M.2 2230/2242 solid-state drive One 2.5-inch hard drive and one M.2 2242 solid-state drive

Dell Inspiron 7790 AIO Dimensions and Weight

Computer dimensions and weight (without stand)
Weight:
Height	395.40 mm (15.56 in.)
Width	611.70 mm (24.08 in.) with Darth stand and Vessel stand 611.90 mm (24.09 in.) with Pafilia X stand
Depth	42 mm (1.65 in.)
Touchscreen	7.14 kg (15.74 lb)
Non-touchscreen	6.71 kg (14.79 lb)

Dell Inspiron 7790 AIO Display (Screen)

Display specifications
Dimensions (active area):
Type	Full High Definition (FHD)
Panel technology	Wide Viewing Angle (WVA)
Luminance (typical)	250 nits
Height	354.10 mm (13.94 in.)
Width	607.10 mm (23.90 in.)
Diagonal	686 mm (27 in.)
Native resolution	1920 x 1080
Megapixels	16.78
Color gamut	72%
Pixels Per Inch (PPI)	82
Contrast ratio (min)	1000:1
Response time (max)	25
Refresh rate	60 Hz
Horizontal view angle	+/- 170 degrees
Vertical view angle	+/- 170 degrees
Pixel pitch	0.3114 x 0.3114
Power consumption (maximum)	14.25 W
Anti-glare vs glossy finish	Anti-glare
Touch options	Yes

Video | Graphics (Discrete graphics)

Discrete graphics specifications
NVIDIA MX110	Not applicable, 2 GB, GDDR5

Video | Graphics (Integrated graphics)

Integrated graphics specifications
Intel UHD Graphics 620	One HDMI 1.4 port, Shared system memory, 10th Generation Intel Core i3/i5/i7

Camera (Web Cam) Specifications

Camera specifications
Resolution
Number of cameras	One
Type	FHD RGB camera FHD RGB + infrared camera
Location	Front camera
Sensor type	CMOS sensor technology
Camera
Still image	2.07 megapixels (FHD camera)
Video	1920 x 1080 (FHD) at 30 fps (FHD camera)
Infrared camera
Still image	0.3 megapixel
Video	640 x 480 (VGA) at 30 fps
Diagonal viewing angle
Camera	77.5 degrees (FHD camera)
Infrared camera	82.8 degrees

Audio Specifications

Audio specifications
Speaker output:
Controller	Realtek ALC3289-CG
Stereo conversion	Supported
Internal interface	High definition audio interface
External interface	Universal Audio Jack/HDMI 1.4 port
Speakers	2
Internal speaker amplifier	Supported
External volume controls	Not supported
Average	5 W
Peak	6 W
Subwoofer output	Not supported
Microphone	Digital-array microphones

Media-card Reader

Media-card reader specifications
Type	One SD-card slot
Cards supported	SD card SD High Capacity (SDHC) card SD Extended Capacity (SDXC) card micro Secure Digital (mSD) micro Secure Digital High Capacity (mSDHC) micro Secure Digital Extended Capacity (mSDXC)

Ports and connectors

Ports and connectors
External:
Network	One RJ-45 port
USB	One USB 2.0 port with Power on/Wake-up support One USB 3.1 Gen 1 port One USB 3.1 port with Power on/Wake-up support One USB 3.1 Gen 1 port with PowerShare One USB 3.1 Gen 2 (Type-C) port
Audio	Audio-out port
Video	One HDMI 1.4b port One HDMI-in port
Memory card reader	One SD-card slot
Power port	One 4.5 mm x 2.9 mm DC-in adapter port
Security	Wedge-shaped lock
Internal:
PCIe expansion card slots	Not supported
M.2	One M.2 slot for Wi-Fi and Bluetooth combo card One PCIe/SATA M.2 2230/2242 slot for solid-state drive

Ethernet specifications

Ethernet specifications
Model number	Realtek RTL8111HSD-CG PCIe Gigabit Ethernet controller (integrated on system board)
Transfer rate	10/100/1000 Mbps

Communication wireless module

Wireless module specifications
Intel 9462	Model number: Intel 9462 Transfer rate: Up to 433 Mbps Frequency bands supported: Dual band 2.4 GHz/5 GHz Wireless standards Wi-Fi 802.11a/b/g Wi-Fi 4 (WiFi 802.11n) Wi-Fi 5 (WiFi 802.11ac) Encryption 64-bit/128-bit WEP AES-CCMP TKIP Bluetooth: Bluetooth 5.0
Intel AX200	Model number: Intel AX200 Transfer rate: Up to 2400 Mbps Frequency bands supported: Dual band 2.4 GHz/5 GHz Wireless standards WiFi 802.11a/b/g Wi-Fi 4 (WiFi 802.11n) Wi-Fi 6 (WiFi 802.11ax) Encryption 64-bit/128-bit WEP AES-CCMP TKIP Bluetooth: Bluetooth 5.0

Charger | Power Adapter

Power adapter specifications
90 W	Type: 90 W Diameter (connector): 4.5 mm Input voltage: 100 VAC-240 VAC Input frequency: 50 Hz-60 Hz Input current (maximum): 1.50 A Output current (continuous): 4.62 A Rated output voltage: 19.50 VDC Temperature range: Operating: 0°C to 40°C (32°F to 104°F) Storage: –40°C to 70°C (–40°F to 158°F)
130 W	Type: 130 W Diameter (connector): 4.5 mm Input voltage: 100 VAC-240 VAC Input frequency: 50 Hz-60 Hz Input current (maximum): 2.50 A Output current (continuous): 6.70 A Rated output voltage: 19.50 VDC Temperature range: Operating: 0°C to 40°C (32°F to 104°F) Storage: –40°C to 70°C (–40°F to 158°F)
