Dell Latitude 3301 Specs and Review 13 inch Core i3/i5/i7


Dell Latitude 3301 – Overview

The Latitude 3301 is 13 inch 3000 Series laptop powered by 8th Gen Intel Core i7-8565U processor (8 MB cache, 4 core count/ 8 threads, Up to 4.6 GHz, 15 W TDP Processor, Integrated Intel UHD Graphics 620, with the support of up to 16 GB RAM with Speed 2133 MHz and a M.2 2230 Class 35 Up to 512 GB storage. It has a Full High Definition (FHD) display screen. The maximum weight for the laptop is 1.18 kg / 2.61 lb (PC) 1.17 kg / 2.59 lb (Al) and its equipped with 4-cell “smart” lithium-ion (45 WHr) in the base variant. The Latitude 3301 base price is $600 but can be customized adding more specs and feature

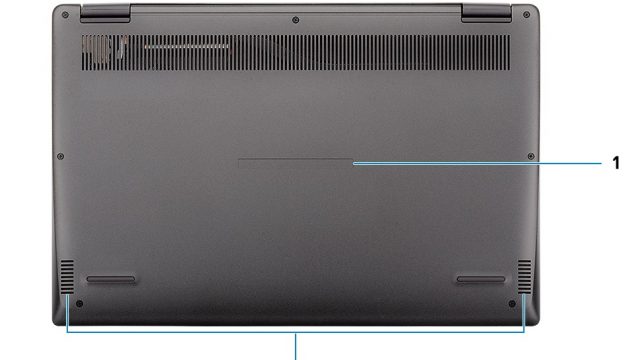

Latitude 3301 - Bottom View

Latitude 3301 – Bottom View

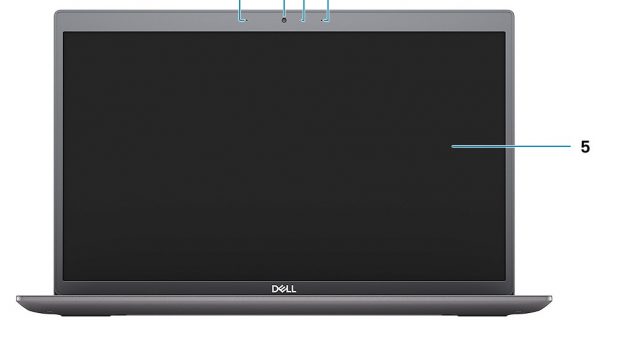

Latitude 3301 - Display View

Latitude 3301 – Display View

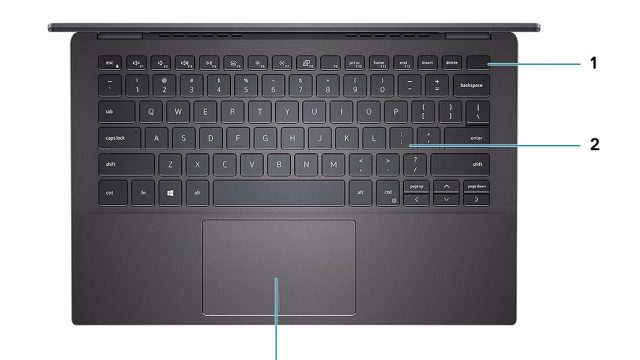

Latitude 3301 - Palmrest View

Latitude 3301 – Palmrest View

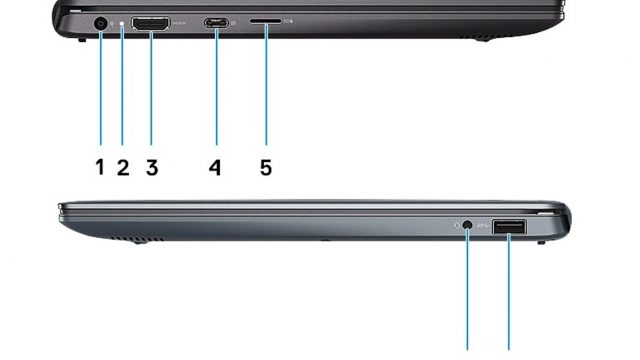

Latitude 3301 - Side Views

Latitude 3301 – Side Views

Dell Latitude 3301 – Specs

QuickSpecs
Brand Dell
Series Dell Latitude 3000
Model Dell Latitude 3301
Price Starting from $600
Color Gray
Processor Generation 8th Gen Intel Core i7-8565U processor (8 MB cache, 4 core count/ 8 threads, Up to 4.6 GHz, 15 W TDP
Display Size 337.09 mm (13.30 in)
Weight 1.18 kg (2.61 lb) (PC) / 1.17 kg (2.59 lb) (Al)
Battery 4-cell “smart” lithium-ion (45 WHr)
Minimum RAM 4 GB
Maximum RAM 16 GB
Release Date 28 SEP 2021

Dell Latitude 3301 – Technical Specifications

Processor Information

System information
Chipset Integrated in the processor
DRAM bus width 64-bit
FLASH EPROM 32 MB
PCIe bus Up to Gen3
External bus frequency Up to 8 GT/s

Processor Specifications

Processor specifications
8th Gen Intel Core i7-8565U processor (8 MB cache, 4 core count/ 8 threads, Up to 4.6 GHz, 15 W TDP) Intel UHD Graphics 620
8th Gen Intel Core i5-8365U processor (6 MB cache, 4 core count/ 8 threads, Up to 4.1 GHz, 15 W TDP) Intel UHD Graphics 620
8th Gen Intel Core i5-8265U processor (6 MB cache, 4 core count/ 8 threads, Up to 3.9 GHz, 15 W TDP) Intel UHD Graphics 620
8th Gen Intel Core i3-8145U processor (4 MB cache, 2 core count/ 4 threads, Up to 3.5 GHz, 15 W TDP) Intel UHD Graphics 620

Operating System

Operating system
Operating systems supported
  • Windows 10 Home (64 bit)
  • Windows 10 Professional (64bit)
  • Ubuntu 16.04 LTS 64-bit

Dell Latitude 3301 Memory (RAM)

Memory specifications
Minimum memory configuration 4 GB
Maximum memory configuration 16 GB
Number of slots Soldered down
Memory options
  • 4 GB
  • 8 GB
  • 16 GB
Type LPDDR3
Speed

2133 MHz

Storage

Storage specifications
Primary Storage
  • M.2 2230 SSD
  • M.2 2280 SSD
  • Class 35
  • Class 40
  • Up to 512 GB
  • Up to 512 GB
Secondary Storage M.2 2230, Class 35, Up to 512 GB (Black PC WLAN configuration only, uses the WWAN M.2 slot)

Dell Latitude 3301 Dimensions and Weight

Dimensions and weight
Height

16.80 mm / 0.66 in.(PC)

14.90 mm / 0.59 in.(Al)

Width

307.6mm / 12.11 in.(PC)

307.6mm / 12.11 in.(Al)

Depth

204.50 mm / 8.05 in.(PC)

204.50 mm / 8.05 in.(Al)

Weight
  • 1.18 kg / 2.61 lb (PC)
  • 1.17 kg / 2.59 lb (Al)

Dell Latitude 3301 Display (Screen)

Display specifications
Full High Definition (FHD)
  • Type: Full High Definition (FHD)
  • Height (Active area): 165.24 mm (6.50 in)
  • Width (Active area): 293.76 mm (11.60 in)
  • Diagonal: 337.04 mm (13.30 in)
  • Pixels Per Inch (PPI): 166
  • Contrast ratio: 400:1
  • Luminance/Brightness (typical): 300 nits
  • Refresh rate: 60 Hz
  • Horizontal viewing angle (min): +/- 80 degrees
  • Vertical viewing angle (min): +/- 80 degrees
  • Power consumption (max): 4.6 W
High Definition (HD)
  • Type: High Definition (HD)
  • Height (Active area): 165.20 mm (6.50 in)
  • Width (Active area): 293.83 mm (11.60 in)
  • Diagonal: 337.09 mm (13.30 in)
  • Pixels Per Inch (PPI): 118
  • Contrast ratio: 400:1
  • Luminance/Brightness (typical): 220 nits
  • Refresh rate: 60 Hz
  • Horizontal viewing angle (min): +/- 45 degrees
  • Vertical viewing angle (min): Upper 15 degrees, lower 35 degrees
  • Power consumption (max): 4.5 W

Dell Latitude 3301 Video | Graphics Specs

Video card specifications
Integrated Intel® UHD Graphics 620 UMA/integrated only

  • Intel Core i7-8565U CPU
  • Intel Core i5-8365U CPU
  • Intel Core i5-8265U CPU
  • Intel Core i3-8145U CPU

, LPDDR3 (Shared with system memory), Up to 8 GB (Shared with system memory), HDMI 1.4 for external output support

Battery Specifications

Battery
Type
  • 4-cell “smart” lithium-ion (45 WHr)
  • 4-cell “smart” lithium-ion (52 WHr)
Dimension

Width

Depth

Height

4.30 mm (0.17 in.)

257.60 mm (10.17 in.)

97.04 mm (3.82 in.)

Weight (maximum)

0.22 kg (0.49 lb)

Voltage

7.60 VDC

Life span

300 discharge/charge cycles

Charging time when the computer is off (approximate) 4 hours (when the computer is off)
Operating time Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.
Temperature range: Operating

0°C to 35°C (32°F to 95°F)

Temperature range: Storage -40°C to 65°C (-40°F to 149°F)
Coin-cell battery

Camera (Web Cam) Specifications

Camera specifications
Camera Type

2.7mm, 4-element lens, HD RGB camera

Resolution

Still image: 0.92 megapixel

Video: 1280 x 720 (HD) at 30 fps

Diagonal viewing angle

74.9 degrees

Sensor type

CMOS sensor technology

Audio Specifications

Audio specifications
Controller

Realtek ALC3204 with Waves MaxxAudio Pro

Stereo conversion

24-bit DAC (Digital-to-Analog) and ADC (Analog-to-Digital)

Type

HD Audio

Speakers

Two

Interface
  • Intel HDA (high-definition audio)
  • 7.1 channel output via HDMI
  • Digital microphone input on camera module
  • Headset combo jack (stereo headphones/microphone-in)
Internal speaker amplifier

Integrated in ALC3204 (Class-D 2 W)

External volume controls

Media-control shortcut keys

Speaker output:

Average: 2 W

Peak: 2.5 W

Microphone

Digital-array microphones

Ports and connectors

Ports and connectors
Memory card reader

1 x MicroSD 3.0 Card Reader

SIM card reader

1 x uSim Card Tray (Black PC Only)

USB
  • 1 x USB Type C 3.1 Gen 1 w/ Power Delivery & DisplayPort 1.2
  • 1 x USB 3.1 Gen 1
Audio

1 x Universal Audio Jack (Headset/Mic combo)

Video

1 x HDMI 1.4

Others
  • 1 x DC-in, 4.5mm barrel
  • 1 x Optional Touch Fingerprint Reader in Power Button

Communication wireless module

Wireless specifications
WLAN
  • Intel Dual Band Wireless AC 9560 Wi-Fi (802.11ac) 2×2 + Bluetooth 5.0 (Bluetooth Optional)
  • Intel Dual Band Wireless AC 9462 Wi-Fi (802.11ac) 1×1 + Bluetooth 5.0
WWAN

Intel XMM 7360 LTE-Advanced, Cat 9

keyboard

Keyboard specifications
Number of keys
  • United states and Canada : 81 keys
  • United Kingdom : 82 Keys
  • Japan : 85 keys
Size
  • X= 18.70 mm key pitch
  • Y= 18.05 mm key pitch
Backlit keyboard

Optional (backlit and Non-backlit)

Layout

QWERTY

TouchPad

Touchpad specifications
Resolution

1920 x 1080

Dimensions
  • Width : 105 mm (4.13 in.)
  • Height : 65 mm (2.56 in.)

TouchPad

Supported gestures
Cursor moving Supported
Clicking/ tapping Supported
Click and drag Supported
2-finger scroll Supported
2-finger Pinch/ Zoom Supported
2-finger tap (Right Clicking) Supported
3-finger tap (Invoke Cortana) Supported
3-finger swipe up (See all open windows) Supported
3-finger swipe down (Show the desktop) Supported
3-finger swipe right or left (Switch between open windows) Supported
4-finger tap (Invoke Action Center) Supported
4-finger swipe right or left (Switch virtual desktops) Supported

Security

Security
Trusted Platform Module (TPM) 2.0

Integrated on the system board

Firmware TPM

Optional

Windows Hello Support

Yes, optional fingerprint on power button

FIPS 140-2 certification for TPM

Yes

Fingerprint Reader Only

Touch Fingerprint reader in power button tied to Control vault 3

Security Software

Security Software specifications
Dell Client Command Suite
Optional Dell Data Security and Management Software Dell Endpoint Security Suite Enterprise Dell Data Guardian Dell Encryption Enterprise Dell Encryption Personal Dell Threat Defense MozyPro or MozyEnterprise RSA NetWitness Endpoint RSA SecurID Access VMware Workspace ONE Absolute Endpoint Visibility and Control

Charger | Power Adapter

Power adapter specifications
65 W E4
  • Type: 65 W E4
  • External diameter (mm): 4.50 mm
  • Internal diameter (mm): 2.90 mm
  • Input Voltage: 100 VAC – 240 VAC
  • Input current (maximum): 1.6 A /1.7 A
  • Input frequency: 50 Hz to 60 Hz
  • Output current: 3.34 A (continuous)
  • Rated output voltage: 19.50 VDC
  • Weight: 0.29 kg (0.64 lbs)
  • Adapter size: Dimensions In Inches: 1.10 x 1.90 x 4.30 In mm: 28 x 47 x 108
  • Temperature range (Operating): 0°C to 40°C (32°F to 104°F)
  • Storage (Operating): -40°C to 70°C (-40°F to 158°F)
65 W Type C
  • Type: 65 W Type C
  • External diameter (mm):
  • Internal diameter (mm):
  • Input Voltage: 100 VAC – 240 VAC
  • Input current (maximum): 1.7 A
  • Input frequency: 50 Hz to 60 Hz
  • Output current
    • 20 V/3.25 A (continuous)
    • 15 V/3 A (continuous)
    • 9.0 V/3 A (continuous)
    • 5.0 V/3 A (continuous)
  • Rated output voltage: 20 VDC/15 VDC/9 VDC/5 VDC
  • Weight: 0.22 kg (0.48 lbs)
  • Adapter size: Dimensions In Inches: 1.1 x 2.0 x 4.4 In mm: 28 x 51 x 112
  • Temperature range (Operating): 0°C to 40°C (32°F to 104°F)
  • Storage (Operating): -40°C to 70°C (-40°F to 158°F)
