Dell Vostro 3405 Specs and Review 3000 Series AMD Athlon Silver

Dell Vostro 3405 – Overview

The Dell Vostro 3405 is 3000 Series laptop powered by AMD Athlon Silver 3050U Processor, AMD Radeon Vega 10 Graphics, with the support of up to 16 GB RAM and a M.2 2230 solid-state drive Storage. It has a Native Resolution: 1366 x 768 display screen. The maximum weight for the laptop is 1.70 kg (3.61 lb) and its equipped with 42 Whr 3 cell Polymer Battery in the base variant. The Vostro 3405 base price is USD $500 but can be customized adding more specs and features.

Vostro 3405 - Bottom View

Vostro 3405 – Bottom View

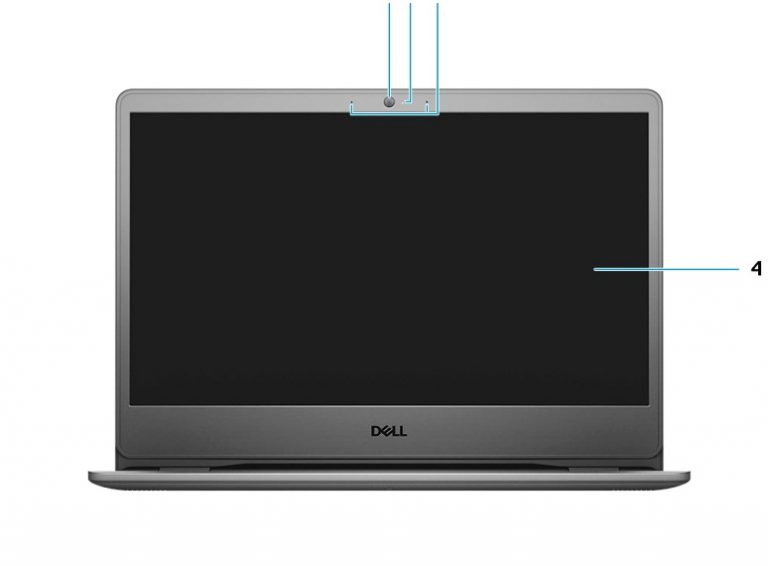

Vostro 3405 - Display View

Vostro 3405 – Display View

Vostro 3405 - Palmrest View

Vostro 3405 – Palmrest View

Vostro 3405 - Sides View

Vostro 3405 – Sides View

Dell Vostro 3405 – Specs

QuickSpecs
Brand Dell
Series Dell Vostro 3000
Model Dell Vostro 3405
Price Starting from $500
Color Dune
Processor Generation AMD Athlon Silver 3050U
Display Size 354.92 mm ( 13.97 in.)
Weight 1.70 kg (3.61 lb)
Battery 42 Whr 3 cell Polymer
Minimum RAM 4 GB
Maximum RAM 16 GB
Release Date 03 OCT 2021

Dell Vostro 3405 – Technical Specifications

Processor Specifications

Processors
AMD Athlon Silver 3050U
  • Processors: AMD Athlon Silver 3050U
  • Wattage: 15 W
  • Core count: 2
  • Thread count: 2
  • Speed: Up to 3.2 GHz
  • Cache: 4 MB
  • Integrated graphics: AMD Radeon Graphics
AMD Athlon Gold 3150U
  • Processors: AMD Athlon Gold 3150U
  • Wattage: 15 W
  • Core count: 2
  • Thread count: 4
  • Speed: Up to 3.3 GHz
  • Cache: 4 MB
  • Integrated graphics: AMD Radeon Graphics
AMD Ryzen 3 3250U
  • Processors: AMD Ryzen 3 3250U
  • Wattage: 15 W
  • Core count: 2
  • Thread count: 4
  • Speed: Up to 3.5 GHz
  • Cache: 4 MB
  • Integrated graphics: AMD Radeon Graphics
AMD Ryzen 5 3450U
  • Processors: AMD Ryzen 5 3450U
  • Wattage: 15 W
  • Core count: 4
  • Thread count: 8
  • Speed: Up to 3.5 GHz
  • Cache: 4 MB
  • Integrated graphics: AMD Radeon Vega 8 Graphics
AMD Ryzen 5 3500U
  • Processors: AMD Ryzen 5 3500U
  • Wattage: 15 W
  • Core count: 4
  • Thread count: 8
  • Speed: Up to 3.7 GHz
  • Cache: 4 MB
  • Integrated graphics: AMD Radeon Vega 8 Graphics
AMD Ryzen 7 3700U
  • Processors: AMD Ryzen 7 3700U
  • Wattage: 15 W
  • Core count: 4
  • Thread count: 8
  • Speed: Up to 4.0 GHz
  • Cache: 4 MB
  • Integrated graphics: AMD Radeon Vega 10 Graphics

Operating System

Operating System
Operating System
  • Windows 10 Home (64-bit)
  • Windows 10 Professional (64-bit)

Chipset

Chipset
Integrated
  • Chipset: Integrated
  • Processor: AMD Athlon series
  • Flash EPROM: 16 MB
  • PCIe bus: Up to Gen 3
Integrated
  • Chipset: Integrated
  • Processor: AMD Ryzen series
  • Flash EPROM: 16 MB
  • PCIe bus: Up to Gen 3

Memory (RAM)

Memory specifications
Slots

Two SODIMM

Type

DDR4

Speed
  • 2400 MHz
Maximum memory

16 GB

Minimum memory

4 GB

Configurations supported
  • 4 GB, 1 x 4 GB, DDR4, 2400MHz, SO-DIMM
  • 8 GB, 2 x 4 GB, DDR4, 2400MHz, SO-DIMM
  • 8 GB, 1 x 8 GB, DDR4, 2400MHz, SO-DIMM
  • 12 GB, 1×8 GB + 1×4 GB, DDR4, 2400MHz, SO-DIMM
  • 16 GB, 2 x 8 GB, DDR4, 2400MHz, SO-DIMM
  • 16 GB, 1 x 16 GB, DDR4, 2400MHz, SO-DIMM

Storage

Storage specifications
2.5-in. 5400 rpm, hard drive SATA, 2 TB
M.2 2230 solid-state drive PCIe NVMe 3×4, Upto 512 GB
M.2 2280 solid-state drive PCIe NVMe 3×4, Upto 1 TB

Dimensions and Weight

Dimensions and weight
Height:
Front

18.10 mm (0.71 in.)

Rear

19.90 mm (0.78 in.)

Width

328.70 mm (12.94 in.)

Depth

239.50 mm (9.42 in.)

Weight

1.70 kg (3.61 lb)

Display (Screen)

Display specifications
High Definition (HD)
  • Type: High Definition (HD)
  • Panel technology: TN
  • Luminance (typical): 220 nits
  • Dimensions (Active Area):
  • Height: 173.99 mm ( 6.85 in.)
  • Width: 309.35 mm ( 12.17 in.)
  • Diagonal: 354.92 mm ( 13.97 in.)
  • Native Resolution: 1366 x 768
  • Megapixels: 1.05 M
  • Pixels per Inch (PPI): 112
  • Color Gamut (CG): NTSC 45% Typ.
  • Contrast Ratio (min): 400:1
  • Response Time (max): 16 ms
  • Refresh Rate: 60 Hz
  • Horizontal View Angle: 40 degrees (Left/Right)
  • Vertical View Angle: 10 degrees (Up) / 30 degrees (Down)
  • Pixel Pitch: 0.2265 x 0.2265 mm
  • Power Consumption (maximum): 3.2 W
  • Anti-glare vs glossy finish: Anti-glare
  • Touch options: No
Full High Definition (FHD)
  • Type: Full High Definition (FHD)
  • Panel technology: WVA
  • Luminance (typical): 220 nits
  • Dimensions (Active Area):
  • Height: 173.99 mm ( 6.85 in.)
  • Width: 309.35 mm ( 12.17 in.)
  • Diagonal: 354.92 mm ( 13.97 in.)
  • Native Resolution: 1920 x 1080
  • Megapixels: 2.07 M
  • Pixels per Inch (PPI): 157
  • Color Gamut (CG): NTSC 45% Typ.
  • Contrast Ratio (min): 500:1
  • Response Time (max): 35 ms
  • Refresh Rate: 60 Hz
  • Horizontal View Angle: 80 degrees (Left/Right)
  • Vertical View Angle: 80 degrees (Up/Down)
  • Pixel Pitch: 0.161 x 0.161 mm
  • Power Consumption (maximum): 3.5 W
  • Anti-glare vs glossy finish: Anti-glare
  • Touch options: No

Video | Graphics (Integrated graphics)

Integrated graphics specifications
AMD Radeon Graphics
  • One HDMI port

, Shared system memory

  • AMD Athlon Gold/Silver
  • AMD Ryzen 3
AMD Radeon Vega 8 Graphics
  • One HDMI port

, Shared system memory

  • AMD Ryzen 5
AMD Radeon Vega 10 Graphics
  • One HDMI port

, Shared system memory

  • AMD Ryzen 7

Battery Specifications

Battery specifications
Type

42 Whr 3 cell Polymer battery

Voltage

11.40 VDC

Weight (maximum)

0.18 kg (0.40 lb)

Dimensions:
Height

184.10 mm (7.25 in.)

Width

90.73 mm (3.57 in.)

Depth

5.75 mm (0.23 in.)

Charging time (approximate)

4 hours (when the computer is off)

Life span (approximate) 300 discharge/charge cycles
Coin-cell battery

CR2032

Camera (Web Cam) Specifications

Camera specifications
Number of cameras

One

Type

HD RGB camera

Location

Front Camera

Sensor type

CMOS sensor technology

Resolution:
Still image

0.92 megapixel

Video

1280 x 720 (HD) at 30 fps

Diagonal viewing angle

87 degrees

Audio Specifications

Audio specifications
Realtek ALC3204
  • Controller: Realtek ALC3204
  • Stereo conversion: Supported
  • Internal interface: HDA (High definition audio)
  • External interface: Audio jack
  • Speakers: 2
  • Internal-speaker amplifier: Supported
  • External volume controls: Keyboard shortcut controls
  • Speaker Output Average: 2 W
  • Speaker Output Peak: 2.5 W
  • Subwoofer output: Not supported
  • Microphone: Single digital microphone
Cirrus CS8409 Cirrus CS42L42 Cirrus TI SN005825
  • Controller
    • Cirrus CS8409
    • Cirrus CS42L42
    • Cirrus TI SN005825
  • Stereo conversion: Supported
  • Internal interface: HDA bridge + CS42L42 audio codec
  • External interface: Audio jack
  • Speakers: Two
  • Internal-speaker amplifier: Supported
  • External volume controls: Keyboard shortcut controls
  • Speaker Output Average: 2 W
  • Speaker Output Peak: 2.5 W
  • Subwoofer output: Not supported
  • Microphone: Single digital microphone

Media-card Reader

Media-card reader specifications
Type

One SD card

Cards supported
  • Secure Digital (SD)
  • Secure Digital High Capacity(SDHC)
  • Secure Digital Extended Capacity(SDXC)

Ports and connectors

External ports and connectors
External:
Network

One RJ 45 10/100 Mbps

USB
  • Two USB 3.2 Gen1 Type-A ports
  • One USB 2.0 Type-A port
Audio
  • One Universal audio port (Computers with Realtek audio configuration) Two USB 3.2 Gen1 Type-A ports
  • One Audio jack (Computers with Cirrus logic audio configuration)
Video

One HDMI 1.4 port

Power adapter port

4.5 mm barrel-type

Security

One Wedge shaped lock slot

Card slot

One SD card slot

Communication wireless module

Wireless module specifications
Model number

Qualcomm QCA61x4A

Transfer rate

Up to 867 Mbps

Frequency bands supported

2.4 GHz/5 GHz

Wireless standards
  • WiFi 802.11a/b/g
  • Wi-Fi 4 (Wi-Fi 802.11n)
  • Wi-Fi 5 (Wi-Fi 802.11ac Wave 2)
Encryption
  • 64-bit/128-bit WEP
  • AES-CCMP
  • TKIP
Bluetooth

Bluetooth 5.0

keyboard

Keyboard specifications
Number of keys
  • 102 (U.S. and Canada)
  • 103 (UK)
  • 106 (Japan)
Size
  • X= 18.6 mm (0.73 in.) key pitch
  • Y= 19.05 mm (0.75 in.) key pitch
Backlit keyboard

Optional (backlit and Non-backlit)

Layout

QWERTY

TouchPad

Touchpad specifications
Touchpad resolution:
Horizontal

305

Vertical

305

Touchpad dimensions:
Horizontal

105 mm (4.13 in.)

Vertical

80 mm (3.15 in.)

Touchpad gestures For more information about touchpad gestures available on Windows, see the Microsoft knowledge base article at .

Charger | Power Adapter

Power adapter specifications
Diameter (connector)

2.9 mm x 5.4 mm

Weight

0.23 kg (0.51 lb)

Input voltage

100 VAC x 240 VAC

Input frequency

50 Hz x 60 Hz

Input current (maximum)

1.30 A

Output current (continuous)

2.31 A

Rated output voltage

19.50 VDC

Operating

0°C to 40°C (32°F to 104°F)

Storage

-40°C to 70°C (-40°F to 158°F)
