Dell Vostro 15 5510 Specs and Review Core i5-11300H/i7-11370H

Dell Vostro 15 5510 – Overview

The Vostro 15 5510 is 15.6 inch 5000 Series laptop powered by 11th Generation Intel Core i7-11370H Processor, Intel Iris Xe Graphics, NVIDIA GeForce MX450 with the support of up to DDR4 32 GB RAM having speed of 3200 MHz and a M.2 2280, Class 40 solid-state drive M.2 drive x2 storage. It has a Wide-Viewing Angle (WVA), ComfortView Plus Full High Definition (FHD) display with native screen resolution 1920×1080 pixel. The maximum weight of the laptop is 1.75 kg (3.85 lb) and its equipped with 3-Cell, 41 Wh Polymer battery in the base variant. The Vostro 15 5510 base price is US$760 but can be customized adding more specs and features.

Vostro 15 5510 - Bottom View

Vostro 15 5510 – Bottom View

Vostro 15 5510 - Front View

Vostro 15 5510 – Front View

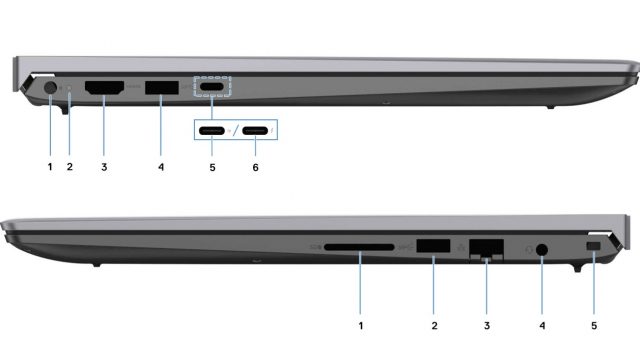

Vostro 15 5510 - Side Views

Vostro 15 5510 – Side Views

Vostro 15 5510 - Top View

Vostro 15 5510 – Top View

Dell Vostro 15 5510 – Specs

QuickSpecs
Brand Dell
Series Dell Vostro 5000
Model Dell Vostro 15 5510
Price Starting from US$760
Color Gray
Processor Generation 11th Generation Intel Core i5-11300H
Display Size 394.90 mm (15.6 in.)
Weight 1.75 kg (3.85 lb)
Battery 3-Cell, 41 Wh Polymer
Minimum RAM 4 GB
Maximum RAM 32 GB
Release Date 11 APR 2021

Dell Vostro 15 5510 – Technical Specifications

Dell Vostro 5510 Processor Specifications

Processor
11th Generation Intel Core i5-11300H
  • Processor type: 11th Generation Intel Core i5-11300H
  • Processor wattage: 35 W
  • Processor core count: 4
  • Processor thread count: 8
  • Processor speed: Up to 4.40 GHz
  • Processor cache: 8 MB
  • Integrated graphics: Intel Iris Xe Graphics
11th Generation Intel Core i7-11370H
  • Processor type: 11th Generation Intel Core i7-11370H
  • Processor wattage: 35 W
  • Processor core count: 4
  • Processor thread count: 8
  • Processor speed: Up to 4.80 GHz
  • Processor cache: 12 MB
  • Integrated graphics: Intel Iris Xe Graphics

Operating System

Operating System
Operating System
  • Windows 11 Home, 64-bit
  • Windows 11 Pro, 64-bit
  • Windows 11 Pro National Academic, 64-bit
  • Windows 10 Home, 64-bit
  • Windows 10 Pro, 64-bit
  • Ubuntu 20.04 LTS, 64-bit

Chipset

Chipset
Chipset

Integrated

Processor

11th Generation Intel Core i5/i7

DRAM bus width

64-bit

Flash EPROM

32 MB

PCIe bus

Up to Gen4

Dell Vostro 5510 Memory (RAM)

Memory specifications
Memory slots

Two-SODIMM slots

Memory type

DDR4

Memory speed

3200 MHz

Maximum memory configuration

32 GB

Minimum memory configuration

4 GB

Memory size per slot

4 GB, 8 GB, 16 GB

Memory configurations supported
  • 4 GB, 1 x 4 GB, DDR4, 3200 MHz
  • 8 GB, 1 x 8 GB, DDR4, 3200 MHz
  • 8 GB, 2 x 4 GB, DDR4, 3200 MHz, dual-channel
  • 12 GB, 1 x 4 GB + 1 x 8 GB, DDR4, 3200 MHz, dual-channel
  • 16 GB, 1 x 16 GB, DDR4, 3200 MHz
  • 16 GB, 2 x 8 GB, DDR4, 3200 MHz, dual-channel
  • 24 GB, 1 x 8 GB + 1 x 16 GB, DDR4, 3200 MHz, dual-channel
  • 32 GB, 2 x 16 GB, DDR4, 3200 MHz, dual-channel

Storage

Storage specifications
M.2 2230, Class 35 solid-state drive PCIe NVMe 3×4, Up to 1 TB
M.2 2280, Class 40 solid-state drive PCIe NVMe 3×4, Up to 1 TB
M.2 2280, Class 40 solid-state drive PCIe NVMe 4×4, 2 TB
M.2 2280, QLC solid-state drive PCIe NVMe 3×4, Up to 1 TB

Dell Vostro 5510 Dimensions and Weight

Dimensions and weight
Height:
Front height

14.16 mm (0.55 in.)

Rear height

17.99 mm (0.70 in.)

Width

356.06 mm (14.01 in.)

Depth

228.82 mm (9 in.)

Weight (minimum) 1.64 kg (3.61 lb)
Weight (maximum)

1.75 kg (3.85 lb)

Dell Vostro 5510 Display (Screen)

Display specifications
Full High Definition (FHD)
  • Display type: Full High Definition (FHD)
  • Display-panel technology: Wide-Viewing Angle (WVA), ComfortView Plus
  • Display-panel dimensions (active area):
  • Height: 193.60 mm (7.62 in.)
  • Width: 344.20 mm (13.55 in.)
  • Diagonal: 394.90 mm (15.6 in.)
  • Display-panel native resolution: 1920×1080
  • Luminance (typical): 300 nits
  • Megapixels: 2.0736
  • Color gamut: sRGB 100% typical
  • Pixels Per Inch (PPI): 141 ppi
  • Contrast ratio (min.): 600:1
  • Response time (max.): 35 ms
  • Refresh rate: 60 Hz
  • Horizontal view angle: 80 minimum
  • Vertical view angle: 80 minimum
  • Pixel pitch: 0.179 mm x 0.179 mm
  • Power consumption (maximum): 4.40 W
  • Anti-glare vs glossy finish: Anti-glare
  • Touch options: No
Full High Definition (FHD)
  • Display type: Full High Definition (FHD)
  • Display-panel technology: Wide-Viewing Angle (WVA), ComfortView
  • Display-panel dimensions (active area):
  • Height: 193.60 mm (7.62 in.)
  • Width: 344.20 mm (13.55 in.)
  • Diagonal: 394.90 mm (15.6 in.)
  • Display-panel native resolution: 1920×1080
  • Luminance (typical): 250 nits
  • Megapixels: 2.0736
  • Color gamut: NTSC 45% typical
  • Pixels Per Inch (PPI): 141 ppi
  • Contrast ratio (min.): 600:1
  • Response time (max.): 35 ms
  • Refresh rate: 60 Hz
  • Horizontal view angle: 80 minimum
  • Vertical view angle: 80 minimum
  • Pixel pitch: 0.179 mm x 0.179 mm
  • Power consumption (maximum): 4.60 W
  • Anti-glare vs glossy finish: Anti-glare
  • Touch options: No

GPU — Integrated

GPU—Integrated
Intel Iris Xe Graphics One HDMI 1.4, Shared system memory, 11th Generation Intel Core i5/i7

GPU — Discrete

GPU—Discrete
NVIDIA GeForce MX450 N/A, 2 GB, GDDR5

Dell Vostro 5510 Battery Specifications

Battery specifications
3-Cell, 41 Wh Polymer
  • Battery type: 3-Cell, 41 Wh Polymer
  • Battery voltage: 11.25 VDC
  • Battery weight (maximum): 0.176 kg (0.38 lb)
  • Battery dimensions:
  • Height: 206.40 mm (8.12 in.)
  • Width: 82.00 mm (3.22 in.)
  • Depth: 5.75 mm (0.22 in.)
  • Battery operating time: Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.
  • Battery charging time (approximate): 4 hours hours (when the computer is off)
  • Approximate life span (discharge/charge cycles): 300 cycles at room temperature
  • ExpressCharge: Supported
  • Coin-cell battery: CR2032
4-cell, 54 Wh Polymer
  • Battery type: 4-cell, 54 Wh Polymer
  • Battery voltage: 15 VDC
  • Battery weight (maximum): 0.231 kg (0.50 lb)
  • Battery dimensions:
  • Height: 271.90 mm (10.70 in.)
  • Width: 82.00 mm (3.22 in.)
  • Depth: 5.75 mm (0.22 in.)
  • Battery operating time: Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.
  • Battery charging time (approximate): 4 hours hours (when the computer is off)
  • Approximate life span (discharge/charge cycles): 300 cycles at room temperature
  • ExpressCharge: Supported
  • Coin-cell battery: CR2032

Camera (Web Cam) Specifications

Camera specifications
Number of cameras

One

Camera type

HD RGB camera

Camera location

Front camera

Camera sensor type

CMOS sensor technology

Camera resolution:
Still image

0.92 megapixel

Video

1280 x 720 (HD) at 30 fps

Diagonal viewing angle:

74.90 degrees

Audio Specifications

Audio specifications
Audio controller
  • Realtek
  • Cirrus Logic
Stereo conversion

Supported

Internal audio interface

High definition audio

External audio interface

Global headset jack

Number of speakers

Two

Internal-speaker amplifier

Supported (audio codec integrated)

External volume controls

Keyboard shortcut controls

Speaker output:
Average speaker output

2 W

Peak speaker output

2.5 W

Subwoofer output

Not supported

Microphone

Dual-array microphones

Media-card Reader

Media-card reader specifications
Media-card type

One SD card reader

Media-cards supported

Secure Digital (SD)

Internal slots

Internal slots
M.2
  • One M.2 2230 slot for WiFi and Bluetooth combo card
  • One M.2 2230/2280/2242 slot for solid-state drive/Intel Optane
  • One M.2 2280 slot for solid-state drive/Intel Optane

External Ports

External ports
Network port

One RJ-45 Ethernet port

USB ports
  • Two USB 3.2 Gen 1 ports
  • One USB 3.2 Gen 2×2 (Type-C) port with DisplayPort 1.4 and Power Delivery
  • One Thunderbolt 4 port with Power Delivery
Audio port

One global headset jack

Video port

One HDMI 1.4 port

Media-card reader

One SD card reader

Power-adapter port

One DC-in port (4.50 mm barrel type)

Security-cable slot

One wedge-shaped lock slot

Communication wireless module

Ethernet specifications
Model number

Realtek RTL8111H-CG

Transfer rate

10/100/1000 Mbps

Communication wireless module

Wireless module specifications
Intel 9462
  • Model number: Intel 9462
  • Transfer rate: Up to 433 Mbps
  • Frequency bands supported: 2.4 GHz/5 GHz
  • Wireless standards
    • WiFi 802.11a/b/g
    • Wi-Fi 4 (Wi-Fi 802.11n)
    • Wi-Fi 5 (Wi-Fi 802.11ac)
  • Encryption
    • 64-bit/128-bit WEP
    • AES-CCMP
    • TKIP
  • Bluetooth: Bluetooth 5.0
Qualcomm QCA61x4A
  • Model number: Qualcomm QCA61x4A
  • Transfer rate: Up to 867 Mbps
  • Frequency bands supported: 2.4 GHz/5 GHz
  • Wireless standards
    • WiFi 802.11a/b/g
    • WiFi 802.11n
    • WiFi 802.11ac
  • Encryption
    • 64-bit/128-bit WEP
    • AES-CCMP
    • TKIP
  • Bluetooth: Bluetooth 5.0
Intel AX201
  • Model number: Intel AX201
  • Transfer rate: Up to 2.40 Gbps
  • Frequency bands supported: 2.4 GHz/5 GHz
  • Wireless standards
    • WiFi 802.11a/b/g
    • Wi-Fi 4 (WiFi 802.11n)
    • Wi-Fi 5 (WiFi 802.11ac)
    • Wi-Fi 6 (WiFi 802.11ax)
  • Encryption
    • 64-bit/128-bit WEP
    • AES-CCMP
    • TKIP
  • Bluetooth: Bluetooth 5.1

keyboard

Keyboard specifications
Keyboard type
  • Standard keyboard
  • Backlit keyboard
Keyboard layout

QWERTY

Number of keys
  • United States and Canada: 99 keys
  • United Kingdom: 100 keys
  • Japan: 103 keys
Keyboard size

X=18.70 mm key pitch

Y=18.05 mm key pitch

Keyboard shortcuts

Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. To type the alternate character, press Shift and the desired key. To perform secondary functions, press Fn and the desired key.

Fingerprint Reader

Fingerprint reader specifications
Fingerprint-reader sensor technology

Capacitive

Fingerprint-reader sensor resolution

500 dpi

Fingerprint-reader sensor pixel size

108 x 88

Charger | Power Adapter

Power adapter specifications
Type

65 W, Barrel type

Connector dimensions:
External diameter 4.50 mm
Internal diameter 2.90 mm
Input voltage

100 VAC-240 VAC

Input frequency

50 Hz-60 Hz

Input current (maximum)

1.60 A/1.70 A

Output current (continuous)

3.34 A

Rated output voltage

19.50 VDC

Temperature range:
Operating

0°C to 40°C (32°F to 104°F)

Storage

-40°C to 70°C (-40°F to 158°F)
