Dell Vostro 13 3000 3491 Specs and Review Core i5-1035G1

Dell Vostro 3491 – Review

The Dell Vostro 3491 is 14 inch 3000 Series laptop powered by 10th Generation Intel Core i5-1035G1 Processor, Intel UHD Graphics / GT2 Intel Iris Plus Graphics with the support of up to DDR4 16 GB RAM having speed of 2666 MHz, or 3200 MHz (For Discrete SKU with NVDIA Gfx only) and a 2.5-inch 7200 RPM hard disk drive storage. It has High Definition – Non-Touch, Anti Glare, Ultra slim display screen with resolution 1366×768 px. The maximum weight of the laptop is 1.66 kg (3.68 lb) and its equipped with Polymer battery, 3 cell 42WHr in the base variant. The Vostro 3491 base price is $370 but can be customized adding more specs and features.

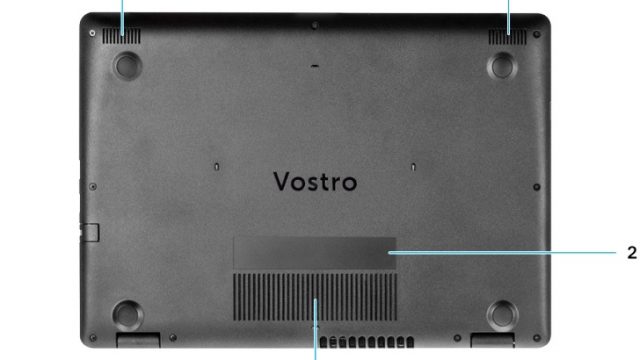

Vostro 3491 - Bottom View

Vostro 3491 – Bottom View

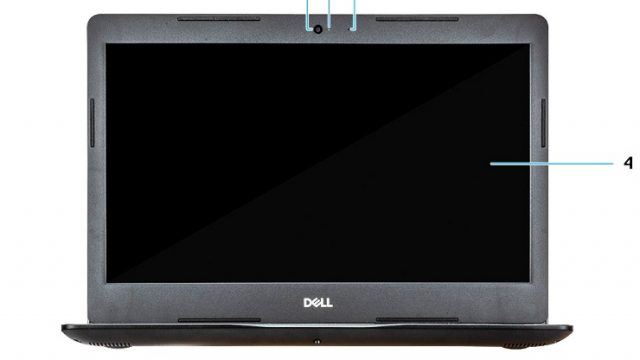

Vostro 3491 - Display View

Vostro 3491 – Display View

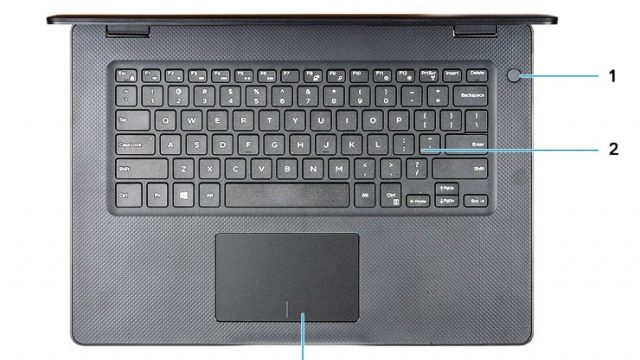

Vostro 3491 - Palmrest View

Vostro 3491 – Palmrest View

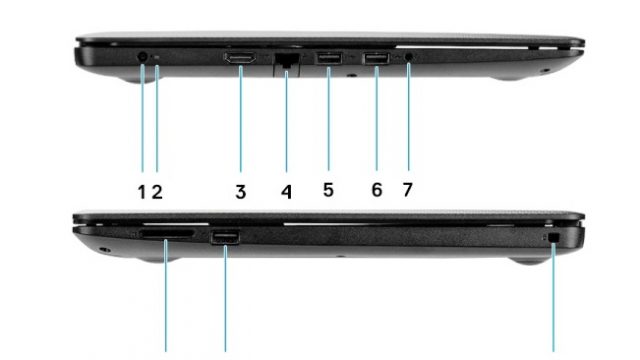

Vostro 3491 - Sides View

Vostro 3491 – Sides View

Dell Vostro 3491 – Specs

QuickSpecs
Brand Dell
Series Dell Inspiron 3000
Model Dell Vostro 3491
Price Starting from $370
Color BLACK
Processor Generation 10th Generation Intel Core i5-1035G1 processor
Display Size 355.60 mm (14.00 in.)
Weight 1.66 kg (3.68 lb)
Battery Polymer battery, 3 cell 42WHr
Minimum RAM 4 GB
Maximum RAM 16 GB
Release Date 16 FEB 2020

Dell Vostro 3491 – Full Specifications

Dell Vostro 3491 Processor Specifications

Processors
10th Generation Intel Core i5-1035G1 processor
  • Processors: 10th Generation Intel Core i5-1035G1 processor
  • Wattage: 15 W
  • Core count: 4
  • Thread count: 8
  • Speed: Up to 3.6 GHz
  • Cache: 6 MB
  • Integrated graphics: Intel® UHD Graphics
10th Generation Intel Core i7-1065G7 processor
  • Processors: 10th Generation Intel Core i7-1065G7 processor
  • Wattage: 15 W
  • Core count: 4
  • Thread count: 8
  • Speed: Up to 3.8 GHz
  • Cache: 8 MB
  • Integrated graphics: Intel® Iris® Plus Graphics

Operating System

Operating System
Operating System
  • Windows 10 Home (64-bit)
  • Windows 10 Professional (64-bit)
  • Ubuntu 18.04 LTS

Chipset

Chipset
Chipset

Ice Lake U (ICL U) PCH-LP

Processor
  • i5-1035G1
  • I7-1065G7
DRAM bus width

64-bit

Flash EPROM

16 + 8 MB

PCIe bus

Up to Gen 3.0

Dell Vostro 3491 Memory (RAM)

Memory specifications
Slots

Two So-DIMM slots

Type

DDR4

Speed

2666 MHz, 3200 MHz (For Discrete SKU with NVDIA Gfx only)

Maximum memory

16 GB

Minimum memory

4 GB

Configurations supported
  • 4 GB
  • 4 GB + 4 GB
  • 8 GB
  • 4 GB + 8 GB
  • 8 GB + 8 GB
  • 16 GB

Storage

Storage specifications
2.5-inch 5400rpm hard disk drive SATA, Upto 2 TB
2.5-inch 7200rpm hard disk drive SATA, Upto 1 TB
M.2 2230 Solid State Drive PCIe NVMe 3×4

  • Class 35: 128 GB, 256 GB, 512 GB
  • Class 40: 512 GB

Dell Vostro 3491 Dimensions and Weight

Dimensions and weight
Height:
Front

19.9 mm (0.78 in.)

Rear

21 mm (0.83 in.)

Width

339 mm (13.35 in.)

Depth

241.90 mm (9.52 in.)

Weight

1.66 kg (3.68 lb)

Dell Vostro 3491 Display (Screen) Specifications

Display specifications
High Definition – Non-Touch, Anti Glare, Ultra slim
  • Type: High Definition – Non-Touch, Anti Glare, Ultra slim
  • Panel technology: Twisted Nematic
  • Luminance (typical): 220 nits
  • Dimensions (Active area):
  • Height: 309.35 mm (12.18 in.)
  • Width: 173.99 mm (6.85 in.)
  • Diagonal: 355.60 mm (14.00 in.)
  • Native resolution: 1366×768
  • Megapixels: 1.049
  • Color gamut: NTSC 45%
  • Pixels per inch (PPI): 112 PPI
  • Contrast ratio (min): 16:09
  • Response time (max): 16 ms
  • Refresh rate: 60 Hz
  • Horizontal view angle: 40°
  • Vertical view angle: Top/Bottom: 10°/30°
  • Pixel pitch: 0.2265 mm x 0.2265 mm
  • Power consumption (maximum): 2.9 W
  • Anti-glare vs glossy finish: Anti-glare
  • Touch options: No
FHD
  • Type: FHD
  • Panel technology: Wide View Angle (WVA)
  • Luminance (typical): 220 nits
  • Dimensions (Active area):
  • Height: 309.30 mm (12.18 in.)
  • Width: 174 mm (6.85 in.)
  • Diagonal: 355.60 mm (14.00 in.)
  • Native resolution: 1920×1080
  • Megapixels: 2.07
  • Color gamut: NTSC 45%
  • Pixels per inch (PPI): 157 PPI
  • Contrast ratio (min): 16:09
  • Response time (max): 35 ms
  • Refresh rate: 60 Hz
  • Horizontal view angle: 80°
  • Vertical view angle: 80°
  • Pixel pitch: 0.161 mm x 0.161 mm
  • Power consumption (maximum): 4 W
  • Anti-glare vs glossy finish: Anti-glare
  • Touch options: No

Dell Vostro 3491 Video | Graphics (Discrete graphics)

Discrete graphics specifications
NVIDIA MX230 One HDMI port, 2 GB, GDDR5

Video | Graphics (Integrated graphics)

Integrated graphics specifications
Intel® UHD Graphics GT2 Intel® Iris® Plus Graphics One HDMI port, Shared system memory

  • i5-1035G1
  • i7-1065G7

Dell Vostro 3491 Battery Specifications

Battery specifications
Type

Polymer battery, 3 cell 42WHr

Voltage

11.40 VDC

Weight (maximum)

0.2 kg (0.44 lb)

Dimensions:
Height

184.15 mm (7.25 in.)

Width

97.15 mm (3.82 in.)

Depth

5.90 mm (0.23 in.)

Temperature range:
Operating

0°C (32°F) to 35°C (95°F)

Storage

–40°C (–40°F) to 65°C (149°F)

Operating time Varies depending on operating conditions and can reduce under certain power-intensive conditions
Charging time (approximate)

3 hours (when the computer is off)

Life span (approximate) 300 discharge/charge cycles
Coin-cell battery

CR 2032

Operating time Varies depending on operating conditions and can reduce under certain power-intensive conditions

Camera (Web Cam) Specifications

Camera specifications
Number of cameras

One

Type

RGB HD Camera

Location

Front

Sensor type

CMOS sensor technology

Camera
Still image

0.92 megapixel

Video

1280 x 720 (HD) at 30 fps

Diagonal viewing angle
Camera

78.6 °

Audio Specifications

Audio specifications
Controller

Realtek ALC3204

Stereo conversion

Supported

Internal interface

High definition audio

External interface

Universal audio jack

Speakers

Two

Speaker Output Average

2 W

Speaker Output Peak

2.5 W

Media-card Reader

Media-card reader specifications
Type

SD Card reader

Cards supported

Secure Digital (SD)

Ports and connectors

External ports and connectors
External:
Network

One RJ-45 Port 10/100/1000

USB
  • 2 USB 3.0 Type A
  • 1 USB 2.0 Type A
Audio

1 Universal Audio Jack

Video

HDMI

Power adapter port

4.50 mm x 2.90 mm DC-in

Security

Wedge-shaped lock slot

Card slot

SD card slot

Ports and connectors

Internal ports and connectors
Internal:
One M.2 Key-M (2280 or 2230) for solid-state drive One M.2 2230 Key-E for WLAN
  • Class 35 128GB, 256GB
  • Class 35 512GB
  • Class 40 512GB

Communication wireless module

Wireless module specifications
Qualcomm QCA9377 (DW1810)
  • Model number: Qualcomm QCA9377 (DW1810)
  • Transfer rate: Up to 433 Mbps
  • Frequency bands supported: 2.4 GHz/5 GHz
  • Wireless standards
    • Wi-Fi 802.11/g/a/n/ac
  • Encryption
    • 64/128-bit WEP
    • AES-CCMP
    • TKIP
  • Bluetooth: Bluetooth 4.2
Qualcomm QAC61x4A (DW1820)
  • Model number: Qualcomm QAC61x4A (DW1820)
  • Transfer rate: Up to 867 Mbps
  • Frequency bands supported: 2.4 GHz/5 GHz
  • Wireless standards
    • Wi-Fi 802.11/g/a/n/ac
  • Encryption
    • 64/128-bit WEP
    • AES-CCMP
    • TKIP
  • Bluetooth: Bluetooth 4.2
Intel 9462ac
  • Model number: Intel 9462ac
  • Transfer rate: Up to 433 Mbps
  • Frequency bands supported: 2.4 GHz/5 GHz
  • Wireless standards
    • Wi-Fi 802.11/g/a/n/ac
  • Encryption
    • 64/128-bit WEP
    • AES-CCMP
    • TKIP
  • Bluetooth: Bluetooth 5 (Windows 10 supports Bluetooth 5 with the latest Windows update)
Intel 9560
  • Model number: Intel 9560
  • Transfer rate: Up to 1.73 Gbps
  • Frequency bands supported: 2.4 GHz/5 GHz
  • Wireless standards
    • Wi-Fi 802.11/g/a/n/ac
  • Encryption
    • 64/128-bit WEP
    • AES-CCMP
    • TKIP
  • Bluetooth: Bluetooth 5 (Windows 10 supports Bluetooth 5 with the latest Windows update)

keyboard

Keyboard specifications
Type
  • Non Backlit Keyboard
  • Standard full size spill-resistant keyboard
  • Multi-touch gesture-enabled precision touchpad with integrated scrolling
Layout

QWERTY

Number of keys
  • United States and Canada: 80 keys
  • United Kingdom: 81keys
  • Japan: 84 keys
Size

X= 19.05 mm key pitch

Y= 18.05 mm key pitch

Shortcut keys

Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. To type the alternate character, press Shift and the desired key. To perform secondary functions, press Fn and the desired key.

Fingerprint Reader

Fingerprint reader specifications
Sensor technology

Capacitive

Sensor resolution

500 dpi

Sensor area

5.5mm x 4.4 mm

Sensor pixel size

108 x 88

Security

Security
Trusted Platform Module (TPM) 2.0 Integrated on system board
Fingerprint reader Optional
Contacted Smartcard reader Optional
Contactless Smartcard reader Optional
Kensington security lock slot Standard
Protected slot/vent openings Standard

Charger | Power Adapter

Power adapter specifications
65 W
  • Type: 65 W
  • Input voltage: 100 VAC x 240 VAC
  • Input frequency: 50 Hz/60 Hz
  • Input current (maximum): 1.50 A
  • Output current (continuous): 3.34 A (continuous)
  • Rated output voltage: 19.50 VDC
  • Temperature range:
  • Operating: 0°C to 40°C (32°F to 104°F)
  • Storage: -40°C to 70°C (-40°F to 158°F)
45 W
  • Type: 45 W
  • Input voltage: 100 VAC x 240 VAC
  • Input frequency: 50 Hz/60 Hz
  • Input current (maximum): 1.30 A
  • Output current (continuous): 2.31 A (continuous)
  • Rated output voltage: 19.50 VDC
  • Temperature range:
  • Operating: 0°C to 40°C (32°F to 104°F)
  • Storage: -40°C to 70°C (-40°F to 158°F)
