OptiPlex 3090 Tower Specs and Review 10th Gen Core i3-10100T

Dell OptiPlex 3090 Tower – Review

The Dell OptiPlex 3090 is OptiPlex 3000 Series Desktop Computer launched in 15 February 2022 and its powered by 10th Generation Intel Core i3-10100T Processor, Waves MaxxAudio API with the support of up to DDR4 64 GB RAM having speed of 2666 MHz and a 2.5-inch hard drive Storage. The maximum weight of this desktop computer is 1.28 kg (2.82 lb) in the base variant. The Dell OptiPlex 3090 base price is $659 but can be customized adding more specs and features.

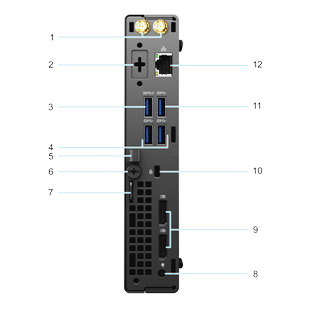

Dell OptiPlex 3090 - Back View

Dell OptiPlex 3090 – Back View

Dell OptiPlex 3090 - Display View

Dell OptiPlex 3090 – Display View

Dell OptiPlex 3090 Tower – Specs

QuickSpecs
Brand Dell
Series Dell OptiPlex 3000
Model Dell OptiPlex 3090 Tower
Price Starting from $659
Color Black
Processor Generation 10th Generation Intel Core i3-10100T
Audio Waves MaxxAudio API
Weight 1.28 kg (2.82 lb)
Minimum RAM 4 GB
Maximum RAM 64 GB
Release Date 15 February 2022

Dell OptiPlex 3090 Tower – Full Specifications

Dell OptiPlex 3090 Tower Processor Specifications

Processors
10th Generation Intel Core i3-10100T 35 W, 4, 8, 3.0 GHz to 3.8 GHz, 6 MB, Intel UHD Graphics 630, No, Yes
10th Generation Intel Core i3-10105T 35 W, 4, 8, 3.0 GHz to 3.9 GHz, 6 MB, Intel UHD Graphics 630, No, Yes
10th Generation Intel Core i3-10300T 35 W, 4, 8, 3.0 GHz to 3.9 GHz, 8 MB, Intel UHD Graphics 630, No, Yes
10th Generation Intel Core i3-10305T 35 W, 4, 8, 3.0 GHz to 4.0 GHz, 8 MB, Intel UHD Graphics 630, No, Yes
10th Generation Intel Core i5-10400T 35 W, 6, 12, 2.0 GHz to 3.6 GHz, 12 MB, Intel UHD Graphics 630, No, Yes
10th Generation Intel Core i5-10500T 35 W, 6, 12, 2.3 GHz to 3.8 GHz, 12 MB, Intel UHD Graphics 630, Yes, Yes
10th Generation Intel Core i5-10600T 35 W, 6, 12, 2.4 GHz to 4.0 GHz, 12 MB, Intel UHD Graphics 630, Yes, Yes
10th Generation Intel Core i7-10700T 35 W, 8, 16, 2.0 GHz to 4.5 GHz, 16 MB, Intel UHD Graphics 630, Yes, Yes
IntelĀ® Celeron G5905T 35 W, 2, 2, Up to 3.3 GHz, 4 MB, Intel UHD Graphics 610, No, Yes
IntelĀ® Pentium G6405T 35 W, 2, 4, Up to 3.5 GHz, 4 MB, Intel UHD Graphics 610, No, Yes
IntelĀ® Pentium G6505T 35 W, 2, 4, Up to 3.6 GHz, 4 MB, Intel UHD Graphics 610, No, Yes

Operating System

Operating System
Operating System
  • Windows 11 Pro, 64-bit
  • Windows 11 Downgrade (Windows 10 image)
  • Windows 11 Home, 64-bit
  • Windows 11 Pro Education, 64-bit
  • Kylin Linux Desktop version 10.1 (China only)
  • Ubuntu Linux 20.04 LTS, 64-bit
  • Windows 10 CMIT Government Edition, 64-bit (China only)
  • Windows 10 Enterprise LTSC, 64-bit

Chipset

Chipset
Chipset

Q470

Processor

10th Generation Intel Core i3/i5/i7 Intel Pentium/Intel Celeron

DRAM bus width

64-bit

Flash EPROM

32 MB, dual-channel

PCIe bus

Up to Gen 3.0

Dell OptiPlex 3090 Memory (RAM)

Memory specifications
Memory slots

Two DIMM slots

Memory type

DDR4

Memory speed

2666 MHz/2933 MHz

Maximum memory configuration

64 GB

Minimum memory configuration

4 GB

Memory size per slot

4 GB, 8GB, 16 GB, 32 GB

Memory configurations supported
  • 4 GB, 1 x 4 GB, DDR4, 2666 MHz for IntelĀ® Celeron, Pentium, Coreā„¢ i3/i5 processors, 2933 MHz for IntelĀ® Coreā„¢ i7 processor
  • 8 GB, 1 x 8 GB, DDR4, 2666 MHz for IntelĀ® Celeron, Pentium, Coreā„¢ i3/i5 processors, 2933 MHz for IntelĀ® Coreā„¢ i7 processor
  • 8 GB, 2 x 4 GB, DDR4, 2666 MHz for IntelĀ® Celeron, Pentium, Coreā„¢ i3/i5 processors, 2933 MHz for IntelĀ® Coreā„¢ i7 processor
  • 16 GB, 1 x 16 GB, DDR4, 2666 MHz for IntelĀ® Celeron, Pentium, Coreā„¢ i3/i5 processors, 2933 MHz for IntelĀ® Coreā„¢ i7 processor
  • 16 GB, 2 x 8 GB, DDR4, 2666 MHz for IntelĀ® Celeron, Pentium, Coreā„¢ i3/i5 processors, 2933 MHz for IntelĀ® Coreā„¢ i7 processor
  • 32 GB, 1 x 32 GB, DDR4, 2666 MHz for IntelĀ® Celeron, Pentium, Coreā„¢ i3/i5 processors, 2933 MHz for IntelĀ® Coreā„¢ i7 processor
  • 32 GB, 2 x 16 GB, DDR4, 2666 MHz for IntelĀ® Celeron, Pentium, Coreā„¢ i3/i5 processors, 2933 MHz for IntelĀ® Coreā„¢ i7 processor
  • 64 GB, 2 x 32 GB, DDR4, 2666 MHz for IntelĀ® Celeron, Pentium, Coreā„¢ i3/i5 processors, 2933 MHz for IntelĀ® Coreā„¢ i7 processor

Storage Matrix

Storage Matrix
2.5-inch hard drive Yes, No, 2.5-inch hard drive
M.2 PCIe solid-state drive No, Yes, 1st M.2 solid-state drive
M.2 PCIe solid-state drive 2.5-inch hard drive, Yes, Yes, 1st M.2 solid-state drive

Storage

Storage specifications
2.5-inch, 7200 RPM, Opal 2.0 Self-Encrypting FIPS, hard-disk drive SATA 3.0, Up to 500 GB
2.5-inch, 5400 RPM, hard-disk drive SATA 3.0, Up to 2 TB
2.5-inch, 7200 RPM, hard-disk drive SATA 3.0, Up to 1 TB
M.2 2230, Class 35 solid-state drive PCIe NVMe Gen3 x4, Up to 512 GB
M.2 2230, Class 35 self-Encrypting drive PCIe NVMe Gen3 x4, Up to 256 GB
M.2 2280, Class 40 solid-state drive PCIe NVMe Gen3 x4, Up to 1 TB
M.2 2280, Class 40 self-Encrypting drive PCIe NVMe Gen3 x4, Up to 1 TB
M.2 2280, Class 40 solid-state drive PCIe NVMe Gen4 x4, Up to 2 TB

Dell OptiPlex 3090 Dimensions and Weight

Dimensions and weight
Height:
Front height

182.00 mm (7.16 in.)

Rear height

182.00 mm (7.16 in.)

Width

36.00 mm (1.42 in.)

Depth

178.56 mm (7.03 in.)

Weight

Minimum: 1.16 kg (2.55 lb) Maximum: 1.28 kg (2.82 lb)

Integrated Graphics

GPUā€”Integrated
Intel UHD Graphics 630 Shared system memory, 10th Generation Intel Core i3/i5/i7
Intel UHD Graphics 610 Shared system memory, Intel Celeron/Pentium

Audio Specifications

Audio specifications
Audio controller

Waves MaxxAudio API

Stereo conversion

Not supported

Internal audio interface

Intel HDA (high-definition audio)

External audio interface
  • One Universal audio port (front)
  • One Re-tasking Line-out/Line-in audio port (front)
Number of speakers

One

Internal-speaker amplifier

Not supported

External volume controls

Keyboard shortcut controls

Speaker output:
Average speaker output

2 W

Peak speaker output

2.5 W

Subwoofer output

Not supported

Microphone

Not supported

Internal slots

Internal slots
SATA

One SATA slots for 2.5-inch Hard disk-drive

M.2
  • One M.2 2230 slot for WiFi and Bluetooth card
  • One M.2 2230/2280 slot for SSD

External Ports

External ports
Network port

One RJ-45 Ethernet port 10/100/1000 Mbps

USB ports
  • One USB 3.2 Gen 1 Type-A port (front)
  • Three USB 3.2 Gen 1 Type-A ports (rear)
  • One USB 3.2 Gen1 Type-A port with Smart Power on (rear)
Audio port
  • One Universal audio jack port (front)
  • One Re-tasking Line-out/Line-in audio port (front)
Video port
  • Two DisplayPort 1.4 ports (rear)
  • One optional 3rd Video Port (VGA/DP 1.4/HDMI 2.0b) (rear)
Media-card reader

Not supported

Power-adapter port

65 W AC adapter, 4.5 mm barrel for 35 W CPU

Security-cable slot
  • One kensington security-cable slot
  • One Padlock loop

Communication wireless module

Wireless module specifications
Qualcomm QCA61x4A (DW1820)
  • Model number: Qualcomm QCA61x4A (DW1820)
  • Transfer rate: 867 Mbps
  • Frequency bands supported: 2.4 GHz/5 GHz
  • Wireless standards
    • Wi-Fi 802.11a/b/g
    • Wi-Fi 4 (WiFi 802.11n)
    • Wi-Fi 5 (WiFi 802.11ac)
  • Encryption
    • 64-bit/128-bit WEP
    • AES-CCMP
    • TKIP
  • Bluetooth: Bluetooth 5.0
Intel AX201
  • Model number: Intel AX201
  • Transfer rate: 2400 Mbps
  • Frequency bands supported: 2.4 GHz/5 GHz
  • Wireless standards
    • WiFi 802.11a/b/g
    • Wi-Fi 4 (WiFi 802.11n)
    • Wi-Fi 5 (WiFi 802.11ac)
    • Wi-Fi 6 (WiFi 802.11ax)
  • Encryption
    • 64-bit/128-bit WEP
    • AES-CCMP
    • TKIP
  • Bluetooth: Bluetooth 5.2
Intel 9462
  • Model number: Intel 9462
  • Transfer rate: 433 Mbps
  • Frequency bands supported: 2.4 GHz/5 GHz
  • Wireless standards
    • WiFi 802.11a/b/g
    • Wi-Fi 4 (WiFi 802.11n)
    • Wi-Fi 5 (WiFi 802.11ac)
  • Encryption
    • 64-bit/128-bit WEP
    • AES-CCMP
    • TKIP
  • Bluetooth: Bluetooth 5.1
