Alienware Aurora Ryzen Edition 5/7/9 R10 Specs and Review

Dell Alienware Aurora Ryzen Edition R10 – Review

The Dell Alienware Aurora Ryzen Edition R10 is Alienware Aurora Series Desktop Computer launched in Dec 2020 and its powered by AMD Ryzen 9 3950X Processor, AMD RX 5300 3 GB GDDR6 Graphics card with the support of up to DDR4 128 GB RAM having speed of 3200 MHz and a Two 2.5-inch hard drives Up to 2 TB Storage. The maximum weight of this desktop computer is 17.80 kg (39.24 lb) in the base variant. The Dell Alienware Aurora Ryzen Edition R10 base price is USD $1784 but can be customized adding more specs and features.

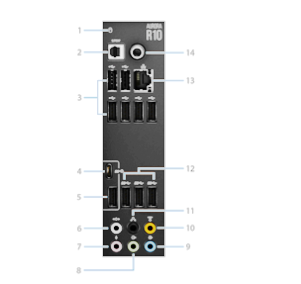

Dell Alienware Aurora Ryzen Edition R10 – Back Panel View

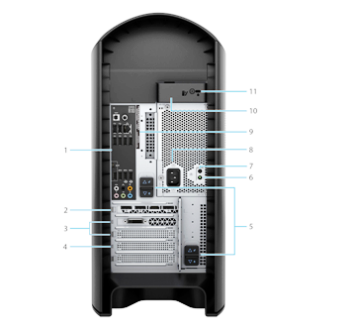

Dell Alienware Aurora Ryzen Edition R10 – Back View

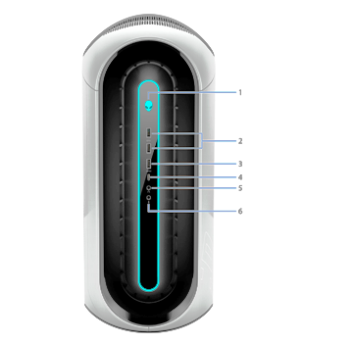

Dell Alienware Aurora Ryzen Edition R10 – Front View

Dell Alienware Aurora Ryzen Edition R10 – Specs

QuickSpecs
Brand	Dell
Series	Dell Alienware Aurora Desktop
Model	Dell Alienware Aurora Ryzen Edition R10
Price	Starting from $1784
Color	Black
Processor Generation	AMD Ryzen 9 3950X
Audio	Integrated 7.1 channel audio with S/PDIF port
Weight	17.80 kg (39.24 lb)
Minimum RAM	8 GB
Maximum RAM	128 GB
Release Date	1 Dec 2020

Processor
OS
Chipset
RAM
Storage
Design
Graphics
Audio
Connectors
Wi-Fi

Dell Alienware Aurora Ryzen Edition R10 – Full Specifications

Dell Alienware Aurora Ryzen Edition R10 Processor Specifications

Processors
AMD Ryzen 9 3950X	105 W, 16, 32, 4.7/3.5 GHz, 64 MB
AMD Ryzen 9 3900XT	105 W, 12, 24, 4.6/3.8 GHz, 64 MB
AMD Ryzen 9 3900X	105 W, 12, 24, 4.6/3.8 GHz, 64 MB
AMD Ryzen 9 3900	65 W, 12, 24, 4.3/3.1 GHz, 64 MB
AMD Ryzen 7 3800XT	105 W, 8, 16, 4.5/3.9 GHz, 32 MB
AMD Ryzen 7 3800X	105 W, 8, 16, 4.5/3.9 GHz, 32 MB
AMD Ryzen 7 3700X	65 W, 8, 16, 4.4/3.6 GHz, 32 MB
AMD Ryzen 5 3600XT	95 W, 6, 12, 4.4/3.8 GHz, 32 MB
AMD Ryzen 5 3600X	95 W, 6, 12, 4.4/3.8 GHz, 32 MB
AMD Ryzen 5 3600	65 W, 6, 12, 4.2/3.6 GHz, 32 MB
AMD Ryzen 5 3500	65 W, 6, 6, 4.1/3.6 GHz, 16 MB
AMD Ryzen 5 5600X	65 W, 6, 12, 4.5/3.7 GHz, 32 MB
AMD Ryzen 5 5800	65 W, 8, 16, 4.6/3.4 GHz, 32 MB
AMD Ryzen 7 5800X	105 W, 8, 16, 4.7/3.8 GHz, 32 MB
AMD Ryzen 9 5900	65 W, 12, 24, 4.7/3 GHz, 64 MB
AMD Ryzen 9 5900X	105 W, 12, 24, 4.8/3.7 GHz, 64 MB
AMD Ryzen 9 5950X	105 W, 12, 24, 4.6/3.5 GHz, 32 MB

Operating System

Operating System
Operating System	Windows 11 Home, 64-bit Windows 11 Pro, 64-bit Windows 10 Home, 64-bit Windows 10 Pro, 64-bit

Chipset

Chipset
Chipset	B550A
Processor	AMD Ryzen 9/ AMD Ryzen 7/ AMD Ryzen 5
DRAM bus width	64 bits
Flash EPROM	128 MB
PCIe bus	PCIe Gen4

Dell Alienware Aurora Ryzen Edition R10 Memory (RAM)

Memory specifications
Slots	Four UDIMM
Type	DDR4
Speed	3200 MHz up to 3400 MHz (XMP memory)
Maximum memory	128 GB
Minimum memory	8 GB
Memory per slot	8 GB, 16 GB, and 32 GB
Configurations supported:	8 GB, 1 x 8 GB, DDR4, 3200 MHz 16 GB, 1 x 16 GB, DDR4, 3200 MHz 16 GB, 2 x 8 GB, DDR4, 3200 MHz 32 GB, 2 x 16 GB, DDR4, 3200 MHz 64 GB, 2 x 32 GB, DDR4, 3200 MHz 64 GB, 4 x 16 GB, DDR4, 3200 MHz 128 GB, 4 x 32 GB, DDR4, 3200 MHz 16 GB, 1 x 16 GB, DDR4, 3400 MHz 32 GB, 2 x 16 GB, DDR4, 3400 MHz 64 GB, 2 x 32 GB, DDR4, 3400 MHz 64 GB, 4 x 16 GB, DDR4, 3400 MHz 128 GB, 4 x 32 GB, DDR4, 3400 MHz

Storage

Storage specifications
Two 2.5-inch hard drives	SATA AHCI 6 Gbps, Up to 2 TB
One 3.5-inch hard drive	SATA AHCI 6 Gbps, Up to 2 TB
One M.2 2230/2280 solid-state drive	PCIe NVMe up to 32 Gbps, Up to 2 TB

Storage Configuration

Storage Configuration
Storage	One M.2 2230/2280 solid-state drive, one 3.5-inch hard drive, and two 2.5-inch hard drives Two 2.5-inch hard drives One 3.5-inch hard drive and two 2.5-inch hard drives

Dell Alienware Aurora Ryzen Edition R10 Dimensions and Weight

Dimensions and weight
Height:
Front	441.80 mm (17.39 in.)
Rear	481.60 mm (18.96 in.)
Width	222.80 mm (8.77 in.)
Depth	431.90 mm (17 in.)
Weight (maximum)	17.80 kg (39.24 lb)

Video | Graphics (Discrete graphics)

Discrete graphics specifications
AMD RX 5300	1, One HDMI port, Two DisplayPort, 3 GB, GDDR6, 4, 85 W, > 550 W
AMD RX 5600	1, One HDMI port, Three DisplayPort, 8 GB, GDDR6, 4, 150 W, > 550 W
AMD RX 5700	1, One HDMI port, Three DisplayPort, 8 GB, GDDR6, 3, 185 W, > 550 W
AMD RX 5700 XT	1, One HDMI port, Three DisplayPort, 8 GB, GDDR6, 3, 225 W, > 550 W
AMD RX 6800 XT	1, One HDMI port, Three DisplayPort, 16 GB, GDDR6, 4, 225 W, 1000 W
NVIDIA GeForce GTX 1650 Super	1, One HDMI port and one DVI port, 6 GB, GDDR5, 3, 100 W, > 550 W
NVIDIA GeForce GTX 1660 Super	1, One DVI port, One HDMI port, One DisplayPort, 6 GB, GDDR6, 3, 125 W, > 550 W
NVIDIA GeForce GTX 1660Ti	1, One DVI port, One HDMI port, One DisplayPort, 6 GB, GDDR6, 3, 120 W, > 550 W
NVIDIA GeForce RTX 2060 Super	1, One DVI port, One HDMI port, One DisplayPort, 8 GB, GDDR6, 3, 175 W, > 550 W
NVIDIA GeForce RTX 2070 Super	1, One HDMI port, Three DisplayPort, 8 GB, GDDR6, 3, 215 W, > 550 W
NVIDIA GeForce RTX 2080 Super	1, One HDMI port, Three DisplayPort, 8 GB, GDDR6, 3, 250 W, 1000 W
NVIDIA GeForce RTX 2080Ti	1, One HDMI port, Three DisplayPort, One USB Type-C port, 11 GB, GDDR6, 3, 285 W, 1000 W
NVIDIA GeForce RTX 2070 Super	2, One HDMI port, Three DisplayPort, 8 GB, GDDR6, 3, 215 W, 1000 W
NVIDIA GeForce RTX 2080 Super	2, One HDMI port, Three DisplayPort, 8 GB, GDDR6, 3, 250 W, 1000 W
NVIDIA GeForce RTX 2080Ti	2, One HDMI port, Three DisplayPort, One USB Type-C port, 11 GB, GDDR6, 3, 285 W, 1000 W
NVIDIA GeForce RTX 3060Ti	1, One HDMI port, Three DisplayPort,, 8 GB, GDDR6, 4, 200 W, > 550 W (Dual width)
NVIDIA GeForce RTX 3070	1, One HDMI port, Three DisplayPort, 8 GB, GDDR6, 4, 220 W, > 550 W (Dual width)
NVIDIA GeForce RTX 3080	1, One HDMI port, Three DisplayPort, 10 GB, GDDR6X, 4, 320 W, 1000 W
NVIDIA GeForce RTX 3090	1, One HDMI port, Three DisplayPort, 24 GB, GDDR6X, 4, 350 W, 1000 W

Audio Specifications

Audio specifications
Type	Integrated 7.1 channel audio with S/PDIF port
Controller	Realtek ALC3861
Internal interface	High-definition audio
External interface	7.1 channel output, Microphone-in, stereo headphones, and headset combo connector

Ports and connectors

Ports and connectors
External:
Network	One RJ-45 port
USB	Six USB 2.0 ports Five USB 3.1 Gen 1 ports One USB 3.1 Gen 1 Type-C port One USB 3.1 Gen 2 port One USB 3.1 Gen 2 Type-C port One USB 3.1 Gen 1 port with PowerShare
Audio	One audio output/headphone port (supports 2 channel audio) One audio input/microphone port One optical S/PDIF port One coaxial S/PDIF port One front L/R surround line-out port One side L/R surround port One rear L/R surround port One center/subwoofer LFE surround port One line-in port
Video	Not supported
Memory card reader	Not supported
Power port	Not applicable
Security	Kensington lock slot
Internal:
PCIe expansion card slots	Two PCIe x16 slots Two PCIe x4 slots
mSATA	Not supported
SATA	Four
M.2	One M.2 card slot for WLAN and Bluetooth One PCIe/SATA M.2 card slot for 2230/2280 solid-state drive

Ethernet specifications

Ethernet specifications
Model number	Killer E2600 Ethernet controller integrated on system board
Transfer rate	10/100/1000 Mbps

Communication wireless module

Wireless module specifications
Qualcomm DW1810	Model number: Qualcomm DW1810 Transfer rate: Up to 433 Mbps Frequency bands supported: Dual band 2.4 GHz/5 GHz Wireless standards: Wi-Fi 5 (WiFi 802.11ac) Encryption 64-bit/128-bit WEP AES-CCMP CKIP TKIP Bluetooth: Bluetooth 4.2
Qualcomm DW1820	Model number: Qualcomm DW1820 Transfer rate: Up to 867 Mbps Frequency bands supported: Dual band 2.4 GHz/5 GHz Wireless standards: Wi-Fi 5 (WiFi 802.11ac) Encryption 64-bit/128-bit WEP AES-CCMP CKIP TKIP Bluetooth: Bluetooth 4.2
Killer AX1650	Model number: Killer AX1650 Transfer rate: Up to 2.4 Gbps Frequency bands supported: Dual band 2.4 GHz/5 GHz Wireless standards: Wi-Fi 6 (WiFi 802.11ax) Encryption 64-bit/128-bit WEP AES-CCMP CKIP TKIP Bluetooth: Bluetooth 5.0
