Inspiron 15 7510 Specs and Review Intel 11th Gen Core i5/i7

Dell Inspiron 15 7510 – Review

The Dell Inspiron 15 7510 is 7000 Series laptop powered by 11th Generation Intel Core i5-11400H Processor, Intel UHD Graphics / NVIDIA GeForce RTX 3050 Ti with the support of up to 32 GB Memory having speed 3200 MHz, PCIe NVMe Gen3 x4, up to 32 Gbps, Up to 1 TB SSD storage. It has a Full High Definition (FHD), Display-panel with native resolution 1920 x 1080. The maximum weight for the laptop is 2.01 kg (4.43 lb) and its equipped with 3-cell polymer (56 Wh) battrey in the base variant. The Dell Inspiron 15 7510 base price is $650 but can be customized adding more specs and features.

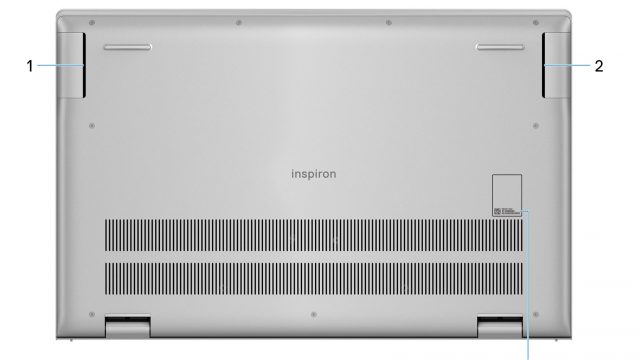

Inspiron 15 7510 – Bottom View

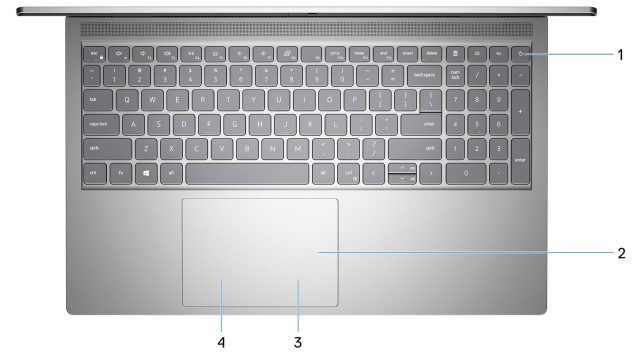

Inspiron 15 7510 – Top View

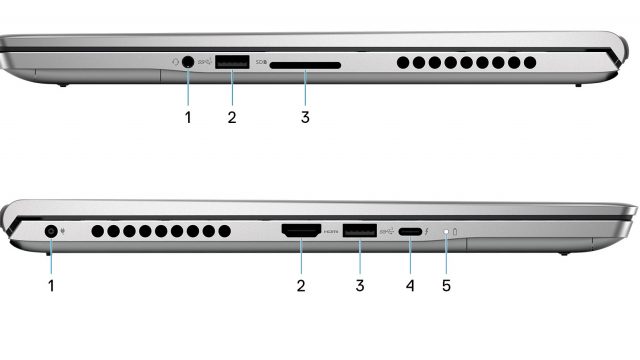

Inspiron 15 7510 – Side Views

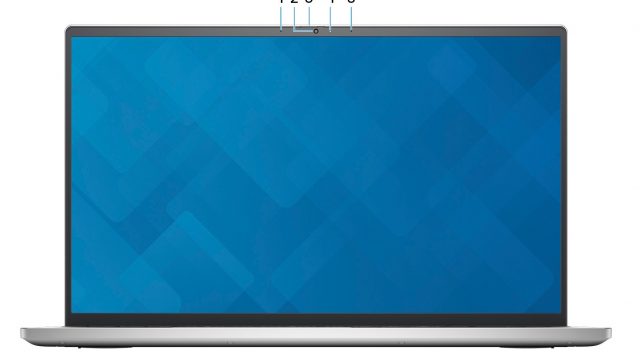

Inspiron 15 7510 – Front View

Dell Inspiron 15 7510 – Specs

QuickSpecs
Brand	Dell
Series	Dell Inspiron 7000
Model	Dell Inspiron 15 7510
Price	Starting from $650
Color	Silver
Processor Generation	11th Generation Intel Core i5-11400H
Display Size	394.90 mm (15.60 in.)
Weight	2.01 kg (4.43 lb)
Battery	3-cell polymer (56 Wh)
Minimum RAM	4 GB
Maximum RAM	32 GB
Release Date	04 OCT 2021

Dell Inspiron 15 7510 – Technical Specifications

Processor
OS
Chipset
RAM
Storage
Design
Display
GPU
GPU Card
Battery
WebCam
Audio
Card Reader
Internal Slots
External Ports
Wi-Fi
Keyboard
TouchPad
Print Reader
Charger

Dell Inspiron 15 7510 Processor Specifications

Processor
11th Generation Intel Core i5-11400H	Processor type: 11th Generation Intel Core i5-11400H Processor wattage: 45 W Processor core count: 6 Processor thread count: 12 Processor speed: Up to 4.50 GHz Processor cache: 12 MB Integrated graphics: Intel UHD Graphics
11th Generation Intel Core i7-11800H	Processor type: 11th Generation Intel Core i7-11800H Processor wattage: 45 W Processor core count: 8 Processor thread count: 16 Processor speed: Up to 4.60 GHz Processor cache: 24 MB Integrated graphics: Intel UHD Graphics

Operating System

Operating System
Operating System	Windows 11 Home, 64-bit Windows 11 Pro, 64-bit Windows 11 Pro National Academic, 64-bit Windows 10 Home, 64-bit Windows 10 Pro, 64-bit

Chipset

Chipset
Chipset	Integrated in the processor
Processor	11th Generation Intel Core i5/i7
DRAM bus width	64-bit
Flash EPROM	32 MB
PCIe bus	Up to Gen4

Memory (RAM)

Memory specifications
Memory slots	Two SODIMM slots
Memory type	DDR4
Memory speed	3200 MHz
Maximum memory configuration	32 GB
Minimum memory configuration	4 GB
Memory size per slot	4 GB, 8 GB, or 16 GB
Memory configurations supported	4 GB, 1 x 4 GB, DDR4, 3200 MHz 8 GB, 2 x 4 GB, DDR4, 3200 MHz, dual-channel 8 GB, 1 x 8 GB, DDR4, 3200 MHz 12 GB, 1 x 4 GB + 1 x 8 GB, DDR4, 3200 MHz 16 GB, 1 x 16 GB, DDR4, 3200 MHz 16 GB, 2 x 8 GB, DDR4, 3200 MHz, dual-channel 24 GB, 1 x 8 GB + 1 x 16 GB, DDR4, 3200 MHz 32 GB, 2 x 16 GB, DDR4, 3200 MHz, dual-channel

Storage

Storage specifications
M.2 2230 solid-state drive	PCIe NVMe Gen3 x4, up to 32 Gbps, Up to 1 TB
M.2 2280 solid-state drive	PCIe NVMe Gen3 x4, up to 32 Gbps, Up to 2 TB
M.2 2280, PCIe NVMe solid-state drive	PCIe NVMe Gen4 x4, up to 64 Gbps, Up to 2 TB
M.2 2280, PCIe QLC NVMe, solid-state drive	PCIe NVMe Gen3 x4, up to 32 Gbps, Up to 1 TB

Storage

Storage
Storage	One M.2 2230 or M.2 2280 solid-state drive One M.2 2230 solid-state drive

Dell Inspiron 15 7510 Dimensions and Weight

Dimensions and weight
Height:
Front height	16.72 mm (0.66 in.)
Rear height	18.99 mm (0.75 in.)
Width	356.06 mm (14.02 in.)
Depth	228.90 mm (9.01 in.)
Weight	2.01 kg (4.43 lb) (maximum)

Dell Inspiron 15 7510 Display (Screen)

Display specifications
Full High Definition (FHD), ComfortView Plus	Display type: Full High Definition (FHD), ComfortView Plus Display-panel technology: Wide-Viewing Angle (WVA) Display-panel dimensions (active area): Height: 193.60 mm (7.62 in.) Width: 344.20 mm (13.55 in.) Diagonal: 394.90 mm (15.60 in.) Display-panel native resolution: 1920 x 1080 Luminance (typical): 300 nits Megapixels: 2.0736 Color gamut: sRGB 100% (typical) Pixels Per Inch (PPI): 141 ppi Contrast ratio (min.): 800:1 Response time (max.): 35 ms Refresh rate: 60 Hz Horizontal view angle: 80 Vertical view angle: 80 Pixel pitch: 0.179 mm x 0.179 mm Power consumption (maximum): 4.40 W Anti-glare vs glossy finish: Anti-glare Touch options: No
Ultra High Definition (UHD), ComfortView Plus	Display type: Ultra High Definition (UHD), ComfortView Plus Display-panel technology: Wide-Viewing Angle (WVA) Display-panel dimensions (active area): Height: 193.60 mm (7.62 in.) Width: 344.20 mm (13.55 in.) Diagonal: 394.90 mm (15.60 in.) Display-panel native resolution: 3840 x 2160 Luminance (typical): 400 nits Megapixels: 8.2944 Color gamut: sRGB 100% (typical) Pixels Per Inch (PPI): 283 ppi Contrast ratio (min.): 1000:1 Response time (max.): 35 ms Refresh rate: 60 Hz Horizontal view angle: 80 Vertical view angle: 80 Pixel pitch: 0.08964 mm x 0.08964 mm Power consumption (maximum): 4.50 W Anti-glare vs glossy finish: Anti-glare Touch options: No

GPU — Integrated

GPU—Integrated
Intel UHD Graphics	Shared system memory, 11th Generation Intel Core i5/i7

GPU — Discrete

GPU—Discrete
NVIDIA GeForce GTX 1650	4 GB, GDDR6
NVIDIA GeForce RTX 3050	4 GB, GDDR6
NVIDIA GeForce RTX 3050 Ti	4 GB, GDDR6

Dell Inspiron 15 7510 Battery Specifications

Battery specifications
3-cell polymer (56 Wh)	Battery type: 3-cell polymer (56 Wh) Battery voltage: 13.20 VDC Battery weight (maximum): 0.255 kg (0.56 lb) Battery dimensions: Height: 7.56 mm (0.30 in.) Width: 77.70 mm (3.06 in.) Depth: 295.20 mm (11.62 in.) Temperature range: Operating Charge: 0°C to 45°C (32°F to 113°F) Discharge: 0°C to 70°C (32°F to 158°F) Storage: -20°C to 65°C (-4°F to 149°F) Battery operating time: Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions. Battery charging time (approximate) ExpressCharge Boost: 20 minutes (from 0% to 35%) ExpressCharge: 2 hours Standard charge: 3 hours Coin-cell battery: Not supported CAUTION Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.
6-cell polymer (86 Wh)	Battery type: 6-cell polymer (86 Wh) Battery voltage: 13.20 VDC/13.35 VDC Battery weight (maximum): 0.34 kg (0.75 lb) Battery dimensions: Height: 7.56 mm (0.30 in.) Width: 77.70 mm (3.06 in.) Depth: 295.20 mm (11.62 in.) Temperature range: Operating Charge: 0°C to 45°C (32°F to 113°F) Discharge: 0°C to 70°C (32°F to 158°F) Storage: -20°C to 65°C (-4°F to 149°F) Battery operating time: Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions. Battery charging time (approximate) ExpressCharge Boost: 20 minutes (from 0% to 35%) ExpressCharge: 2 hours Standard charge: 3 hours Coin-cell battery: Not supported CAUTION Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.

Camera (Web Cam) Specifications

Camera specifications
Camera resolution:
Number of cameras	One
Camera type	HD RGB
Camera location	Front
Camera sensor type	CMOS sensor technology
Still image	0.92 megapixel
Video	1280 x 720 (HD) at 30 fps
Diagonal viewing angle:	74.90 degrees

Audio Specifications

Audio specifications
Speaker output:
Audio controller	Realtek ALC3204
Stereo conversion	Supported
Internal audio interface	High-definition audio
External audio interface	Universal audio jack
Number of speakers	Two
Internal-speaker amplifier	Supported (audio codec integrated)
External volume controls	Keyboard shortcut controls
Average speaker output	2 W
Peak speaker output	2.5 W
Subwoofer output	Not supported
Microphone	Dual-array microphones

Media-card Reader

Media-card reader specifications

Media-card type	One SD-card slot
Media-cards supported	Secure Digital (SD) Secure Digital High Capacity (SDHC) Secure Digital Extended Capacity (SDXC)

Internal slots

Internal slots
M.2	One M.2 2230 slot for WiFi and Bluetooth combo card One M.2 2230/2280 slot for solid-state drive One M.2 2280 slot for solid-state drive

External Ports

External ports
USB ports	Two USB 3.2 Gen 1 ports One Thunderbolt 4 port with DisplayPort and PowerDelivery
Audio port	One universal audio jack
Video port/ports	One Thunderbolt 4 port with DisplayPort and PowerDelivery HDMI 2.0 port
Media-card reader	One SD-card slot
Power-adapter port	One 4.50 mm x 2.90 mm DC-in
Security-cable slot	Not applicable

Communication wireless module

Wireless module specifications
Model number	Intel AX201
Transfer rate	Up to 2400 Mbps
Frequency bands supported	2.4 GHz/5 GHz
Wireless standards	WiFi 802.11a/b/g Wi-Fi 4 (WiFi 802.11n) Wi-Fi 5 (WiFi 802.11ac) Wi-Fi 6 (WiFi 802.11ax)
Encryption	64-bit/128-bit WEP AES-CCMP TKIP
Bluetooth	Bluetooth 5.2

keyboard

Keyboard specifications
Keyboard type	Backlit keyboard
Keyboard layout	QWERTY
Number of keys	United States and Canada: 99 keys United Kingdom: 100 keys Japan: 103 keys
Keyboard size	X=18.70 mm key pitch Y=18.05 mm key pitch
Keyboard shortcuts	Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. To type the alternate character, press Shift and the desired key. To perform secondary functions, press Fn and the desired key.

TouchPad

Touchpad specifications
Touchpad resolution:
Horizontal	3512
Vertical	2442
Touchpad dimensions:
Horizontal	115 mm (4.53 in.)
Vertical	80 mm (3.15 in.)
Touchpad gestures	For more information about touchpad gestures available on Windows, see the Microsoft knowledge base article at .

Fingerprint Reader

Fingerprint reader specifications
Fingerprint-reader sensor technology	Trans-capacitive sensing
Fingerprint-reader sensor resolution	500 dpi
Fingerprint-reader sensor pixel size	108 x 88

Charger | Power Adapter

Power adapter specifications
Connector dimensions:
Type	130 W DC-in
External diameter	4.50 mm
Internal diameter	2.90 mm
Input voltage	100 VAC–240 VAC
Input frequency	50 Hz–60 Hz
Input current (maximum)	1.70 A
Output current (continuous)	6.70 A
Rated output voltage	19.50 VDC
Temperature range:
Operating	0°C to 40°C (32°F to 104°F)
Storage	-40°C to 70°C (-40°F to 158°F)
CAUTION Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.
