Alienware Steam Machine R2 Specs and Review GeForce GTX960

Dell Alienware Steam Machine R2 – Review

The Dell Alienware Steam Machine R2 is Alienware Alpha Series Desktop Gaming Computer launched on 14 JUN 2016, its powered by 6th Generation Intel Dual Core i3 Processor, NVIDIA GeForce GTX960 GPU 4GB dedicated Graphics card with the support of up to DDR4 8 GB RAM having speed of 2133 MHz and a Interface SATA 6 Gbps Storage. The maximum weight of this desktop computer is 1.81 kg (4 lb) in the base variant. The Dell Alienware Steam Machine R2 base price is USD $500 but can be customized adding more specs and features.

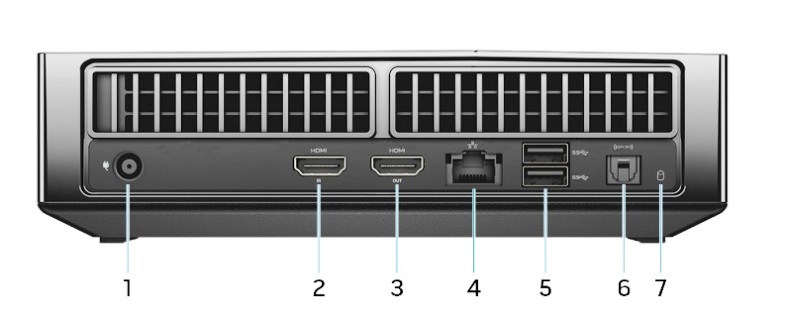

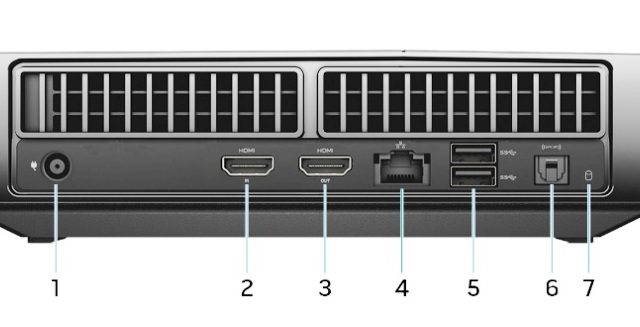

Dell Alienware Steam Machine R2 - Back View

Dell Alienware Steam Machine R2 – Back View

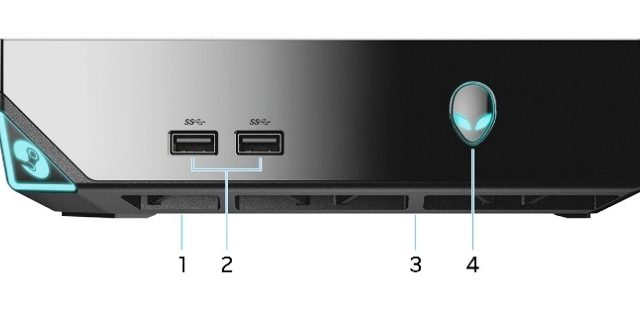

Dell Alienware Steam Machine R2 - Front View

Dell Alienware Steam Machine R2 – Front View

Dell Alienware Steam Machine R2 – Specs

QuickSpecs
Brand Dell
Series Alienware Alpha
Model Dell Alienware Steam Machine R2
Price Starting from USD $500
Color Black
Processor Generation 6th Generation Intel Dual Core i3
Audio Realtek ALC3234 for optical S/PDIF output
Weight 1.81 kg (4 lb)
Minimum RAM 4 GB
Maximum RAM 8 GB
Release Date 14 JUN 2016

Dell Alienware Steam Machine R2 – Full Specifications

Processor Information

Computer model Alienware Steam Machine R2
Processor
  • 6th Generation Intel Dual Core i3
  • 6th Generation Intel Dual Core i5
  • 6th Generation Intel Dual Core i7
Chipset
  • Intel H110
  • Intel H170
DMI speed 8.0 GT/s (64 bits)

Dell Alienware Steam Machine R2 Memory (RAM)

Slots One SODIMM slot
Type DDR4
Speed 2133 MHz
Configurations supported 4 GB and 8 GB

Storage

Interface SATA 6 Gbps
Hard drive One 2.5-inch drive
Solid-state drive One M.2 slot

Dell Alienware Steam Machine R2 Dimensions and Weight

Height 55 mm (2.17 in)
Width 200 mm (7.87 in)
Depth 200 mm (7.87 in)
Weight 1.81 kg (4 lb)

Video | Graphics

NVIDIA GeForce GTX960 GPU 4GB
AMD Radeon R9 M470X 2 GB

Audio Specifications

Controller
  • Intel HD Audio
  • Realtek ALC3234 for optical S/PDIF output

Ports and connectors

Network One RJ45 port
USB Four USB 3.0 ports
Video/Audio
  • One optical S/PDIF port
  • One HDMI-in port
  • One HDMI-out port

Ports and connectors

M.2 Card One M.2 card slot for WLAN and Bluetooth

Communication wireless module

Ethernet 10/100/1000 Mbps Realtek RTL8111 Ethernet controller integrated on system board
Wireless
  • Wi-Fi 802.11a/g/n
  • Wi-Fi 802.11a/g/n/ac
  • Bluetooth

Charger | Power Adapter

Type
  • 130 W
  • 180 W
Input voltage 100 VAC–240 VAC
Input frequency 50 Hz–60 Hz
Output current (continuous)
  • 6.70 A
  • 9.23 A
Rated output voltage 19.50 VDC
Temperature range: Operating 0°C to 40°C (32°F to 104°F)
Temperature range: Storage –40°C to 70°C (–40°F to 158°F)
