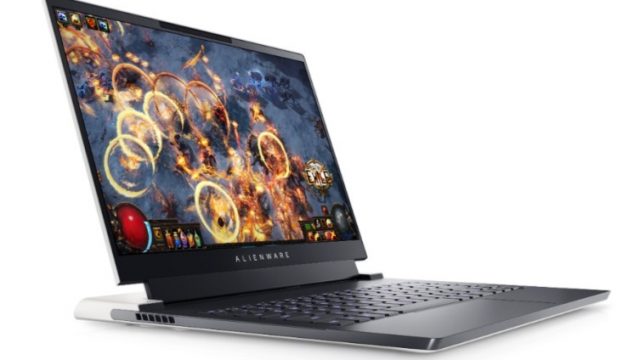

Dell Alienware x14 R1 – Overview
Dell Alienware x14 R1 gaming laptop, the thinnest 14 inch Full High Definition Wide Viewing Angle (WVA) 1920 x 1080 resolution with 144 Hz screen refresh rate is high-performance gaming laptop supporting NVIDIA GeForce RTX GDDR6 4 GB or 6 GB graphics & Dolby Vision. The laptop has 6-cell “smart” lithium-ion (80.5 Wh), 1280 x 720 (HD) at 30 fps front camera, 1-zone RGB backlit keyboard, maximum of 32 GB LPDDR5 dual channel RAM. Featuring 12th Generation Intel Core i5-12500H/Core i7-12700H processor with integrated graphics Intel Iris Xe. Alienware x14 R1 gaming laptop price starts from $1500
Dell Alienware x14 R1 – Specs
Brand | Dell |
---|---|
Series | Dell Alienware |
Model | Dell Alienware x14 R1 |
Price | Starting from $1500 |
Color | Lunar light |
Processor Generation | 12th Generation Intel Core i5/i7 |
Display Size | 14 inch |
Weight | 1.84 kg (4.06 lb) |
Battery | 6-cell “smart” lithium-ion (80.5 Wh) |
Minimum RAM | 16 GB |
Maximum RAM | 32 GB |
Release Date | 09 FEB 2022 |
Dell Alienware x14 R1 – Technical Specifications
Processor Specifications
12th Generation Intel Core i5-12500H |
|
---|---|
12th Generation Intel Core i7-12700H |
|
Operating System
Operating System |
|
---|
Chipset
Chipset |
Integrated in the processor |
---|---|
Processor |
12th Generation Intel Core i5/i7 |
DRAM bus width |
64-bit |
Flash EPROM |
256 MB |
PCIe bus |
Up to Gen5 |
Memory (RAM)
Memory slots |
Onboard memory |
---|---|
Memory type |
LPDDR5 |
Memory speed |
|
Maximum memory configuration |
32 GB |
Minimum memory configuration |
16 GB |
Memory configurations supported |
|
Storage
One M.2 2230 solid-state drive | PCIe Gen3 x4 NVMe, up to 32 Gbps, Up to 256 GB |
---|---|
One M.2 2280 solid-state drive | PCIe Gen4 x4 NVMe, up to 32 Gbps, Up to 2 TB |
Dimensions and Weight
Height: | |
---|---|
Front height |
14.50 mm (0.57 in.) |
Rear height |
14.50 mm (0.57 in.) |
Width |
321.50 mm (12.66 in.) |
Depth |
262.77 mm (10.35 in.) |
Weight |
|
Display (Screen)
Display type |
Full High Definition (FHD) |
---|---|
Display-panel technology |
Wide Viewing Angle (WVA) |
Display-panel dimensions (active area): | |
Height |
173.98 mm (6.85 in.) |
Width |
309.31 mm (12.18 in.) |
Diagonal |
354.88 mm (13.97 in.) |
Display-panel native resolution |
1920 x 1080 |
Luminance (typical) |
400 nits |
Megapixels |
2.07 |
Color gamut |
DCI-P3 100% |
Pixels Per Inch (PPI) |
157 |
Contrast ratio (typical) |
1000:1 |
Response time (typical) |
|
Refresh rate |
144 Hz |
Horizontal view angle |
+/- 80 degrees |
Vertical view angle |
+/- 80 degrees |
Pixel pitch |
0.1725 mm |
Power consumption (maximum) |
4.26 W |
Anti-glare vs glossy finish |
Anti-glare |
Touch options |
No |
Adaptive sync support | G-SYNC, Advanced Optimus |
GPU — Integrated
Intel Iris Xe Graphics | Shared system memory, 12th Generation Intel Core i5/i7 |
---|
GPU — Discrete
NVIDIA GeForce RTX 3050 | 4 GB, GDDR6 |
---|---|
NVIDIA GeForce RTX 3050 Ti | 4 GB, GDDR6 |
NVIDIA GeForce RTX 3060 | 6 GB, GDDR6 |
Battery Specifications
Battery type |
6-cell “smart” lithium-ion (80.5 Wh) |
---|---|
Battery voltage |
11.40 VDC |
Battery weight (maximum) |
0.32 kg (0.71 lb) |
Battery dimensions: | |
Height |
277.15 mm (10.91 in.) |
Width |
107.70 mm (4.24 in.) |
Depth |
5.45 mm (0.21 in.) |
Temperature range: | |
Operating |
0°C to 60°C (32°F to 140°F) |
Storage |
-20°C to 60°C (-4°F to 140°F) |
Battery operating time | Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions. |
Battery charging time (approximate) |
|
Coin-cell battery |
Not supported |
Camera (Web Cam) Specifications
Number of cameras |
One |
---|---|
Camera type |
HD RGB-Infrared camera |
Camera location |
Front camera |
Camera sensor type |
CMOS sensor technology |
Camera resolution: | |
Still image |
0.92 megapixel |
Video |
1280 x 720 (HD) at 30 fps |
Infrared camera resolution: | |
Still image |
0.23 megapixel |
Video |
640 x 360 at 30 fps |
Diagonal viewing angle: | |
Camera |
75.8 degrees |
Infrared camera |
75.8 degrees |
Audio Specifications
Audio controller |
Realtek ALC3281-CG |
---|---|
Stereo conversion |
Supported |
Internal audio interface |
High definition audio interface |
External audio interface |
Headset port |
Number of speakers |
2 |
Internal-speaker amplifier |
Supported |
External volume controls |
Keyboard shortcut controls |
Speaker output: | |
Average speaker output |
2 W |
Peak speaker output |
2.5 W |
Subwoofer output |
Not supported |
Microphone |
Digital-array microphones in camera assembly |
Media-card Reader
Media-card type |
One microSD card |
---|---|
Media-cards supported |
|
Internal slots
M.2 |
|
---|
External Ports
USB ports |
|
---|---|
Audio port |
One headset (headphone and microphone combo) port |
Video port/ports |
One HDMI 2.1 port |
Media-card reader |
One microSD-card slot |
Power-adapter port |
Not supported |
Security-cable slot |
Not supported |
Communication wireless module
Intel Killer AX1690i |
|
---|---|
Intel AX211 |
|

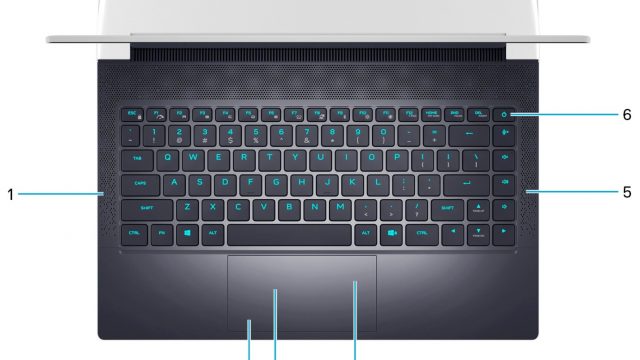

keyboard
Keyboard type |
1-zone RGB backlit keyboard |
---|---|
Keyboard layout |
QWERTY |
Number of keys |
|
Keyboard size |
X=18.55 mm key pitch Y=18.05 mm key pitch |
Charger | Power Adapter
Type |
130 W USB-C |
---|---|
Power-adapter dimensions: | |
Height |
22 mm (0.87 in.) |
Width |
66 mm (2.60 in.) |
Depth |
143 mm (5.63 in.) |
Input voltage |
100 VAC–240 VAC |
Input frequency |
50 Hz–60 Hz |
Input current (maximum) |
1.80 A |
Output current (continuous) |
6.50 A/1 A |
Rated output voltage |
20 VDC/5 VDC |
Temperature range: | |
Operating |
0°C to 40°C (32°F to 104°F) |
Storage |
-40°C to 70°C (-40°F to 158°F) |
