Inspiron 5400 AIO Specs and Review 11th Gen Core i3 1115G4

Dell Inspiron 5400 AIO – Review

The Dell Inspiron 5400 AIO is Inspiron All In One 5000 Desktop Computer Series model launched on 27 SEP 2021 and its powered by 11th Generation Intel Core i3 (1115G4) Processor, Intel UHD Graphics with the support of up to DDR4 32 GB RAM having speed of 2666 MHz and a One 2.5-inch hard-disk drive Up to 2 TB Storage. The maximum weight of this desktop computer is 5.02 kg (11.06 lb) in the base variant. The Dell Inspiron 5400 AIO base price is USD $717 but can be customized adding more specs and features.

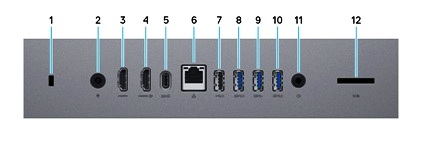

Dell Inspiron 5400 AIO – Back Panel View

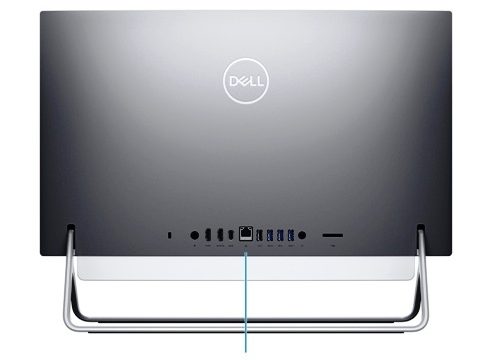

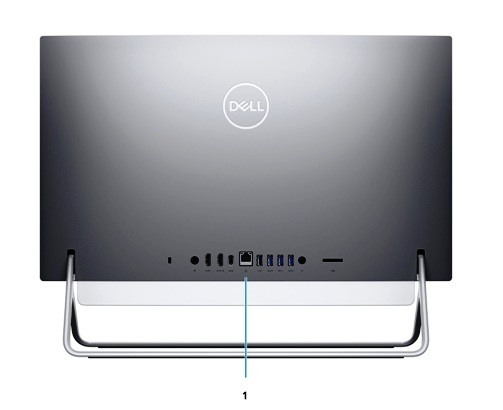

Dell Inspiron 5400 AIO – Back View

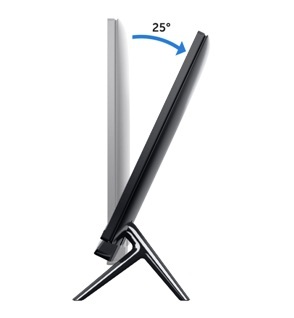

Dell Inspiron 5400 AIO – Bipod Stand View

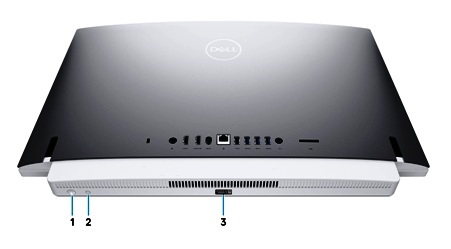

Dell Inspiron 5400 AIO – Bottom View

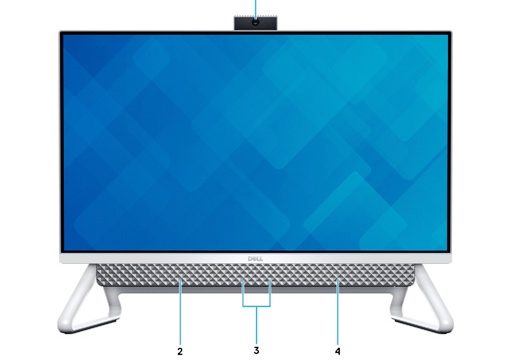

Dell Inspiron 5400 AIO – Front View

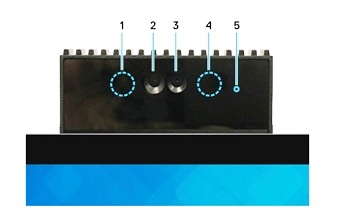

Dell Inspiron 5400 AIO – Retractable Camera View

Dell Inspiron 5400 AIO – Specs

QuickSpecs
Brand	Dell
Series	Dell Inspiron All In One Desktop Computer
Model	Dell Inspiron 5400 AIO
Price	Starting from $717
Color	Silver
Processor Generation	11th Generation Intel Core i3 (1115G4)
Audio	Audio controller Realtek ALC3289-CG
Weight	5.02 kg (11.06 lb)
Minimum RAM	4 GB
Maximum RAM	32 GB
Release Date	27 SEP 2021

Processor
OS
Chipset
RAM
Storage
Design
Display
GPU
GPU Card
WebCam
Audio
Card Reader
Connectors
Wi-Fi
Charger

Dell Inspiron 5400 AIO – Full Specifications

Dell Inspiron 5400 AIO Processor Specifications

Processor
11th Generation Intel Core i3 (1115G4)	Processor type: 11th Generation Intel Core i3 (1115G4) Processor wattage: 15 W Processor core count: 2 Processor thread count: 4 Processor speed: Up to 4.1 GHz Processor cache: 6 MB Integrated graphics: Intel UHD Graphics
11th Generation Intel Core i5 (1135G7)	Processor type: 11th Generation Intel Core i5 (1135G7) Processor wattage: 15 W Processor core count: 4 Processor thread count: 8 Processor speed: Up to 4.2 GHz Processor cache: 8 MB Integrated graphics: Intel Iris Xe Graphics
11th Generation Intel Core i7 (1165G7)	Processor type: 11th Generation Intel Core i7 (1165G7) Processor wattage: 15 W Processor core count: 4 Processor thread count: 8 Processor speed: Up to 4.7 GHz Processor cache: 12 MB Integrated graphics: Intel Iris Xe Graphics

Operating System

Operating System
Operating System	Windows 11 Home, 64-bit Windows 11 Pro, 64-bit Windows 11 Pro National Academic, 64-bit Windows 10 Home, 64-bit Windows 10 Pro, 64-bit

Chipset

Chipset
Chipset	Integrated in the processor
Processor	11th Generation Intel Core i3/i5/i7
DRAM bus width	64 bit
Flash EPROM	32 MB
PCIe bus	PCIe 3.0

Dell Inspiron 5400 AIO Memory (RAM)

Memory specifications
Memory slots	Two SODIMM slots
Memory type	Dual-channel DDR4
Memory speed	2666 MHz
Maximum memory configuration	32 GB
Minimum memory configuration	4 GB
Memory size per slot	4 GB, 8 GB, 12 GB, 16 GB and 32 GB
Memory configurations supported	4 GB, 1 x 4 GB, DDR4, 2666 MHz 8 GB, 1 x 8 GB, DDR4, 2666 MHz 8 GB, 2 x 4 GB, DDR4, 2666 MHz 12 GB, 1 x 8 GB + 1 x 4 GB, DDR4, 2666 MHz 16 GB, 1 x 16 GB, DDR4, 2666 MHz 16 GB, 2 x 8 GB, DDR4, 2666 MHz 32 GB, 1 x 32 GB, DDR4, 2666 MHz 32 GB, 2 x 16 GB, DDR4, 2666 MHz

Storage

Storage specifications
One 2.5-inch hard-disk drive	SATA AHCI 6 Gbps, Up to 2 TB
One M.2 2230 solid-state drive	PCIe Gen3.0x4 NVMe, up to 32 Gbps, Up to 1 TB

Dell Inspiron 5400 AIO Dimensions and Weight

Computer dimensions and weight (without stand)
Weight:
Height	351.65 mm (13.85 in.) with Bipod, Arch and A-Frame stand
Width	539.65 mm (21.24 in.) with Bipod, Arch and A-Frame stand
Depth	41.80 mm (1.64 in.)
Touchscreen	4.74 kg (10.44 lb)
Non-touchscreen	5.02 kg (11.06 lb)

Dell Inspiron 5400 AIO Display (Screen)

Display specifications
Display-panel dimensions (active area):
Display type	Full High Definition (FHD)
Display-panel technology	Wide Viewing Angle (WVA)
Height	296.46 mm (11.67 in.)
Width	527.04 mm (20.74 in.)
Diagonal	604.70 mm (23.80 in.)
Display-panel native resolution	1920 x 1080
Luminance (typical)	250 nits
Megapixels	2.07
Color gamut	72% NTSC
Pixels Per Inch (PPI)	92
Contrast ratio (min)	700:1
Response time (max)	25 ms
Refresh rate	60 Hz
Horizontal view angle	+/- 85 degrees (minimum)
Vertical view angle	+/- 85 degrees (minimum)
Pixel pitch	0.2745 mm x 0.2745 mm
Power consumption (maximum)	15.24 W
Anti-glare vs glossy finish	Anti-glare
Touch options	Yes

Integrated Graphics

GPU—Integrated
Intel UHD Graphics	Shared system memory, 11th Generation Intel Core i3
Intel Iris Xe Graphics	Shared system memory, 11th Generation Intel Core i5/i7

GPU — Discrete

GPU—Discrete
NVIDIA GeForce MX 330	2 GB, GDDR5

Camera (Web Cam) Specifications

Camera specifications
Camera resolution:
Number of cameras	One
Camera type	HD RGB camera FHD RGB + infrared camera
Camera location	Front camera
Camera sensor type	CMOS sensor technology
Still image	0.92 megapixels (HD camera) 2.07 megapixels (FHD camera)
Video	1280 x 720 (HD) at 30 fps (HD RGB camera) 1920 x 1080 (FHD) at 30 fps (FHD RGBIr camera)
Infrared camera resolution:
Still image	0.3 megapixel
Video	640 x 480 (VGA) at 30 fps
Diagonal viewing angle:
Camera	74.6 degrees (HD camera) 77.5 degrees (FHD camera)
Infrared camera	82.9 degrees

Audio Specifications

Audio specifications
Speaker output:
Audio controller	Realtek ALC3289-CG
Stereo conversion	Supported
Internal audio interface	High definition audio interface
External audio interface	Universal Audio Jack/HDMI 1.4 port
Number of speakers	2
Internal-speaker amplifier	Supported
External volume controls	Not supported
Average speaker output	5 W
Peak speaker output	6 W
Subwoofer output	Not supported
Microphone	Digital-array microphones

Media-card Reader

Media-card reader specifications

Media-card type	One SD-card slot
Media-cards supported	SD card SD High Capacity (SDHC) card SD Extended Capacity (SDXC) card micro Secure Digital (mSD) micro Secure Digital High Capacity (mSDHC) micro Secure Digital Extended Capacity (mSDXC)

Ports and connectors

Ports and connectors
External:
Network	One RJ-45 port
USB	One USB 2.0 port with Power on/Wake-up support One USB 3.1 Gen 1 port One USB 3.1 port with Power on/Wake-up support One USB 3.1 Gen 1 port with PowerShare One USB 3.1 Gen 2 (Type-C) port
Audio	Audio-out port
Video	One HDMI 1.4 port One HDMI-in 1.4 port
Media-card reader	One SD-card slot
Power port	One 4.5 mm x 2.9 mm DC-in adapter port
Security	Kensington slot
Internal:
PCIe expansion card slots	Not supported
M.2	One M.2 slot for Wi-Fi and Bluetooth combo card One PCIe M.2 2230/2242 slot for solid-state drive

Communication wireless module

Wireless module specifications
Intel 9462	Model number: Intel 9462 Transfer rate: Up to 433 Mbps Frequency bands supported: Dual band 2.4 GHz/5 GHz Wireless standards Wi-Fi 802.11a/b/g Wi-Fi 4 (WiFi 802.11n) Wi-Fi 5 (WiFi 802.11ac) Encryption 64-bit/128-bit WEP AES-CCMP TKIP Bluetooth: Bluetooth 5.0
Intel AX201	Model number: Intel AX201 Transfer rate: Up to 2400 Mbps Frequency bands supported: Dual band 2.4 GHz/5 GHz Wireless standards WiFi 802.11a/b/g Wi-Fi 4 (WiFi 802.11n) Wi-Fi 6 (WiFi 802.11ax) Encryption 64-bit/128-bit WEP AES-CCMP TKIP Bluetooth: Bluetooth 5.1

Charger | Power Adapter

Power adapter specifications
90 W	Type: 90 W Connector dimensions: External diameter: 4.5 mm Internal diameter: 2.9 mm Input voltage: 100 VAC-240 VAC Input frequency: 50 Hz-60 Hz Input current (maximum): 1.50 A Output current (continuous): 4.62 A Rated output voltage: 19.50 VDC Temperature range: Operating: 0°C to 40°C (32°F to 104°F) Storage: –40°C to 70°C (–40°F to 158°F)
130 W	Type: 130 W Connector dimensions: External diameter: 4.5 mm Internal diameter: 2.9 mm Input voltage: 100 VAC-240 VAC Input frequency: 50 Hz-60 Hz Input current (maximum): 2.50 A Output current (continuous): 6.70 A Rated output voltage: 19.50 VDC Temperature range: Operating: 0°C to 40°C (32°F to 104°F) Storage: –40°C to 70°C (–40°F to 158°F)
