Dell Latitude 3590 Specifications and user reviews | Dell Business Laptop

Dell Latitude 3590 is an easily managed 15″ laptop with top security features critical for small and growing businesses, all in a durable, reliable and sleek design.

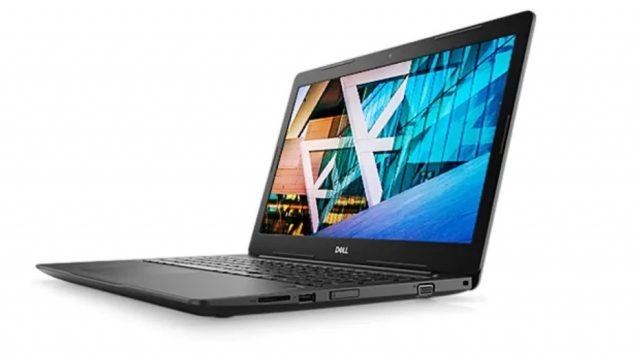

Dell Latitude 3590 laptop

Dell Latitude 3590 laptop

Dell Latitude 3590

Dell Latitude 3590

Dell Latitude 3590 Price starts from USD $700 Approximately

Processor Specifications

Dell Latitude 3590 Supported processors
Intel® Celeron™ 3865U (2 MB Cache, 2 cores, 15 W, up to 1.8 GHz

Intel® HD Graphics 610

Intel® Core™ i3-6006U (3 MB Cache, 2 cores, 15 W, up to 2.0 GHz

Intel® HD Graphics 520

Intel® Core™ i5-7200U (3 MB Cache, 2 cores, 15 W, up to 3.1 GHz)

Intel® HD Graphics 620

Intel® Core™ i3-7130U (3 MB Cache, 2 cores, 15 W, up to 2.7 GHz)

Intel® HD Graphics 620

Intel® Core™ i5-8350U (6 MB Cache, 4 cores, 15 W, up to 3.6 GHz)

Intel® UHD Graphics 620

Intel® Core™ i7-8550U (8 MB Cache, 4 cores, 15 W, up to 4.0 GHz) Intel® UHD Graphics 620
Intel® Core™ i5-8250U (6 MB Cache, 4 cores, 15 W, up to 3.4 GHz) Intel® UHD Graphics 620

Memory (RAM)

Dell Latitude 3590 Memory (RAM)
Memory (RAM)
  • 2133 MHz DDR4 for 6th and 7th generation processors
  • 2400 MHz DDR4 for 8th generation processors

Storage

Dell Latitude 3590 Storage
Storage
  • 2.5″ 500GB 7200 RPM (7mm)
  • 2.5″ 500GB 8GB Hybrid (7mm)
  • 2.5″ 1TB 8GB Hybrid (7mm)
  • 2.5″ 1TB 5400RPM SMR (7mm)
  • 128GB M.2 2280 SATA SSD
  • 256GB M.2 2280 SATA SSD
  • 256GB M.2 2280 PCIe SSD
  • 512GB M.2 2280 PCIe SSD

Display (Screen)

Dell Latitude 3590 Display specifications
HD Anti-Glare
  • Type: HD Anti-Glare
  • Luminance/Brightness (typical): HD 220nits
  • Diagonal: 15.6 inches
  • Native Resolution: HD 1366×768
  • Megapixels (millions of pixels): HD 1.05
  • Pixels per Inch (PPI): 101 for HD
  • Contrast Ratio (min): 400:1 for HD
  • Refresh Rate: 60 Hz
  • Horizontal Viewing Angle: HD +40/- 40 degrees
  • Vertical Viewing Angle: HD +10/- 30 degrees
  • Pixel Pitch: HD 0.252 mm
  • Power Consumption (max): HD 4.0 W
FHD Anti-Glare
  • Type: FHD Anti-Glare
  • Luminance/Brightness (typical): FHD 220nits
  • Diagonal: 15.6 inches
  • Native Resolution: FHD 1920×1080
  • Megapixels (millions of pixels): FHD 2.07
  • Pixels per Inch (PPI): 141 for FHD
  • Contrast Ratio (min): 400:1 for FHD
  • Refresh Rate: 60 Hz
  • Horizontal Viewing Angle: FHD +40/- 40 degrees
  • Vertical Viewing Angle: FHD +10/- 30 degrees
  • Pixel Pitch: FHD 0.179 mm
  • Power Consumption (max): FHD 3.7 W
HD True-Life
  • Type: HD True-Life
  • Luminance/Brightness (typical): HD 200nits
  • Diagonal: 15.6 inches
  • Native Resolution: HD 1366×768
  • Megapixels (millions of pixels): HD 1.05
  • Pixels per Inch (PPI): 101 for HD
  • Contrast Ratio (min): 400:1 for HD
  • Refresh Rate: 60 Hz
  • Horizontal Viewing Angle: HD +40/- 40 degrees
  • Vertical Viewing Angle: HD +10/- 30 degrees
  • Pixel Pitch: HD 0.252 mm
  • Power Consumption (max): HD 4.0 W

Battery Specifications

Dell Latitude 3590 Battery specifications
Li-polymer
  • Type: Li-polymer
  • Length: 184.00 mm (7.24 inch)
  • Width: 97.00 mm (3.82 inch)
  • Weight: 185 g
  • Height: 5.90 mm (0.23 inch)
  • Voltage: 11.4 VDC
  • Typical Amp-hour capacity: 3.5 Ahr
  • Typical Watt-hour capacity: 42 Whr
  • Temperature:
  • Operating
    • Charge: 0 °C to 50 °C (32 °F to 122 °F)
    • Discharge: 0 °C to 70 °C (32 °F to 158 °F)
  • Non-operating: –20 °C to 65 °C (–4 °F to 149 °F)
  • Charging time:
  • Express Charge mode
    • 0~15°C: 4 hours
    • 16~45°C: 2 hours
    • 46~60°C: 3 hours
  • Standard mode
    • 0~15°C: 4 hours
    • 16~60°C: 3 hours
  • ExpressCharge capable: Yes
  • BattMan capable: Yes
Li-polymer
  • Type: Li-polymer
  • Length: 233.06 mm (9.170 inch)
  • Width: 90.73 mm (3.572 inch)
  • Weight: 250.00 g
  • Height: 5.90 mm (0.23 inch)
  • Voltage: 15.2 VDC
  • Typical Amp-hour capacity: 3.67 Ahr
  • Typical Watt-hour capacity: 56 Whr
  • Temperature:
  • Operating
    • Charge: 0 °C to 50 °C (32 °F to 122 °F)
    • Discharge: 0 °C to 70 °C (32 °F to 158 °F)
  • Non-operating: –20 °C to 65 °C (–4 °F to 149 °F)
  • Charging time:
  • Express Charge mode
    • 0~15°C: 4 hours
    • 16~45°C: 2 hours
    • 46~60°C: 3 hours
  • Standard mode
    • 0~15°C: 4 hours
    • 16~60°C: 3 hours
  • ExpressCharge capable: Yes
  • BattMan capable: Yes

Camera (Web Cam) Specifications

Dell Latitude 3590 Webcam specifications
RGB
  • Mode: RGB
  • Camera Type: HD fixed focus
  • Sensor Type: CMOS sensor technology
  • Resolution:  Motion Video: Up to 1280 x 720 (0.92 MP)
  • Resolution:  Still Image: Up to 1280 x 720 (0.92MP)
  • Imaging Rate: Up to 30 frames per second
Infra-Red
  • Mode: Infra-Red
  • Camera Type: VGA fixed focus
  • Sensor Type: CMOS sensor technology
  • Resolution:  Motion Video: Up to 640 X 480 (0.3 MP)
  • Resolution:  Still Image: Up to 640 X 480 (0.3MP)
  • Imaging Rate: Up to 30 frames per second
RGB
  • Mode: RGB
  • Camera Type: HD fixed focus
  • Sensor Type: CMOS sensor technology
  • Resolution:  Motion Video: Up to 1280 x 720 (0.92 MP)
  • Resolution:  Still Image: Up to 1280 x 720 (0.92MP)
  • Imaging Rate: Up to 30 frames per second

Camera (Web Cam) Specifications

Dell Latitude 3590 Camera (Web Cam) Specifications
Camera (Web Cam) Specifications
  • Video conference online with a built-in camera.
  • Touch configurations include Infra-Red camera which is dedicated to support Windows Hello feature but also functions as normal RGB camera.

Audio Specifications

Dell Latitude 3590 Audio Specifications
Audio Specifications
  • 2.5 W (RMS) per channel (peak)
  • 2 W (RMS) per channel (average)

Audio Specifications

Dell Latitude 3590 Audio Specifications
Audio Specifications
  • Fn+F2 – Volume Down
  • Fn+F3 – Volume Up

Ports and connectors

Dell Latitude 3590 Ports and Connectors
USB

1 x USB Type-C with display port and power delivery

1 x USB 2.0 Type-A

1 x USB 3.1 Gen1, with power share

Modem

NA

Audio

Two channel high definition audio

Waves MaxxAudio Pro

Stereo conversion: 24-bit (analog-to-digital and digital-to-analog)

Internal Interface – high-definition audio codec.

External Interface – microphone-in and stereo  headphones/speakers universal connector

Speakers: Power / Peak Power: 2X2 Wrms/2X2.5 Wpeak, Internal speaker amplifier: 2 watt per channel, Internal microphone: digital microphone dual microphone with camera)

Expansion

SD 3.0 Memory card reader

Express Card

NA

Video

VGA port

HDMI 1.4 port

Network RJ45 port
Power connector port (DC-IN) DC-IN port
SIM tray (WWAN only) SIM tray (WWAN only)

Communication wireless module

Dell Latitude 3590 Qualcomm QCA9377 802.11ac MU-MIMO Dual Band (1×1) Wi-Fi + Bluetooth 4.1 LE M.2 Wireless Card
Host interface M.2 2230 form factor (WiFi– PCIe, Bluetooth – USB)
Network standard 802.11a, 802.11b, 802.11g, 802.11n and 802.11ac
11ac Wave2 feature MU-MIMO RX
Wi-Fi Alliance Certifications 802.11a, 802.11b, 802.11g, WPA, WPA2, WMM, 11ac, Wifi-Direct, WMM-Power Save, WifiProtected Setup, Voice-Personal
Operating Frequency Bands 2.4 GHz (802.11b/g/n) and 5 GHz (802.11a/n/ac)
Dual Diversity Antenna Switching Dual diversity antenna switching for systems designed with main and auxiliary antennas
Data Rate

802.11b – Up to 11 Mbps

Receive Sensitivity

802.11ac:   -59 dBm@ 433.3 Mbps

802.11n/a: -65 dBm@ 150 Mbps ; -68 dBm @ 72.2Mbps

802.11g/a: -72 dBm@ 54 Mbps

802.11b: -85 dBm@ 11 Mbps

Security Authentication EAP Methods

Open, Shared, WPA, WPA-PSK, WPA2, WPA2-PSK

EAP-TLS, EAP-TTLS (MSCHAPv2), PEAPv0(EAP-MS-CHAPv2)

Client Utility Native Wi-Fi and Bluetooth Microsoft UI support
Radio On/Off Hardware and software on/off disables transmit and receive to comply with aviation in-flight restrictions
Roaming Seamless roaming between 802.11a, 802.11b, 802.11b/g, 802.11n and 802.11ac access points
Wake On Wireless Supported
Miracast (WiFi Display) Supports Miracast (WiFi Display) on Win8.1/10
Wireless PAN Standard Dual-mode Bluetooth™ 4.1, BLE
Bluetooth Data rates Up to 3Mbps
Bluetooth Operating Frequency Bands 2.4GHz
Transmission FHSS (Frequency Hopping Spread Spectrum)
Bluetooth Data Encryption 128-bit encryption
Bluetooth Receive Sensitivity

‐70dBm@BER≤0.01% (EDR)

-100dBm@BER≤30.8% (LE nominal)

Temperature

Operating temperature -10° to +65° C

Storage temperature of –40° to +70° C

Humidity Up to 90%

Communication wireless module

Dell Latitude 3590 Qualcomm QCA61x4A 802.11ac MU-MIMO Dual Band (2×2) Wi-Fi + Bluetooth 4.1 LE M.2 Wireless Card
Host interface M.2 2230 form factor (WiFi– PCIe, Bluetooth – USB)
Network standard 802.11a, 802.11b, 802.11g, 802.11n and 802.11ac
11ac Wave2 feature MU-MIMO RX
Wi-Fi Alliance Certifications 802.11a, 802.11b, 802.11g, WPA, WPA2, WMM, 11ac, Wifi-Direct, WMM-Power Save, WifiProtected Setup, Voice-Personal
Operating Frequency Bands 2.4 GHz (802.11b/g/n) and 5 GHz (802.11a/n/ac)
Dual Diversity Antenna Switching

Dual diversity antenna switching for systems designed with main and auxiliary antennas 2×2 MIMO operation when in 802.11n mode with 2×2 or greater Access Point

Data Rate

802.11ac – Up to 867 Mbps; 802.11n – Up to 450 Mbps; 802.11a/g – Up to 54 Mbps

802.11b – Up to 11 Mbps

Receive Sensitivity

802.11ac: -59 dBm@ 400 Mbps;  – 57dBm @ 866.7Mbps

802.11n/a: -67 dBm@ 300 Mbps ; -70 dBm @ 144.4Mbps

802.11g/a: -75 dBm@ 54 Mbps

802.11b: -85 dBm@ 11 Mbps

Security Authentication EAP Methods

Open, Shared, WPA, WPA-PSK, WPA2, WPA2-PSK

EAP-TLS, EAP-TTLS (MSCHAPv2), PEAPv0(EAP-MS-CHAPv2)

Client Utility Native Wi-Fi and Bluetooth Microsoft UI support
Radio On/Off Hardware and software on/off disables transmit and receive to comply with aviation in-flight restrictions
Roaming

Seamless roaming between 802.11a, 802.11b, 802.11b/g,

802.11n and 802.11ac access points

Wake On Wireless Supported
Miracast (WiFi Display) Supports Miracast (WiFi Display) on Win8.1/10
Wireless PAN Standard Dual-mode Bluetooth™ 4.1, BLE
Bluetooth Data rates Up to 3Mbps
Bluetooth Operating Frequency Bands 2.4GHz
Transmission FHSS (Frequency Hopping Spread Spectrum)
Bluetooth Data Encryption 128-bit encryption
Bluetooth Receive Sensitivity

‐70dBm@BER≤0.01% (EDR)

-100dBm@BER≤30.8% (LE nominal)

Temperature

Operating temperature -10° to +65° C

Storage temperature of –45° to +70° C

Humidity Up to 90%

TouchPad

Dell Latitude 3590 Touchpad
Width

104.4mm

Height 79.4 mm

TouchPad

Dell Latitude 3590 Supported touchpad gestures for Windows 10
Cursor moving
Clicking/ tapping
Click and drag
2-finger scroll
2-finger Pinch/ Zoom
2-finger tapping
3-finger tapping (Invoke Cortana)
3-finger swipe up (See all open windows)
3-finger swipe down (Show the desktop)
3-finger swipe right or left (Switch between open windows)
4-finger tapping (Invoke Action Center)
4-finger swipe right or left (Switch virtual desktops)

Power Adapter

Dell Latitude 3590 AC adapter options
System supportability UMA/Discrete, UMA/Discrete
Input voltage 100 to 240 VAC, 100 to 240 VAC
Input current (max) 1.7 A, 1.7 A
Input Frequency 50 Hz to 60 Hz, 50 Hz to 60 Hz
Output current 3.34 A (continuous), 3.34 A (continuous)
Rated output voltage 19.5 VDC, 19.5 VDC
Weight (kg) 0.23, 0.29
Barrel connectors 4.5 mm, 4.5 mm
Dimensions (HxWxD inches) 1.1×1.9×4.3, 1.1 x 1.9 x 4.3
Dimensions (HxWxD mm) 28 x 47 x 108, 28 x 47 x 108
Temperature range: 0° to 40°C, 0° to 40°C
Operating 32° to 104°F, 32° to 104°F
Storage -40° to 70°C -40° to 158°F, -40° to 70°C -40° to 158°F
