Dell Latitude 5300 13.3 inch 5000 Series Laptop

Dell Latitude 5300- Review

The Latitude 5300 is 5000 Series laptop powered by 8th Gen Intel Core i7-8665U Processor, Intel UHD Graphics 620 with the support of up to 32 GB RAM and a PCIe Solid-State Drive Class 35 / M.2 2280 SSD, SATA, Upto 512 GB storage. It has a 13.3 inch display screen. The maximum weight for the laptop is 1.24 kg (2.73 lb) and its equipped with 3-cell lithium-ion (42 WHr) ExpressCharge battery in the base variant. The Latitude 13 5300 base price is $580 but can be customized adding more specs and features.

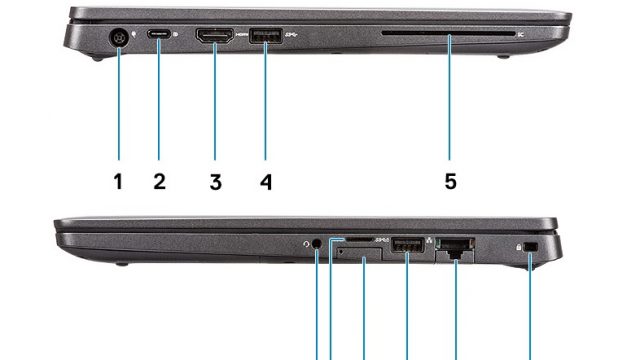

Latitude 5300 – Sides View

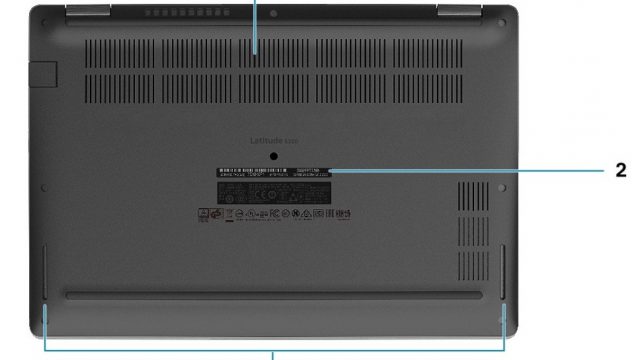

Latitude 5300 – Bottom View

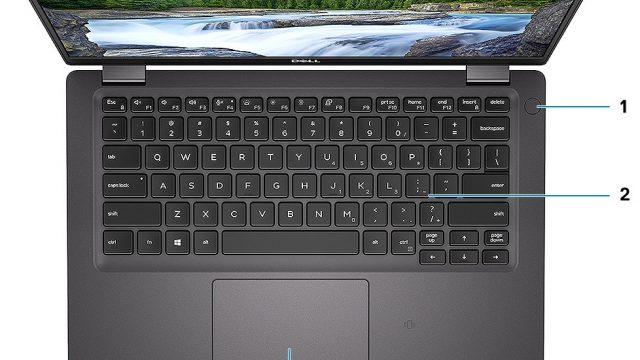

Latitude 5300 – Palmerst View

Dell Latitude 5300 – Specs

QuickSpecs
Brand	Dell
Series	Dell Latitude 5000
Model	Dell Latitude 5300
Price	Starting from $580
Color	Black
Processor Generation	8th Gen Intel Core i7-8665U
Display Size	13.3 inch
Weight	1.24 kg (2.73 lb)
Battery	3-cell lithium-ion (42 WHr) ExpressCharge
Minimum RAM	4 GB
Maximum RAM	32 GB
Release Date	02 AUG 2019

Dell Latitude 5300 – Technical Specifications

System
Processor
OS
RAM
Storage
Design
Display
Graphics
Battery
Audio
Connectors
Wi-Fi
Keyboard
TouchPad
Security
Charger

Dell Latitude 5300 Processor Specifications

System information
Chipset	Integrated in the processor
DRAM bus width	64-bit
FLASH EPROM	32 MB
PCIe bus	Up to Gen3
External bus frequency	Up to 8 GT/s

Processor Specifications

Processor specifications
8th Gen Intel Core i7-8665U processor (8 MB cache, 4 core count/ 8 threads, 1.9 GHz to 4.8 GHz, 15 W TDP) (vPro)	Intel UHD Graphics 620
8th Gen Intel Core i5-8365U Processor (6 MB cache, 4 core count/ 8 threads, 1.6 GHz to 4.1 GHz) (vPro)	Intel UHD Graphics 620
8th Gen Intel Core i5-8265U processor (6 MB cache, 4 core count/ 8 threads, 1.6 GHz to 3.9 GHz, 15 W TDP)	Intel UHD Graphics 620
8th Gen Intel Core i3-8145U processor (4 MB cache, 2 core count/ 4 threads, 2.1 GHz to 3.9 GHz, 15 W TDP)	Intel UHD Graphics 620

Operating System

Operating system
Operating systems supported	Windows 10 Home (64 bit) Windows 10 Professional (64bit) Ubuntu 18.04 LTS (64 bit)

Latitude 5300 Memory (RAM)

Memory specifications
Minimum memory configuration	4 GB
Maximum memory configuration	32 GB
Number of slots	2 x SoDIMM slots
Maximum memory supported per slot	16 GB
Memory options	4 GB (1 x 4 GB) 8 GB (2 x 4 GB) 8 GB (1 x 8 GB) 16 GB (2 x 8 GB) 16 GB (1 x 16 GB) 32 GB (2 x 16 GB)
Type	Dual-channel DDR4
Speed	2666 MHz Non-ECC SDRAM operates at 2400 MHz with Intel 8th Gen processors

Storage

Storage specifications
SATA Solid-State Drive Class 20	M.2 2280 SSD, SATA, Upto 512 GB
PCIe Solid-State Drive Class 35	M.2 2230 SSD, PCIe Gen 3×2 NVMe, up to 32 Gbps, Upto 512 GB
PCIe Solid-State Drive Class 40	M.2 2280 SSD, PCIe Gen 3×4 NVMe, up to 32 Gbps, Upto 1 TB
SED Solid-State Drive Class 40 (Opal 2.0)	M.2 2280 SSD, PCIe NVme Opal 2.0 SED PCIe, Upto 512 GB

Dell Latitude 5300 Dimensions and Weight

Dimensions and weight
Height	Front: 16.9 mm (0.66 in.) Rear: 19.3 mm (0.76 in.)
Width	305.7 mm (12.03 in.)
Depth	207.5 mm (8.17 in.)
Weight	1.24 kg (2.73 lb)

Display (Screen)

Display specifications
Type	13.3 in. antiglare, HD (1366 x 768), WLED, 16:9 13.3 in. antiglare, FHD (1920 x 1080), WLED, 16:9 (optional) 13.3 in. antiglare, FHD (1920 x 1080), WLED, integrated touch, 16:9 (optional)
Height (Active area)	165.24 mm (6.51 in.)
Width (Active area)	293.76 mm (11.57 in.)
Diagonal	337.04 mm (13.3 in.)
Pixels Per Inch (PPI)	118 166 (optional)
Contrast ratio	HD – 800:1 FHD – 1000:1 FHD IT – 700:1
Luminance/Brightness (typical)	HD – 220 Nits, NTSC 45% FHD – 300 Nits (optional), sRGB 100% FHD IT – 300nits, NTSC 72%
Refresh rate	60 Hz
Horizontal viewing angle (min)	[HD] +/- 40 degrees +/- 80 degrees (optional)
Vertical viewing angle (min)	[HD] top/bottom 10/30 degrees +/- 80 degrees (optional)
Power consumption (max)	HD – 2.85 W FHD – 1.99 W FHD IT – 4.8 W

Video | Graphics

Video card specifications
Intel UHD Graphics 620	UMA Intel Core i7-8665U CPU (vPro) Intel Core i5-8265U CPU Intel Core i5-8365U CPU Intel Core i3-8145U CPU , Integrated, Shared system memory, HDMI 1.4b port, 1920 x 1200@60 Hz

Battery Specifications

Battery
3-cell lithium-ion (42 WHr) ExpressCharge	Type: 3-cell lithium-ion (42 WHr) ExpressCharge Dimension: WidthDepthHeight Weight (maximum): 192.50 g (0.42 lb) Voltage: 11.40 VDC Life span: 300 discharge/charge cycles Charging time when the computer is off (approximate): Standard charge Express Charge: 0°C to 15°C: 4 hours 16°C to 45°C: 2 hours 46°C to 50°C: 3 hours Operating time: Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions. Temperature range: Operating: Charge: 0°C to 50°C, 32°F to 122°FDischarge: 0°C to 70°C, 32°F to 158°F Temperature range: Storage: -20°C to 60°C (-4°F to 140°F) Coin-cell battery: CR-2032
4-cell lithium-ion (60 WHr) ExpressCharge	Type: 4-cell lithium-ion (60 WHr) ExpressCharge Dimension: 95.9 mm (3.78 in.)200.5 mm (7.89 in.)5.70 mm (0.22 in.) Weight (maximum): 270.00 g (0.60 lb) Voltage: 7.60 VDC Life span: 300 discharge/charge cycles (Standard pack)1000 discharge/charge cycles (LCL pack) Charging time when the computer is off (approximate): 0°C to 50°C: 4 hours Express Charge: Express Charge Operating time: Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions. Temperature range: Operating: Charge: 0°C to 50°C, 32°F to 122°FDischarge: 0°C to 70°C, 32°F to 158°F Temperature range: Storage: -20°C to 60°C (-4°F to 140°F) Coin-cell battery: CR-2032

Audio Specifications

Audio specifications
Controller	Realtek ALC3254 with Waves MaxxAudio Pro
Stereo conversion	24-bit DAC (Digital-to-Analog) and ADC (Analog-to-Digital)
Type	HD Audio
Speakers	Two
Interface	Intel HDA (high-definition audio) 7.1 channel output via HDMI Digital microphone input on camera module Headset combo jack (stereo headphones/microphone-in)
Internal speaker amplifier	Integrated in ALC3254 (Class-D 2 W)
External volume controls	Media-control shortcut keys
Speaker output:	Average: 2 W Peak: 2.5 W
Microphone	Digital-array microphones

Ports and connectors

Ports and connectors
Memory card reader	One MicroSD card reader
SIM card reader	One micro SIM card slot
USB	One USB 3.1 Gen 1 (Type-A) ports One USB 3.1 Gen 1 with PowerShare One USB Type-C 3.1 Gen 2 port with DisplayPort/Thunderbolt 3(optional)
Security	Noble wedge lock slot
Audio	One headset (headphone and microphone combo) port
Video	One HDMI 1.4b port (supports up to 4k @30 Hz)
Network adapter	RJ-45, 10/100/1000, No LED indicator

Communication wireless module

Communication specifications
Network adapter	8th Generation Intel® Core i5-8365U 8th Generation Intel® Core i7-8665U 8th Generation Intel® Core i3-8145U 8th Generation Intel® Core i5-8265U

keyboard

Keyboard specifications
Number of keys	81 (U.S. and Canada) 82 (UK/Brazil) 85 (Japan)
Size	X= 18.05 mm (0.7 in.) key pitch Y= 18.05 mm (0.71 in.) key pitch
Backlit keyboard	Optional (backlit and Non-backlit)
Layout	QWERTY

TouchPad

Touchpad specifications
Resolution	1221 x 661
Dimensions	Width: 101.7 mm (4.00 in.) Height: 55.2 mm (2.17 in.)
Multi-touch	Supports 5-finger multi-touch

TouchPad

Supported gestures
Cursor moving	Supported
Clicking/ tapping	Supported
Click and drag	Supported
2-finger scroll	Supported
2-finger Pinch/ Zoom	Supported
2-finger tap (Right Clicking)	Supported
3-finger tap (Invoke Cortana)	Supported
3-finger swipe up (See all open windows)	Supported
3-finger swipe down (Show the desktop)	Supported
3-finger swipe right or left (Switch between open windows)	Supported
4-finger tap (Invoke Action Center)	Supported
4-finger swipe right or left (Switch virtual desktops)	Supported

Security

Security
Trusted Platform Module (TPM) 2.0	Integrated on the system board
Firmware TPM	Optional
Windows Hello Support	Yes, optional fingerprint on power button Optional IR camera
Cable lock	Wedge-shaped lock
Dell Smartcard Keyboard	Optional
FIPS 140-2 certification for TPM	Yes
ControlVault 3 Advanced Authentication with FIPS 140-2 Level 3 Certification	Yes, for FPR, SC and CSC/NFC
Fingerprint Reader Only	Touch Fingerprint reader in power button tied to ControlVault 3
Contacted Smart Card and ControlVault 3	FIPS 201 Smart card reader certification/SIPR

Charger | Power Adapter

Power adapter specifications
E5 65 W	Type: E5 65 W Input Voltage: 100 VAC – 240 VAC Input current (maximum): 1.5 A Adapter size: DimensionsIn Inches: 0.87 x 2.60 x 4.17In mm: 22 x 66 x 106 Barrel: 7.4 mm Weight: 0.23 kg (0.51 lb) Input frequency: 50 Hz to 60 Hz Output current: 3.34 A (continuous) Rated output voltage: 19.5 VDC Temperature range (Operating): 0°C to 40°C (32°F to 104°F) Temperature range (Non-Operating): -40°C to 70°C (-40°F to 158°F)
E5 90 W	Type: E5 90 W Input Voltage: 100 VAC – 240 VAC Input current (maximum): 1.6 A Adapter size: DimensionsIn Inches: 0.87 x 2.60 x 5.12In mm: 22 x 66 x 130 Barrel: 7.4 mm Weight: 0.32 kg (0.70 lb) Input frequency: 50 Hz to 60 Hz Output current: 4.62 A (continuous) Rated output voltage: 19.5 VDC Temperature range (Operating): 0°C to 40°C (32°F to 104°F) Temperature range (Non-Operating): -40°C to 70°C (-40°F to 158°F)
