Dell Inspiron 3502 Laptop Specs Price

Dell Inspiron 15 3502 15.6-inch laptop featuring responsive performance in a sleek design with 2-sided narrow borders, optional PCIe SSDs, Express Charge, and Intel Core processors. Price starting from US$515

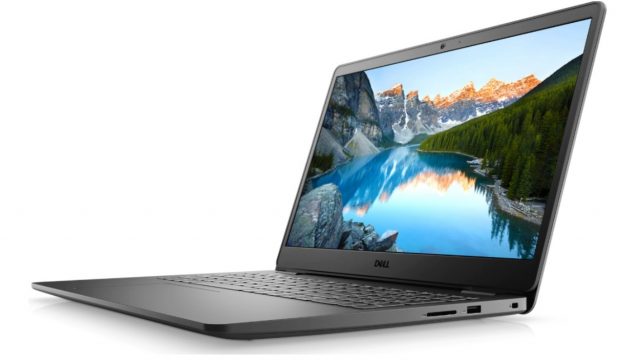

Dell Inspiron 15 3502 Laptop

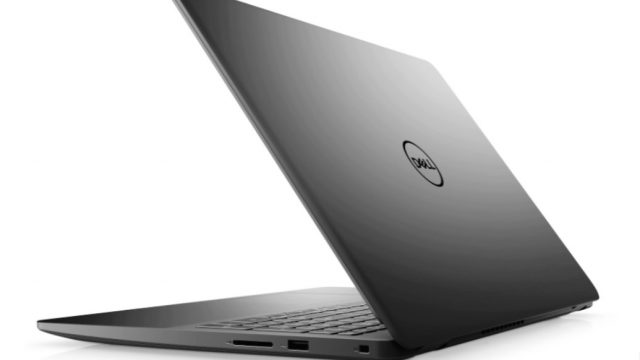

Dell Inspiron 15 3502 Back View

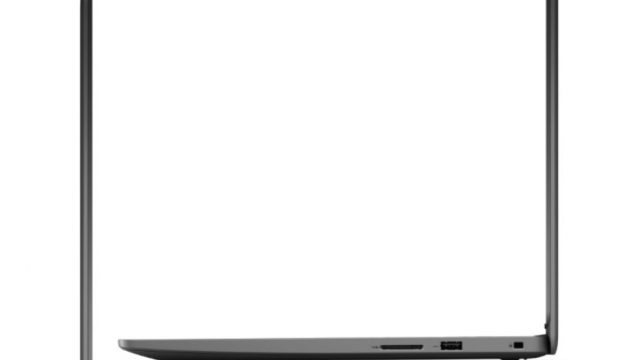

Dell Inspiron 15 3502 Side Views

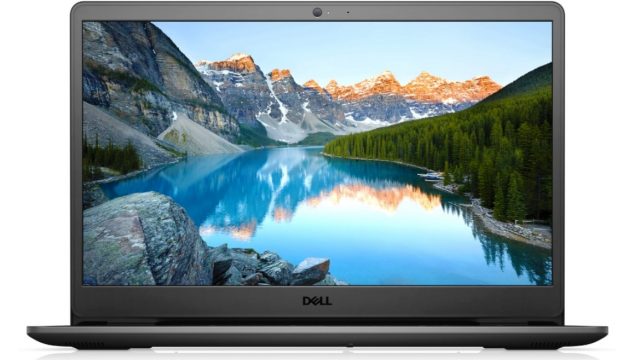

Dell Inspiron 15 3502 Display View

Dell Inspiron 15 3502

About
Processor
OS
Chipset
RAM
Storage
Design
Display
GPU
Battery
WebCam
Audio
Card Reader
Internal Slots
External Ports
Wi-Fi
Keyboard
TouchPad
Print Reader
Charger

Laptop Info

Laptop About
Brand	Dell
Series	Dell Inspiron 3000
Model	Dell Inspiron 15 3502
Price	Starting from $515
Color	Accent Black
Release Date	September 2021

Processor Specifications

Processor
Intel Celeron Processor N4020	Processor type: Intel Celeron Processor N4020 Processor wattage: 6 W Processor core count: 2 Processor thread count: 2 Processor speed: Up to 2.80 GHz Processor cache: 4 MB Integrated graphics: Intel UHD Graphics 600
Intel Pentium Silver N5030 Processor	Processor type: Intel Pentium Silver N5030 Processor Processor wattage: 6 W Processor core count: 4 Processor thread count: 4 Processor speed: Up to 3.10 GHz Processor cache: 4 MB Integrated graphics: Intel UHD Graphics 605

Operating System

Available Operating System
Operating System	Windows 11 Home, 64-bit Windows 11 Home National Academic, 64-bit Windows 11 Home in S-mode, 64-bit Windows 11 Pro, 64-bit Windows 11 Pro National Academic, 64-bit Windows 10 Pro, 64-bit Windows 10 Home, 64-bit Windows 10 Home in S-mode, 64-bit

Chipset

Chipset
Chipset	Integrated in the processor
Processor	Intel Celeron Processor N4020 Intel Pentium Silver N5030 Processor
DRAM bus width	64-bit
Flash EPROM	16 MB
PCIe bus	Up to Gen2

Memory (RAM)

Memory specifications
Memory slots	One SODIMM slot
Memory type	Dual-channel DDR4
Memory speed	2400 MHz
Maximum memory configuration	8 GB
Minimum memory configuration	4 GB
Memory size per slot	4 GB, 8 GB
Memory configurations supported	4 GB, 1 x 4 GB, DDR4, 2400 MHz 8 GB, 1 x 8 GB, DDR4, 2400 MHz

Storage

Storage specifications
2.5-inch hard drive	SATA AHCI, up to 6 Gbps, Up to 2 TB
M.2 2230/2280 solid-state drive	PCIe Gen3.0x4 NVMe, up to 32 Gbps, Up to 1 TB

Storage

Storage
Storage	One M.2 solid-state drive One 2.5-inch hard drive One M.2 solid-state drive and one 2.5-inch hard drive

Storage

Storage
Storage	e.g. with a M.2 drive, the M.2 drive is the primary drive e.g. without a M.2 drive, the 2.5-inch hard drive is the primary drive

Dimensions and Weight

Dimensions and weight
Height:
Front height	18 mm (0.71 in.)
Rear height	19.90 mm (0.78 in.)
Width	363.96 mm (14.33 in.)
Depth	249 mm (9.80 in.)
Weight (maximum)	1.83 kg (4.03 lb)

Display (Screen)

Display specifications
High Definition (HD)	Display type: High Definition (HD) Display-panel technology: Twisted Nematic (TN) Display-panel dimensions (active area): Height: 193.54 mm (7.62 in.) Width: 344.23 mm (13.55 in.) Diagonal: 394.90 mm (15.55 in.) Display-panel native resolution: 1366 x 768 Luminance (typical): 220 nits Megapixels: 1.05 Color gamut: 45% (NTSC) Pixels Per Inch (PPI): 100 Contrast ratio (min.): 400 : 1 Response time (max.): 25 ms Refresh rate: 60 Hz Horizontal view angle: 40 +/- degrees Vertical view angle: 10 (Top) / 30 (Bottom) degrees Pixel pitch: 0.25 mm Power consumption (maximum): 4.20 W Anti-glare vs glossy finish: Anti-glare Touch options: No
Full High Definition (FHD)	Display type: Full High Definition (FHD) Display-panel technology: Wide Viewing Angle(WVA) Display-panel dimensions (active area): Height: 193.54 mm (7.62 in.) Width: 344.23 mm (13.55 in.) Diagonal: 394.90 mm (15.55 in.) Display-panel native resolution: 1920 x 1080 Luminance (typical): 220 nits Megapixels: 2.07 Color gamut: 45% (NTSC) Pixels Per Inch (PPI): 141 Contrast ratio (min.): 400 : 1 Response time (max.): 35 ms Refresh rate: 60 Hz Horizontal view angle: 80 +/- degrees Vertical view angle: 80 +/- degrees Pixel pitch: 0.18 mm Power consumption (maximum): 4.20 W Anti-glare vs glossy finish: Anti-glare Touch options: No

GPU — Integrated

GPU—Integrated
Intel UHD Graphics 600	One HDMI 1.4 port, Shared system memory, Intel Celeron Processor N4020
Intel UHD Graphics 605	One HDMI 1.4 port, Shared system memory, Intel Pentium Silver N5030 Processor

Battery Specifications

Battery specifications
Battery dimensions:
Battery type	3-cell polymer battery (42 Whr)
Battery voltage	11.40 VDC
Battery weight (maximum)	0.20 kg (0.44 lb)
Height	5.90 mm (0.23 in.)
Width	97.15 mm (3.82 in.)
Depth	184.15 mm (7.25 in.)
Temperature range:
Operating	0°C to 35°C (32°F to 95°F)
Storage	-40°C to 65°C (-40°F to 149°F)
Battery operating time	Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.
Battery charging time (approximate)	4 hours (when the computer is off)
Coin-cell battery	CR2032

Camera (Web Cam) Specifications

Camera specifications
Camera resolution:
Number of cameras	One
Camera type	RGB HD Camera
Camera location	Front camera
Camera sensor type	CMOS sensor technology
Still image	0.92 megapixel
Video	1280 x 720 (HD) at 30fps
Diagonal viewing angle:	78.6 degrees

Audio Specifications

Audio specifications
Speaker output:
Audio controller	Realtek ALC3204
Stereo conversion	Supported
Internal audio interface	High definition audio
External audio interface	Universal Audio Jack
Number of speakers	Two
Internal-speaker amplifier	Supported (audio codec integrated)
External volume controls	Keyboard shortcut controls
Average speaker output	2 W
Peak speaker output	2.5 W
Subwoofer output	Not supported
Microphone	Single digital microphone

Media-card Reader

Media-card reader specifications

Media-card type	One SD-card slot
Media-cards supported	Secure Digital (SD) Secure Digital High Capacity (SDHC) Secure Digital Extended Capacity (SDXC) MultiMediaCard (MMC)

Internal slots

Internal slots
M.2	One M.2 2230 slot for WiFi and Bluetooth combo card One M.2 2230/2280 slot for solid‐state drive

External Ports

External ports
Network port	One RJ-45 port
USB ports	Two USB 3.2 Gen 1 ports One USB 2.0 port
Audio port	One headset (headphone and microphone combo) port
Video port	One HDMI 1.4 port
Media-card reader	One SD-card slot
Power-adapter port	One 4.50 mm x 2.90 mm (DC-in)
Security-cable slot	One wedge‐shaped lock slot

Communication wireless module

Wireless module specifications
Qualcomm DW1810	Model number: Qualcomm DW1810 Transfer rate: Up to 433 Mbps Frequency bands supported: 2.4 GHz/5 GHz Wireless standards WiFi 802.11a/b/g Wi-Fi 4 (WiFi 802.11n) Wi-Fi 5 (WiFi 802.11ac) Encryption 64-bit/128-bit WEP AES-CCMP TKIP Bluetooth: Bluetooth 5.0
Intel Wireless‐AC 9462	Model number: Intel Wireless‐AC 9462 Transfer rate: Up to 433 Mbps Frequency bands supported: 2.4 GHz/5 GHz Wireless standards WiFi 802.11a/b/g Wi-Fi 4 (WiFi 802.11n) Wi-Fi 5 (WiFi 802.11ac) Encryption 64-bit/128-bit WEP AES-CCMP TKIP Bluetooth: Bluetooth 5.0
Realtek RTL8723DE	Model number: Realtek RTL8723DE Transfer rate: Up to 150 Mbps Frequency bands supported: 2.4 GHz Wireless standards WiFi 802.11a/b/g Wi-Fi 4 (WiFi 802.11n) Encryption 64-bit/128-bit WEP AES-CCMP TKIP Bluetooth: Bluetooth 4.2

keyboard

Keyboard specifications
Keyboard type	Standard keyboard Backlit keyboard
Keyboard layout	QWERTY
Number of keys	United States and Canada: 101 keys United Kingdom: 102 keys Japan: 105 keys
Keyboard size	X=18.7 mm key pitch Y=18.05 mm key pitch

TouchPad

Touchpad specifications
Touchpad resolution:
Horizontal	1230 1920
Vertical	930 1080
Touchpad dimensions:
Horizontal	105 mm (4.13 in.)
Vertical	80 mm (3.15 in.)
Touchpad gestures	For more information about touchpad gestures available on Windows, see the Microsoft knowledge base article at .

Fingerprint Reader

Fingerprint reader specifications
Fingerprint-reader sensor technology	Capacitive
Fingerprint-reader sensor resolution	500 dpi
Fingerprint-reader sensor pixel size	64 x 80

Charger | Power Adapter

Power adapter specifications
Connector dimensions:
Type	45 W
External diameter	4.50 mm
Internal diameter	2.90 mm
Input voltage	100 VAC–240 VAC
Input frequency	50 Hz–60 Hz
Input current (maximum)	1.30 A
Output current (continuous)	2.31 A
Rated output voltage	19.50 VDC
Temperature range:
Operating	0°C to 40°C (32°F to 104°F)
Storage	-40°C to 70°C (-40°F to 158°F)
