Inspiron 7300 2 in 1 specs and review 10th Gen Core i5/i7

Dell Inspiron 7300 2 in 1 – Review

The Dell Inspiron 7300 2 in 1 is 13 inch convertible 7000 Series laptop powered by 10th Generation Intel Core i5-10210U Processor, integrated shared Intel UHD Graphics, with the support of up to Dual-channel LPDDR3 2133 MHz speed 16 GB maximum RAM and a PCIe Gen3 x4 NVMe, up to 32 Gbps, Up to 2 TB storage. It has a 13.3-inch Full High Definition (FHD) display screen. The maximum weight for the laptop is 1.37 kg (3.02 lb) and its equipped with 60 WHr, 4-cell “smart” lithium-ion in the base variant. The Dell Inspiron 7300 2 in 1 base price is $700 but can be customized adding more specs and features.

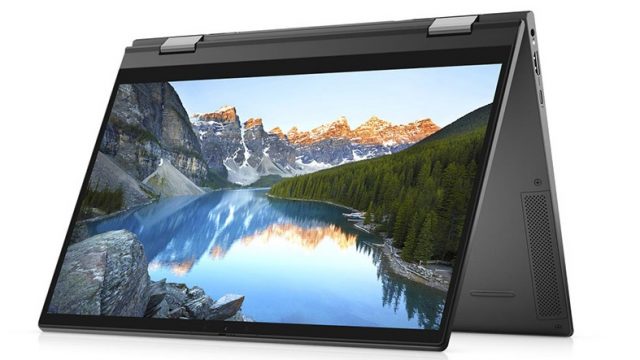

Inspiron 7300 2 in 1 – Tent View

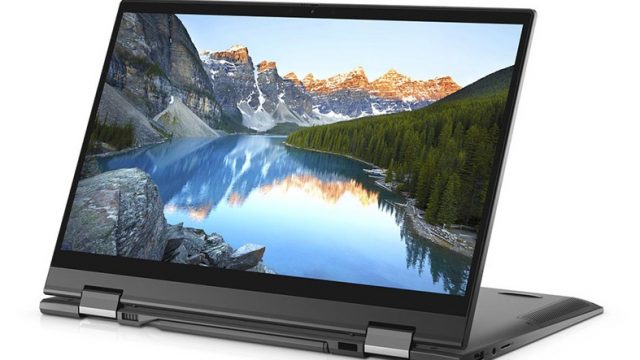

Inspiron 7300 2 in 1 – Stand View

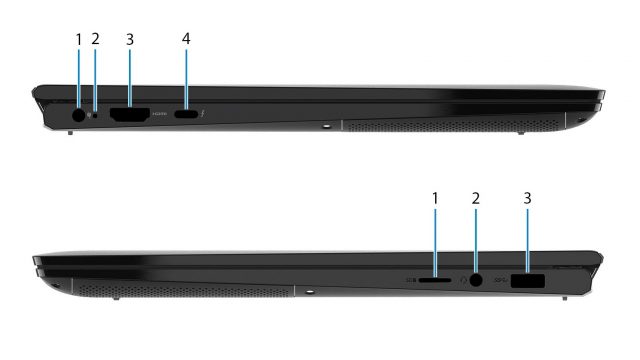

Inspiron 7300 2 in 1 – Side Views

Inspiron 7300 2 in 1 – Display View

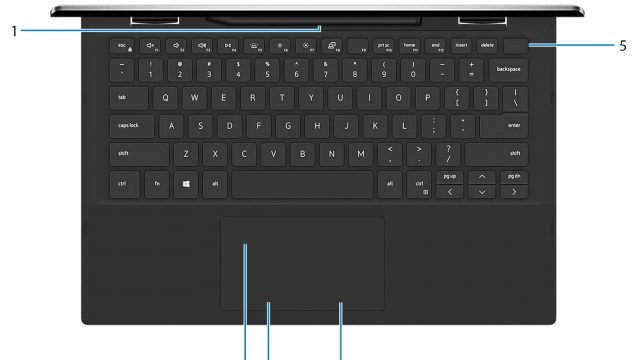

Inspiron 7300 2 in 1 – Base View

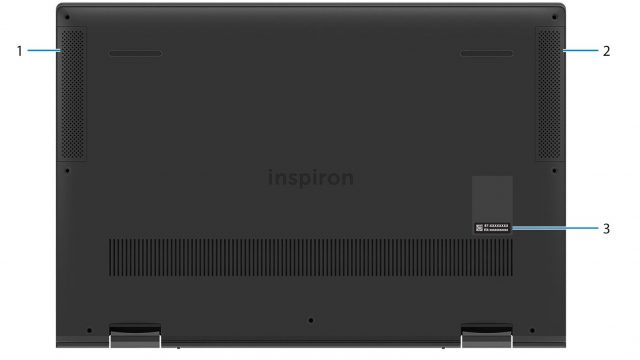

Inspiron 7300 2 in 1 – Bottom View

Dell Inspiron 7300 2 in 1 – Specs

QuickSpecs
Brand	Dell
Series	Dell Inspiron 7000
Model	Dell Inspiron 7300 2 in 1
Price	Starting from $700
Color	Black
Processor Generation	10th Generation Intel Core i5-10210U
Display Size	13.3-inch
Weight	1.37 kg (3.02 lb)
Battery	60 WHr, 4-cell “smart” lithium-ion
Minimum RAM	8 GB
Maximum RAM	16 GB
Release Date	23 JUN 2020

Dell Inspiron 7300 2 in 1 – Technical Specifications

Processor
OS
Chipset
RAM
Storage
Design
Display
GPU
Battery
WebCam
Audio
Card Reader
Internal Slots
External Ports
Wi-Fi
Keyboard
TouchPad
Print Reader
Charger

Processor Specifications

Processor
10th Generation Intel Core i5-10210U	Processor type: 10th Generation Intel Core i5-10210U Processor wattage: 15 W Processor core count: 4 Processor thread count: 8 Processor speed: Up to 4.2 GHz Processor cache: 6 MB Integrated graphics: Intel UHD Graphics
10th Generation Intel Core i7-10510U	Processor type: 10th Generation Intel Core i7-10510U Processor wattage: 15 W Processor core count: 4 Processor thread count: 8 Processor speed: Up to 4.9 GHz Processor cache: 8 MB Integrated graphics: Intel UHD Graphics

Operating System

Operating System
Operating System	Windows 10 Home, 64-bit Windows 10 Professional, 64-bit

Chipset

Chipset
Chipset	CML-U PCH-LP
Processor	10th Generation Intel Core i5/i7
DRAM bus width	64-bit
Flash EPROM	16+8 MB
PCIe bus	Up to Gen3

Memory (RAM)

Memory specifications
Memory slots	Onboard memory
Memory type	Dual-channel LPDDR3
Memory speed	2133 MHz
Maximum memory configuration	16 GB
Minimum memory configuration	8 GB
Memory size per slot	4 GB, 8 GB
Memory configurations supported	8 GB, 2 x 4 GB, LPDDR3, 2133 MHz, dual-channel 16 GB, 2 x 8 GB, LPDDR3, 2133 MHz, dual-channel

Storage

Storage specifications
M.2 2230 solid-state drive	PCIe Gen3 x4 NVMe, up to 32 Gbps, Up to 512 GB
M.2 2280 solid-state drive	PCIe Gen3 x4 NVMe, up to 32 Gbps, Up to 2 TB
M.2 2280 Intel Optane Memory H10	PCIe Gen3.0x2 NVMe, up to 16 Gbps, Up to 1 TB

Storage

Storage
Storage	One M.2 2230/2280 solid-state drive One M.2 2280 Intel Optane Memory H10

Storage

Storage
Storage	with the M.2 2230/2280 solid-state drive, the solid-state drive is the primary drive. with the M.2 2280 Intel Optane Memory H10, the Intel Optane Memory is the primary drive.

Dimensions and Weight

Dimensions and weight
Height:
Front height	15.94 mm (0.63 in.)
Rear height	16.74 mm (0.66 in.)
Width	305.19 mm (12.02 in.)
Depth	206.40 mm (8.13 in.)
Weight (maximum)	1.37 kg (3.02 lb)

Display (Screen)

Display specifications
13.3-inch Full High Definition (FHD)	Display type: 13.3-inch Full High Definition (FHD) Display-panel technology: Wide-Viewing Angle (WVA) Display-panel dimensions (active area): Height: 165.24 mm (6.51 in.) Width: 293.76 mm (11.57 in.) Diagonal: 337.82 mm (13.30 in.) Display-panel native resolution: 1920 x 1080 Luminance (typical): 300 nits Megapixels: 2.07 Color gamut: 100% (sRGB) Pixels Per Inch (PPI): 166 Contrast ratio (min.): 1000:1 Response time (max.): 35 ms Refresh rate: 60 Hz Horizontal view angle: 80 +/- Vertical view angle: 80 +/- Pixel pitch: 0.15 mm Power consumption (maximum): 1.99 W Anti-glare vs glossy finish: TrueLife Touch options: Yes
13.3-inch Ultra High Definition (UHD)	Display type: 13.3-inch Ultra High Definition (UHD) Display-panel technology: Wide-Viewing Angle (WVA) Display-panel dimensions (active area): Height: 165.24 mm (6.51 in.) Width: 293.76 mm (11.57 in.) Diagonal: 337.82 mm (13.30 in.) Display-panel native resolution: 3840 x 2160 Luminance (typical): 300 nits Megapixels: 8.29 Color gamut: 100% (sRGB) Pixels Per Inch (PPI): 332 Contrast ratio (min.): 1000:1 Response time (max.): 35 ms Refresh rate: 60 Hz Horizontal view angle: 80 +/- Vertical view angle: 80 +/- Pixel pitch: 0.08 mm Power consumption (maximum): 4.6 W Anti-glare vs glossy finish: TrueLife Touch options: Yes

GPU — Integrated

GPU—Integrated
Intel UHD Graphics	One HDMI 2.0 port, Shared system memory, 10th Generation Intel Core i5/i7

Battery Specifications

Battery specifications
Battery dimensions:
Battery type	60 WHr, 4-cell “smart” lithium-ion
Battery voltage	15.20 VDC
Battery weight (maximum)	0.31 kg (0.68 lb)
Height	239.10 mm (9.41 in.)
Width	90.73 mm (3.57 in.)
Depth	5.75 mm (0.23 in.)
Temperature range:
Operating	0°C to 35°C (32°F to 95°F)
Storage	-40°C to 65°C (-40°F to 149°F)
Battery operating time	Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.
Battery charging time (approximate)	4 hours (when the computer is off)
Coin-cell battery	CR2032

Camera (Web Cam) Specifications

Camera specifications
Camera resolution:
Number of cameras	One
Camera type	RGB-Infrared (RGB-IR) HD camera
Camera location	Front
Camera sensor type	CMOS sensor technology
Still image	0.92 megapixel
Video	1280 x 720 (HD) at 30 fps
Infrared camera resolution:
Still image	0.23 megapixel
Video	640 x 360 (VGA) at 30 fps
Diagonal viewing angle:
Camera	74.9 degrees
Infrared camera	77.7 degrees

Audio Specifications

Audio specifications
Speaker output:
Audio controller	Realtek ALC3254
Stereo conversion	Supported
Internal audio interface	High-definition audio
External audio interface	Universal audio jack
Number of speakers	Two
Internal-speaker amplifier	Supported
External volume controls	Keyboard shortcut controls
Average speaker output	2 W
Peak speaker output	2.5 W
Subwoofer output	Not supported
Microphone	Dual-array microphones

Media-card Reader

Media-card reader specifications

Media-card type	One microSD-card slot
Media-cards supported	micro-Secure Digital (mSD) micro-Secure Digital High Capacity (mSDHC) micro-Secure Digital Extended Capacity (mSDXC)

Internal slots

Internal slots
M.2	One M.2 2230/2280 slot for solid-state drive/Intel Optane

External Ports

External ports
USB ports	One USB 3.2 Gen 1 port One Thunderbolt 3 (Type-C) port with Power Delivery
Audio port	One headset (headphone and microphone combo) port
Video port	One HDMI 2.0 port
Media-card reader	One microSD-card slot
Docking port	Not supported
Power-adapter port	One 4.5 mm x 2.9 mm DC-in
Security	Not supported

Communication wireless module

Wireless module specifications
Model number	Intel AX201
Transfer rate	Up to 2400 Mbps
Frequency bands supported	2.4 GHz/5 GHz
Wireless standards	WiFi 802.11a/b/g Wi-Fi 4 (WiFi 802.11n) Wi-Fi 5 (WiFi 802.11ac) Wi-Fi 6 (WiFi 802.11ax)
Encryption	64-bit/128-bit WEP AES-CCMP TKIP
Bluetooth	Bluetooth 5

keyboard

Keyboard specifications
Keyboard type	Backlit keyboard
Keyboard layout	QWERTY
Number of keys	United States and Canada: 81 keys United Kingdom: 82 keys Japan: 85 keys
Keyboard size	X=18.7 mm key pitch Y=18.05 mm key pitch
Keyboard shortcuts	Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. To type the alternate character, press Shift and the desired key. To perform secondary functions, press Fn and the desired key. For more information, see keyboard shortcuts.

TouchPad

Touchpad specifications
Touchpad resolution:
Horizontal	1920
Vertical	1080
Touchpad dimensions:
Horizontal	105 mm (4.13 in.)
Vertical	60 mm (2.36 in.)
Touchpad gestures	For more information about touchpad gestures available on Windows 10, see the Microsoft knowledge base article at .

Fingerprint Reader

Fingerprint reader specifications
Fingerprint-reader sensor technology	Capacitive
Fingerprint-reader sensor resolution	500 dpi
Fingerprint-reader sensor pixel size	80 x 64

Charger | Power Adapter

Power adapter specifications
Connector dimensions:
Type	E4 65W
External diameter	4.50 mm
Internal diameter	2.90 mm
Input voltage	100 VAC–240 VAC
Input frequency	50 Hz–60 Hz
Input current (maximum)	1.50 A
Output current (continuous)	3.34 A
Rated output voltage	19.50 VDC
Temperature range:
Operating	0°C to 40°C (32°F to 104°F)
Storage	-40°C to 70°C (-40°F to 158°F)
