Dell Inspiron 7306 2-in-1 Specs Review 13 inch Convertible

Dell Inspiron 7306 2-in-1 – Review

The Dell Inspiron 7306 2-in-1 is 13 7000 Series laptop powered by an 11th Generation Intel Core i5/i7 Processor, shared integrated graphics Intel Iris Xe Graphics, with the support of up to 16 GB Dual-channel LPDDR4x 4267 MHz RAM and a PCIe Gen3 x4 NVMe, up to 32 Gbps, Up to 512 GB storage. It has a 13.3-inch Full High Definition (FHD) display screen with 1920 x 1080 resolution. The maximum weight for the laptop is 1.30 kg (2.87 lb) and its equipped with 53 Wh, 4-cell “smart” lithium-ion in the base variant. The battery charging time is approximately 4 hours (when the computer is off). The Dell Inspiron 7306 2-in-1 base price is $790 but can be customized adding more specs and features.

Inspiron 7306 2 in 1 – Base View

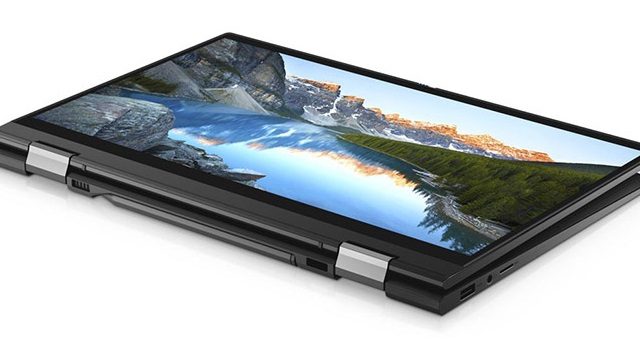

Inspiron 7306 2 in 1 – Tablet View

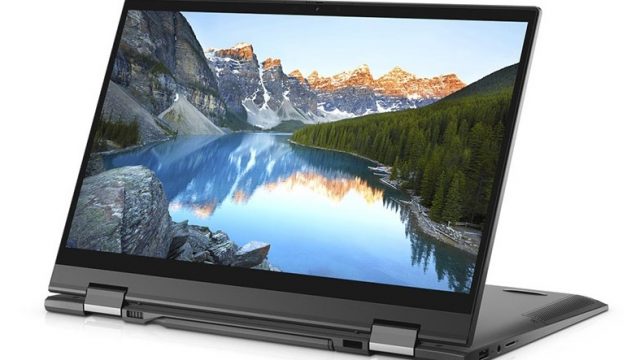

Inspiron 7306 2 in 1 – Stand Mode View

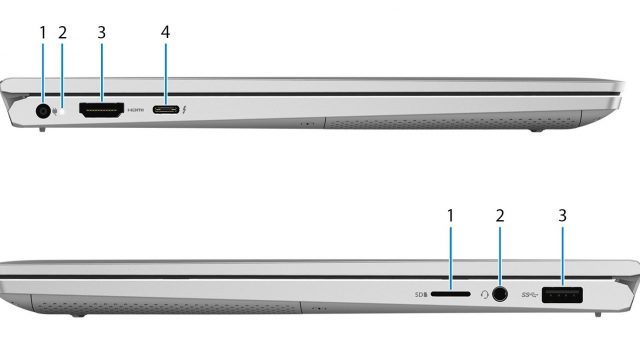

Inspiron 7306 2 in 1 – Side Views

Inspiron 7306 2 in 1 – Display View

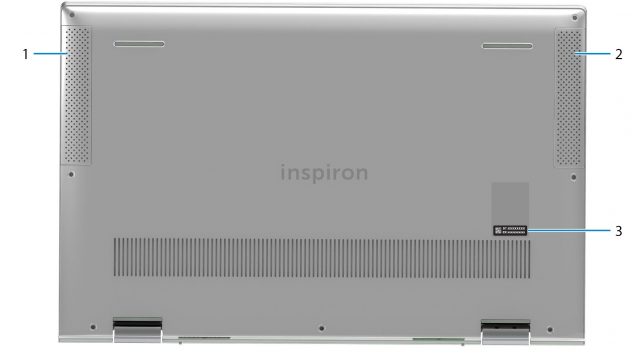

Inspiron 7306 2 in 1 – Bottom View

Dell Inspiron 7306 2-in-1 – Specs

QuickSpecs
Brand	Dell
Series	Dell Inspiron 7000
Model	Dell Inspiron 7306 2-in-1
Price	Starting from $790
Color	Silver
Processor Generation	11th Generation Intel Core i5/i7
Display Size	13.3-inch Full High Definition (FHD)
Weight	1.30 kg (2.87 lb)
Battery	53 Wh, 4-cell “smart” lithium-ion
Minimum RAM	8 GB
Maximum RAM	16 GB
Release Date	28 SEP 2021

Dell Inspiron 7306 2-in-1 – Technical Specifications

Processor
OS
Chipset
RAM
Storage
Design
Display
GPU
Battery
WebCam
Audio
Card Reader
Internal Slots
External Ports
Wi-Fi
Keyboard
TouchPad
Print Reader
Charger

Processor Specifications

Processor
11th Generation Intel Core i5-1135G7	Processor type: 11th Generation Intel Core i5-1135G7 Processor wattage: 15 W Processor core count: 4 Processor thread count: 8 Processor speed: Up to 4.2 GHz Processor cache: 8 MB Integrated graphics: Intel Iris Xe Graphics
11th Generation Intel Core i7-1165G7	Processor type: 11th Generation Intel Core i7-1165G7 Processor wattage: 15 W Processor core count: 4 Processor thread count: 8 Processor speed: Up to 4.7 GHz Processor cache: 12 MB Integrated graphics: Intel Iris Xe Graphics

Operating System

Operating System
Operating System	Windows 11 Home, 64-bit Windows 11 Pro, 64-bit Windows 11 Pro National Academic, 64-bit Windows 10 Home, 64-bit Windows 10 Pro, 64-bit

Chipset

Chipset
Chipset	Integrated in the processor
Processor	11th Generation Intel Core i5/i7
DRAM bus width	128-bit
Flash EPROM	16+8 MB
PCIe bus	Up to Gen3

Memory (RAM)

Memory specifications
Memory slots	No memory slots
Memory type	Dual-channel LPDDR4x
Memory speed	4267 MHz
Maximum memory configuration	16 GB
Minimum memory configuration	8 GB
Memory size per slot	4 GB and 8 GB
Memory configurations supported	8 GB, 2 x 4 GB, LPDDR4x, 4267 MHz, dual-channel 16 GB, 2 x 8 GB, LPDDR4x, 4267 MHz, dual-channel

Storage

Storage specifications
One M.2 2230 PCIe/NVMe solid-state drive	PCIe Gen3 x4 NVMe, up to 32 Gbps, Up to 512 GB
One M.2 2280 PCIe/NVMe solid-state drive	PCIe Gen3 x4 NVMe, up to 32 Gbps, Up to 2 TB
One M.2 2280 PCIe/NVMe Intel Optane Memory H10 with Solid State Storage	PCIe Gen3 x2 NVMe, up to 32 Gbps, Up to 1 TB

Storage

Storage
Storage	One M.2 2230/2280 solid-state drive One M.2 2280 Intel Optane Memory H10

Storage

Storage
Storage	with the M.2 2230/2280 solid-state drive, the solid-state drive is the primary drive. with the M.2 2280 Intel Optane Memory H10, the Intel Optane Memory is the primary drive.

Dimensions and Weight

Dimensions and weight
Height:
Front height	15.94 mm (0.63 in.)
Rear height	16.51 mm (0.65 in.)
Width	305.20 mm (12.02 in.)
Depth	197.80 mm (7.79 in.)
Weight (maximum)	1.30 kg (2.87 lb)

Display (Screen)

Display specifications
Display-panel dimensions (active area):
Display type	13.3-inch Full High Definition (FHD)
Display-panel technology	Wide-Viewing Angle (WVA)
Height	165.24 mm (6.51 in.)
Width	293.76 mm (11.57 in.)
Diagonal	337.82 mm (13.30 in.)
Display-panel native resolution	1920 x 1080
Luminance (typical)	300 nits
Megapixels	2.07
Color gamut	100% (sRGB)
Pixels Per Inch (PPI)	166
Contrast ratio (min)	800:1
Response time (max)	35 ms
Refresh rate	60 Hz
Horizontal view angle	+/- 80 degrees
Vertical view angle	+/- 80 degrees
Pixel pitch	0.15 mm
Power consumption (maximum)	1.99 W
Anti-glare vs glossy finish	TrueLife
Touch options	Yes

GPU — Integrated

GPU—Integrated
Intel Iris Xe Graphics	Shared system memory, 11th Generation Intel Core i5/i7

Battery Specifications

Battery specifications
Battery dimensions:
Battery type	53 Wh, 4-cell “smart” lithium-ion
Battery voltage	15.20 VDC
Battery weight (maximum)	0.23 kg (0.51 lb)
Height	5.75 mm (0.23 in.)
Width	239.10 mm (9.41 in.)
Depth	90.73 mm (3.57 in.)
Temperature range:
Operating	0°C to 35°C (32°F to 95°F)
Storage	-40°C to 65°C (-40°F to 149°F)
Battery operating time	Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.
Battery charging time (approximate)	4 hours (when the computer is off)
Coin-cell battery	CR2032

Camera (Web Cam) Specifications

Camera specifications
Camera resolution:
Number of cameras	One
Camera type	RGB HD camera
Camera location	Front
Camera sensor type	CMOS sensor technology
Still image	0.92 megapixel
Video	1280 x 720 (HD) at 30 fps
Diagonal viewing angle:	74.9 degrees

Audio Specifications

Audio specifications
Speaker output:
Audio controller	Realtek ALC3254
Stereo conversion	Supported
Internal audio interface	High-definition audio
External audio interface	Universal audio jack
Number of speakers	Two
Internal-speaker amplifier	Supported
External volume controls	Keyboard shortcut controls
Average speaker output	2 W
Peak speaker output	2.5 W
Subwoofer output	Not supported
Microphone	Dual-array microphones

Media-card Reader

Media-card reader specifications

Media-card type	One microSD-card slot
Media-cards supported	micro-Secure Digital (mSD) micro-Secure Digital High Capacity (mSDHC) micro-Secure Digital Extended Capacity (mSDXC)

Internal slots

Internal slots
M.2	One M.2 2230 slot for WiFi and Bluetooth combo card One M.2 2280 slot for solid-state drive/Intel Optane Memory/Intel Optane Storage

External Ports

External ports
USB ports	One USB 3.2 Gen 1 port One Thunderbolt 4 Type-C port with Power Delivery
Audio port	One headset (headphone and microphone combo) port
Video port	One HDMI 2.0 port
Media-card reader	One microSD-card slot
Docking port	Not supported
Power-adapter port	One 4.5 mm x 2.9 mm DC-in
Security	Not supported

Communication wireless module

Wireless module specifications
Model number	Intel AX201
Transfer rate	Up to 2400 Mbps
Frequency bands supported	2.4 GHz/5 GHz
Wireless standards	WiFi 802.11a/b/g Wi-Fi 4 (WiFi 802.11n) Wi-Fi 5 (WiFi 802.11ac) Wi-Fi 6 (WiFi 802.11ax)
Encryption	64-bit/128-bit WEP AES-CCMP TKIP
Bluetooth	Bluetooth 5

keyboard

Keyboard specifications
Keyboard type	Backlit keyboard
Keyboard layout	QWERTY
Number of keys	United States and Canada: 81 keys United Kingdom: 82 keys
Keyboard size	X=18.7 mm key pitch Y=18.05 mm key pitch
Keyboard shortcuts	Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. To type the alternate character, press Shift and the desired key. To perform secondary functions, press Fn and the desired key. For more information, see keyboard shortcuts.

TouchPad

Touchpad specifications
Touchpad resolution:
Horizontal	1920
Vertical	1080
Touchpad dimensions:
Horizontal	105 mm (4.13 in.)
Vertical	60 mm (2.36 in.)
Touchpad gestures	For more information about touchpad gestures available on Windows, see the Microsoft knowledge base article at .

Fingerprint Reader

Fingerprint reader specifications
Fingerprint-reader sensor technology	Capacitive
Fingerprint-reader sensor resolution	500 dpi
Fingerprint-reader sensor pixel size	80 x 64

Charger | Power Adapter

Power adapter specifications
Connector dimensions:
Type	65 W
External diameter	4.50 mm
Internal diameter	2.90 mm
Input voltage	100 VAC–240 VAC
Input frequency	50 Hz–60 Hz
Input current (maximum)	1.50 A
Output current (continuous)	3.34 A
Rated output voltage	19.50 VDC
Temperature range:
Operating	0°C to 40°C (32°F to 104°F)
Storage	-40°C to 70°C (-40°F to 158°F)
