Dell Inspiron 7506 2-in-1 – Overview
The 7506 2-in-1 is latest Inspiron 7000 Series 15.6 inch Full HD laptop, actually a convertible touch laptop capable to rotate through an angle upto full 360 degree. With the support of 4 modes i.e Notebook, Tent, Stand and tablet its easy to use in every position whether sitting on chair, Sofa or lying on your bed. The Laptop features stunning Dolby Vision sound, Intel 11th Gen Core i5/ core i7 processors with Intel Iris Xe MAX graphics. The laptop has good performance with SSD storage and minumum 8 GB of RAM. While the base laptop model comes with 4GB RAM that is enough for wathcing movies and doing office work. But for multitasking along net surfing minimum 8 GB RAM is recommended by Laptop-Spec.com IT Team. Laptop Price starting from $720.

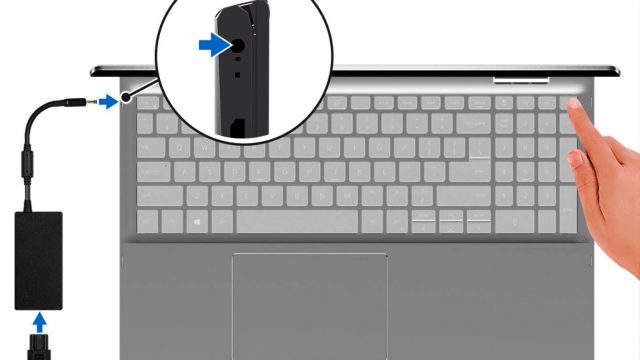

Inspiron 7506 2-in-1 – Charging Port

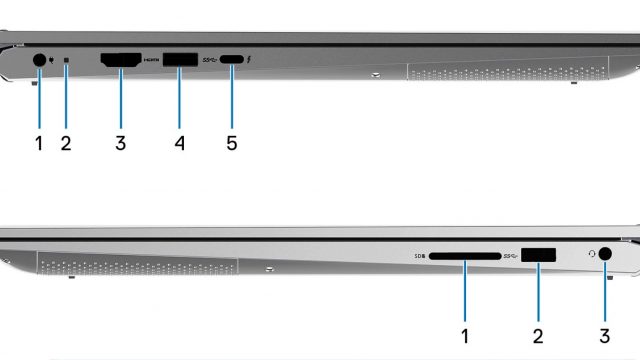

Inspiron 7506 2-in-1 – Lid Closed Side views

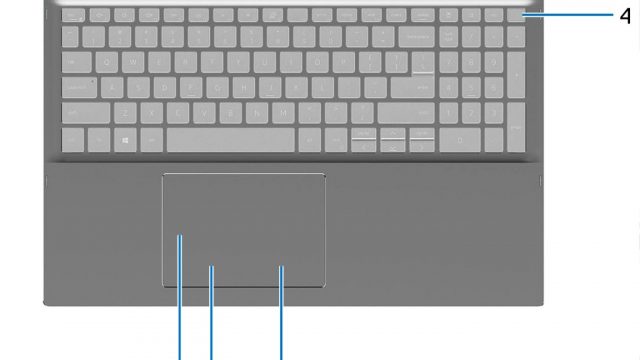

Inspiron 7506 2-in-1 – Top View

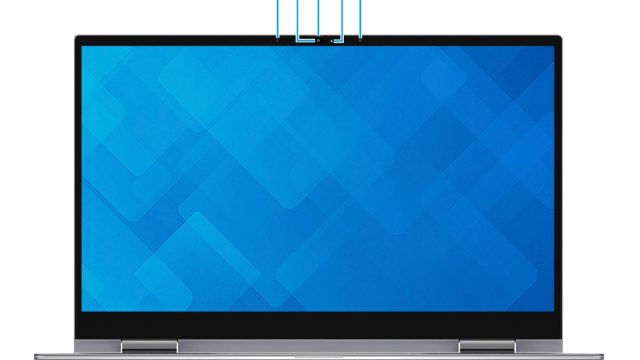

Inspiron 7506 2-in-1 – Front View

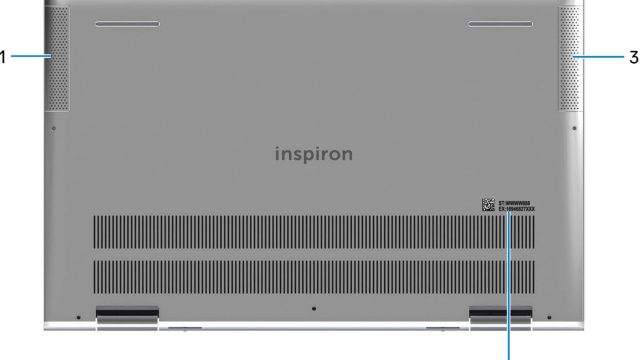

Inspiron 7506 2-in-1 – Bottom View
Dell Inspiron 7506 2-in-1 – Specs
| Brand | Dell |
|---|---|
| Series | Dell Inspiron 7000 |
| Model | Dell 15 7506 2-in-1 |
| Price | Starting from $720 |
| Color | Platinum Silver |
| Processor Generation | Intel 11th Generation |
| Display Size | 15.6-inch FHD (1920 x 1080) Truelife Touch Narrow Border WVA Display with Active Pen support |
| Weight | 1.903 kg (4.20 lb) |
| Battery | 53 Wh, 3-cell “smart” lithium-ion, Get your battery from 0% up to 80% in as fast as an hour |
| Minimum RAM | 4 GB |
| Maximum RAM | 16 GB |
| Release Date | September 2021 |
Dell Inspiron 7506 2-in-1 – Modes

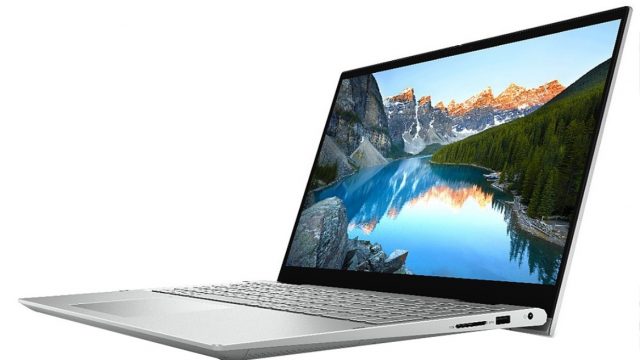

Inspiron 7506 2-in-1 – Notebook Mode

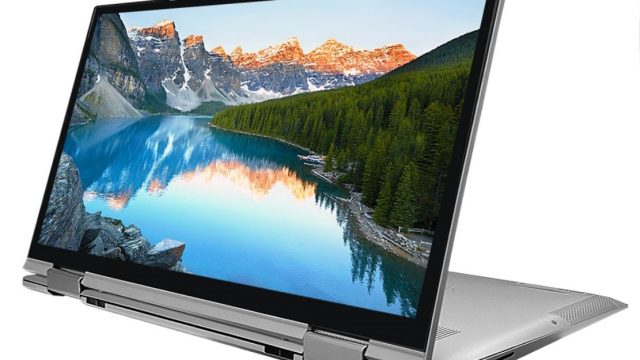

Inspiron 7506 2-in-1 – Stand Mode

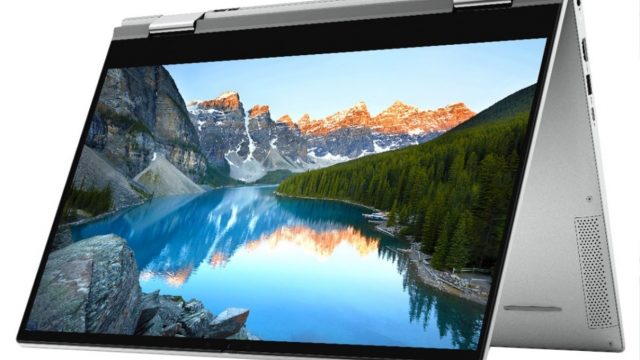

Inspiron 7506 2-in-1 – Tent Mode
Inspiron 7506 2-in-1 – Tablet Mode
Dell Inspiron 7506 2-in-1 – Technical Specifications
Processor Specifications
| 11th Generation Intel Core i5-1135G7 |
|
|---|---|
| 11th Generation Intel Core i7-1165G7 |
|
Operating System
| Operating System |
|
|---|
Chipset
| Chipset |
Integrated in the processor |
|---|---|
| Processor |
11th Generation Intel Core i5/i7 |
| DRAM bus width |
64-bit |
| Flash EPROM |
16+8 MB |
| PCIe bus |
Up to Gen3 |
Memory (RAM)
| Memory slots |
Two-SODIMM slots |
|---|---|
| Memory type |
Dual-channel DDR4 |
| Memory speed |
3200 MHz |
| Maximum memory configuration |
16 GB |
| Minimum memory configuration |
4 GB |
| Memory size per slot |
4 GB, 8 GB, and 16 GB |
| Memory configurations supported |
|
Storage
| One M.2 2230/2280 PCIe/NVMe SSD | PCIe NVMe Gen3 x4, up to 32 Gbps, Up to 512 GB |
|---|---|
| One M.2 2280 PCIe/NVMe SSD | PCIe NVMe Gen3 x4, up to 32 Gbps, Up to 2 TB |
| One M.2 2280 PCIe/NVMe SSD + Intel Optane | PCIe NVMe Gen3 x2, up to 32 Gbps, Up to 1 TB |
Storage
| Storage |
|
|---|
Storage
| Storage |
|
|---|
Dimensions and Weight
| Height: | |
|---|---|
| Front height |
16.40 mm (0.65 in.) |
| Rear height |
17.94 mm (0.71 in.) |
| Width |
356.20 mm (14.02 in.) |
| Depth |
238.40 mm (9.39 in.) |
| Weight (maximum) |
1.90 kg (4.19 lb) |
Display (Screen)
| Display type |
15.5-inch Full High Definition (FHD) |
|---|---|
| Display-panel technology |
Wide Viewing Angle (WVA) |
| Display-panel dimensions (active area): | |
| Height |
193.60 mm (7.62 in.) |
| Width |
344.20 mm (13.55 in.) |
| Diagonal |
395 mm (15.55 in.) |
| Display-panel native resolution |
1920 x 1080 |
| Luminance (typical) |
270 nits |
| Megapixels |
2 |
| Color gamut |
100% (sRGB) |
| Pixels Per Inch (PPI) |
142 |
| Contrast ratio (min) |
600:1 |
| Response time (max) |
35 ms |
| Refresh rate |
60 Hz |
| Horizontal view angle |
+/- 85 degrees |
| Vertical view angle |
+/- 85 degrees |
| Pixel pitch |
0.18 mm |
| Power consumption (maximum) |
4.20 W |
| Anti-glare vs glossy finish |
Anti-glare |
| Touch options |
Yes |
GPU — Discrete
| NVIDIA GeForce MX 330 | 2 GB, GDDR5 |
|---|
Battery Specifications
| Battery type |
53 Wh, 3-cell “smart” lithium-ion |
|---|---|
| Battery voltage |
15.20 VDC |
| Battery weight (maximum) |
0.23 kg (0.50 lb) |
| Battery dimensions: | |
| Height |
5.75 mm (0.22 in.) |
| Width |
239.10 mm (9.41 in.) |
| Depth |
90.73 mm (3.57 in.) |
| Temperature range: | |
| Operating |
0°C to 35°C (32°F to 95°F) |
| Storage |
-40°C to 65°C (-40°F to 149°F) |
| Battery operating time | Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions. |
| Battery charging time (approximate) |
4 hours (when the computer is off) |
| Coin-cell battery |
CR2032 |
Camera (Web Cam) Specifications
| Number of cameras |
One |
|---|---|
| Camera type |
RGB HD camera |
| Camera location |
Front |
| Camera sensor type |
CMOS sensor technology |
| Camera resolution: | |
| Still image |
0.92 megapixel |
| Video |
1280 x 720 (HD) at 30 fps |
| Diagonal viewing angle: |
74.9 degrees |
Audio Specifications
| Audio controller |
Realtek ALC3254 |
|---|---|
| Stereo conversion |
Supported |
| Internal audio interface |
High-definition audio |
| External audio interface |
Universal audio jack |
| Number of speakers |
Two |
| Internal-speaker amplifier |
Supported |
| External volume controls |
Keyboard shortcut controls |
| Speaker output: | |
| Average speaker output |
2 W |
| Peak speaker output |
2.5 W |
| Subwoofer output |
Not supported |
| Microphone |
Dual-array microphones |
Media-card Reader
| Media-card type |
One SD-card slot |
|---|---|
| Media-cards supported |
|
Internal slots
| M.2 |
|
|---|
External Ports
| USB ports |
|
|---|---|
| Audio port |
One headset (headphone and microphone combo) port |
| Video port |
One HDMI 1.4b port |
| Media-card reader |
One SD-card slot |
| Docking port |
Not supported |
| Power-adapter port |
One 4.5 mm x 2.9 mm DC-in |
| Security |
Not supported |
Communication wireless module
| Model number |
Intel AX201 |
|---|---|
| Transfer rate |
Up to 2400 Mbps |
| Frequency bands supported |
2.4 GHz/5 GHz |
| Wireless standards |
|
| Encryption |
|
| Bluetooth |
Bluetooth 5 |
keyboard
| Keyboard type |
Backlit keyboard |
|---|---|
| Keyboard layout |
QWERTY |
| Number of keys |
|
| Keyboard size |
X =18.70 mm key pitch Y =18.05 mm key pitch |
TouchPad
| Touchpad resolution: | |
|---|---|
| Horizontal |
1349 |
| Vertical |
929 |
| Touchpad dimensions: | |
| Horizontal |
115 mm (4.53 in.) |
| Vertical |
80 mm (3.15 in.) |
| Touchpad gestures | For more information about touchpad gestures available on Windows, see the Microsoft knowledge base article at . |
Fingerprint Reader
| Fingerprint-reader sensor technology |
Capacitive |
|---|---|
| Fingerprint-reader sensor resolution |
500 dpi |
| Fingerprint-reader sensor pixel size |
80 x 64 |
Charger | Power Adapter
| Type |
65 W |
|---|---|
| Connector dimensions: | |
| External diameter |
4.50 mm |
| Internal diameter |
2.90 mm |
| Input voltage |
100 VAC–240 VAC |
| Input frequency |
50 Hz–60 Hz |
| Input current (maximum) |
1.50 A |
| Output current (continuous) |
3.47 A |
| Rated output voltage |
19.50 VDC |
| Temperature range: | |
| Operating |
0°C to 40°C (32°F to 104°F) |
| Storage |
-40°C to 70°C (-40°F to 158°F) |
