Dell Inspiron 7567 Specs, 15 inch Budget Gaming Laptop

Dell Inspiron Gaming 7567 – Overview

The 15-inch Inspiron Gaming 7567 is 7000 series laptop optimized for fast and smooth performance and play video games. Featuring 7th generation Intel Core i5/i7 processors, 15.6-inch FHD (1920 x 1080) Touch/non touch Display with the support of upto 32 GB DDR4 RAM.The base variant comes with 6-cell “smart” lithium ion (74 WHr). Base price starting from $600.

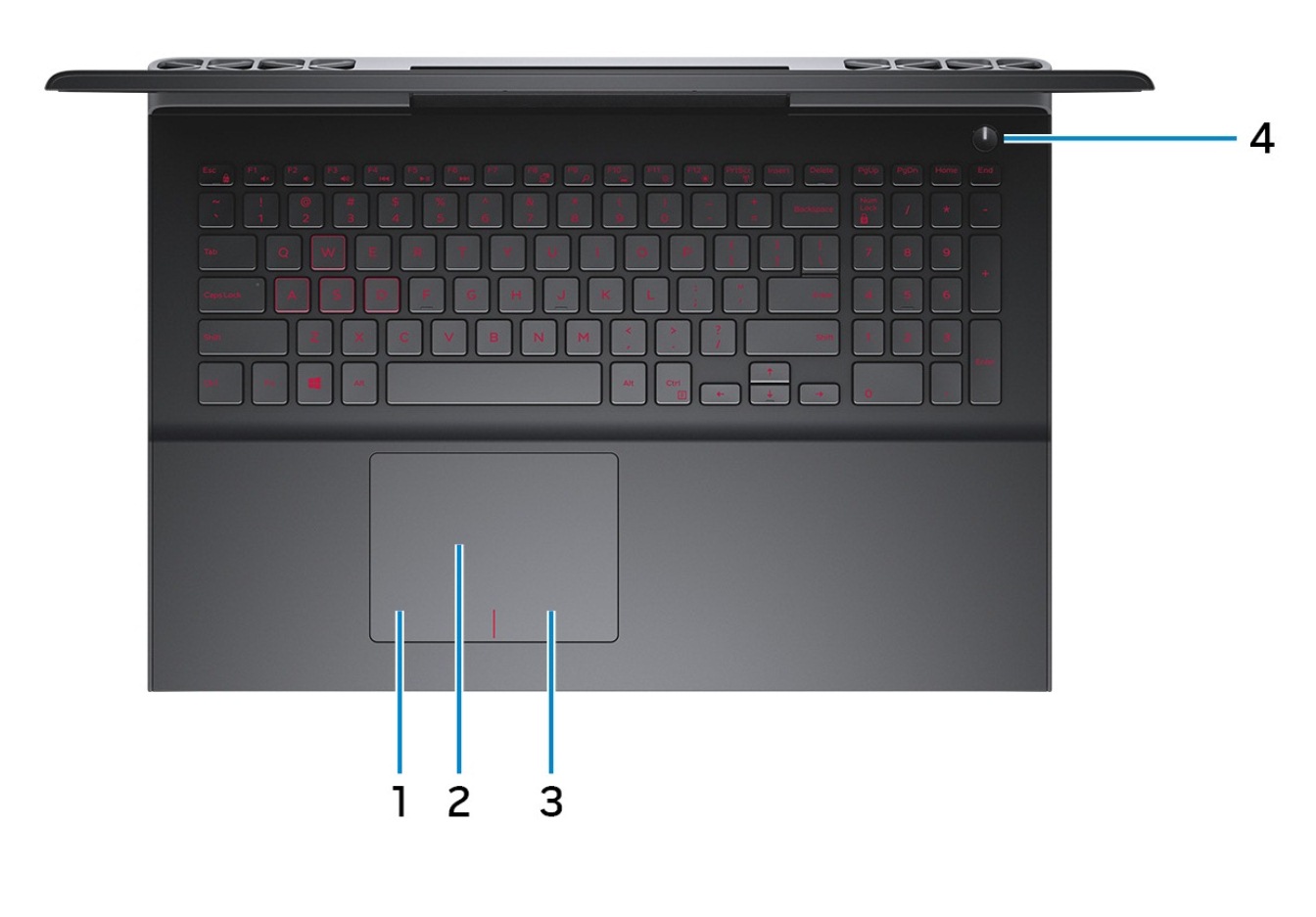

Inspiron 15 Gaming 7567 – Base View

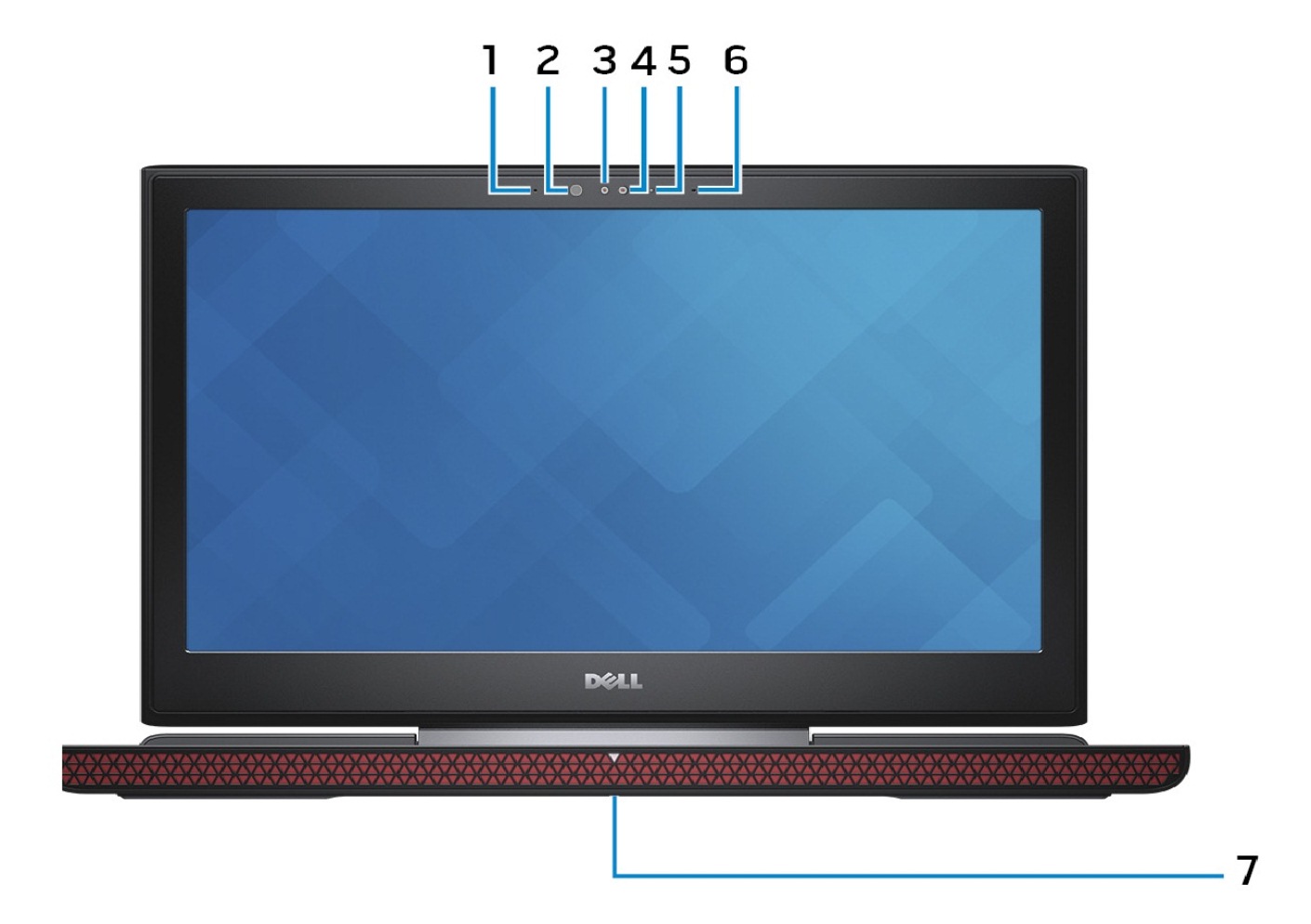

Inspiron 15 Gaming 7567 – Display View

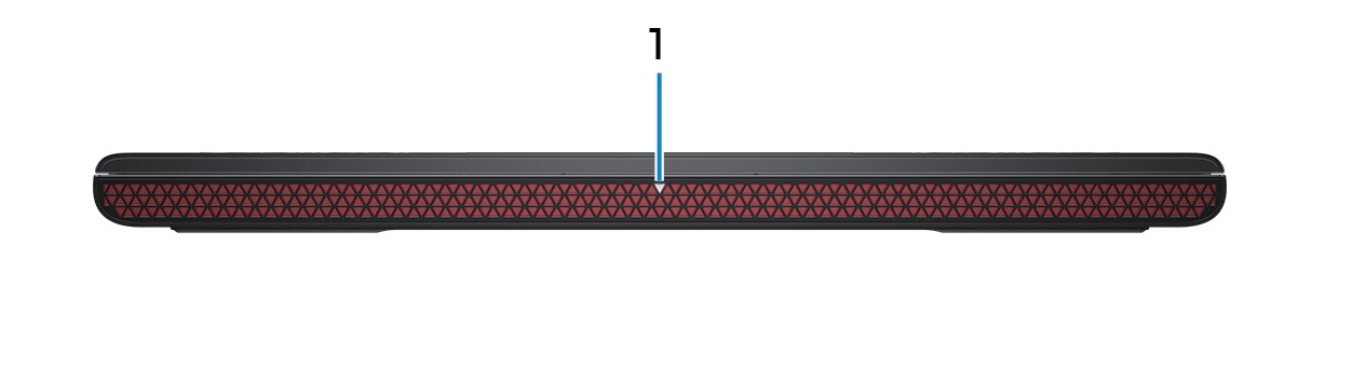

Inspiron 15 Gaming 7567 – Front View

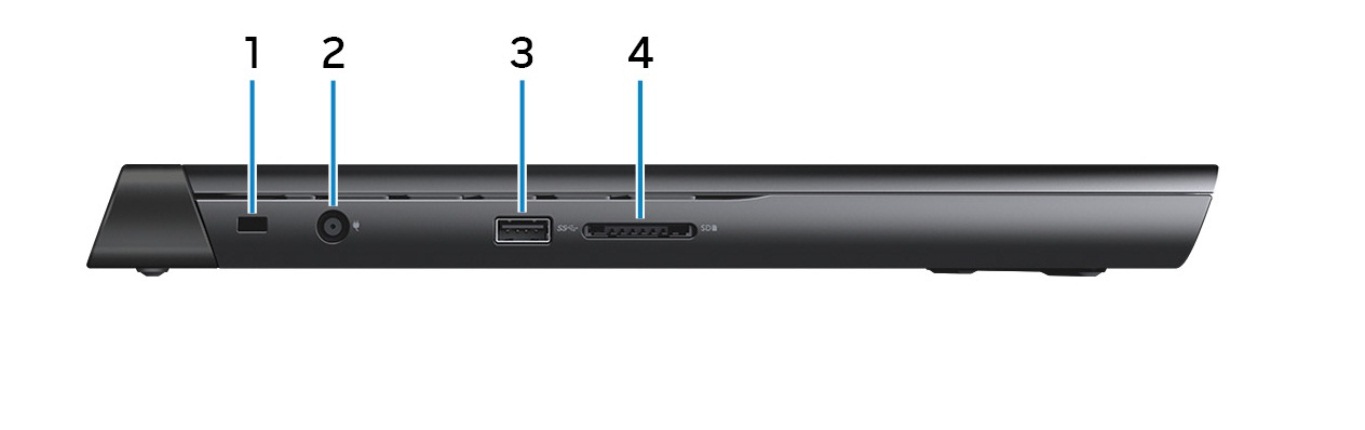

Inspiron 15 Gaming 7567 – Left View

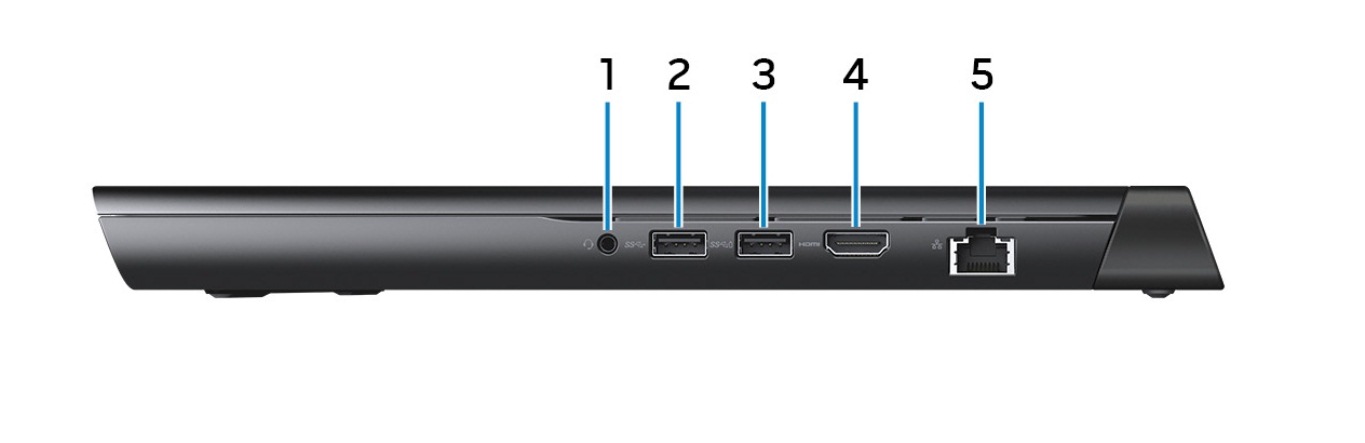

Inspiron 15 Gaming 7567 – Right View

Dell Inspiron Gaming 7567 – Specs

QuickSpecs
Brand	Dell
Series	Dell Inspiron 7000
Model	Dell Inspiron Gaming 7567
Price	Starting from $600
Color	Matte Black & Hibiscus Red
Processor Generation	7th generation Intel Core i5/i7
Display Size	15-inch
Weight	Touch: 2.76 kg (6.08 lb), Non-touch: 2.65 kg (5.84 lb)
Battery	6-cell “smart” lithium ion (74 WHr)
Minimum RAM	4 GB
Maximum RAM	32 GB
Release Date	21 MAR 2017

Dell Inspiron Gaming 7567 – Technical Specifications

System
RAM
Storage
Design
Display
Graphics
Battery
WebCam
Audio
Card Reader
Connectors
Wi-Fi
Keyboard
TouchPad
Charger

Processor Information

System information
Computer model	Inspiron 15-7567
Processor	7th generation Intel Core i5/i7
Chipset	Intel HM175

Memory (RAM)

Memory specifications
Slots	Two SODIMM slots
Type	DDR4
Speed	2400 MHz
Configurations supported	4 GB, 8 GB, 16 GB, and 32 GB

Storage

Storage specifications
Interface	SATA 6 Gbps PCIe/NVMe
Hard drive	One 2.5-inch drive (SATA)
Solid-state drive	One M.2 drive (SATA or PCIe/NVMe)

Dimensions and Weight

Dimensions and weight
Height	25.3 mm (1 in)
Width	384.90 mm (15.15 in)
Depth	274.70 mm (10.81 in)
Weight (maximum)	Touch: 2.76 kg (6.08 lb) Non-touch: 2.65 kg (5.84 lb)

Display (Screen)

Display specifications
15-inch FHD non-touchscreen IPS (In-plane switching) panel 15-inch FHD non-touchscreen TN (Twisted nematic) panel	Type 15-inch FHD non-touchscreen IPS (In-plane switching) panel 15-inch FHD non-touchscreen TN (Twisted nematic) panel Resolution (maximum): 1920 x 1080 Viewing angle (Left/Right/Up/Down): 80/80/80/80 degrees Pixel pitch: 0.179 mm Height (excluding bezel): 193.59 mm (7.62 in) Width (excluding bezel): 344.16 mm (13.55 in) Diagonal (excluding bezel): 394.87 mm (15.55 in) Refresh rate: 60 Hz Operating angle: 0 degree (closed) to 135 degrees Controls: Brightness can be controlled using shortcut keys
15-inch FHD touchscreen IPS (In-plane switching) panel	Type: 15-inch FHD touchscreen IPS (In-plane switching) panel Resolution (maximum): 1920 x 1080 Viewing angle (Left/Right/Up/Down): 80/80/80/80 degrees Pixel pitch: 0.090 mm Height (excluding bezel): 194.40 mm (7.65 in) Width (excluding bezel): 345.60 mm (13.61 in) Diagonal (excluding bezel): 396.52 mm (15.61 in) Refresh rate: 60 Hz Operating angle: 0 degree (closed) to 135 degrees Controls: Brightness can be controlled using shortcut keys
15-inch UHD non-touchscreen IPS (In-plane switching) panel	Type: 15-inch UHD non-touchscreen IPS (In-plane switching) panel Resolution (maximum): 3840 x 2160 Viewing angle (Left/Right/Up/Down): 80/80/80/80 degrees Pixel pitch: Height (excluding bezel): Width (excluding bezel): Diagonal (excluding bezel): Refresh rate: 60 Hz Operating angle: 0 degree (closed) to 135 degrees Controls: Brightness can be controlled using shortcut keys

Video | Graphics

Video specifications
Intel HD Graphics 630	Controller: Intel HD Graphics 630 Memory: Shared system memory
NVIDIA GeForce GTX 1050 NVIDIA GeForce GTX 1050 Ti	Controller NVIDIA GeForce GTX 1050 NVIDIA GeForce GTX 1050 Ti Memory: 4 GB GDDR5

Battery Specifications

Battery specifications
Type	6-cell “smart” lithium ion (74 WHr)
Width	177.80 mm (7 in)
Depth	87.85 mm (3.46 in)
Height	11.30 mm (0.44 in)
Weight (maximum)	0.36 kg (0.79 lb)
Voltage	11.10 VDC
Charging time (approximate)	4 hours (when the computer is off)
Operating time	Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.
Life span (approximate)	300 discharge/charge cycles
Temperature range	Operating: 0°C to 35°C (32°F to 95°F) Storage: –40°C to 65°C (–40°F to 149°F)
Coin-cell battery	CR-2032

Camera (Web Cam) Specifications

Camera specifications
Resolution	Still image: 0.92 megapixel Video: 1280 x 720 (HD) at 30 fps (maximum)
Diagonal viewing angle	74 degrees

Audio Specifications

Audio specifications
Controller	Realtek ALC3246 with Waves MaxxAudio Pro
Speakers	Two
Speaker output	Average: 2 W Peak: 2.5 W
Subwoofer	One
Subwoofer output	Average: 3 W Peak: 3.5 W
Microphone	Digital-array microphones in camera assembly
Volume controls	Media-control shortcut keys

Media-card Reader

Media-card reader specifications
Type	One 2-in-1 slot
Cards supported	SD card MultiMedia Card (MMC)

Ports and connectors

Ports and connectors specifications
Network	One RJ-45 port
USB	One USB 3.0 port with PowerShare Two USB 3.0 ports
Audio/Video	One HDMI port One headset (headphone and microphone combo) port

Ports and connectors

Ports and connectors specifications
M.2 Card	One M.2 slot for SSD card One M.2 slot for WiFi/Bluetooth

Communication wireless module

Communication specifications
Wireless	Wi-Fi 802.11 ac Bluetooth 4.2 Miracast

keyboard

Keyboard specifications
Type	Chiclet backlit keyboard (red/white) Non-backlit keyboard
Shortcut keys

TouchPad

Touch pad
Resolution	Horizontal: 1228 Vertical: 928
Dimensions	Height: 80 mm (3.15 in) Width: 105 mm (4.13 in)

Charger | Power Adapter

Power adapter specifications
Type	130 W
Input voltage	100 VAC–240 VAC
Input frequency	50 Hz–60 Hz
Input current (maximum)	2.50 A
Output current (continuous)	6.70 A
Rated output voltage	19.50 VDC
Temperature range: Operating	0°C to 40°C (32°F to 104°F)
Temperature range: Storage	–40°C to 70°C (–40°F to 158°F)
