Inspiron 7500 2-in-1 Black 10th Generation Core i7-10510U


Dell Inspiron 7500 2 in 1 – Review

The Inspiron 7500 2-in-1 Black is 7000 Series laptop powered by 10th Generation Intel Core i7-10510U Processor, NVIDIA GeForce MX 330, with the support of up to 16 GB Memory having speed of 2666 MHz and a PCIe NVMe Gen3 x2, Up to 512 GB M.2 2230/2280 PCIe/NVMe solid-state drive for primary storage. It has an Ultra High Definition (UHD) Display with native screen resolution 3840 x 2160 px. The maximum weight for the laptop is 1.95 kg (4.30 lb) and its equipped with 68 WHr, 4-cell “smart” lithium-ion battery in the base variant. The Inspiron 7500 2-in-1 Black base price is $650 but can be customized adding more specs and features.

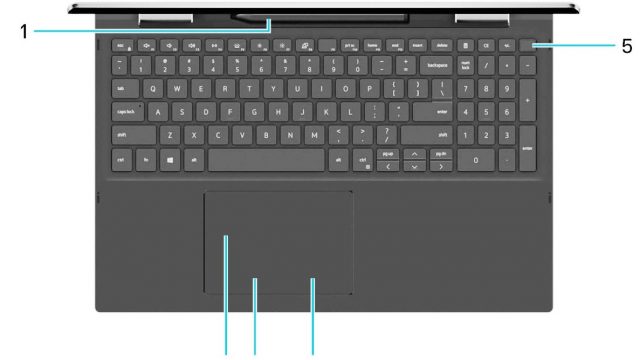

Inspiron 7500 2 in 1 Black - Base View

Inspiron 7500 2 in 1 Black – Base View

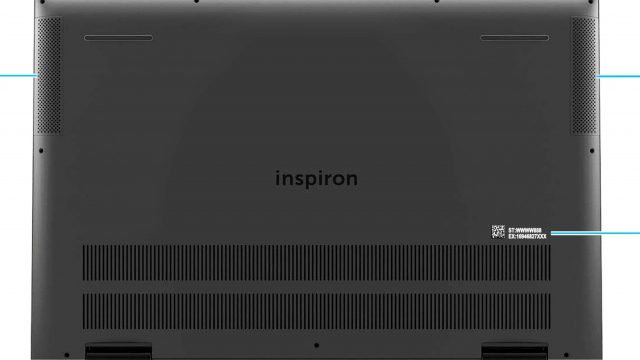

Inspiron 7500 2 in 1 Black - Bottom View

Inspiron 7500 2 in 1 Black – Bottom View

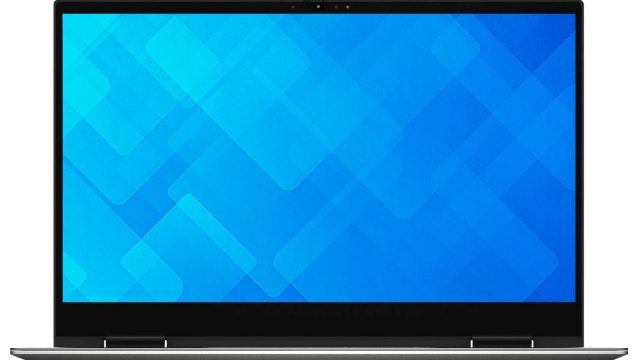

Inspiron 7500 2 in 1 Black - Display View

Inspiron 7500 2 in 1 Black – Display View

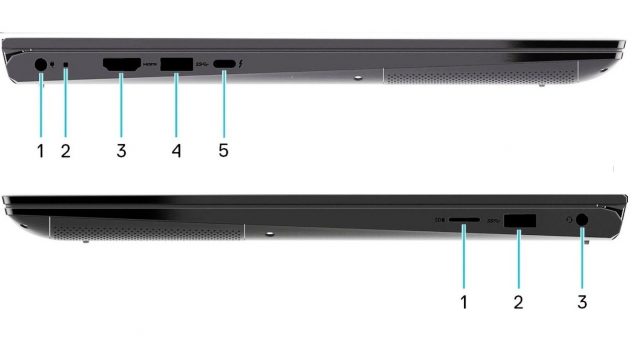

Inspiron 7500 2 in 1 Black - Side Views

Inspiron 7500 2 in 1 Black – Side Views

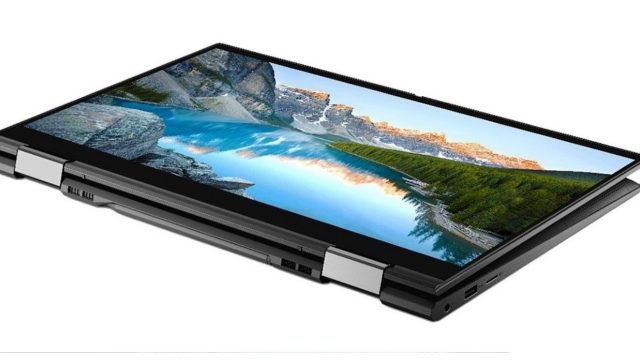

Inspiron 7500 2 in 1 Black - Tablet View

Inspiron 7500 2 in 1 Black – Tablet View

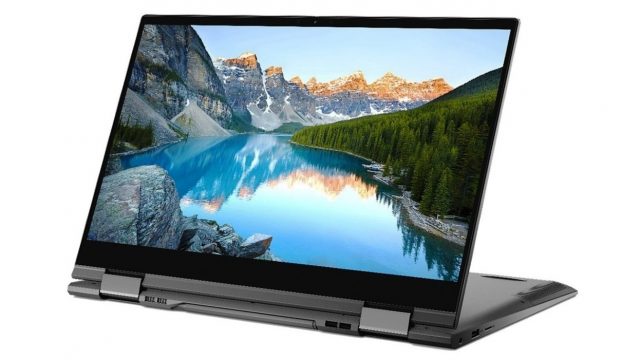

Inspiron 7500 2 in 1 Black - Stand View

Inspiron 7500 2 in 1 Black – Stand View

Dell Inspiron 7500 2 in 1 – Specs

QuickSpecs
Brand Dell
Series Dell Inspiron 7000
Model Dell Inspiron 7500 2 in 1
Price Starting from $650
Color Black
Processor Generation 10th Generation Intel Core i7-10510U
Display Size 395 mm (15.55 in.)
Weight 1.95 kg (4.30 lb)
Battery 68 WHr, 4-cell “smart” lithium-ion
Minimum RAM 4 GB
Maximum RAM 16 GB
Release Date 19 MAY 2020

Dell Inspiron 7500 2 in 1 – Technical Specifications

The Inspiron 7500 2-in-1 Black Processor Specifications

Processor
Processor type

10th Generation Intel Core i7-10510U

Processor wattage

15 W

Processor core count

4

Processor thread count

8

Processor speed

Up to 4.9 GHz

Processor cache

8 MB

Integrated graphics

Intel UHD Graphics

Operating System

Operating System
Operating System
  • Windows 10 Pro, 64-bit
  • Windows 10 Home, 64-bit

Chipset

Chipset
Chipset

Integrated in the processor

Processor

10th Generation Intel Core i7

DRAM bus width

64-bit

Flash EPROM

16+8 MB

PCIe bus

Up to Gen3

Memory (RAM)

Memory specifications
Memory slots

Two-SODIMM slots

Memory type

DDR4

Memory speed

2666 MHz

Maximum memory configuration

16 GB

Minimum memory configuration

4 GB

Memory size per slot

4 GB, 8 GB, 12 GB, 16 GB

Memory configurations supported
  • 4 GB DDR4 at 2666 MHz (1 x 4 GB)
  • 8 GB DDR4 at 2666 MHz (1 x 8 GB)
  • 8 GB DDR4 at 2666 MHz (2 x 4 GB), dual-channel
  • 12 GB DDR4 at 2666 MHz (1 x 4 GB + 1 x 8 GB)
  • 16 GB DDR4 at 2666 MHz (1 x 16 GB)
  • 16 GB DDR4 at 2666 MHz (2 x 8 GB), dual-channel

Storage

Storage specifications
One M.2 2230/2280 PCIe/NVMe SSD PCIe NVMe Gen3 x4, up to 32 Gbps, Up to 512 GB
One M.2 2280 PCIe/NVMe SSD PCIe NVMe Gen3 x4, up to 32 Gbps, Up to 2 TB
One M.2 2280 PCIe/NVMe SSD + Intel Optane PCIe NVMe Gen3 x2, Up to 1 TB
One M.2 2280 PCIe/NVMe Intel Optane Storage PCIe NVMe Gen3 x2, Up to 512 GB

The Inspiron 7500 2-in-1 Black Dimensions and Weight

Dimensions and weight
Height:
Front height

16.4 mm (0.65 in.)

Rear height

17.94 mm (0.71 in.)

Width

356.20 mm (14.02 in.)

Depth

238.40 mm (9.39 in.)

Weight (maximum)

1.95 kg (4.30 lb)

The Inspiron 7500 2-in-1 Black Display (Screen)

Display specifications
Display type

Ultra High Definition (UHD)

Display-panel technology

Wide Viewing Angle (WVA)

Display-panel dimensions (active area):
Height

193.60 mm (7.62 in.)

Width

344.20 mm (13.55 in.)

Diagonal

395 mm (15.55 in.)

Display-panel native resolution

3840 x 2160

Luminance (typical)

300 nits

Megapixels

8

Color gamut

100% (sRGB)

Pixels Per Inch (PPI)

283

Contrast ratio (min)

700:1

Response time (max)

35 ms

Refresh rate

60 Hz

Horizontal view angle

85 +/- degrees

Vertical view angle

85 +/- degrees

Pixel pitch

0.09 mm

Power consumption (maximum)

5 W

Anti-glare vs glossy finish

Anti-glare

Touch options

Yes

GPU — Integrated

GPU—Integrated
Intel Iris Plus Graphics One HDMI 2.0 port, Shared system memory, 10th Generation Intel Core i7

GPU — Discrete

GPU—Discrete
NVIDIA GeForce MX 330 Not supported, 2 GB, GDDR5

Battery Specifications

Battery specifications
Battery type

68 WHr, 4-cell “smart” lithium-ion

Battery voltage

15.20 VDC

Battery weight (maximum)

0.34 kg (0.75 lb)

Battery dimensions:
Height

233 mm (9.17 in.)

Width

85.30 mm (3.35 in.)

Depth

7.05 mm (0.27 in.)

Temperature range:
Operating

0°C to 35°C (32°F to 95°F)

Storage

-40°C to 65°C (-40°F to 149°F)

Battery operating time Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.
Battery charging time (approximate)

4 hours (when the computer is off)

Coin-cell battery

CR2032

Camera (Web Cam) Specifications

Camera specifications
Number of cameras

One

Camera type

HD RGB (infrared) camera

Camera location

Front

Camera sensor type

CMOS sensor technology

Camera resolution:
Still image

0.92 megapixel

Video

1280 x 720 (HD) at 30 fps

Infrared camera resolution:
Still image

0.30 megapixel

Video

640 x 480 @ 30 fps

Diagonal viewing angle:
Camera

77.7 degrees

Infrared camera

77.7 degrees

Audio Specifications

Audio specifications
Audio controller

Realtek ALC3254

Stereo conversion

Supported

Internal audio interface

High-definition audio

External audio interface

Universal audio jack

Number of speakers

Two

Internal-speaker amplifier

Supported

External volume controls

Keyboard shortcut controls

Speaker output:
Average speaker output

2 W

Peak speaker output

2.5 W

Subwoofer output

Not supported

Microphone

Dual-array microphones

Media-card Reader

Media-card reader specifications
Media-card type

One microSD-card slot

Media-cards supported
  • micro-Secure Digital (mSD)
  • micro-Secure Digital High Capacity (mSDHC)
  • micro-Secure Digital Extended Capacity (mSDXC)

Internal slots

Internal slots
M.2
  • One M.2 2230 slot for WiFi and Bluetooth combo card
  • One M.2 2280 slot for solid-state drive/Intel Optane/Intel Optane Storage

External Ports

External ports
USB ports
  • One USB 3.2 Gen 1 port
  • One USB 3.2 Gen 1 port
  • One Thunderbolt 3 (USB Type-C) port with Power Delivery
Audio port

One headset (headphone and microphone combo) port

Video port

One HDMI 2.0 port

Media-card reader

One microSD-card slot

Docking port

Not supported

Power-adapter port

One 4.5 mm x 2.9 mm DC-in

Security

Not supported

Communication wireless module

Wireless module specifications
Model number Intel AX201
Transfer rate Up to 2400 Mbps
Frequency bands supported 2.4 GHz/5 GHz
Wireless standards
  • WiFi 802.11a/b/g
  • Wi-Fi 4 (WiFi 802.11n)
  • Wi-Fi 5 (WiFi 802.11ac)
  • Wi-Fi 6 (WiFi 802.11ax)
Encryption
  • 64-bit/128-bit WEP
  • AES-CCMP
  • TKIP
Bluetooth Bluetooth 5

keyboard

Keyboard specifications
Keyboard type

Backlit keyboard

Keyboard layout

QWERTY

Number of keys
  • United States and Canada: 101 keys
  • United Kingdom: 102 keys
Keyboard size

X =18.70 mm key pitch

Y =18.05 mm key pitch

Keyboard shortcuts

Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. To type the alternate character, press Shift and the desired key. To perform secondary functions, press Fn and the desired key. For more information, see .

TouchPad

Touchpad specifications
Touchpad resolution:
Horizontal

1349

Vertical

929

Touchpad dimensions:
Horizontal

115 mm (4.53 in.)

Vertical

80 mm (3.15 in.)

Fingerprint Reader

Fingerprint reader specifications
Fingerprint-reader sensor technology

Capacitive

Fingerprint-reader sensor resolution

500 dpi

Fingerprint-reader sensor pixel size

80 x 64

Charger | Power Adapter

Power adapter specifications
Type

90 W

Connector dimensions:
External diameter

4.50 mm

Internal diameter

2.90 mm

Input voltage

100 VAC–240 VAC

Input frequency

50 Hz–60 Hz

Input current (maximum)

1.50 A

Output current (continuous)

4.62 A

Rated output voltage

19.50 VDC

Temperature range:
Operating

0°C to 40°C (32°F to 104°F)

Storage

-40°C to 70°C (-40°F to 158°F)
