Inspiron 7706 2-in-1 Specs and Review 11th Gen Core i5/i7

Dell Inspiron 7706 2-in-1 – Review

The Dell Inspiron 7706 2-in-1 is Inspiron 7000 Series laptop powered by 11th Generation Intel Core i5-1135G7 /i7 Processor, Intel Iris Xe / NVIDIA GeForce MX350 Graphics with the support of up to 16 GB Memory with speed 3200 MHz and a PCIe Gen3 x2 NVMe, up to 16 Gbps, Up to 1 TB, One M.2 2280 Intel Optane Memory H10 SSD storage. It has a Quad High Definition (QHD+) Display-panel screen with native resolution 2560 x 1600. The maximum weight for the laptop is 2.43 kg (5.36 lb) and its equipped with 4-cell 68 Wh “smart” lithium-ion in the base variant. The Inspiron 7706 2-in-1 base price is $850 but can be customized adding more specs and features

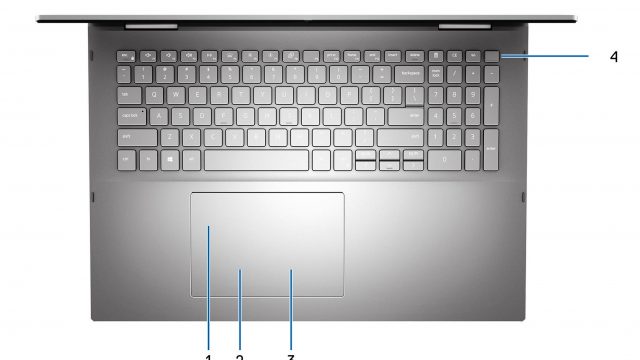

Inspiron 7706 2 in 1 – Base View

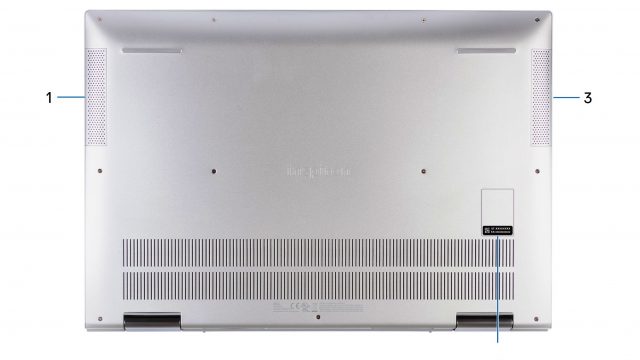

Inspiron 7706 2 in 1 – Bottom View

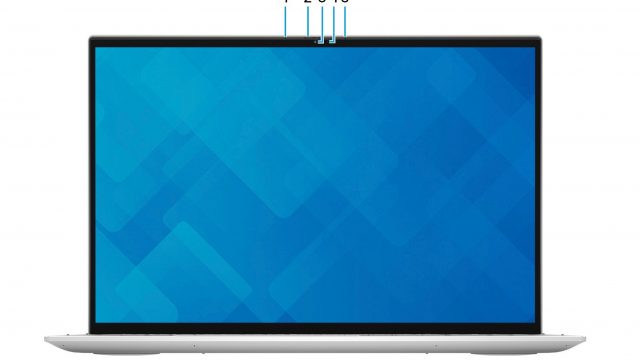

Inspiron 7706 2 in 1 – Display View

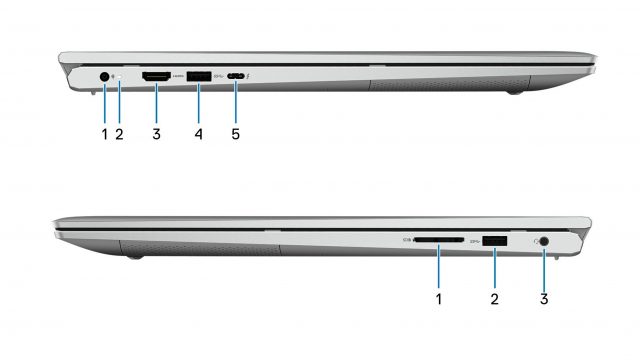

Inspiron 7706 2 in 1 – Side Views

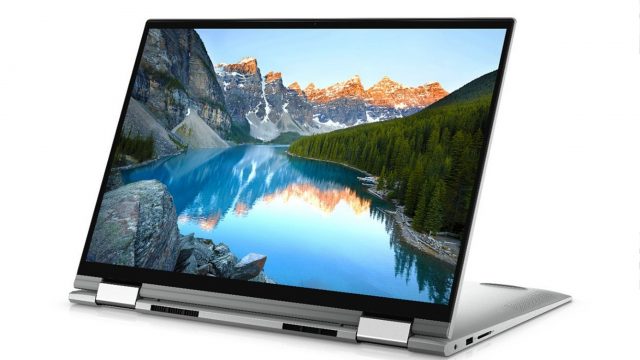

Inspiron 7706 2 in 1 – Stand View

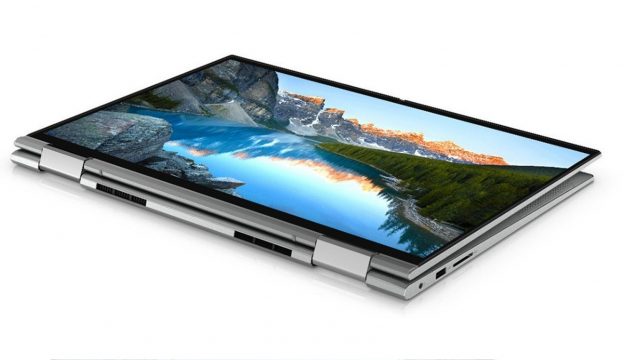

Inspiron 7706 2 in 1 -Tent View

Dell Inspiron 7706 2-in-1 – Specs

QuickSpecs
Brand	Dell
Series	Dell Inspiron 7000
Model	Dell Inspiron 7706 2-in-1
Price	Starting from $850
Color	Silver
Processor Generation	11th Generation Intel Core i5/i7
Display Size	432 mm (17.01 in.)
Weight	2.43 kg (5.36 lb)
Battery	4-cell 68 Wh “smart” lithium-ion
Minimum RAM	4 GB
Maximum RAM	16 GB
Release Date	27 SEP 2021

Dell Inspiron 7706 2-in-1 – Technical Specifications

Processor
OS
Chipset
RAM
Storage
Design
Display
GPU
GPU Card
Battery
WebCam
Audio
Card Reader
Internal Slots
External Ports
Wi-Fi
Keyboard
TouchPad
Print Reader
Charger

Processor Specifications

Processor
11th Generation Intel Core i5-1135G7	Processor type: 11th Generation Intel Core i5-1135G7 Processor wattage: 28 W Processor core count: 4 Processor thread count: 8 Processor speed: Up to 4.2 GHz Processor cache: 8 MB Integrated graphics: Intel Iris Xe Graphics
11th Generation Intel Core i7-1165G7	Processor type: 11th Generation Intel Core i7-1165G7 Processor wattage: 28 W Processor core count: 4 Processor thread count: 8 Processor speed: Up to 4.7 GHz Processor cache: 12 MB Integrated graphics: Intel Iris Xe Graphics

Operating System

Operating System
Operating System	Windows 11 Home, 64-bit Windows 11 Pro, 64-bit Windows 11 Pro National Academic, 64-bit Windows 10 Home, 64-bit Windows 10 Pro, 64-bit

Chipset

Chipset
Chipset	Integrated in the processor
Processor	11th Generation Intel Core i5/i7
DRAM bus width	64-bit
Flash EPROM	32 MB
PCIe bus	Up to Gen3

Memory (RAM)

Memory specifications
Memory slots	Two SoDIMM slots
Memory type	Dual-channel DDR4
Memory speed	3200 MHz
Maximum memory configuration	16 GB
Minimum memory configuration	4 GB
Memory size per slot	4 GB, 8 GB, 16 GB
Memory configurations supported	4 GB, 1 x 4 GB, DDR4, 3200 MHz 8 GB, 2 x 4 GB, DDR4, 3200 MHz, dual-channel 8 GB, 1 x 8 GB, DDR4, 3200 MHz 12 GB, 1 x 4 GB + 1 x 8 GB, DDR4, 3200 MHz, dual-channel 16 GB, 1 x 16 GB, DDR4, 3200 MHz 16 GB, 2 x 8 GB, DDR4, 3200 MHz, dual-channel

Storage

Storage specifications
One M.2 2230 solid-state drive	PCIe Gen3 x4 NVMe, up to 32 Gbps, Up to 512 GB
One M.2 2280 solid-state drive	PCIe Gen3 x4 NVMe, up to 32 Gbps, Up to 2 TB
One M.2 2280 Intel Optane Memory H10 with Solid State Storage	PCIe Gen3 x2 NVMe, up to 16 Gbps, Up to 1 TB

Dimensions and Weight

Dimensions and weight
Height:
Front height	15.26 mm (0.60 in.)
Rear height	19.30 mm (0.76 in.)
Width	379.80 mm (14.95 in.)
Depth	266.40 mm (10.49 in.)
Weight (maximum)	2.43 kg (5.36 lb)

Display (Screen)

Display specifications
Display-panel dimensions (active area):
Display type	Quad High Definition (QHD+)
Display-panel technology	Wide Viewing Angle
Height	228.96 mm (9.01 in.)
Width	366.34 mm (14.42 in.)
Diagonal	432 mm (17.01 in.)
Display-panel native resolution	2560 x 1600
Luminance (typical)	300 nits
Megapixels	4.09
Color gamut	sRGB 100%
Pixels Per Inch (PPI)	178
Contrast ratio (min)	41.67
Response time (max)	35 ms
Refresh rate	60 Hz
Horizontal view angle	+/- 85 degrees
Vertical view angle	+/- 85 degrees
Pixel pitch	0.14 mm
Power consumption (maximum)	5.55 W
Anti-glare vs glossy finish	Glossy
Touch options	Yes

GPU — Integrated

GPU—Integrated
Intel Iris Xe Graphics	Shared system memory, 11th Generation Intel Core i5/i7

GPU — Discrete

GPU—Discrete
NVIDIA GeForce MX350	2 GB, GDDR5

Battery Specifications

Battery specifications
Battery dimensions:
Battery type	4-cell 68 Wh “smart” lithium-ion
Battery voltage	15.20 VDC
Battery weight (maximum)	0.34 kg (0.75 lb)
Height	233 mm (9.17 in.)
Width	95.90 mm (3.78 in.)
Depth	7.05 mm (0.28 in.)
Temperature range:
Operating	0°C to 35°C (32°F to 95°F)
Storage	-40°C to 65°C (-40°F to 149°F)
Battery operating time	Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.
Battery charging time (approximate)	4 hours (when the computer is off)
Coin-cell battery	CR 2032

Camera (Web Cam) Specifications

Camera specifications
Camera resolution:
Number of cameras	One
Camera type	RGB HD camera
Camera location	Front
Camera sensor type	CMOS sensor technology
Still image	0.92 megapixel
Video	1280 x 720 (HD) at 30 fps
Diagonal viewing angle:	74.9 degrees

Audio Specifications

Audio specifications
Speaker output:
Audio controller	Realtek ALC3204
Stereo conversion	Supported
Internal audio interface	High-definition audio interface
External audio interface	Universal Audio Jack
Number of speakers	2
Internal-speaker amplifier	Supported
External volume controls	Keyboard shortcut controls
Average speaker output	2 W
Peak speaker output	2.5 W
Subwoofer output	Not supported
Microphone	Digital-array microphones in camera assembly

Media-card Reader

Media-card reader specifications

Media-card type	One SD-card slot
Media-cards supported	Secure Digital (SD) Secure Digital High Capacity (SDHC) Secure Digital Extended Capacity (SDXC)

Internal slots

Internal slots
M.2	One M.2 2230 slot for WiFi and Bluetooth combo card One M.2 2230/2280 slot for solid-state drive/Intel Optane memory

External Ports

External ports
USB ports	Two USB 3.2 Gen 1 ports One Thunderbolt 4 Type-C port with Power Delivery
Audio port	One headset (headphone and microphone combo) port
Video port	One HDMI 1.4 port
Media-card reader	One SD-card slot
Docking port	N/A
Power-adapter port	One 4.5 mm barrel
Security	N/A

Communication wireless module

Wireless module specifications
Model number	Intel AX201
Transfer rate	Up to 2400 Mbps
Frequency bands supported	2.4 GHz/5 GHz
Wireless standards	Up to Wi-Fi 6 (WiFi 802.11ax)
Encryption	64-bit/128-bit WEP AES-CCMP TKIP
Bluetooth	Bluetooth 5.1

keyboard

Keyboard specifications
Keyboard type	Backlit keyboard
Keyboard layout	QWERTY
Number of keys	United States and Canada: 101 keys United Kingdom: 102 keys Japan: 105 keys
Keyboard size	X=18.7 mm key pitch Y=18.05 mm key pitch
Keyboard shortcuts	Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. To type the alternate character, press Shift and the desired key. To perform secondary functions, press Fn and the desired key.

TouchPad

Touchpad specifications
Touchpad resolution:
Horizontal	4085
Vertical	2742
Touchpad dimensions:
Horizontal	133 mm (5.24 in.)
Vertical	90 mm (3.54 in.)
Touchpad gestures	For more information about touchpad gestures available on Windows, see the Microsoft knowledge base article at .

Fingerprint Reader

Fingerprint reader specifications
Fingerprint-reader sensor technology	Capacitive
Fingerprint-reader sensor resolution	500 dpi
Fingerprint-reader sensor pixel size	80 x 64

Charger | Power Adapter

Power adapter specifications
Connector dimensions:
Type	E90W
External diameter	4.50 mm
Internal diameter	2.90 mm
Input voltage	100 VAC–240 VAC
Input frequency	50 Hz–60 Hz
Input current (maximum)	1.50 A
Output current (continuous)	4.62 A
Rated output voltage	19.50 VDC
Temperature range:
Operating	0°C to 40°C (32°F to 104°F)
Storage	-40°C to 70°C (-40°F to 158°F)
