Dell Inspiron 24 5410 All In One Specs and Review Desktop

Dell Inspiron 24 5410 All in One Desktop Computer – Review

The Dell Inspiron 24 5410 is All In One Desktop Computer Series machine launched in 22 MAR 2022 and its powered by Intel Pentium 7305 Processor, NVIDIA GeForce MX550 GDDR6 with the support of up to DDR4 32 GB RAM having speed of 3200 MHz and a 2.5-inch hard-drive Up to 2 TB storage. The maximum weight of this desktop computer is 5.42 kg (11.95 lb) in the base variant. The Dell Inspiron 24 5410 All in One base price is $649 but can be customized adding more specs and features.

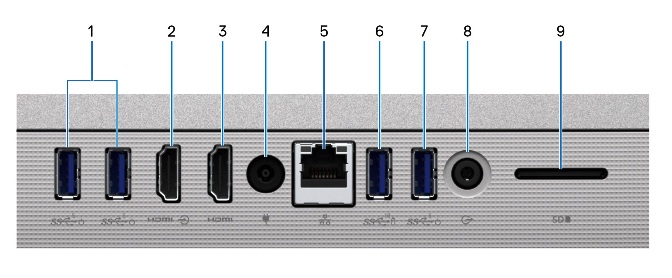

Dell Inspiron 24 5410 All in One – Back Panel View

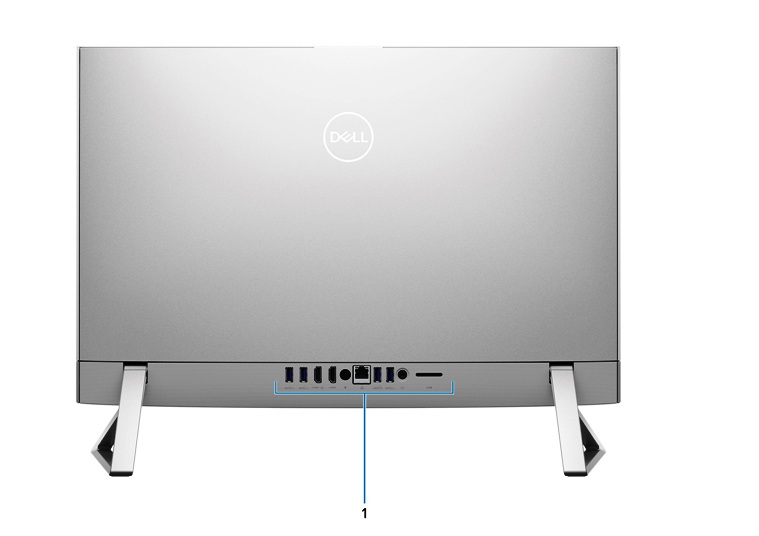

Dell Inspiron 24 5410 All in One – Back View

Dell Inspiron 24 5410 All in One – Bottom View

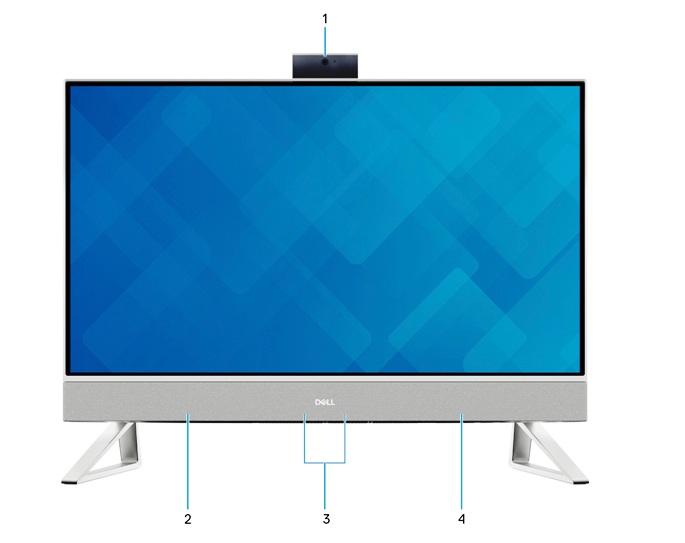

Dell Inspiron 24 5410 All in One – Front View

Dell Inspiron 24 5410 All in One – Isosceles Stand View

Dell Inspiron 24 5410 All in One – Left View

Dell Inspiron 24 5410 All in One – Retractable Camera View

Dell Inspiron 24 5410 All in One – Specs

QuickSpecs
Brand	Dell
Series	Dell Inspiron All In One Desktop Computer
Model	Dell Inspiron 24 5410 All-in-One
Price	Starting from $649
Color	White
Processor Generation	Intel Pentium 7305
Audio	Realtek ALC3289
Weight	5.42 kg (11.95 lb)
Minimum RAM	4 GB
Maximum RAM	32 GB
Release Date	22 MAR 2022

Processor
OS
Chipset
RAM
Storage
Design
Display
GPU
GPU Card
WebCam
Audio
Card Reader
Connectors
Wi-Fi
Charger

Dell Inspiron 24 5410 All-in-One – Full Specifications

Dell Inspiron 24 5410 All-in-One Processor Specifications

Processor
Intel Pentium 7305	Processor type: Intel Pentium 7305 Processor wattage: 15 W Processor core count: 5 Processor speed: Up to 1.10 GHz Processor cache: 8 MB Integrated graphics: Intel UHD Graphics
Intel Pentium 8505	Processor type: Intel Pentium 8505 Processor wattage: 15 W Processor core count: 5 Processor speed: Up to 4.40 GHz Processor cache: 8 MB Integrated graphics: Intel UHD Graphics
12th Generation Intel Core i3-1215U	Processor type: 12th Generation Intel Core i3-1215U Processor wattage: 15 W Processor core count: 6 Processor speed: Up to 4.40 GHz Processor cache: 10 MB Integrated graphics: Intel UHD Graphics
12th Generation Intel Core i5-1235U	Processor type: 12th Generation Intel Core i5-1235U Processor wattage: 15 W Processor core count: 10 Processor speed: Up to 4.40 GHz Processor cache: 12 MB Integrated graphics Intel UHD Graphics Intel Iris Xe Graphics
12th Generation Intel Core i7-1255U	Processor type: 12th Generation Intel Core i7-1255U Processor wattage: 15 W Processor core count: 10 Processor speed: Up to 4.70 GHz Processor cache: 12 MB Integrated graphics Intel UHD Graphics Intel Iris Xe Graphics

Operating System

Operating System
Operating System	Windows 11 Pro, 64-bit Windows 11 Home, 64-bit

Chipset

Chipset
Chipset	Integrated in the processor
Processor	12th Generation Intel Core i3/i5/i7 Intel Pentium
DRAM bus width	64-bit
Flash EPROM	32 MB
PCIe bus	Up to Gen4.0

Dell Inspiron 24 5410 All-in-One Memory (RAM)

Memory specifications
Memory slots	Two SODIMM slots
Memory type	DDR4
Memory speed	3200 MHz
Maximum memory configuration	32 GB
Minimum memory configuration	4 GB
Memory size per slot	4 GB, 8 GB, 16 GB, 32 GB
Memory configurations supported	4 GB, 1 x 4 GB, DDR4, 3200 MHz 8 GB, 2 x 4 GB, DDR4, 3200 MHz 8 GB, 1 x 8 GB, DDR4, 3200 MHz 12 GB, 1 x 4 GB + 1 x 8 GB, DDR4, 3200 MHz 16 GB, 2 x 8 GB, DDR4, 3200 MHz 16 GB, 1 x 16 GB, DDR4, 3200 MHz 24 GB, 1 x 8 GB + 1 x 16 GB, DDR4, 3200 MHz 32 GB, 2 x 16 GB, DDR4, 3200 MHz 32 GB, 1 x 32 GB, DDR4, 3200 MHz

Storage

Storage specifications
2.5-inch hard-drive	SATA AHCI, up to 6 Gbps, Up to 2 TB
M.2 2230 solid-state drive	PCIe Gen3 x4 NVMe, up to 32 Gbps, Up to 1 TB
M.2 2230 solid-state drive	PCIe Gen4 x4 NVMe, up to 64 Gbps, Up to 1 TB
M.2 2280, QLC solid-state drive	PCIe Gen3 x4 NVMe, up to 32 Gbps, Up to 1 TB

Dell Inspiron 24 5410 All-in-One Dimensions and Weight

Computer dimensions and weight (without stand)
Height
Front	353.80 mm (13.93 in.)
Rear	358.50 mm (14.11 in.)
Width	542.70 mm (21.37 in.)
Depth	40.20 mm (1.58 in.)
Weight	5.42 kg (11.95 lb) – maximum for touchscreen 5.39 kg (11.88 lb) – maximum for non-touchscreen

Dell Inspiron 24 5410 All-in-One Display (Screen)

Display specifications
Full High Definition (FHD)	Display type: Full High Definition (FHD) Display-panel technology: Wide Viewing Angle (WVA) Display-panel dimensions (active area): Height: 296.46 mm (11.67 in.) Width: 527.04 mm (20.75 in.) Diagonal: 604.70 mm (23.80 in.) Display-panel native resolution: 1920 x 1080 Luminance (typical): 300 nits Megapixels: 2.07 Color gamut: 99% (sRGB) – typical Pixels Per Inch (PPI): 92 Contrast ratio (min.): 700:1 Response time (max.): 25 ms Refresh rate: 60 Hz Horizontal view angle: 85 +/- degrees – minimum Vertical view angle: 85 +/- degrees – minimum Pixel pitch: 0.2745 mm x 0.2745 mm Power consumption (maximum): 17.24 W Anti-glare vs glossy finish: Anti-glare Touch options: Touch support with 10 touch points
Full High Definition (FHD)	Display type: Full High Definition (FHD) Display-panel technology: Wide Viewing Angle (WVA) Display-panel dimensions (active area): Height: 296.46 mm (11.67 in.) Width: 527.04 mm (20.75 in.) Diagonal: 604.70 mm (23.80 in.) Display-panel native resolution: 1920 x 1080 Luminance (typical): 250 nits Megapixels: 2.07 Color gamut: 99% (sRGB) – typical Pixels Per Inch (PPI): 92 Contrast ratio (min.): 700:1 Response time (max.): 25 ms Refresh rate: 60 Hz Horizontal view angle: 85 +/- degrees – minimum Vertical view angle: 85 +/- degrees – minimum Pixel pitch: 0.2745 mm x 0.2745 mm Power consumption (maximum): 12.70 W Anti-glare vs glossy finish: Anti-glare Touch options: No

Integrated Graphics

GPU—Integrated
Intel Iris Xe Graphics	Shared system memory, 12th Generation Intel Core i5/i7
Intel UHD Graphics	Shared system memory, 12th Generation Intel Core i3, Intel Pentium 8505/7305

GPU — Discrete

GPU—Discrete
NVIDIA GeForce MX550	2 GB, GDDR6

Camera (Web Cam) Specifications

Camera specifications
Camera resolution:
Number of cameras	One
Camera type	FHD RGB camera FHD RGB + Infrared camera
Camera location	Front camera
Camera sensor type	CMOS sensor technology
Still image	2.07 megapixel
Video	1920 x 1080 (FHD) at 30 fps
Infrared camera resolution:
Still image	0.31 megapixel
Video	640 x 480 (VGA) at 30 fps
Diagonal viewing angle:
Camera	82 degrees
Infrared camera	77.3 degrees

Audio Specifications

Audio specifications
Speaker output:
Audio controller	Realtek ALC3289
Stereo conversion	Supported
Internal audio interface	High definition audio
External audio interface	Universal audio jack
Number of speakers	2
Internal-speaker amplifier	Supported
External volume controls	Not supported
Average speaker output	5 W
Peak speaker output	6 W
Subwoofer output	Not supported
Microphone	Digital-array microphones

Media-card Reader

Media-card reader specifications

Media-card type	One SD-card slot
Media-cards supported	Secure Digital (SD) Secure Digital High Capacity (SDHC) Secure Digital Extended Capacity (SDXC)

Ports and connectors

Ports and connectors
External:
Network	One RJ-45 port
USB	Three USB 3.1 Gen 1 ports with Power on/Wake-up support One USB 3.1 Gen 2 port with PowerShare One USB 3.2 Gen 2 (Type-C) port
Audio	One universal audio jack
Video	One HDMI 1.4b port One HDMI-in 1.4b port
Media-card reader	One SD-card slot
Power port	One 4.5 mm x 2.9 mm DC-in
Security	Not supported
Internal:
SATA	One SATA slot for 2.5-inch HDD
M.2	One M.2 2230 slot for WiFi and Bluetooth combo card One M.2 2230/2280 slot for solid-state drive

Communication wireless module

Wireless module specifications
Intel AX201	Model number: Intel AX201 Transfer rate: Up to 2400 Mbps Frequency bands supported: 2.4 GHz/5 GHz Wireless standards WiFi 802.11a/b/g Wi-Fi 4 (WiFi 802.11n) Wi-Fi 5 (WiFi 802.11ac) Wi-Fi 6 (WiFi 802.11ax) Encryption 64-bit/128-bit WEP AES-CCMP TKIP Bluetooth: Bluetooth 5.2
Intel AX211	Model number: Intel AX211 Transfer rate: Up to 2400 Mbps Frequency bands supported: 2.4 GHz/5 GHz/6 GHz Wireless standards WiFi 802.11a/b/g Wi-Fi 4 (WiFi 802.11n) Wi-Fi 5 (WiFi 802.11ac) Wi-Fi 6E (WiFi 802.11ax) Encryption 64-bit/128-bit WEP AES-CCMP TKIP Bluetooth: Bluetooth 5.2

Charger | Power Adapter

Power adapter specifications
90 W	Type: 90 W Connector dimensions: External diameter: 4.50 mm Internal diameter: 2.90 mm Power-adapter dimensions: Height: 1.30 mm (0.05 in.) Width: 2 mm (0.08 in.) Depth: 5 mm (0.20 in.) Input voltage: 100 VAC–240 VAC Input frequency: 50 Hz–60 Hz Input current (maximum): 1.50 A Output current (continuous): 4.62 A Rated output voltage: 19.50 VDC Temperature range: Operating: 0°C to 40°C (32°F to 104°F) Storage: -40°C to 70°C (-40°F to 158°F) CAUTION Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.
130 W	Type: 130 W Connector dimensions: External diameter: 4.50 mm Internal diameter: 2.90 mm Power-adapter dimensions: Height: 1.00 mm (0.04 in.) Width: 3 mm (0.12 in.) Depth: 6.1 mm (0.24 in.) Input voltage: 100 VAC–240 VAC Input frequency: 50 Hz–60 Hz Input current (maximum): 2.50 A Output current (continuous): 6.70 A Rated output voltage: 19.50 VDC Temperature range: Operating: 0°C to 40°C (32°F to 104°F) Storage: -40°C to 70°C (-40°F to 158°F) CAUTION Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.
