Dell Inspiron 7777 AIO – Review
The Dell Inspiron 7777 is Dell Inspiron All In One Desktop Computer launched on 16 APR 2018 and its powered by 8th Generation Intel Core i3/i5/i7 Processor, NVIDIA GTX GeForce 1050 4 GB GDDR5 Graphics with the support of up to DDR4 32 GB RAM having speed of 2666 MHz and a One 2.5-inch Hard-Disk Drive (HDD) Up to 2 TB storage. The maximum weight of this desktop computer is 7.90 kg (17.42 lb) in the base variant. The Dell Inspiron 7777 base price is USD $879 but can be customized adding more specs and features.
Dell Inspiron 7777 – Back Panel View

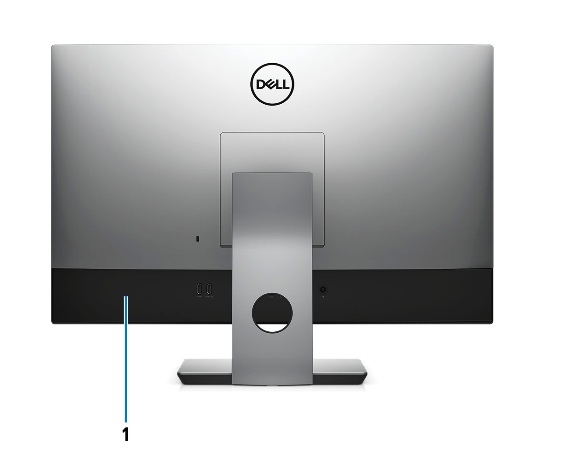

Dell Inspiron 7777 – Back View
Dell Inspiron 7777 – Bottom View

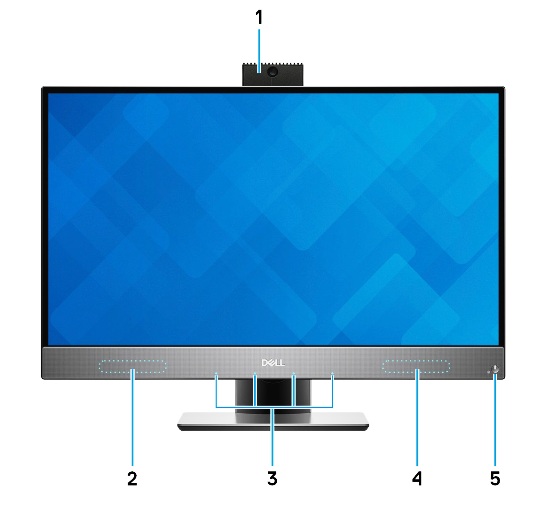

Dell Inspiron 7777 – Front View

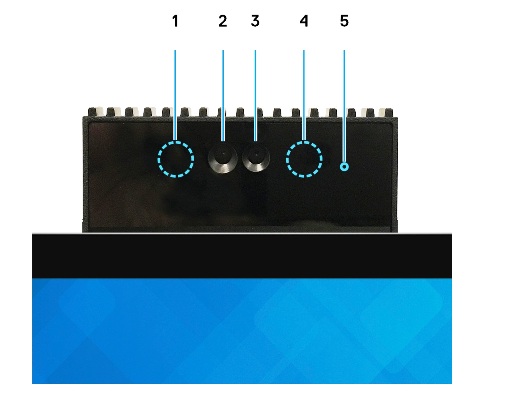

Dell Inspiron 7777 – Retractable Camera View
Dell Inspiron 7777 – Side Views
Dell Inspiron 7777 – Tilt Pedestal Stand View
Dell Inspiron 7777 – Specs
QuickSpecs
Brand |
Dell |
Series |
Dell Inspiron All In One Desktop Computer |
Model |
Dell Inspiron 7777 |
Price |
Starting from USD $879 |
Color |
Silver |
Processor Generation |
8 th Generation Intel Core i3/i5/i7 |
Audio |
Realtek ALC3289-CG with Waves MaxxAudio Pro |
Weight |
7.90 kg (17.42 lb) |
Minimum RAM |
4 GB |
Maximum RAM |
32 GB |
Release Date |
16 APR 2018 |
Dell Inspiron 7777 – Full Specifications
Processor Information
System information
Processor |
8 th Generation Intel Core i3/i5/i7 |
Chipset |
Intel H310 |
Operating System
Operating System
Operating System |
- Ubuntu
- Windows 10 Home 64-bit
- Windows 10 Professional 64-bit
|
Dell Inspiron 7777 Memory (RAM)
Memory specifications
Slots |
Two SODIMM slots |
Type |
DDR4 |
Speed |
Up to 2666 MHz |
Configurations supported: |
Per memory module slot |
4 GB, 8 GB, and 16 GB |
Total memory |
4 GB, 8 GB, 12 GB, 16 GB, 24 GB, and 32 GB |
Storage
Storage specifications
One 2.5-inch Hard-Disk Drive (HDD) |
SATA AHCI, Up to 6 Gbps, Up to 2 TB |
One 2.5-inch Solid-State Hybrid Drive (SSHD) |
SATA AHCI, Up to 6 Gbps, Up to 1 TB |
One M.2 2280 Solid-State Drive (SSD) |
- SATA AHCI, Up to 6 Gbps
- PCIe 3 x4 NVME, Up to 32 Gbps
|
One M.2 2230 Solid-State Drive (SSD) |
PCIe 3×2 NVMe, up to 16 Gbps, Up to 512 GB |
Dell Inspiron 7777 Dimensions and Weight
Dimensions and weight
Height |
389 mm (15.31 in)
|
Width |
614 mm (24.17 in)
|
Depth |
58 mm (2.28 in)
|
Weight without stand (maximum) |
- Touch: 8.28 kg (18.28 lb)
- Non-touch: 8.07 kg (17.79 lb)
|
Weight without stand (minimum) |
- Touch: 8.12 kg (17.90 lb)
- Non-touch: 7.90 kg (17.42 lb)
|
|
|
Dell Inspiron 7777 Display (Screen)
Display specifications
1920 x 1080 |
- Resolution (maximum): 1920 x 1080
- Panel technology: IPS
- Viewing angle (Left/Right/Up/Down): 89/89/89/89 degrees
- Pixel pitch: 0.3114
- Refresh rate: 60 Hz
- Controls: Program menus
- Dimensions:
- Height (excluding bezel): 597.89 mm (23.54 in)
- Width (excluding bezel): 336.31 mm (13.24 in)
- Diagonal (excluding bezel): 686.00 mm (27 in)
|
1920 x 1080 |
- Resolution (maximum): 1920 x 1080
- Panel technology: IPS
- Viewing angle (Left/Right/Up/Down): 89/89/89/89 degrees
- Pixel pitch: 0.3114
- Refresh rate: 60 Hz
- Controls: Program menus
- Dimensions:
- Height (excluding bezel): 597.89 mm (23.54 in)
- Width (excluding bezel): 336.31 mm (13.24 in)
- Diagonal (excluding bezel): 686.00 mm (27 in)
|
3840 x 2160 |
- Resolution (maximum): 3840 x 2160
- Panel technology: IPS
- Viewing angle (Left/Right/Up/Down): 89/89/89/89 degrees
- Pixel pitch: 0.1554
- Refresh rate: 60 Hz
- Controls: Program menus
- Dimensions:
- Height (excluding bezel): 596.74 mm (23.49 in)
- Width (excluding bezel): 335.66 mm (13.21 in)
- Diagonal (excluding bezel): 684.70 mm (27 in)
|
Video | Graphics
Video specifications
Intel UHD Graphics 630 |
- Controller: Intel UHD Graphics 630
- Memory: Shared system memory
|
NVIDIA GTX GeForce 1050 |
- Controller: NVIDIA GTX GeForce 1050
- Memory: 4 GB GDDR5
|
Camera (Web Cam) Specifications
Camera specifications
Resolution: |
Camera |
- Still Image: 2 MP
- Video: 1920 x 1080 at 30 FPS
|
Infrared camera |
- Still Image: 0.3 MP
- Video: 640 x 480 at 30 FPS
|
Diagonal viewing angle: |
Camera |
88 degrees |
Infrared camera |
82.9 degrees |
Audio Specifications
Audio specifications
Controller |
Realtek ALC3289-CG with Waves MaxxAudio Pro |
Speakers |
Two |
Speaker output |
|
Microphone |
Digital-array microphones |
Media-card Reader
Media-card reader specifications
Type |
One 3-in-1 slot |
Cards supported |
- SD card
- SD High Capacity (SDHC)
- SD Extended Capacity (SDXC)
|
Ports and connectors
Ports and connectors specifications
Left |
USB |
- One USB 3.1 Gen 1 port with PowerShare
- One USB 3.1 Gen 1 (Type-C) port
|
Audio |
|
Back |
Network |
One RJ45 port |
USB |
- Two USB 2.0 ports with Power on/Wake-up support
- Two USB 3.1 Gen 1 ports
|
Audio/Video |
- One HDMI-in 1.4 port (FHD display)/One HDMI-in 2.0 port (UHD display)
- One HDMI-out 1.4 port (integrated graphics)/One HDMI-out 2.0 port (discrete graphics)
- Audio-out port
|
Ports and connectors
Ports and connectors specifications
M.2 card |
- One M.2 slot for solid-state drive
- One M.2 slot for Wireless and Bluetooth combo card
|
Communication wireless module
Communication specifications
Ethernet |
10/100/1000 Mbps Ethernet controller integrated on system board |
Wireless |
- Wi-Fi 802.11a/b/g/n/ac
- Bluetooth 4.2
|
Charger | Power Adapter
Power adapter specifications
1.80 A |
- Input current (maximum): 1.80 A
- Output current (continuous): 6.70 A
- Input Voltage: 100 VAC to 240 VAC
- Input frequency: 50 Hz to 60 Hz
- Rated output voltage: 19.50 VDC
- Temperature range:
- Operating: 0°C to 40°C (32°F to 104°F)
- Storage: –40°C to 70°C (–40°F to 158°F)
|
2.34 A |
- Input current (maximum): 2.34 A
- Output current (continuous): 9.23 A
- Input Voltage: 100 VAC to 240 VAC
- Input frequency: 50 Hz to 60 Hz
- Rated output voltage: 19.50 VDC
- Temperature range:
- Operating: 0°C to 40°C (32°F to 104°F)
- Storage: –40°C to 70°C (–40°F to 158°F)
|
