Alienware m15 R4 is thin and powerful 15-inch Dell gaming series laptop. Now with the option for up to 10th Gen Intel® CPU & NVIDIA® GeForce RTX™ 30-series graphics. Dell Alienware m15 R4 laptop price starts from USD $1750 and goes up when laptop customized with added specs.

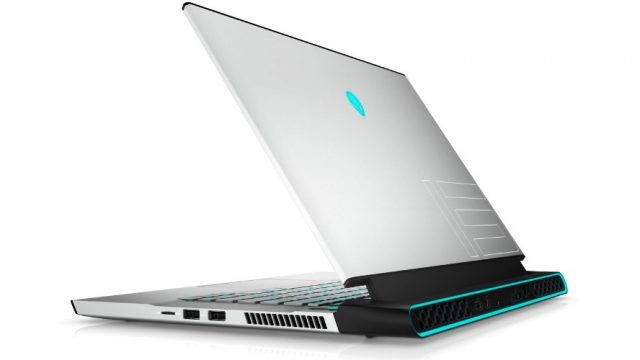

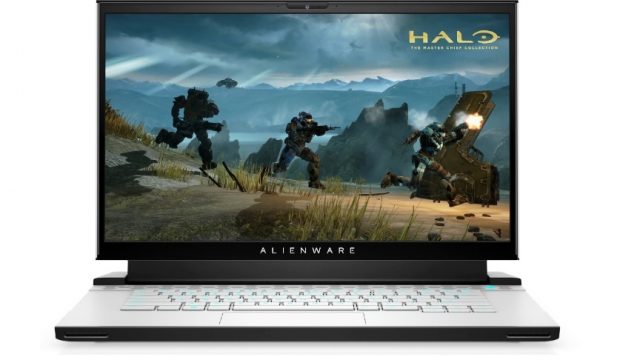

Dell Alienware m15 R4 Gaming Laptop
Dell Alienware m15 R4
Dell Alienware m15 R4 Price starts from USD $1830 Approximately
Processor Specifications
| 10th Generation Intel Core i7-10870H |
|
|---|---|
| 10th Generation Intel Core i9-10980HK |
|
Operating System
| Operating System |
|
|---|
Chipset
| Chipset |
HM470 |
|---|---|
| Processor |
10th Generation Intel Core i7/i9K |
| DRAM bus width |
128-bit |
| Flash EPROM |
16 MB |
| PCIe bus |
Up to Gen3 |
Memory (RAM)
| Memory slots |
Onboard system memory |
|---|---|
| Memory type |
Dual-channel DDR4 |
| Memory speed |
2933 MHz |
| Maximum memory configuration |
32 GB |
| Minimum memory configuration |
16 GB |
| Memory configurations supported |
|
Storage Types
| M.2 2230 solid-state drive | PCIe Gen3 x4 NVMe, up to 32 Gbps, Up to 512 GB |
|---|---|
| M.2 2280 solid-state drive | PCIe Gen3 x4 NVMe, up to 32 Gbps, Up to 2 TB |
Storage
| Storage |
|
|---|
Dimensions and Weight
| Height: | |
|---|---|
| Front height |
|
| Rear height |
19.70 mm (0.78 in.) |
| Width |
360.30 mm (14.19 in.) |
| Depth |
|
| Weight (maximum) |
2.50 kg (5.51 lb) |
Display (Screen)
| 15.6-inch Full High Definition (FHD) |
|
|---|---|
| 15.6-inch Full High Definition (FHD) |
|
| 15.6-inch Ultra High Definition (UHD) |
|
GPU — Integrated
| Intel UHD graphics |
, Shared system memory, 10th Generation Intel Core i7/i9K |
|---|
GPU — Discrete
| NVIDIA GeForce RTX 3060 | 6 GB, GDDR6 |
|---|---|
| NVIDIA GeForce RTX 3070 | 8 GB, GDDR6 |
| NVIDIA GeForce RTX 3080 | 8 GB, GDDR6 |
Battery Specifications
| Battery type |
86 WHr, 6-cell “smart” lithium-ion battery |
|---|---|
| Battery voltage |
11.40 VDC |
| Battery weight (maximum) |
0.34 kg (0.75 lb) |
| Battery dimensions: | |
| Height |
77.70 mm (3.06 in.) |
| Width |
295.20 mm (11.62 in.) |
| Depth |
7.56 mm (0.30 in.) |
| Temperature range: | |
| Operating |
0°C to 60°C (32°F to 140°F) |
| Storage |
-20°C to 60°C (-4°F to 140°F) |
| Battery operating time | Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions. |
| Battery charging time (approximate) |
3 hours (when the computer is off) |
| Coin-cell battery |
Not supported |
Camera (Web Cam) Specifications
| Number of cameras |
One camera |
|---|---|
| Camera type |
HD RGB camera |
| Camera location |
Front camera |
| Camera sensor type |
CMOS sensor technology |
| Camera resolution: | |
| Still image |
0.92 megapixel |
| Video |
1280 x 720 (HD) at 30 fps |
| Diagonal viewing angle: |
74.9 degrees |
Audio Specifications
| Audio controller |
Realtek ALC3281-CG |
|---|---|
| Stereo conversion |
Supported |
| Internal audio interface |
High definition audio interface |
| External audio interface |
|
| Number of speakers |
2-Way (woofer/tweeter) stereo speaker design |
| Internal-speaker amplifier |
Supported |
| External volume controls |
Keyboard shortcut controls |
| Speaker output: | |
| Average speaker output |
4 W |
| Peak speaker output |
5 W |
| Subwoofer output |
Not supported |
| Microphone |
Digital-array microphones in camera assembly |
Media-card Reader
| Media-card type |
One microSD card slot |
|---|---|
| Media-cards supported |
|
Internal slots
| M.2 |
|
|---|
External Ports
| Network port |
One RJ-45 port |
|---|---|
| USB ports |
|
| Audio port |
One headset (headphone and microphone combo) port |
| Video port |
|
| Media-card reader |
One microSD card slot |
| Power-adapter port |
One 7.4 mm x 5.1 mm E4 DC-in |
| Security-cable slot |
One wedge-shaped slot |
Communication wireless module
| Model number |
Killer Wi-Fi 6 AX1650 |
|---|---|
| Transfer rate |
Up to 2400 Mbps |
| Frequency bands supported |
2.4 GHz/5 GHz |
| Wireless standards |
|
| Encryption |
|
| Bluetooth |
Bluetooth 5.1 |
keyboard
| Keyboard type |
|
|---|---|
| Keyboard layout |
QWERTY |
| Number of keys |
|
| Keyboard size |
X=19.05 mm key pitch Y=19.05 mm key pitch |
| Keyboard shortcuts |
Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. To type the alternate character, press Shift and the desired key. To perform secondary functions, press Fn and the desired key. \n\t\t\t\tFor more information, see \n\t\t\t\t. |
TouchPad
| Touchpad resolution: | |
|---|---|
| Horizontal |
1217 |
| Vertical |
681 |
| Touchpad dimensions: | |
| Horizontal |
105 mm (4.13 in.) |
| Vertical |
60 mm (2.36 in.) |
| Touchpad gestures | For more information about touchpad gestures available on Windows, see the Microsoft knowledge base article \n\t\t\t\t at \n\t\t\t\t. |
Power Adapter
| Type |
240 W |
|---|---|
| Connector dimensions: | |
| External diameter |
7.40 mm |
| Internal diameter |
5.10 mm |
| Input voltage |
100 VAC–240 VAC |
| Input frequency |
50 Hz–60 Hz |
| Input current (maximum) |
5 A |
| Output current (continuous) |
12.31 A |
| Rated output voltage |
19.50 VDC |
| Temperature range: | |
| Operating |
0°C to 40°C (32°F to 104°F) |
| Storage |
-40°C to 70°C (-40°F to 158°F) |
