Alienware m17 R4 Specs and User Review Perfect Gaming Laptop

Dell Alienware m17 R4 Specs are 10th Generation Intel Core i7-10870H, 16 GB, 2 x 8 GB, DDR4, 2933 MHz, NVIDIA GeForce RTX 3080 Given its feature set and premium price starting from $2000, the Dell Alienware m17 R4 is an perfect gaming laptop. Its blazing display frame rates, build quality,amazing look and unique mechanical keyboard set it apart from the pack

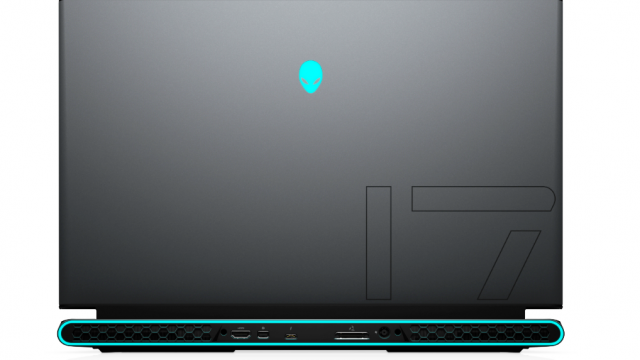

Dell Alienware m17 R4

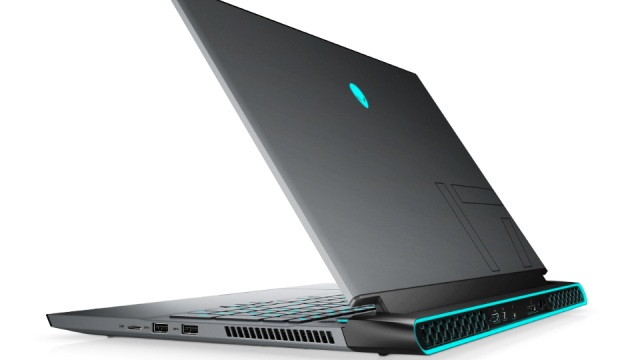

Alienware m17 R4 Black

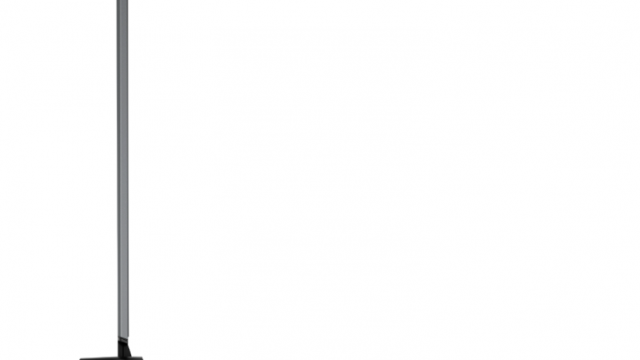

Alienware m17 R4 Gaming Laptop

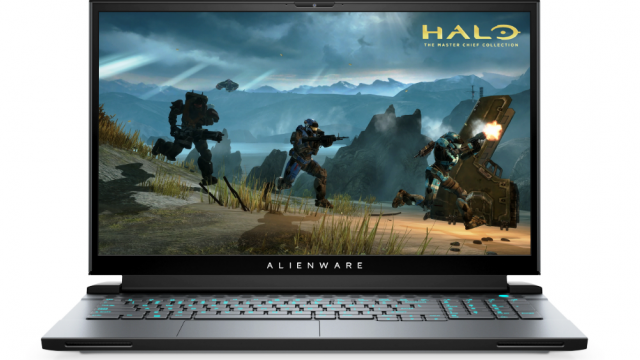

Alienware m17 R4

Alienware m17 R4 Price starts from $2000

Below In detail and full technical specifications include all the customization that officially available and definitely laptop price increases as more specs are added to the customized version.

Processor Specifications

Processor
10th Generation Intel Core i7-10870H	Processor type: 10th Generation Intel Core i7-10870H Processor wattage: 45 W Processor core count: 8 Processor thread count: 16 Processor speed: Up to 5 GHz Processor cache: 16 MB Integrated graphics: Intel UHD Graphics 630
10th Generation Intel Core i9-10980HK	Processor type: 10th Generation Intel Core i9-10980HK Processor wattage: 45 W Processor core count: 8 Processor thread count: 16 Processor speed: Up to 5.3 GHz Processor cache: 16 MB Integrated graphics: Intel UHD Graphics 630

Operating System

Operating System
Operating System	Windows 11 Home, 64-bit Windows 11 Pro, 64-bit Windows 10 Home, 64-bit Windows 10 Pro, 64-bit

Chipset

Chipset
Chipset	HM470
Processor	10th Generation Intel Core i7/i9k
DRAM bus width	128-bit
Flash EPROM	16 MB
PCIe bus	Up to Gen3

Memory (RAM)

Memory specifications
Memory slots	Onboard
Memory type	Dual-channel DDR4
Memory speed	2933 MHz
Maximum memory configuration	32 GB
Minimum memory configuration	16 GB
Memory configurations supported	16 GB, 2 x 8 GB, DDR4, 2933 MHz 32 GB, 2 x 16 GB, DDR4, 2933 MHz

Storage

Storage specifications
M.2 2230 solid-state drive	PCIe Gen3 x4 NVMe, Up to 512 GB
M.2 2280 solid-state drive	PCIe Gen3 x4 NVMe, Up to 2 TB

Storage

Storage
Storage	One M.2 2230/2280 solid-state drive Two M.2 2230 solid-state drives Two M.2 2280 solid-state drives One M.2 2230 solid-state drive and two M.2 2280 solid-state drives

Dimensions and Weight

Dimensions and weight
Height (maximum)	22 mm (0.87 in.)
Width	399.80 mm (15.74 in.)
Depth	294.30 mm (11.59 in.)
Weight (maximum)	2.97 kg (6.55 lb)

Display (Screen)

Display specifications
Full High Definition (FHD)	Display type: Full High Definition (FHD) Display-panel technology: Wide-Viewing Angle (WVA) Display-panel dimensions (active area): Height: 214.81 mm (8.46 in.) Width: 381.89 mm (15.04 in.) Diagonal: 438.16 mm (17.25 in.) Display-panel native resolution: 1920 x 1080 Luminance (typical): 300 nits Megapixels: 2.07 Color gamut: 72% (NTSC) Pixels Per Inch (PPI): 127 Contrast ratio (typ): 600 : 1 Response time (max): 7 ms Refresh rate: 144 Hz Horizontal view angle: 85 +/- degrees Vertical view angle: 85 +/- degrees Pixel pitch: 0.1989 mm Power consumption (maximum): 8.67 W Anti-glare vs glossy finish: Anti-glare Touch options: No G-Sync support: Optional
Full High Definition (FHD)	Display type: Full High Definition (FHD) Display-panel technology: Wide-Viewing Angle (WVA) Display-panel dimensions (active area): Height: 214.81 mm (8.46 in.) Width: 381.89 mm (15.04 in.) Diagonal: 438.16 mm (17.25 in.) Display-panel native resolution: 1920 x 1080 Luminance (typical): 300 nits Megapixels: 2.07 Color gamut: 100% (sRGB) Pixels Per Inch (PPI): 127 Contrast ratio (typ): 700 : 1 Response time (max): 5 ms Refresh rate: 360 Hz Horizontal view angle: 85 +/- degrees Vertical view angle: 85 +/- degrees Pixel pitch: 0.1989 mm Power consumption (maximum): 7 W Anti-glare vs glossy finish: Anti-glare Touch options: No G-Sync support: Yes
Ultra High Definition (UHD)	Display type: Ultra High Definition (UHD) Display-panel technology: Wide-Viewing Angle (WVA) Display-panel dimensions (active area): Height: 214.81 mm (8.46 in.) Width: 381.89 mm (15.04 in.) Diagonal: 438.16 mm (17.25 in.) Display-panel native resolution: 3840 x 2160 Luminance (typical): 500 nits Megapixels: 8.29 Color gamut: 100% (Adobe RGB) Pixels Per Inch (PPI): 255 Contrast ratio (typ): 1200 : 1 Response time (max): 25 ms Refresh rate: 60 Hz Horizontal view angle: +/- 85 degrees Vertical view angle: +/- 85 degrees Pixel pitch: 0.0994 mm Power consumption (maximum): 12 W Anti-glare vs glossy finish: Anti-glare Touch options: No G-Sync support: No

GPU — Integrated

GPU—Integrated
Intel UHD Graphics 630	One HDMI 2.1 port One Mini DisplayPort 1.4 One Thunderbolt 3 (USB Type-C) port with Power Delivery , Shared system memory, 10th Generation Intel Core i7/i9k

GPU — Discrete

GPU—Discrete
NVIDIA GeForce RTX 3060	6 GB, GDDR6
NVIDIA GeForce RTX 3070	8 GB, GDDR6
NVIDIA GeForce RTX 3080	16 GB, GDDR6

Battery Specifications

Battery specifications
Battery dimensions:
Battery type	6-cell 86 WHr “smart” lithium-ion
Battery voltage	11.40 VDC
Battery weight (maximum)	0.34 kg (0.75 lb)
Height	77.70 mm (3.06 in.)
Width	295.20 mm (11.62 in.)
Depth	7.56 mm (0.30 in.)
Temperature range:
Operating	0°C to 60°C (32°F to 140°F)
Storage	-20°C to 60°C (-4°F to 140°F)
Battery operating time	Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.
Battery charging time (approximate)	3 hours (when the computer is off)
Coin-cell battery	Not supported

Camera (Web Cam) Specifications

Camera specifications
Camera resolution:
Number of cameras	One
Camera type	HD RGB camera
Camera location	Front camera
Camera sensor type	CMOS sensor technology
Still image	0.92 megapixel
Video	1280 x 720 (HD) at 30 fps
Diagonal viewing angle:	74.9 degrees

Audio Specifications

Audio specifications
Speaker output:
Audio controller	Realtek ALC3281-CG
Stereo conversion	Supported
Internal audio interface	High definition audio interface
External audio interface	Univesal audio jack HDMI 2.1 port
Number of speakers	2-Way (woofer/tweeter) stereo speaker design
Internal-speaker amplifier	Supported
External volume controls	Keyboard shortcut controls
Average speaker output	4 W
Peak speaker output	5 W
Subwoofer output	Not supported
Microphone	Digital-array microphones in camera assembly

Media-card Reader

Media-card reader specifications

Media-card type	One microSD card
Media-cards supported	Micro Secure Digital (mSD) Micro Secure Digital High Capacity (mSDHC) Micro Secure Digital Extended Capacity (mSDXC)

Internal slots

Internal slots
M.2	Two M.2 2230/2280 slots for solid-state drives One M.2 2230 slot for a solid-state drive

External Ports

External ports
Network port	One RJ45 port
USB ports	Two USB 3.2 Gen 1 ports One USB 3.2 Gen 1 port with PowerShare One Thunderbolt 3(USB Type-C) port with Power Delivery
Audio port	One headset (headphone and microphone combo) port
Video port	One HDMI 2.1 port One Mini DisplayPort 1.4 One Thunderbolt 3 (USB Type-C) port with Power Delivery
Media-card reader	One microSD-card slot
Power-adapter port	One 7.4 mm x 5.1 mm power adapter port
Security-cable slot	One wedge-shaped slot

Communication wireless module

Wireless module specifications
Model number	Killer Wi-Fi 6 AX1650
Transfer rate	Up to 2400 Mbps
Frequency bands supported	2.4 GHz/5 GHz
Wireless standards	WiFi 802.11a/b/g Wi-Fi 4 (WiFi 802.11n) Wi-Fi 5 (WiFi 802.11ac) Wi-Fi 6 (WiFi 802.11ax)
Encryption	64-bit/128-bit WEP AES-CCMP TKIP
Bluetooth	Bluetooth 5.1

keyboard

Keyboard specifications
Keyboard type	4-zone RGB keyboard RGB per key keyboard Mechanical keyboard
Keyboard layout	QWERTY
Number of keys	United States and Canada: 103 keys United Kingdom: 104 keys Japan: 107 keys
Keyboard size	X=19.05 mm key pitch Y=19.05 mm key pitch
Keyboard shortcuts	Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. To type the alternate character, press Shift and the desired key. To perform secondary functions, press Fn and the desired key.

TouchPad

Touchpad specifications
Touchpad resolution:
Horizontal	1229
Vertical	929
Touchpad dimensions:
Horizontal	105 mm (4.13 in.)
Vertical	80 mm (3.15 in.)

Power Adapter

Power adapter specifications
240 W	Type: 240 W Connector dimensions: External diameter: 7.40 mm Internal diameter: 5.10 mm Input voltage: 100 VAC–240 VAC Input frequency: 50 Hz–60 Hz Input current (maximum): 5 A Output current (continuous): 12.31 A Rated output voltage: 19.50 VDC Temperature range: Operating: 0°C to 40°C (32°F to 104°F) Storage: -40°C to 70°C (-40°F to 158°F)
330 W	Type: 330 W Connector dimensions: External diameter: 7.40 mm Internal diameter: 5.10 mm Input voltage: 100 VAC–240 VAC Input frequency: 50 Hz–60 Hz Input current (maximum): 4.40 A Output current (continuous): 16.92 A Rated output voltage: 19.50 VDC Temperature range: Operating: 0°C to 40°C (32°F to 104°F) Storage: -40°C to 70°C (-40°F to 158°F)
